1960 Evinrude Fisherman (5.5hp) Fuel Pump

Home › Forum › Ask A Member › 1960 Evinrude Fisherman (5.5hp) Fuel Pump

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • April 29, 2018 at 2:50 pm #9777
    silvab7232
    Participant

      Hello i was wondering if there was a kit available for a 1960 evinrude Fisherman (Model 5520) Fuel pump? I have looked everywhere and can’t seem to find one 🙁

      April 29, 2018 at 3:09 pm #75013
      frankr
      Participant

        US Member

        Because there ain’t one.

        April 29, 2018 at 4:18 pm #75021
        need2fish
        Participant

          Sierra replacement pump: https://www.ebay.com/itm/Fuel-Pump-for-Johnson-Evinrude-OMC-SIE-9-9hp-15hp-397839-9-9-10-15-hp18-7350/253177052489?hash=item3af2873d49:g:Kg0AAOSwkehZyxgS&vxp=mtr

          Yes, it looks nothing like your original, but will bolt (screw) right on.

          For the OEM version, search for P/N 0388685 on marineengine.com or other.

          There are cheaper, but off-brand can be dicey. Some people don’t like the Sierra line as they’ve had trouble with coils and other parts.

          Not a good idea to use ethanol.

          April 29, 2018 at 4:27 pm #75022
          Buccaneer
          Participant

            US Member

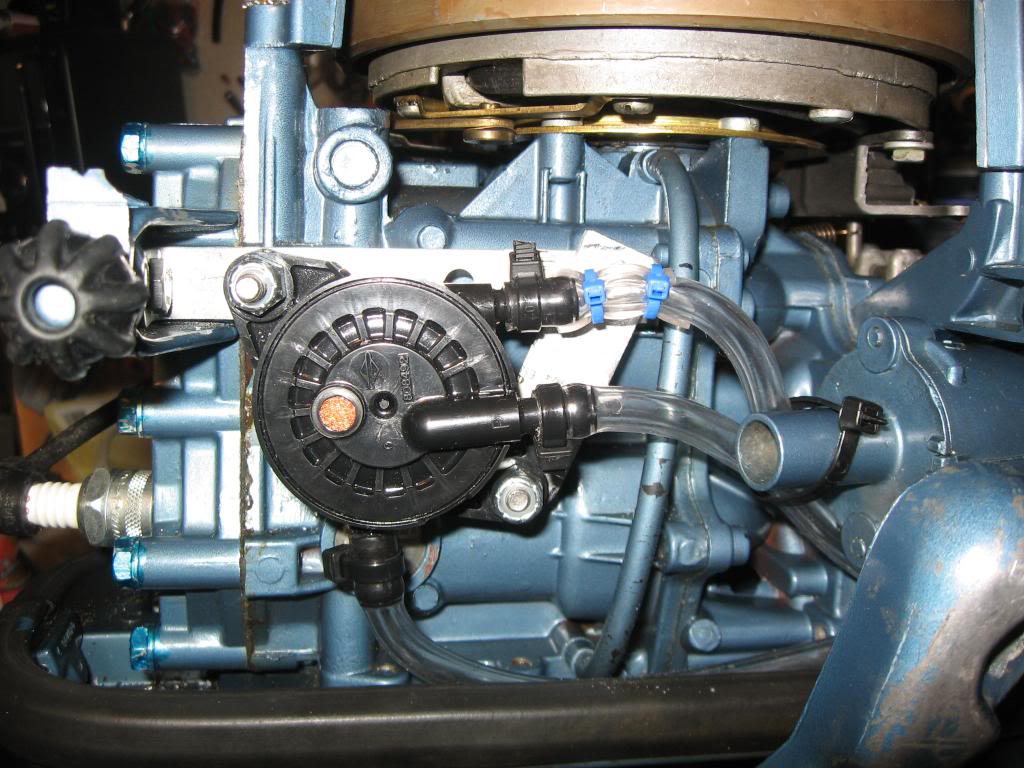

            I used a B&S fuel pump on my 1960 Fisherman.
            The number on my pump is 808492.
            Here’s one on Amazon…..
            https://www.amazon.com/Briggs-Stratton- … B00P9VAZI2

            Not sure of the long-term results, but I don’t
            think they have much problems on the riding lawn mowers.
            Then again, if your mower quits, you don’t have to row home!

            Attachments:

            Prepare to be boarded!

            April 29, 2018 at 5:16 pm #75023
            amuller
            Participant

              It is possible to buy the diaphragm material in bulk from various sources and cut your own out. I do it and it works. But some pumps have things riveted to the diaphragms, and some are fussy-fiddly with little cups and springs that tend to escape.

              April 29, 2018 at 5:52 pm #75024
              westwind
              Participant

                Canada Member
                quote Buccaneer:

                I used a B&S fuel pump on my 1960 Fisherman.
                The number on my pump is 808492.

                Are the clear lines OK for fuel? I’ve never had any luck with plain hose, is there a better type?

                April 29, 2018 at 6:01 pm #75025
                crosbyman
                Participant

                  Canada Member - 2 Years

                  😉 gee…….. that picture is a dead ringer to mine 🙂

                  Joining AOMCI has priviledges 🙂

                  April 29, 2018 at 10:14 pm #75037
                  Buccaneer
                  Participant

                    US Member

                    Clear lines okay for fuel if – They’re rated for it. That’s what they’ve been
                    using on snowmobiles the last 60 years.
                    -If the clear line isn’t subjected to something
                    very hot on the motor or excessive rubbing.
                    Just guessing that the outboard manufactures
                    use the heavy rubber fuel line as it’s "better"
                    for those circumstances.

                    quote westwind:

                    quote Buccaneer:

                    I used a B&S fuel pump on my 1960 Fisherman.
                    The number on my pump is 808492.

                    Are the clear lines OK for fuel? I’ve never had any luck with plain hose, is there a better type?

                    Prepare to be boarded!
