  • January 2, 2017 at 10:10 pm #50179
    davidk
    Participant

      US Member

      I checked my 1926 Super G and it has the 824-6 bracket. Maybe that will help you find a trade?

      January 2, 2017 at 10:58 pm #50182
      wbeaton
      Participant

        Canada Member

        I had a visit from Chris P today. We compared steering yokes and then tore down my Ruddertwin. The problem is definitely with the mount and not the yoke. I took the spare mount and built up the edges with duraweld aluminium welding rod. I’ll shape it tomorrow when it’s cooled and see if that will work instead of modifying the yoke. Hopefully it will work until I can find a replacement mount. If I can’t find a replacement I’ll cast one. It would be super easy to make. I’ll keep you posted.

        Wayne
        Upper Canada Chapter

        uccaomci.com

        January 2, 2017 at 11:17 pm #50185
        brook-n
        Participant

          Hi Guys,
          Happy New Year.

          Wbeaton the tiller yoke you have with the pullies and the mounting bracket with the two holes would be for the model G & J measures 7".

          Model A’s & earlier ( solid rudder ) no pullies mounting bracket 4 holes measures around 3"

          Model C no pullies mounting bracket 4 holes measures around 7".

          Model D no pullies mounting bracket 4 holes measures 10".

          Model G & J has pullies mounting bracket 2 holes measures around 7".

          Model K has pullies mounting bracket 2 holes measures around 10".

          There was also a hollow rudder conversion kit that was offered to switch your solid rudder motor over to a hollow rudder cooling system.
          That has no pullies mounting bracket 4 holes measures around 5".

          Measurements were taken from the Ruddertwins I have in my collection.

          Respectfully

          January 2, 2017 at 11:26 pm #50189
          wbeaton
          Participant

            Canada Member

            Thanks, Brook. I appreciate the knowledge and effort.

            Wayne
            Upper Canada Chapter

            uccaomci.com

            January 2, 2017 at 11:33 pm #50190
            brook-n
            Participant

              No problem.

              Respectfully

              January 3, 2017 at 4:20 pm #50231
              Tubs
              Participant

                Brook, in your list you show 3 brackets with 4
                mounting holes. The one from my "C" is different
                from the one on wbeaton’s motor. Which motor
                do you thing his mounting bracket came from.

                A "Boathouse Repair" is one that done without having tools or the skills to do it properly.

                January 3, 2017 at 5:48 pm #50238
                brook-n
                Participant

                  Hi Tubs,
                  Based on the initial photo he posted it looks to be from a Model G or J having 2 mounting holes with pullies.
                  I believe the Model C should have 4 mounting holes without pullies.

                  Based on the ones I have in my collection.

                  Respectfully

                  January 3, 2017 at 5:55 pm #50239
                  wbeaton
                  Participant

                    Canada Member
                    quote Brook N.:

                    Hi Tubs,
                    Based on the initial photo he posted it looks to be from a Model G or J having 2 mounting holes with pullies.
                    I believe the Model C should have 4 mounting holes without pullies.

                    Based on the ones I have in my collection.

                    Respectfully

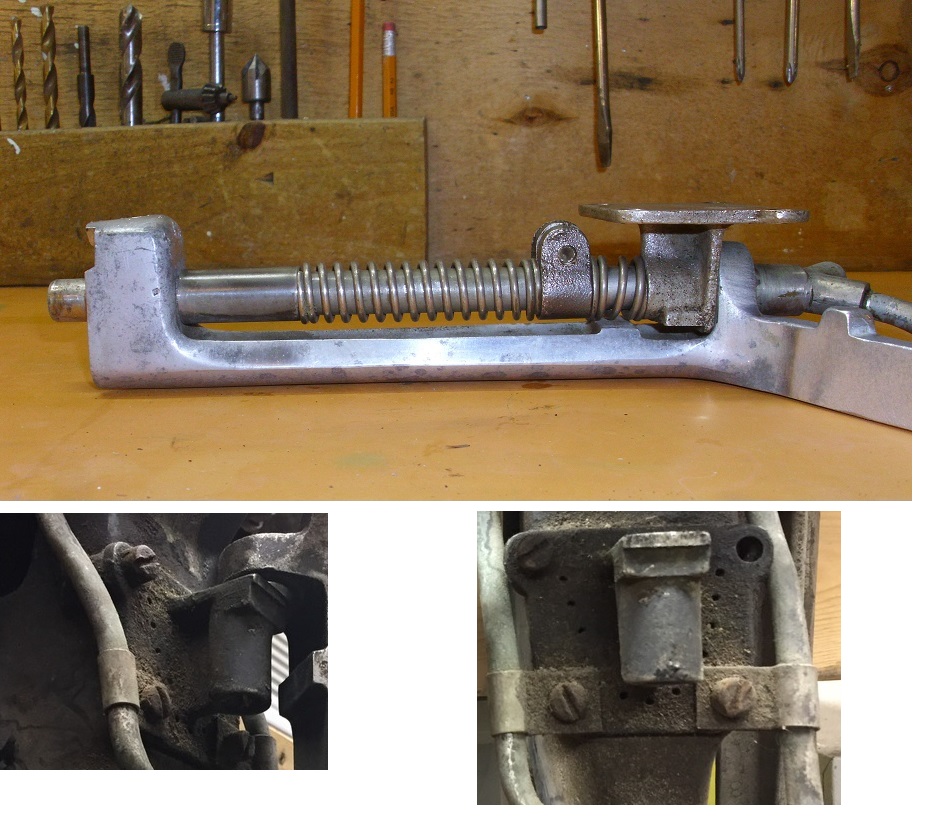

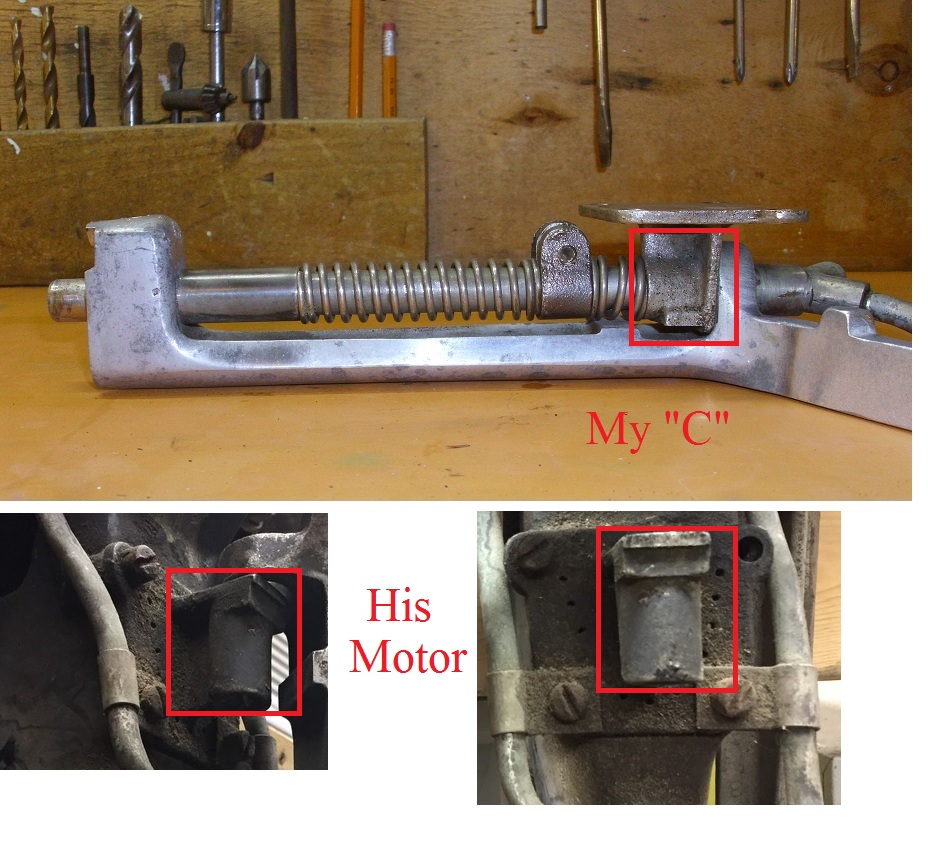

                    I think Tub’s is asking about the small mounting bracket that connects the yoke to the midsection as seen in the photos above. My Model C came with a four hole mounting bracket, which is 1/2" higher than the four hole bracket on Tub’s Model C. You can see the difference between them in the photos he posted. The two hole bracket in the photo I posted came with the replacement steering yoke and is not original to my motor.

                    On a side note, I wonder if I have the wrong prop. I notice that the prop will contact the rudder if its turned too far. Is this normal? The prop nut and prop look correct to me.

                    Wayne
                    Upper Canada Chapter

                    uccaomci.com

                    January 3, 2017 at 7:06 pm #50242
                    Tubs
                    Participant
                      quote wbeaton:

                      quote Brook N.:

                      Hi Tubs,
                      Based on the initial photo he posted it looks to be from a Model G or J having 2 mounting holes with pullies.
                      I believe the Model C should have 4 mounting holes without pullies.

                      Based on the ones I have in my collection.

                      Respectfully

                      I think Tub’s is asking about the small mounting bracket that connects the yoke to the midsection as seen in the photos above. My Model C came with a four hole mounting bracket, which is 1/2″ higher than the four hole bracket on Tub’s Model C. You can see the difference between them in the photos he posted. The two hole bracket in the photo I posted came with the replacement steering yoke and is not original to my motor.

                      A "Boathouse Repair" is one that done without having tools or the skills to do it properly.

                      January 3, 2017 at 10:20 pm #50254
                      brook-n
                      Participant

                        Just got home from work, once I get settled in I will go take a closer look.

                        Respectfully
