    We picked up a couple Sea King’s this weekend and I’m trying to figure out when they were produced. The serial and model number guides I have don’t show either number.

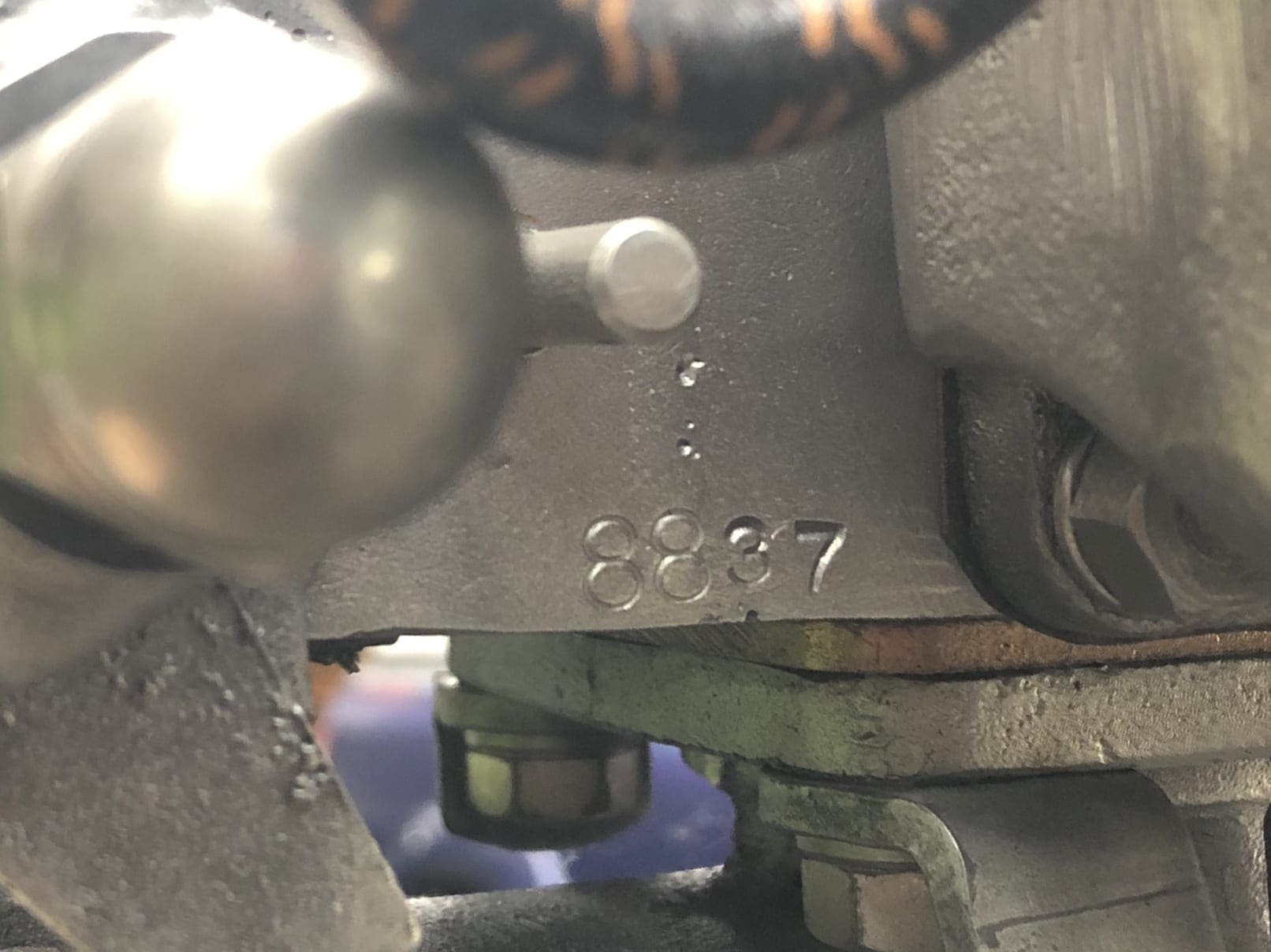

    The first appears to be based on the 1931-33 Evinrude Lightwin 4 hp. It is model number 8837. Model 88xx was used from 1935-39 as best as I can tell. It’s possible this one was built from parts . During this time.

    FF4AAE8B-875B-4D3F-90C6-4B1B2867DE86

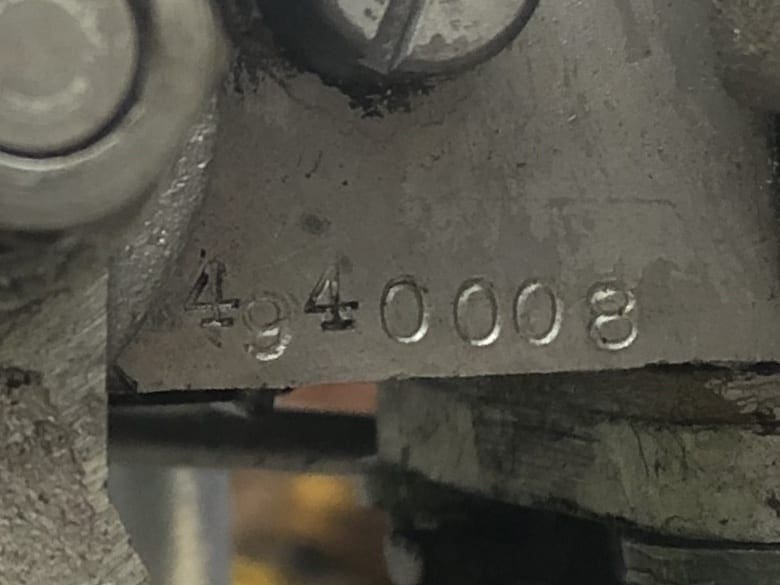

    The second appears to be based on the 1934 Evinrude Lightwin 5.1 hp. It is Model number 4940008. That doesn’t match any known model number.

    E40346D3-6B29-44D4-8584-72299C09858F

    Wayne
    Upper Canada Chapter

    uccaomci.com

    • This topic was modified 5 months ago by Avatarwbeaton.
    • This topic was modified 5 months ago by Avatarwbeaton.
    • This topic was modified 5 months ago by Avatarwbeaton.
    Attachments:
    Mumbles
    Mumbles

    Canada Member - 2 Years
    Replies: 4234
    Topics: 427
    #178864

    Your second motor appears to be a 494 ’34 four horse twin with a really low serial number. Eighth one off the line? I’m not sure about the first one yet.

    Did you check for a brass welch plug behind the carb? The Sea Kings I’ve seen usually have one located there somewhere with all the numbers stamped on it.

    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178875

    I’m reading the model guide wrong. The two model guides I have show 494 8803 as 1936. I guess the other will remain a mystery. The welch plugs have no identifying marks. 88xx doesn’t show up until 1935 and 8837 never makes an appearance.

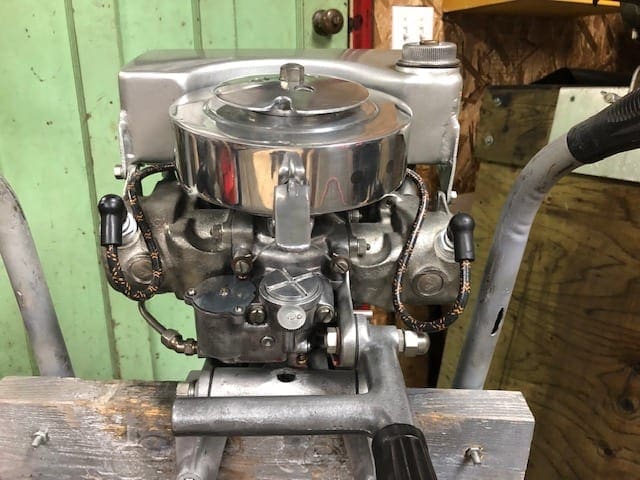

    IMG_2670

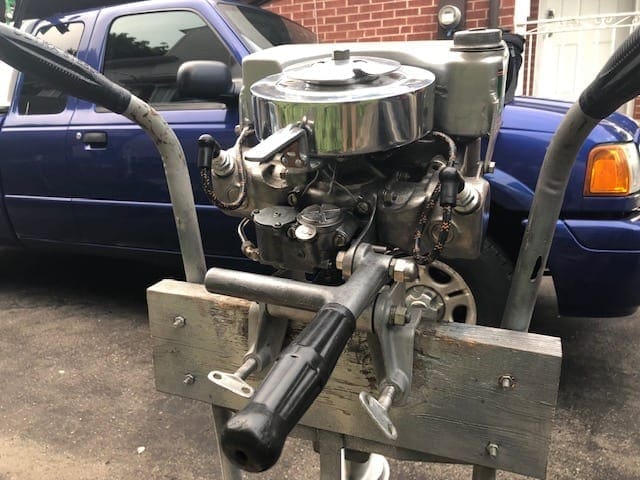

    IMG_2642

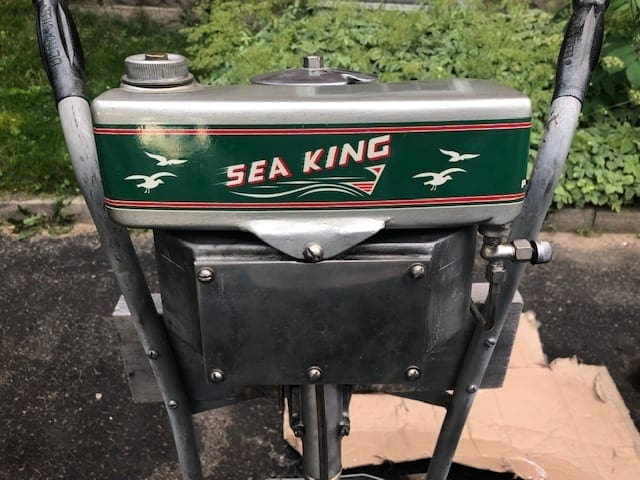

    IMG_2643

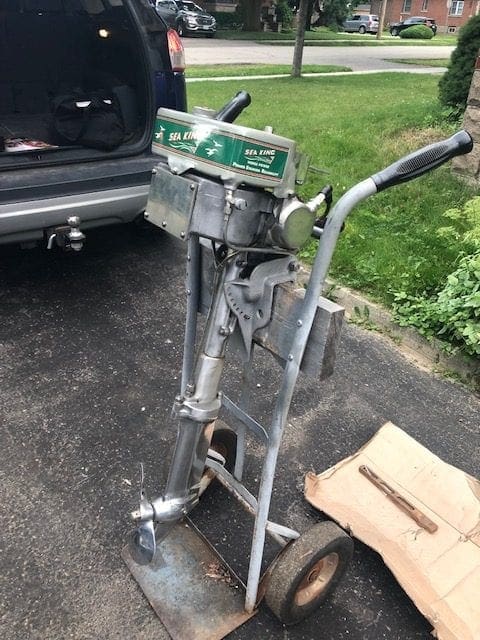

    IMG_2640-1

    Wayne
    Upper Canada Chapter

    uccaomci.com

    • This reply was modified 5 months ago by Avatarwbeaton.
    • This reply was modified 5 months ago by Avatarwbeaton.
    • This reply was modified 5 months ago by Avatarwbeaton.
    Attachments:
    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2495
    Topics: 149
    #178900

    Nice example.
    Someone spent some time on it.

    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178918

    The previous owner did a nice job on the restoration. Unfortunately, it won’t run on fuel through the carb. So that is the next step.

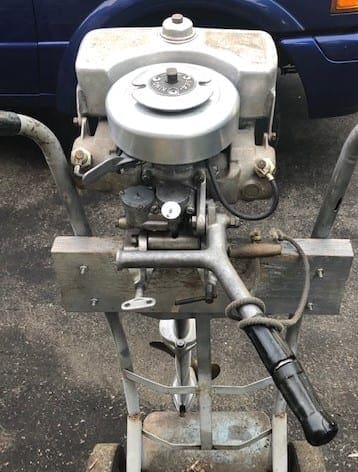

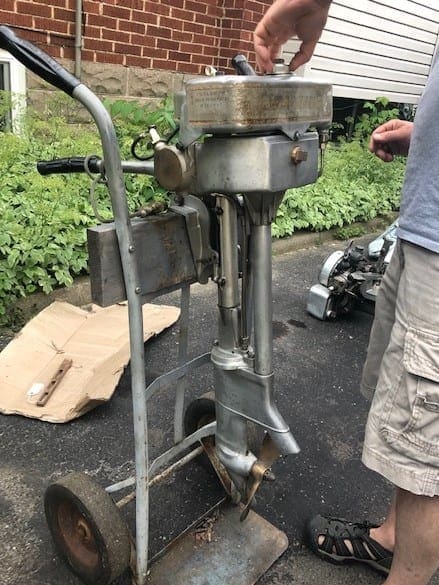

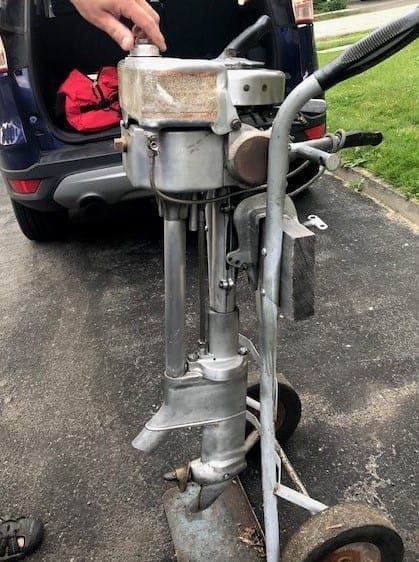

    The second Sea King is a nice original. It belongs to a friend.

    IMG_2645

    IMG_2646

    IMG_2647

    Wayne
    Upper Canada Chapter

    uccaomci.com

    Attachments:
    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2495
    Topics: 149
    #178935

    “Unfortunately, it won’t run on fuel through the carb.”
    Pretty simple carb. Fuel goes from the float bowl to
    a hole in the seat under the poppet valve. The mixture
    screw is in between controlling the amount of fuel.

    • This reply was modified 5 months ago by TubsTubs.
    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178937

    Just like an ELTO carb with that big poppet valve. I haven’t spent much time on it. It fired on penetrating oil on the first pull, but nothing through the carb. I gave it 15 minutes and moved on. I had two other motors to test and limited time. I’ll get back at it soon. 😀

    Wayne
    Upper Canada Chapter

    uccaomci.com

    • This reply was modified 5 months ago by Avatarwbeaton.
    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178963

    Success! Had it running tonight. Once I figured out where to set the carb needle it would start and run well. YouTube isn’t working for me right now or I’d post a video.

    Wayne
    Upper Canada Chapter

    uccaomci.com

    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178973

    Wayne
    Upper Canada Chapter

    uccaomci.com

    Mumbles
    Mumbles

    Canada Member - 2 Years
    Replies: 4234
    Topics: 427
    #178988

    Right on. Looking good Wayne!

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2495
    Topics: 149
    #178992

    I have a couple 1929″s with the Atwater-Kent ignition
    and the folding lower unit. They do a pretty good job
    of moving a boat for a small motor. Yours might be
    a bit quicker with the magneto.

    Avatar
    wbeaton

    Canada Member - 1 Year
    Replies: 705
    Topics: 77
    #178996

    Thanks guys. Tubs, your folding Lightweight is fantastic. I almost bought a pair of them at Constantine this past weekend.

    Wayne
    Upper Canada Chapter

    uccaomci.com
