  • March 23, 2018 at 11:01 pm #72928
    RICHARD A. WHITE
    Participant

      Lifetime Member

      Wonderful news…. So I was correct for a change….lol

      http://www.richardsoutboardtools.com
      classicomctools@gmail.com

      March 23, 2018 at 11:11 pm #72930
      roalco
      Participant

        Indeed! Thanks Richard!

        March 24, 2018 at 1:49 am #72938
        PM T2
        Participant

          Canada Member

          If you haven’t already, take the time to check the lower unit over for fit of the propshaft in the supporting bearing(s). These motors are prone to worn bushings in the foot, and if you run it for very long with a loose propshaft, two things can happen that aren’t very good…
          1) grease gets out and water gets in
          2) the wobbling shafts wreak havoc on the gears (and possibly water pump components)

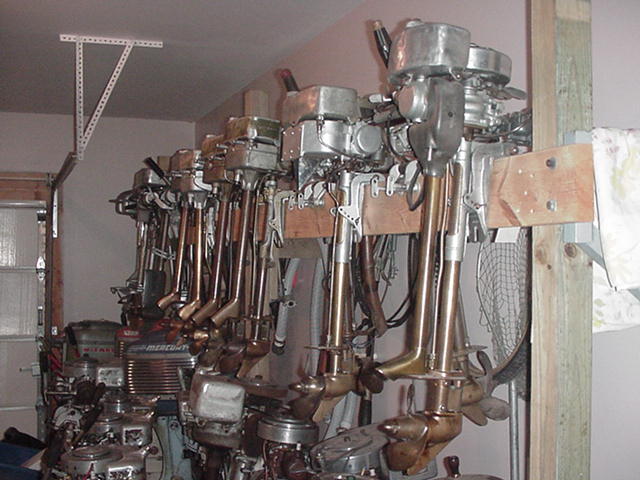

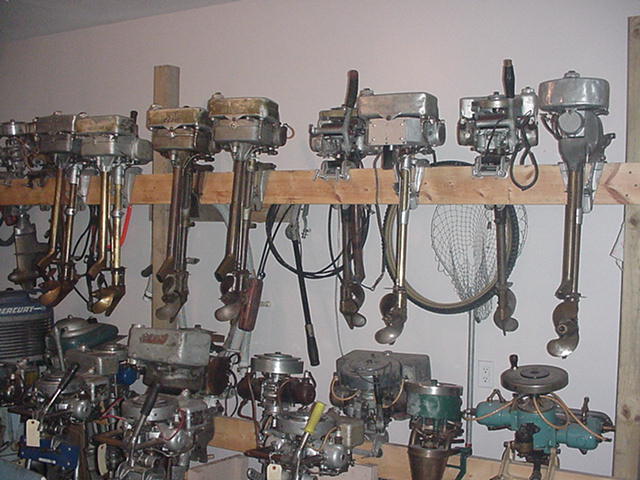

          Hope it helps. Good luck with your motor. I used to own a ton (literally) of those brass lower unit motors, so I got to know many of them intimately.

          Best,
          PM T2

          He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

          March 24, 2018 at 4:08 am #72941
          roalco
          Participant

            Good point TM P2, just went out to check it. Pulled the prop, the old rubber drive bush is hard as a rock, and the blades run slightly wobbly (putting the inner sleeve in the lathe and spinning it). The prop shaft has some play, so, looking at it from astern, we get a wee bit of motion along a line from about 7:30 to 2:30, but reasonably tight in all other planes. What would the original clearance be? It might be fairly easy to bore the after gearbox casting and sleeve it.

            March 24, 2018 at 4:11 am #72942
            roalco
            Participant

              Oh, and btw, the gears look to be in excellent condition.

              March 24, 2018 at 10:50 am #72947
              PM T2
              Participant

                Canada Member

                Clearance between propshaft and supporting bearing ought to be in the 0.002" to 0.003" range.

                You can get away with slightly more than that, but if you’re going to run it for any amount of time, and the current clearance is much greater than 0.005", consider re-bushing it.

                Just my two cents.

                Best,
                PM T2

                He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

                March 25, 2018 at 4:20 pm #73016
                roalco
                Participant

                  It’s well over that on the one axis, almost like it had been run without grease at all…
                  So I packed it full, for now, and light testing, and will get a couple of oilite bearings to re-bush with.
                  Thanks for the input, PM T2!
                  Ross

                  March 31, 2018 at 3:56 pm #73281
                  roalco
                  Participant

                    Well guys, good news! It runs in the test thank!!
                    The carb had a bit of a tendency to flood, so I stripped it down after running (filter screen was missing and I think it got a bit of dirt in the float valve) cleaned it all out and made a filter screen for it.
                    Just a quick question on the mixture adjust needle screw. With the shroud off, it is seated with the lever at about a 10 o’clock position, and with the shroud on, it is limited to a range of motion from about 4 o’clock to 8 o’clock. Should I adjust the position of the lever so that it is seated (shut fully) when the lever is at the lean limit of the shroud slot?
