1936 Johnson Model 100 tiller bracket and handle

Home › Forum › Ask A Member › 1936 Johnson Model 100 tiller bracket and handle

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • November 20, 2017 at 3:21 am #8701
    Buccaneer
    Participant

      US Member

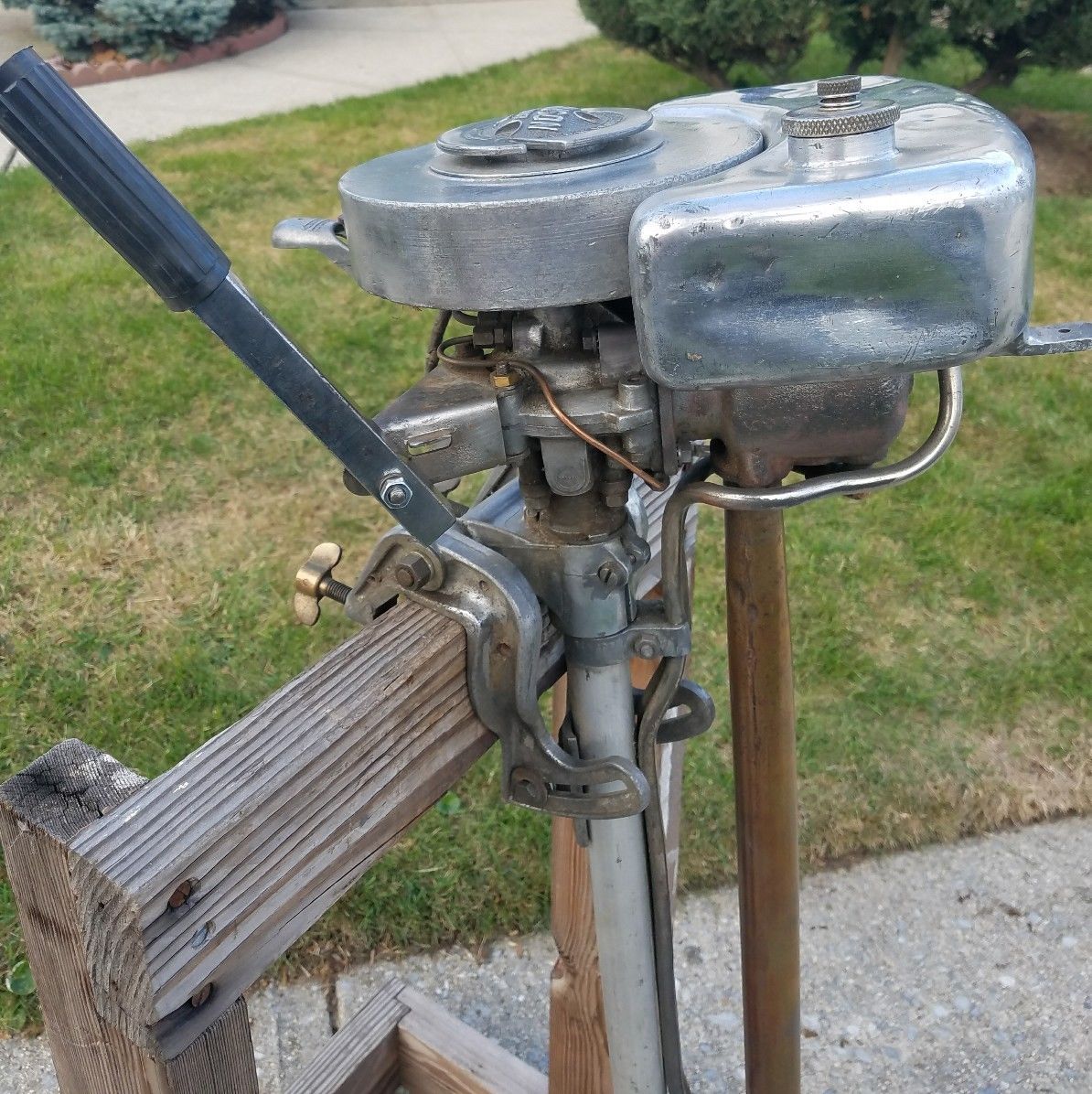

      My Model 100 had a homemade tiller and it was bolted to the
      wrong location on the power head. Just found these photos
      on EBay of a Model 100.

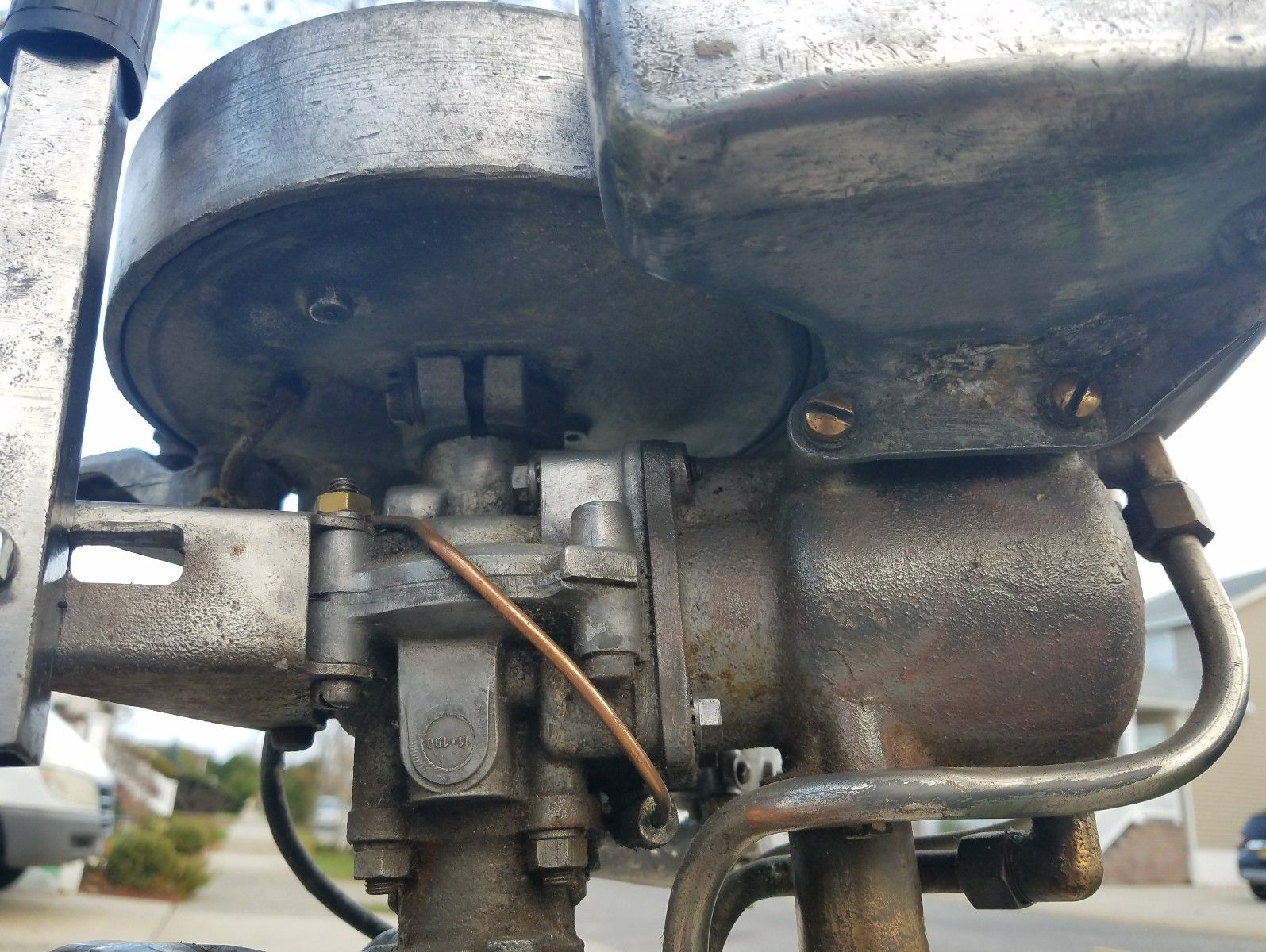

      Does this "triangular" bracket and square tiller handle
      look correct?
      If nothing else, a round grip on a square handle
      seems "odd"!

      If I had more photos, perhaps I could fabricate a bracket.

      Attachments:

      Prepare to be boarded!

      September 12, 2020 at 12:54 pm #216217
      Bluefin
      Participant

        US MEMBER PAY BY CHECK

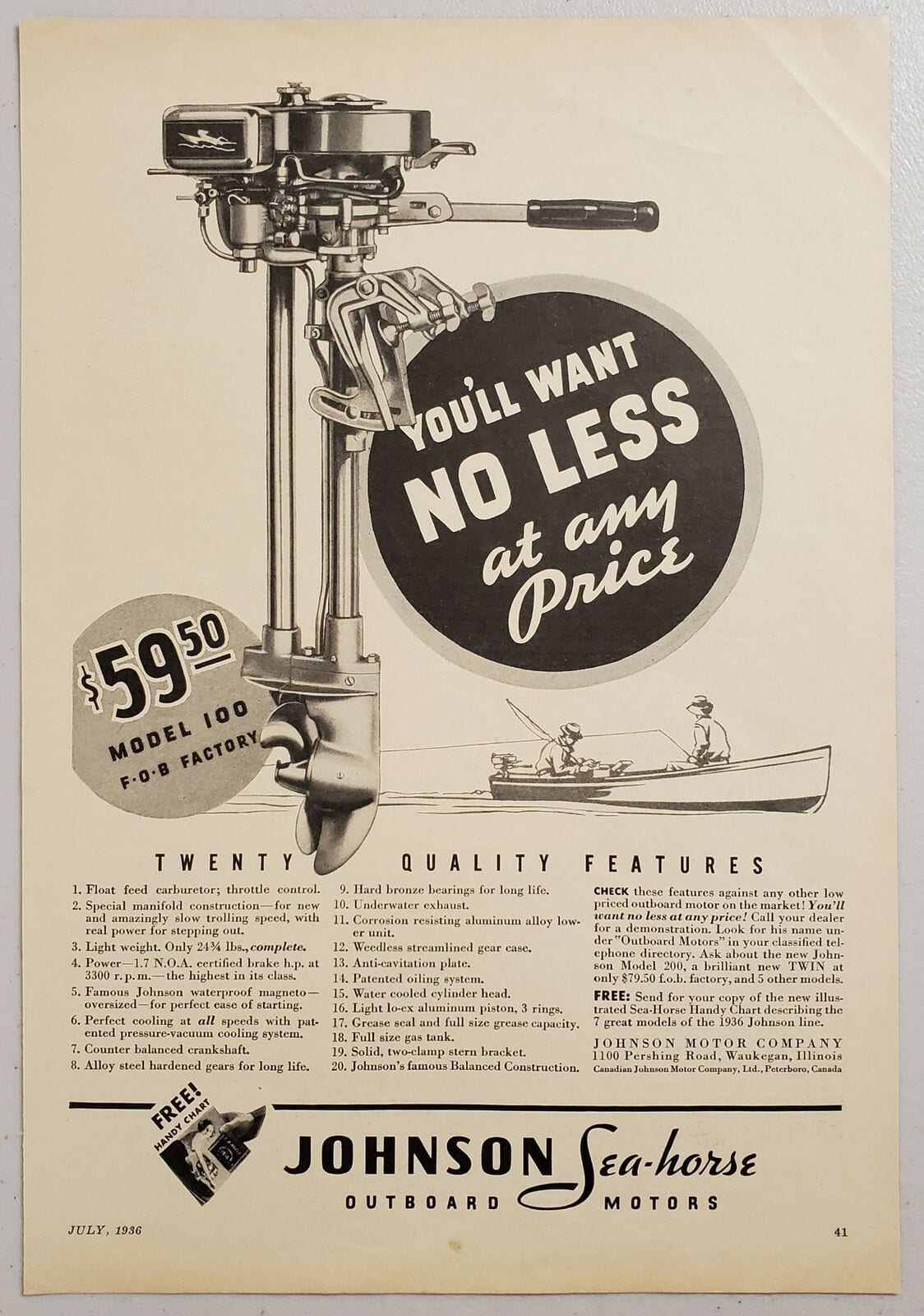

        The square tiller is proper. The proof is the 1936 Johnson advertisement that shows this (attached). I recently bought one of these and it was missing the tiller. Doug & Matt Penn supplied the missing piece. My triangular tiller bracket was mounted on the starboard side (can bolt up for either port of starboard use) so I suspect the original user was left handed.

        s-l1600

        September 12, 2020 at 1:40 pm #216226
        Buccaneer
        Participant

          US Member

          I ended up making a bracket and square tube tiller handle, which seem to work okay.
          I didn’t know any of the outboard manufacturers ever took in consideration “left handed”
          operators……… interesting! Thanks.

          Prepare to be boarded!

          September 13, 2020 at 4:59 pm #216346
          Steve Martin
          Participant

            US Member
            Buccaneer wrote:

            I ended up making a bracket and square tube tiller handle, which seem to work okay.
            I didn’t know any of the outboard manufacturers ever took in consideration “left handed”
            operators……… interesting! Thanks.

            What grip did you use? I have the same setup, but no grip.

            September 13, 2020 at 5:11 pm #216348
            Buccaneer
            Participant

              US Member

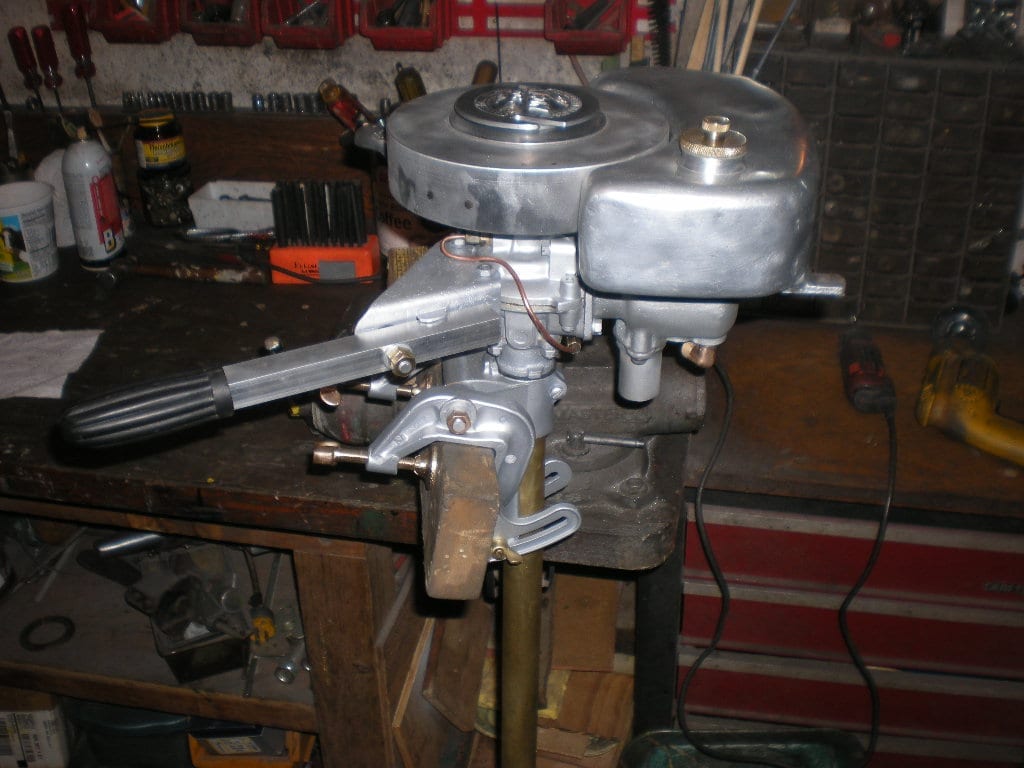

              Not sure anymore where I got the grip, but doubt it’s correct.
              I’ve ordered some for Johnson outboards from member Big Rich
              on EBay.
              It’s a square tiller, but a round grip, and not sure what size ID fit it.

              DSCN6426

              Prepare to be boarded!

              September 15, 2020 at 10:56 pm #216534
              cajuncook1
              Participant

                Here is video of my 1937 Johnson 1.7hp Model 110 on the lake. It is all original. The tiller looks different from yours. Have fun putting around the lake with your model 100.

                Cheers

                https://www.youtube.com/watch?v=0kBRf4oopPk
