1937 Sea King 1.5 Hp. With poppit valve Carb.

Home › Forum › Ask A Member › 1937 Sea King 1.5 Hp. With poppit valve Carb.

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • June 20, 2024 at 5:58 pm #288446
    Davemnman
    Participant

      US Member

      Ok first the embarrassing question. Putting it back together, is it possible to put piston in wrong? (180 degrees), it is a 2 stroke.

      The story behind this motor is the man that started mercury motors found a bunch of these in warehouse he bought that were returned by customers due to poor starting. They say this man changed type of carborator from poppit to something else. QUESTION, does anyone know what type of carb he would have used. I have no idea how a poppit valve even works. Any info would be helpful. I know it ran 50 years ago when I was out in the boat with my dad. But has been sitting on a shelf a long time.

      June 21, 2024 at 9:10 am #288479
      Buccaneer
      Participant

        US Member

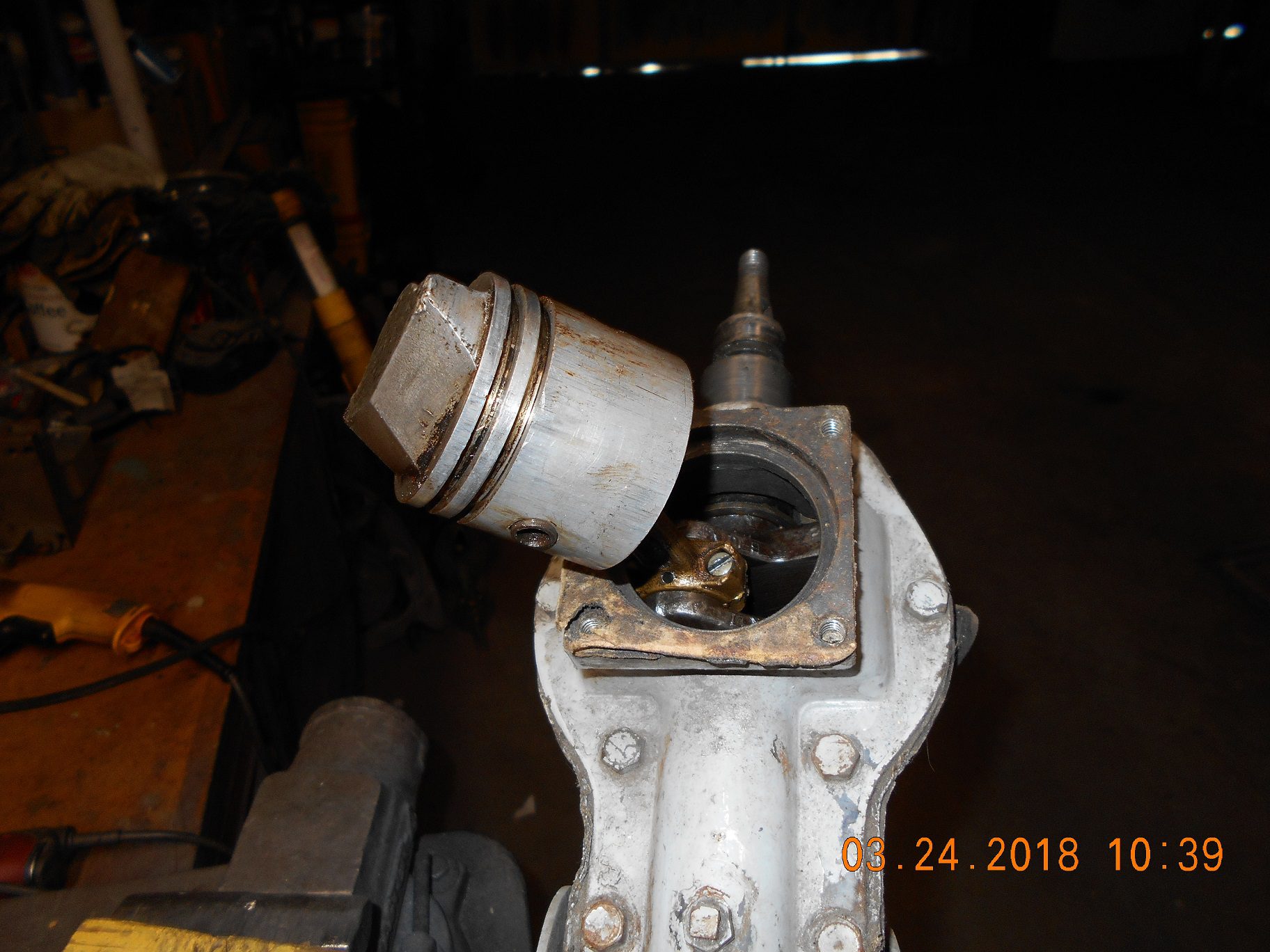

        Yes, entirely possible to install a piston the wrong rotation.
        The piston “Ramp” should point DOWN (Exhaust side)
        and the piston “Step” should be UP, intake side.
        This is my 1939 version.

        DSCN6539



        Prepare to be boarded!

        1 user thanked author for this post.
        Davemnman
        June 22, 2024 at 1:13 pm #288511
        fifty20ne
        Participant

          US Member

          Carl Kiekhaefer.

          1 user thanked author for this post.
          Davemnman
          July 4, 2024 at 8:57 pm #288845
          Davemnman
          Participant

            US Member

            Sounds like u have one of these motors. That is great. Maybe u can answer another question for me. What type of material is used as a seal or bearing material on the brass seals. What it looks like to me is a tape with a slippery  friction free surface on one side and a adhesive side to stick to the die casted piece.  Do they still make something like that?

            July 4, 2024 at 9:52 pm #288848
            Buccaneer
            Participant

              US Member
              Davemnman wrote:

              Sounds like u have one of these motors. That is great. Maybe u can answer another question for me. What type of material is used as a seal or bearing material on the brass seals. What it looks like to me is a tape with a slippery  friction free surface on one side and a adhesive side to stick to the die casted piece.  Do they still make something like that?

              I’m not sure what brass seals you’re talking about?
              My 1939 version does not appear to use any brass cased
              seal.

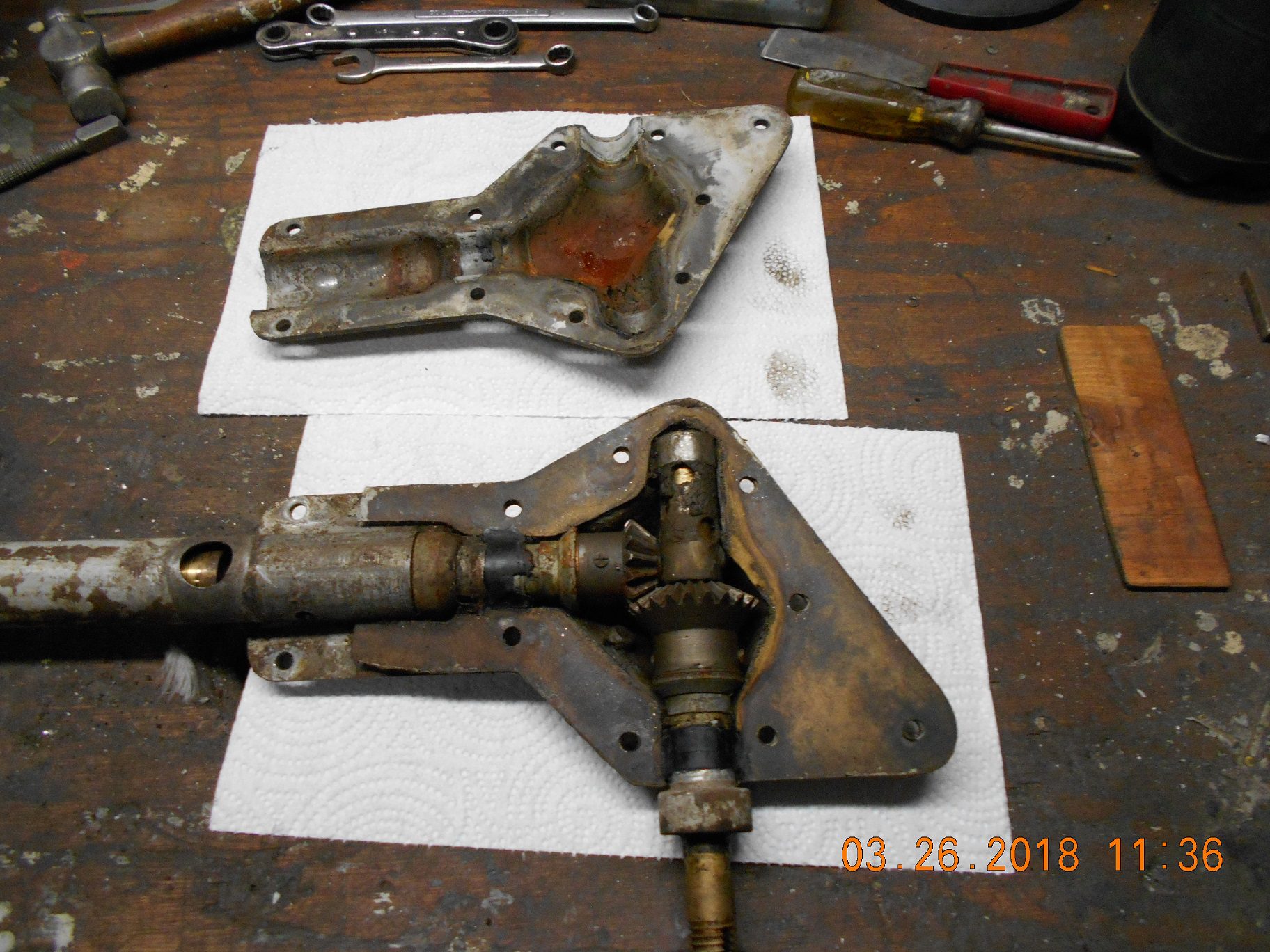

              On mine, there is some rubber tape-like seals on the prop shaft
              and drive shaft to help keep the water out.
              I think I replace it with Black Ultra Permatex sealant.

              DSCN6557a

              Prepare to be boarded!

              1 user thanked author for this post.
              Davemnman
            • Author
              Posts
