1938 1.1 hp Evinrude elto

Home Forum Ask A Member 1938 1.1 hp Evinrude elto

This topic contains 14 replies, has 5 voices, and was last updated by Avatar smokeonthewater 3 weeks, 5 days ago.

Viewing 15 posts - 1 through 15 (of 15 total)
  • Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181657

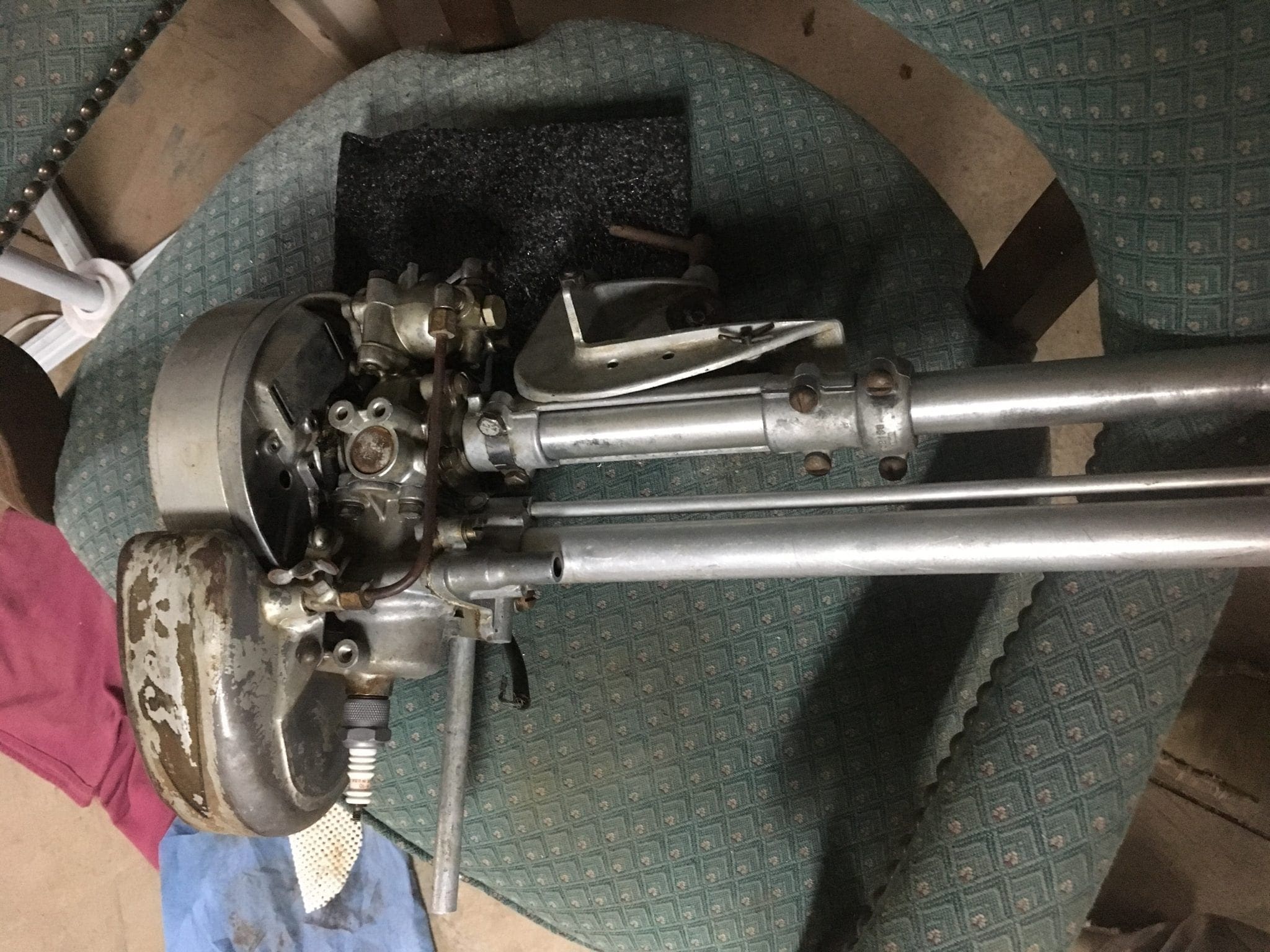

    Just joined club, I would like to rebuild this little outboard. It has been dropped and and has bent the lower unit. Where can I get parts? I would like a service or repair manual for this motor. Can anyone help with this.

    Avatar
    smokeonthewater
    US Member - 1 Year
    Replies: 47
    Topics: 17
    #181675

    I might have the parts you are looking for if you don’t mind they were painted some weird color. If you can provide me with the first 4 digits of the I.d tag. that will tell us what motor you have. If you can provide a picture of the damage, that would help get an idea of what parts you MIGHT need.
    Welcome to the club!

    Avatar
    garry-in-tampa
    Lifetime Member
    Replies: 3147
    Topics: 30
    #181679

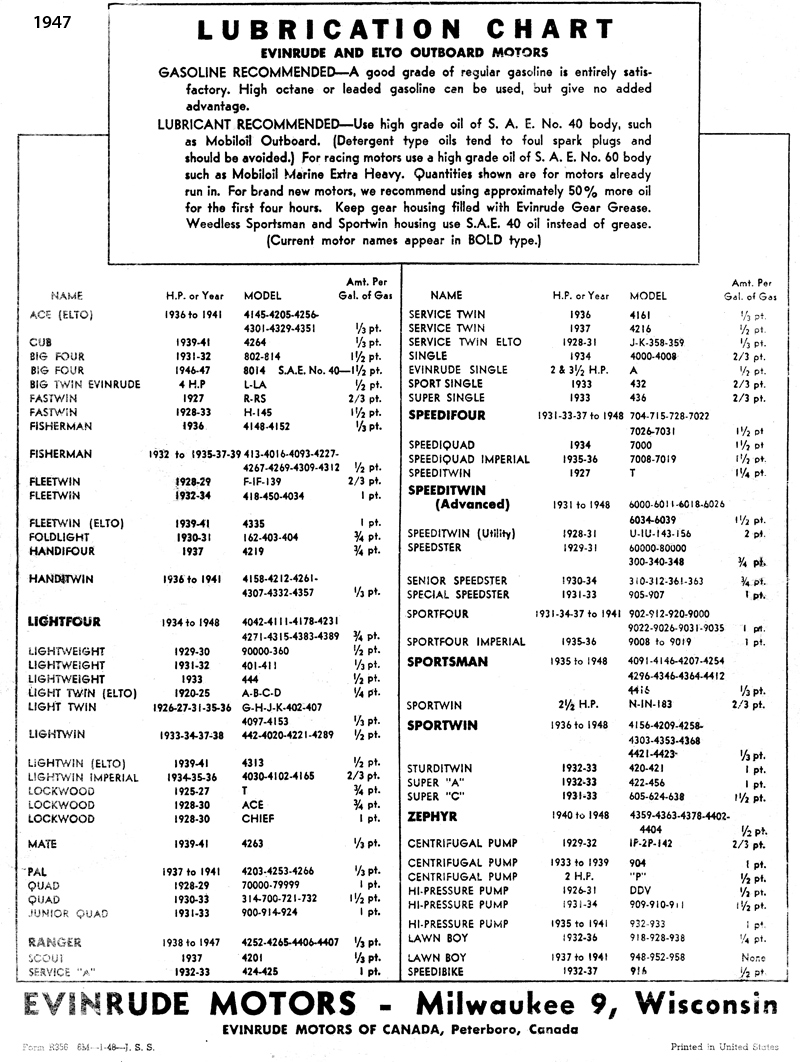

    This is the parts book – At that time they didn’t have service manuals for the individual models. Everything ( from setting up o showroom to ordering parts) was covered in a single volume.


    _____________________________________

    _____________________________________

    _____________________________________

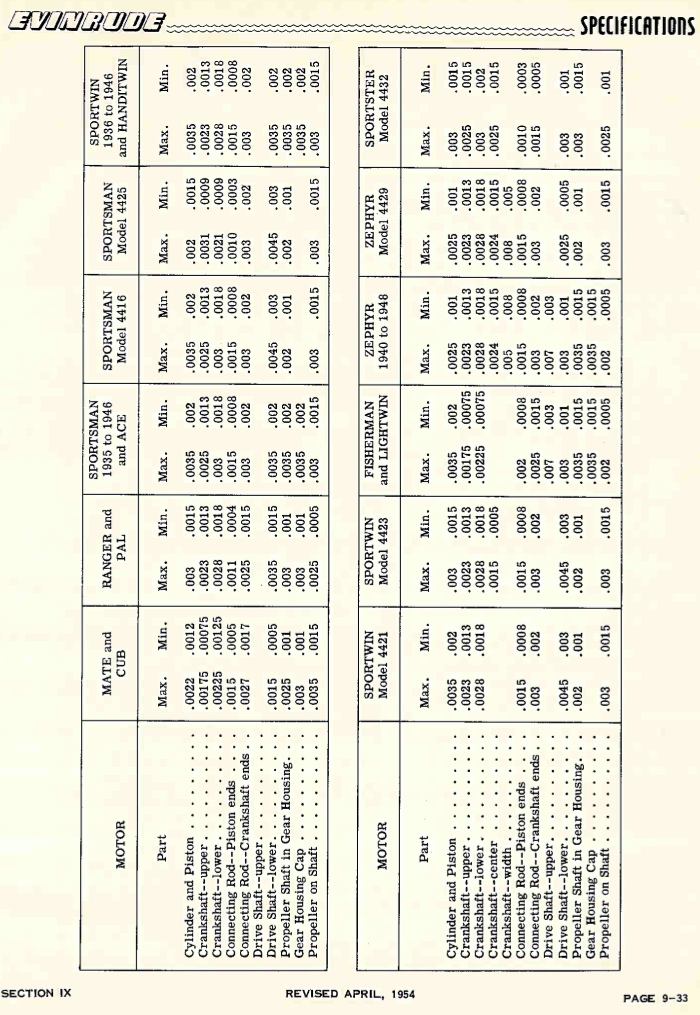

    From the service manual –






    Garry in Michigan

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181711

    Thank you! I’m not much of a computer person. The first 4 #’s are 4266. I’m not sure how to send pictures. I have them on my phone.

    phil
    phil
    US Member - 2 Years
    Replies: 98
    Topics: 14
    #181738

    (ignore this empty post)

    http://www.omc-boats.org
    http://www.aerocraft-boats.org

    • This reply was modified 4 weeks, 1 day ago by phil phil.
    Avatar
    smokeonthewater
    US Member - 1 Year
    Replies: 47
    Topics: 17
    #181739

    I have parts that will fit a 1941 pal 4266 Which is what you have. Just need to know which parts you need. Point to the pictures above.

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181749

    I might have the parts you are looking for if you don’t mind they were painted some weird color. If you can provide me with the first 4 digits of the I.d tag. that will tell us what motor you have. If you can provide a picture of the damage, that would help get an idea of what parts you MIGHT need.

    Welcome to the club!

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181752

    I have parts that will fit a 1941 pal 4266 Which is what you have. Just need to know which parts you need. Point to the pictures above.

    I need the gear housing only, handle grip, cotter pin I’ll try to send pictures later

    Avatar
    garry-in-tampa
    Lifetime Member
    Replies: 3147
    Topics: 30
    #181769

    Those light weight singles were rather delicate. A broken off gear case skegg was common. The Evinrude Ranger uses the same gear case.

    Garry inMichigan

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181804

    Attachments:
    Tubs
    Tubs
    US Member - 1 Year
    Replies: 2359
    Topics: 141
    #181829

    ”I need the gear housing only, handle grip”

    You might need the drive shaft as well
    Check to see if it is bent..
    I believe smokeonthewater realizes you need the
    later gear case with the wide exhaust.
    The grip is available from member Big Rich.

    Link
    https://www.ebay.com/itm/Vintage-ELTO-PAL-Elgin-1-1-4hp-Neptune-Ranger-Outboard-Motor-TILLER-grip/132895401239?hash=item1ef12ee517:g:paIAAOSwqu9VR5uT

    • This reply was modified 4 weeks ago by Tubs Tubs.
    • This reply was modified 4 weeks ago by Tubs Tubs.
    • This reply was modified 4 weeks ago by Tubs Tubs.
    • This reply was modified 4 weeks ago by Tubs Tubs.
    • This reply was modified 4 weeks ago by Tubs Tubs.
    • This reply was modified 4 weeks ago by Tubs Tubs.
    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181846

    Drive shaft does not appear bent at all I will try to take better pictures though and send them when I get home

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181847

    Thanks for the handle info

    Avatar
    Robert Trueblood
    US Member - 1 Year
    Replies: 7
    Topics: 1
    #181940

    How do I get in touch with anybody who has parts? Elto Pal 4266. my email address is pluggin02@msn.com my name is Robert

    Avatar
    smokeonthewater
    US Member - 1 Year
    Replies: 47
    Topics: 17
    #181942

    Robert, I sent you an email regarding the two spare lower units I have.
