      Greetings!

      I was referred to you by a friend of mine as the many questions I have asked him tells me there is only one place to go to answer my questions.
      So here I am. I have been slowly refurbishing a 1939 Johnson HD10 2.5 hp outboard. It’s missing several pieces which is ok since it’s strictly for display. However, I need a couple of parts to finish for a realistic presentation. I have the pulley for the recoil but need what I believe is the flywheel and throttle lever. A schematic of how the flywheel and throttle lever go together and attach to the motor would be very helpful. I have looked high and low online for these parts and schematic with no luck. I do not know it they interchange with other outboard motors. If anyone can help me with this, I would greatly appreciate it.

      Regards,

      Rudy

      August 19, 2016 at 3:31 pm #42357
      Tubs
      Participant

        This link will take you to Doug’s sight.
        I would think he will have everything you need.
        http://penn.itgo.com/

        A "Boat House Repair" is one that done without having tools or the skills to do it properly.

        August 19, 2016 at 4:02 pm #42358
        stanley
        Participant

          US Member - 2 Years

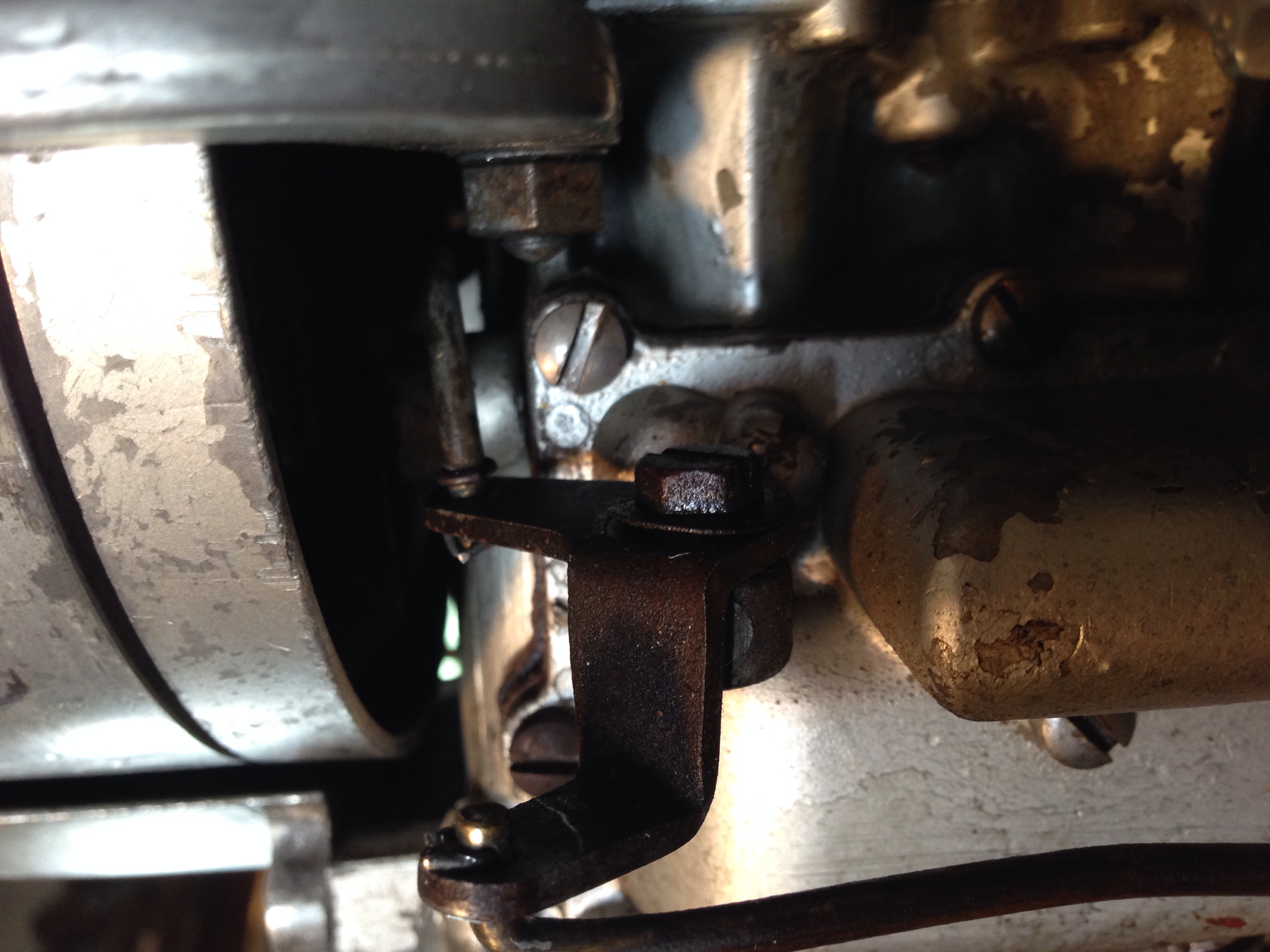

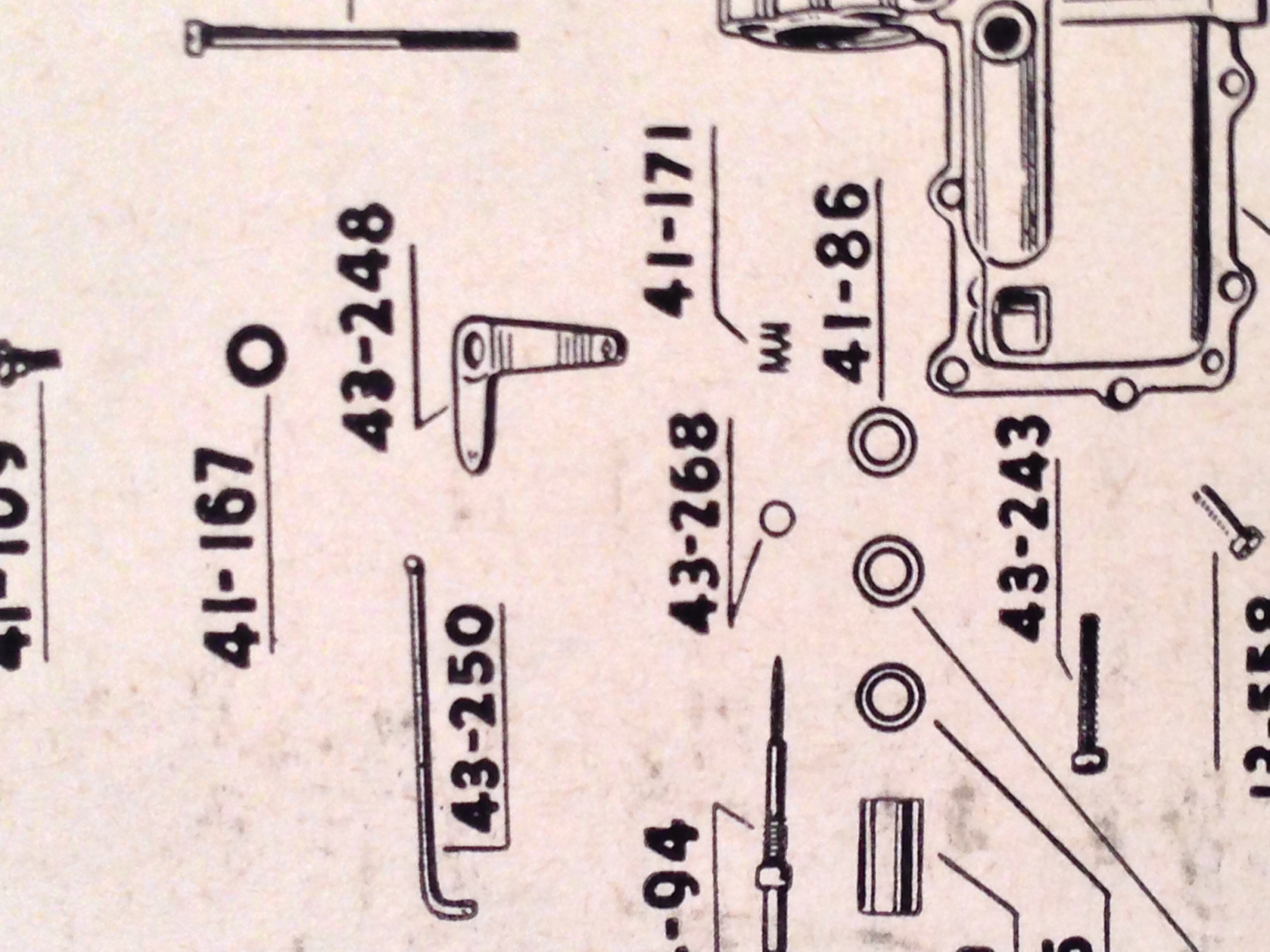

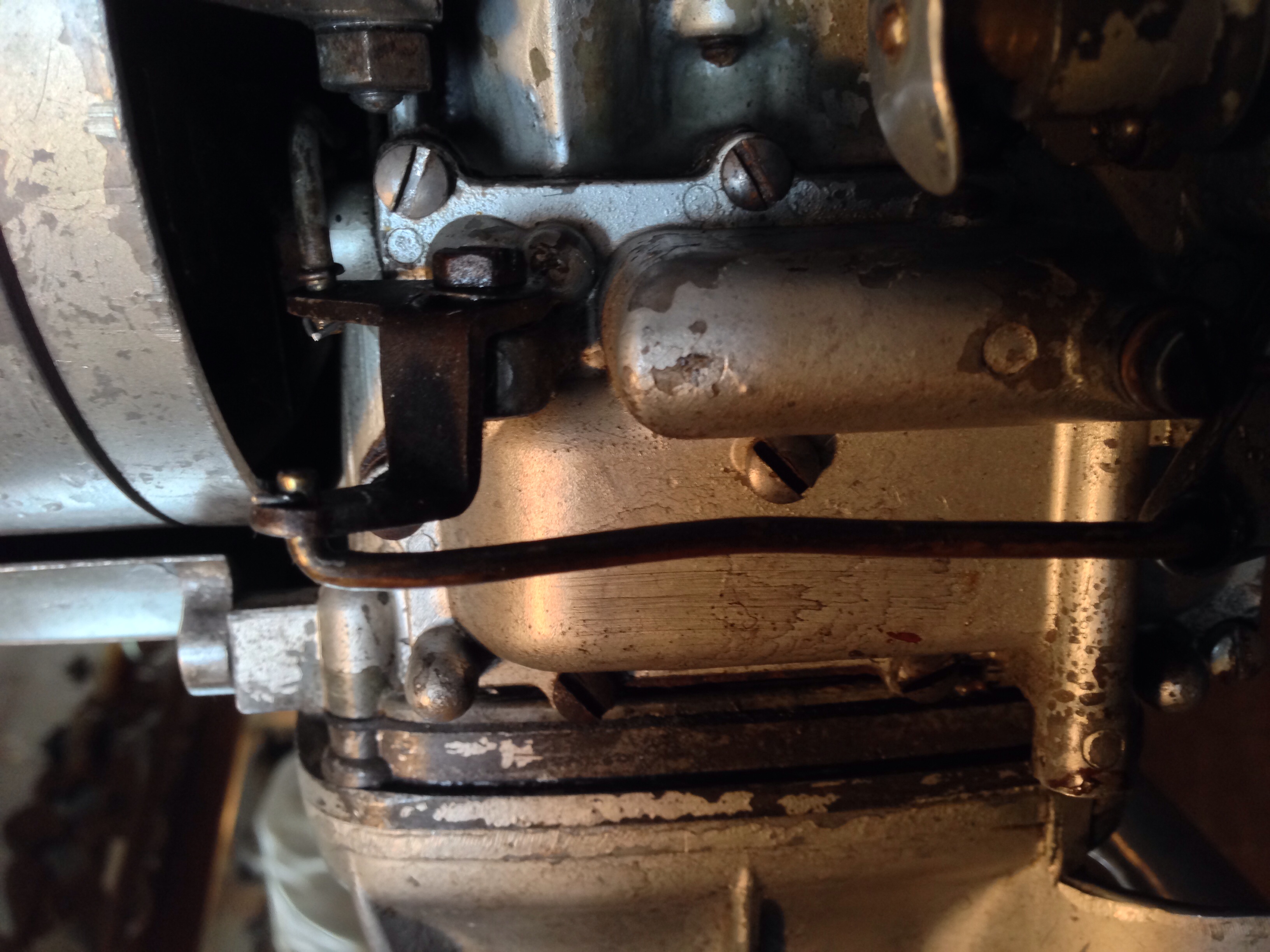

          I believe these show the linkage in question.Syncronizes the carb and magneto.43248and 43250 are shown in the parts view.there is another rod that connects the linkage to the bottom of the mag plate.As Tubs said Doug Penn will have all you need.

          Attachments:
