1939 Johnson seahorse HD 39

Home › Forum › Ask A Member › 1939 Johnson seahorse HD 39

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • August 27, 2017 at 11:34 pm #8051
    baljoint
    Participant

      Got this from my neighbor. Possibly sitting for as long as 40 years. 🙄 I don’t even know where to start. Nothing is froze up, easy, slow pull on the starter handle seems like it works just fine. Can anyone tell me how to check the oil in the lower unit? How to confirm that it’s pumping water like it should? What else should I check?

      August 28, 2017 at 10:36 pm #63966
      stanley
      Participant

        US Member - 2 Years

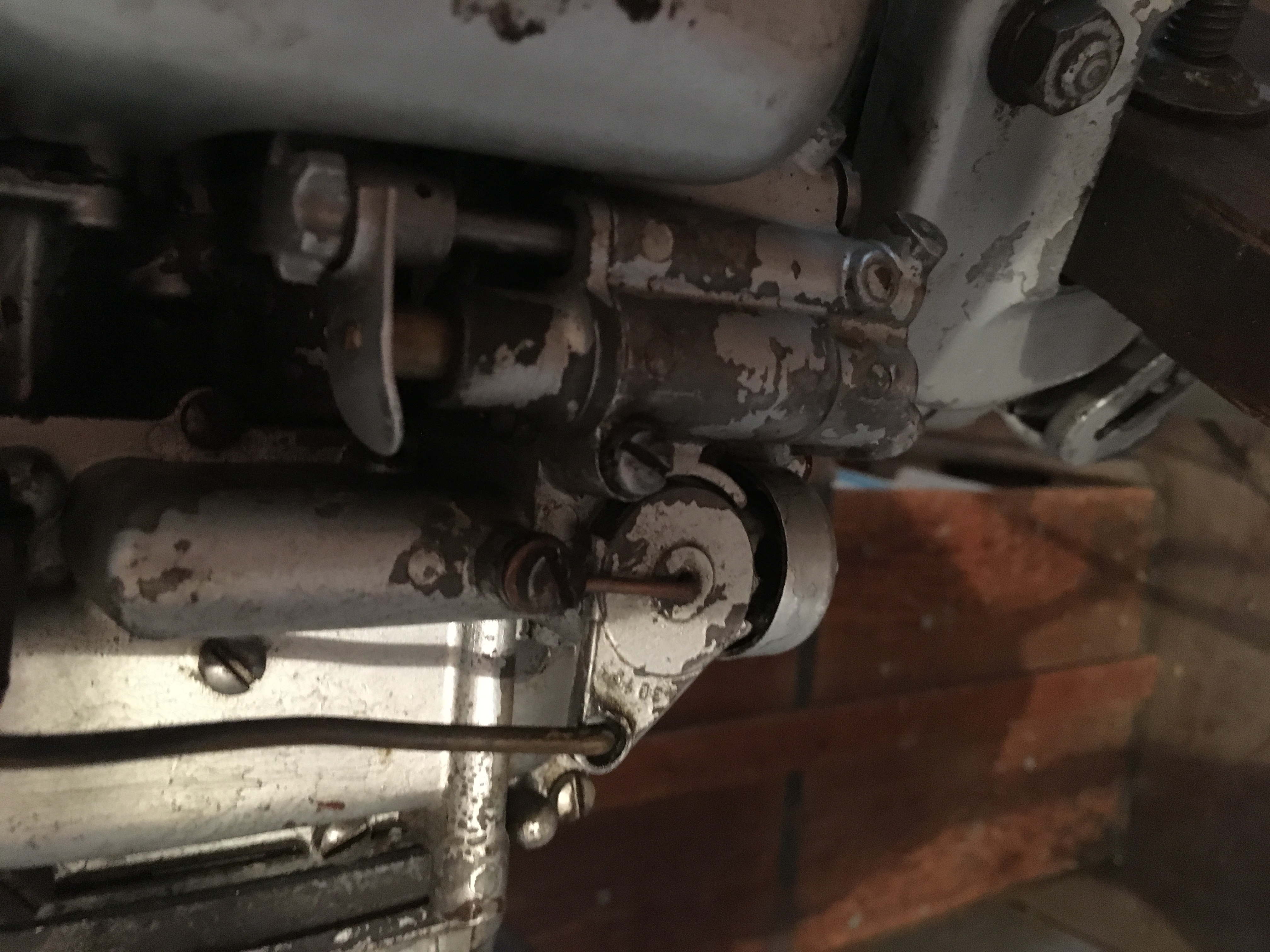

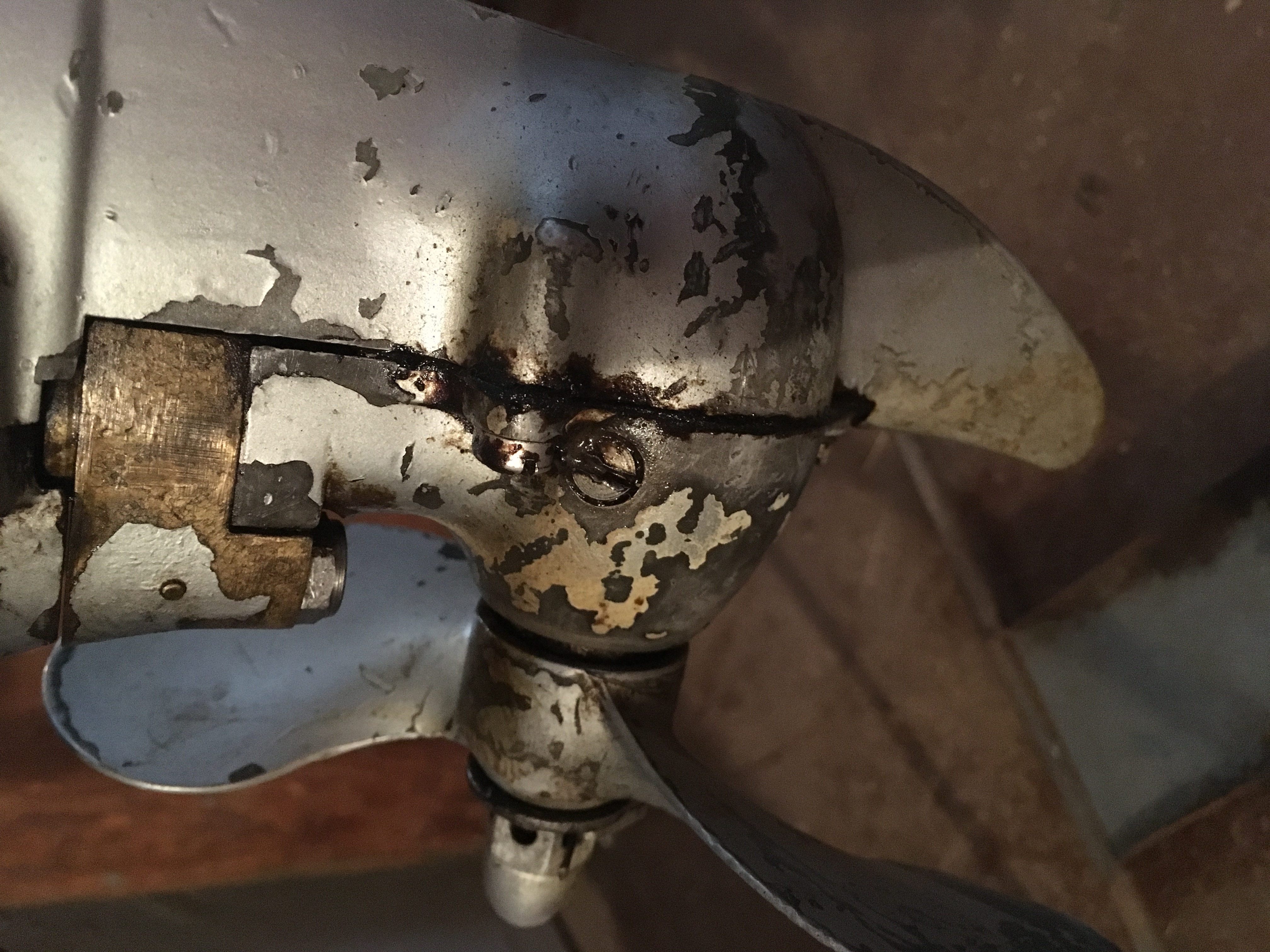

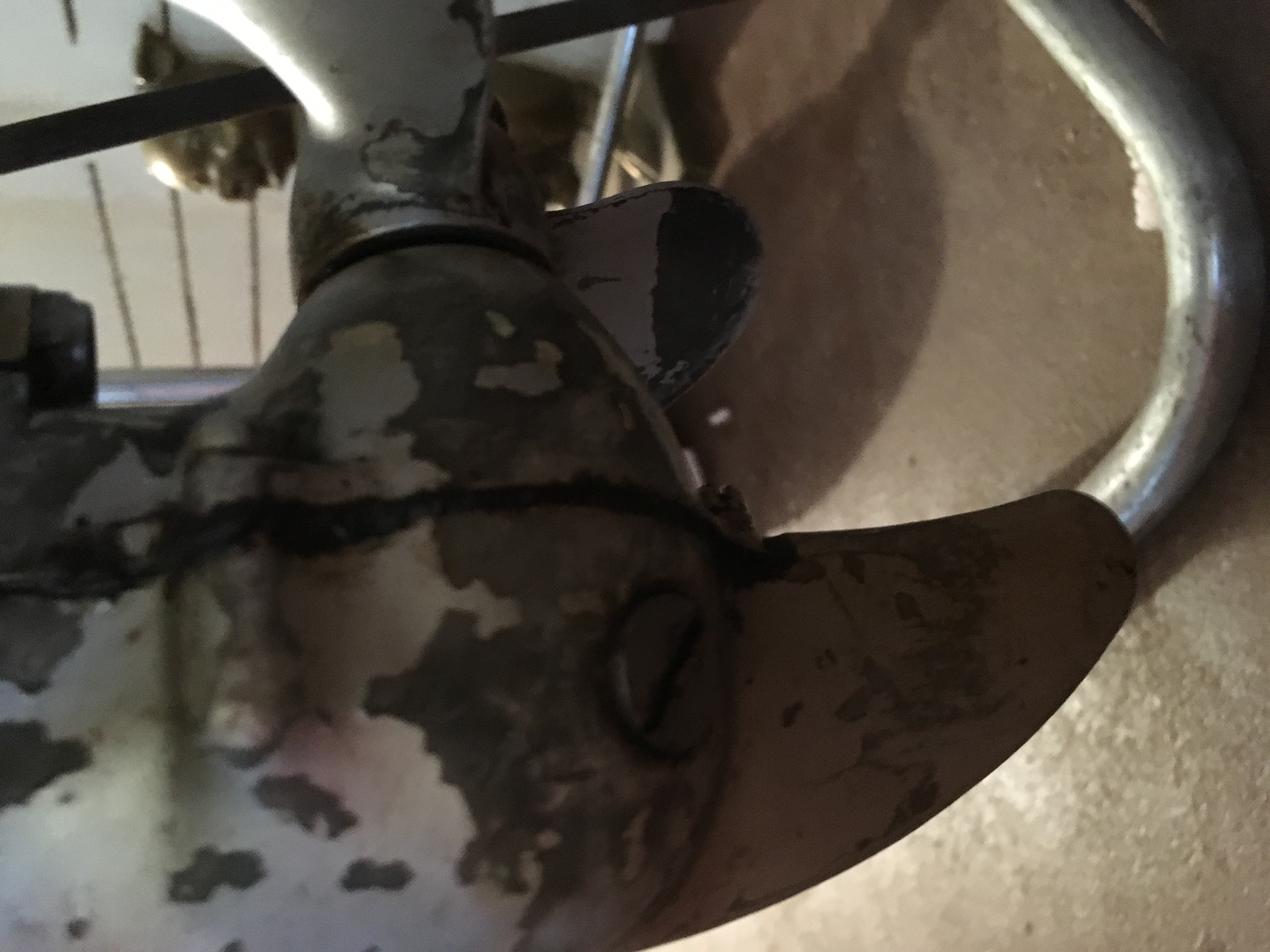

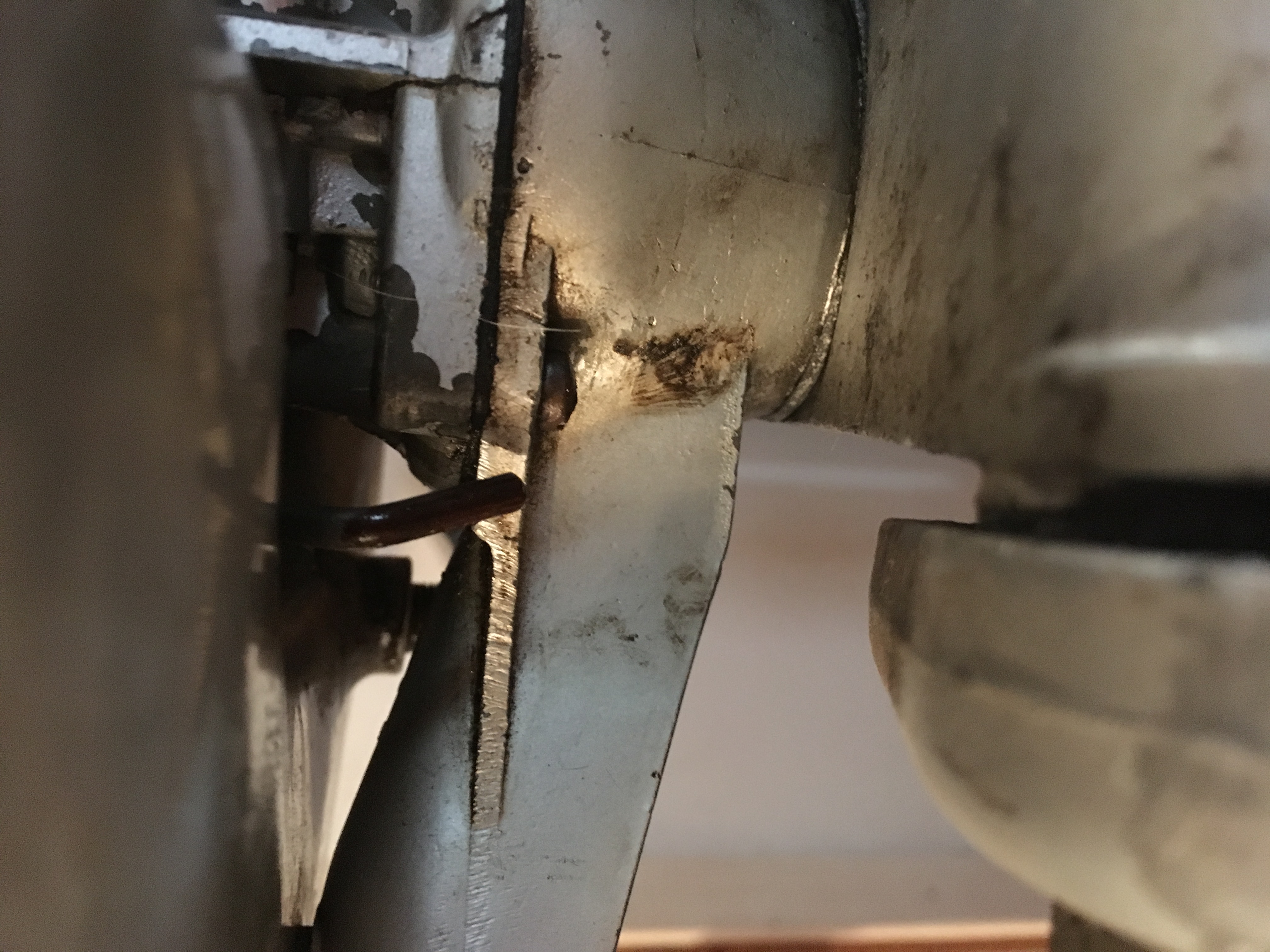

        1/2 pint marine 2cycle oil to 1gal gas.I think it spits water out of a hole at about transom level on the down tube.Not a lot just fine spray.They run pretty hot.Use grease shown in little gear case,screws are shown in pics.Big one where grease goes in,little one vent.Other pic shows primer pump/high speed needle other pic shows low speed on other side of motor kind of tucked away underneath.They are a fun little motor.

        Attachments:

        August 30, 2017 at 11:44 pm #64057
        baljoint
        Participant

          Thanks, just what I wanted to know…we will see how it goes.

          September 2, 2017 at 3:08 pm #64173
          baljoint
          Participant

            Is there a substitute for the lubriplate 105? I’m having trouble finding it locally…

            September 3, 2017 at 2:14 am #64221
            garry-in-michigan
            Participant

              Lifetime Member

              John Deere Corn head grease ? . . . 🙂

              September 3, 2017 at 5:10 am #64229
              1946zephyr
              Participant

                Yes, John Deere cornhead grease. A lot of members here use it.
                Nice looking motor! I parted one of those out last year, but one year newer. The model number was changed to HD-10 in 1940. I do have a restored 1941 HD-20, myself.

                September 3, 2017 at 2:50 pm #64247
                baljoint
                Participant

                  I put some gas in it let it sit for a few and it wasn’t pouring out anywhere. So I greased up the lower end, stuck it in some water but it wouldn’t start. I never did check for spark. After a few minutes it was starting to drip gas out of various places. I’m sure anything on it made out of rubber needs to be replaced…at least
