October 31, 2016 at 4:42 am #46777
nali
Participant
Huge pistons inside.
October 31, 2016 at 2:27 pm #46784
57buick
Participant
quote 2Fast4Me:

I love the way it looks also. I wouldn’t change a thing except the cover on the carb. Not a rare engine also means lots of cheap parts available. I might have a cover that fits, where are you located???
Jim

Let me know if you have a proper cover and how much you want for it to ship to Salem, OR 97302. I would appreciate it
October 31, 2016 at 5:34 pm #46792
wyo307
Participant
quote nali:

A Sportman I polished, same basic shape.
They can turn great ! 🙂

Just curious how many hours do you have into that 4416 to get it to that point? I have mine in perfect running original condition they are good runners.

quote 57buick:

quote 2Fast4Me:

I love the way it looks also. I wouldn’t change a thing except the cover on the carb. Not a rare engine also means lots of cheap parts available. I might have a cover that fits, where are you located???
Jim

Let me know if you have a proper cover and how much you want for it to ship to Salem, OR 97302. I would appreciate it

I don’t have the front cover but do have some other misc spare parts for one if you decide to make it run again. I am just about finished with mine (cleaned original condition but running). They are surprisingly under powered and complicated for what they are but still very cool motors in my opinion. Most people either love them or hate them with very few people in between. They are kind of loud as well but have a very unique sound at idle with it being a 4 banger. I have loved working on mine and now am considering a lightfour (zephyr’s big brother at 9.7hp) for my next project.
October 31, 2016 at 6:22 pm #46793
57buick
Participant
From what I am hearing and reading online I don’t think I’ll bother making it run again, BUT

I have salt water aquariums and I’m currently setting up a large 8 foot 400 gallon saltwater tank that I think this will make nice décor in the room if I tear it apart, clean it and polish it up to a chrome shine. It will look awesome next to the tank
October 31, 2016 at 10:18 pm #46806
nali
Participant
quote Wyo307:

Just curious how many hours do you have into that 4416 to get it to that point? I have mine in perfect running original condition they are good runners.

An insane number of hours 🙂
In fact, it’s not even mine, it belongs to a friend who has a 35" boat, so this is for the small boat, home made in wood.

I spend almost a whole winter working on it, filling/sanding all done by hand, since I only have a small bench grinder for the final step with compound.
So .. How many hours ?
I prefer not to know 🙂

Small boat :
https://servimg.com/view/12474091/1743
https://servimg.com/view/12474091/1744
https://i13.servimg.com/u/f13/12/47/40/91/dsc00410.jpg

So of course I wanted the motor perfect 🙂

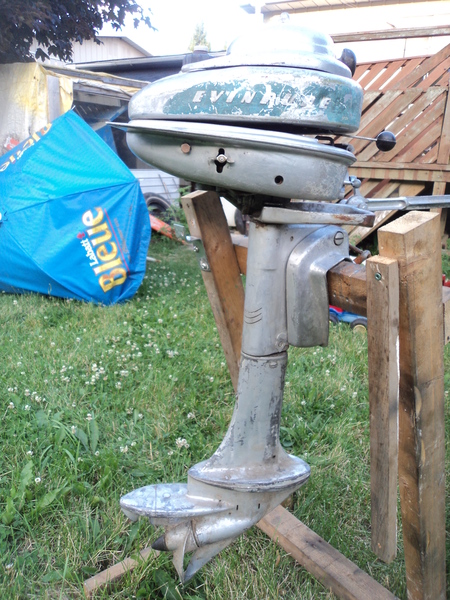

It was in a decent shape, complete and only some minor dents on the tank :
https://i47.servimg.com/u/f47/12/47/40/91/dsc00917.jpg
https://i13.servimg.com/u/f13/12/47/40/91/dsc00910.jpg

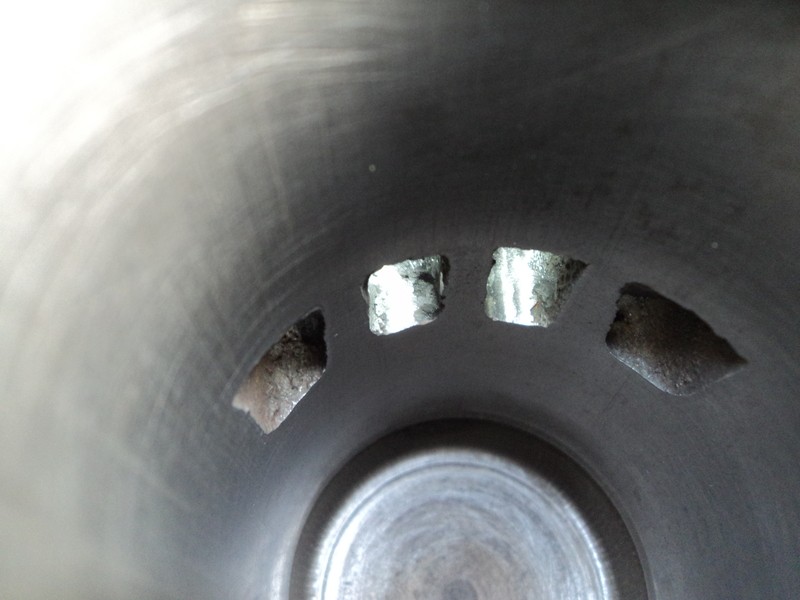

Exhaust port had casting defects so needed a little job with a Dremel.
https://i47.servimg.com/u/f47/12/47/40/91/dsc01014.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01026.jpg

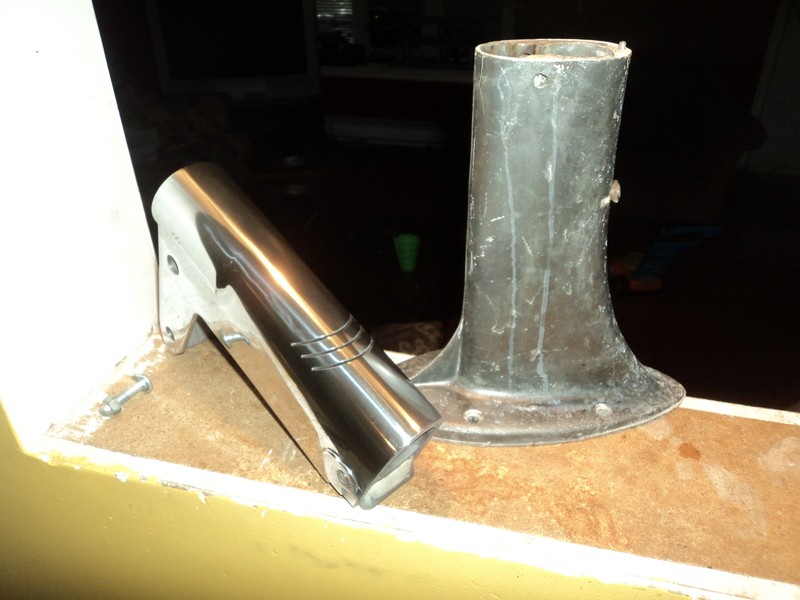

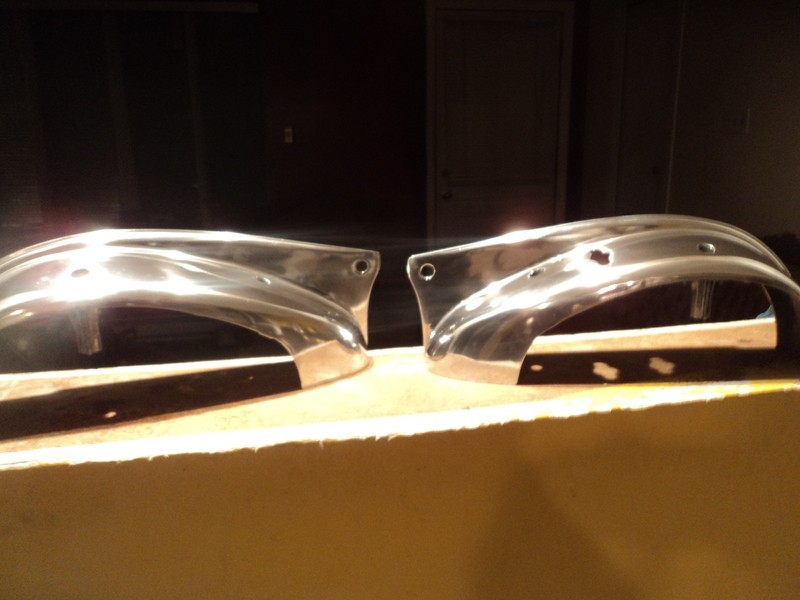

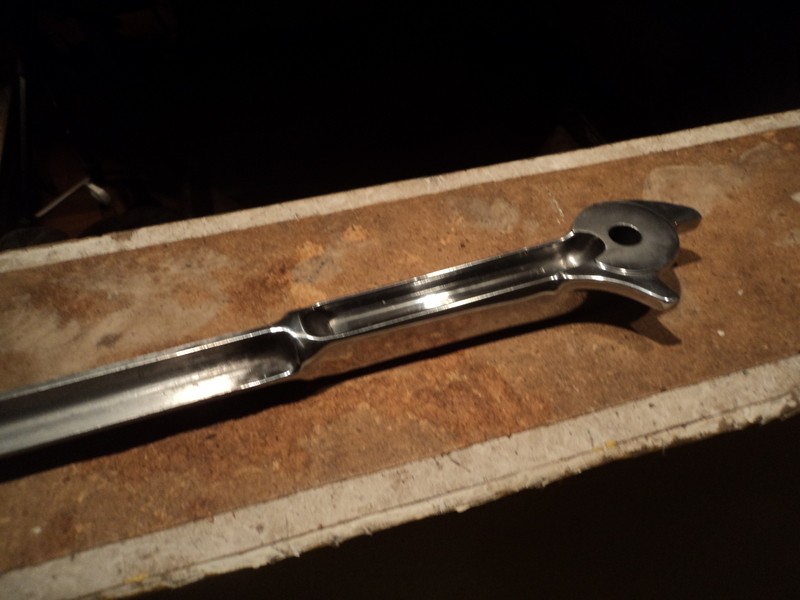

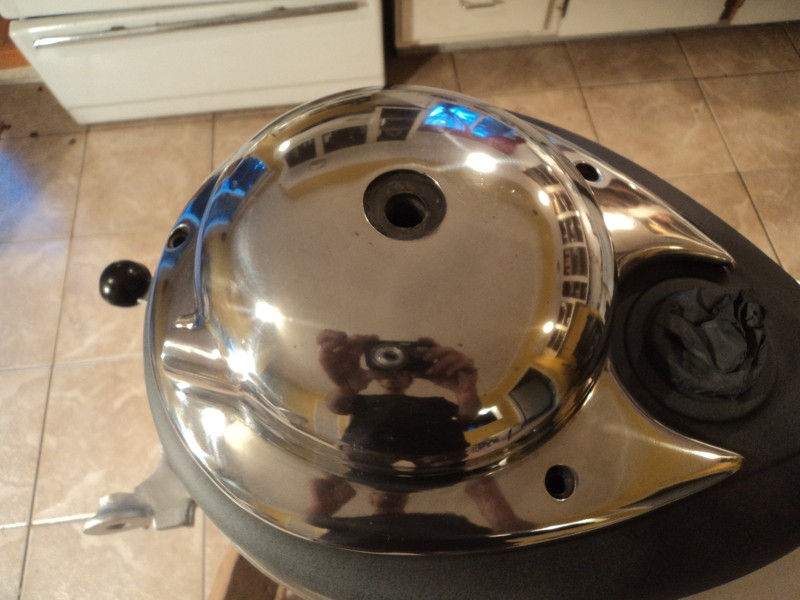

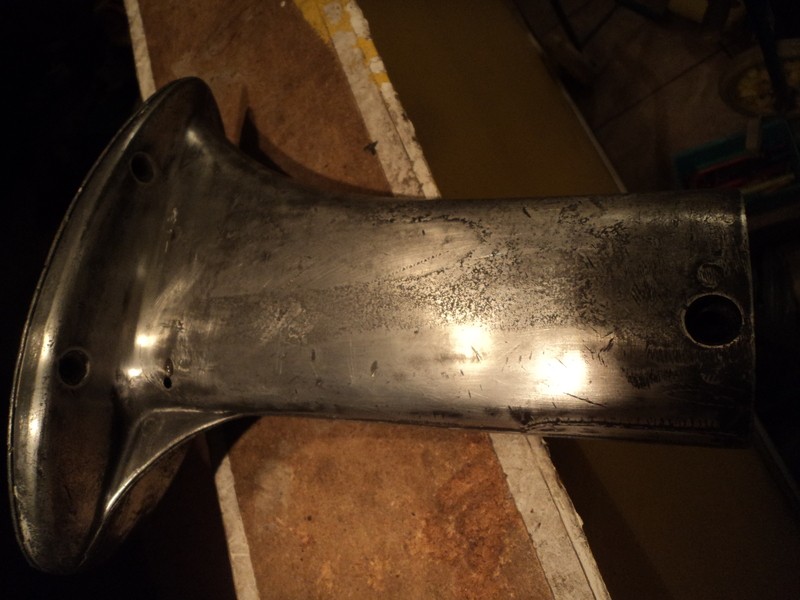

Pics of polishing :
https://i47.servimg.com/u/f47/12/47/40/91/dsc01119.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01017.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01116.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01213.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01112.jpg

A pic I like:
November 1, 2016 at 2:24 am #46820
2fast4me
Participant
quote 57buick:

quote 2Fast4Me:

I love the way it looks also. I wouldn’t change a thing except the cover on the carb. Not a rare engine also means lots of cheap parts available. I might have a cover that fits, where are you located???
Jim

Let me know if you have a proper cover and how much you want for it to ship to Salem, OR 97302. I would appreciate it

57Buick, I just checked and the front cover that I have is for a later model Zephyr, mine has a primer button, your primer is on the Knob. You could have mine for the shipping but the right one is out there somewhere. If you need any parts, I have a parts motor that will not see water again.

2Fast4Me
November 1, 2016 at 3:50 am #46821
57buick
Participant
Thanks, I’ll start posting wanted ads and looking around for the right one
November 1, 2016 at 3:50 pm #46831
wyo307
Participant
quote nali:

quote Wyo307:

Just curious how many hours do you have into that 4416 to get it to that point? I have mine in perfect running original condition they are good runners.

An insane number of hours 🙂
In fact, it’s not even mine, it belongs to a friend who has a 35″ boat, so this is for the small boat, home made in wood.

I spend almost a whole winter working on it, filling/sanding all done by hand, since I only have a small bench grinder for the final step with compound.
So .. How many hours ?
I prefer not to know 🙂

Small boat :
https://servimg.com/view/12474091/1743
https://servimg.com/view/12474091/1744
https://i13.servimg.com/u/f13/12/47/40/91/dsc00410.jpg

So of course I wanted the motor perfect 🙂
It was in a decent shape, complete and only some minor dents on the tank :
https://i47.servimg.com/u/f47/12/47/40/91/dsc00917.jpg
https://i13.servimg.com/u/f13/12/47/40/91/dsc00910.jpg

Exhaust port had casting defects so needed a little job with a Dremel.
https://i47.servimg.com/u/f47/12/47/40/91/dsc01014.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01026.jpg

Pics of polishing :
https://i47.servimg.com/u/f47/12/47/40/91/dsc01119.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01017.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01116.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01213.jpg
https://i47.servimg.com/u/f47/12/47/40/91/dsc01112.jpg

A pic I like:

That is some amazing work! When ever you want to do another one you just let me know lol. Here are some before and after shots of mine.

And so I don’t completely hijack this thread here is my zephyr when I first got it to run

and what it looked like when I got it

I should have the last parts for it here within the week so that I can get it all wrapped up.
November 2, 2016 at 4:07 am #46860
57buick
Participant
SO I am starting the process of taking pics of every little part and tearing it down. So the nut on top for the pull start. How do I get that off the shaft?? Is it reverse thread or anything?
November 2, 2016 at 4:34 am #46862
Mumbles
Participant

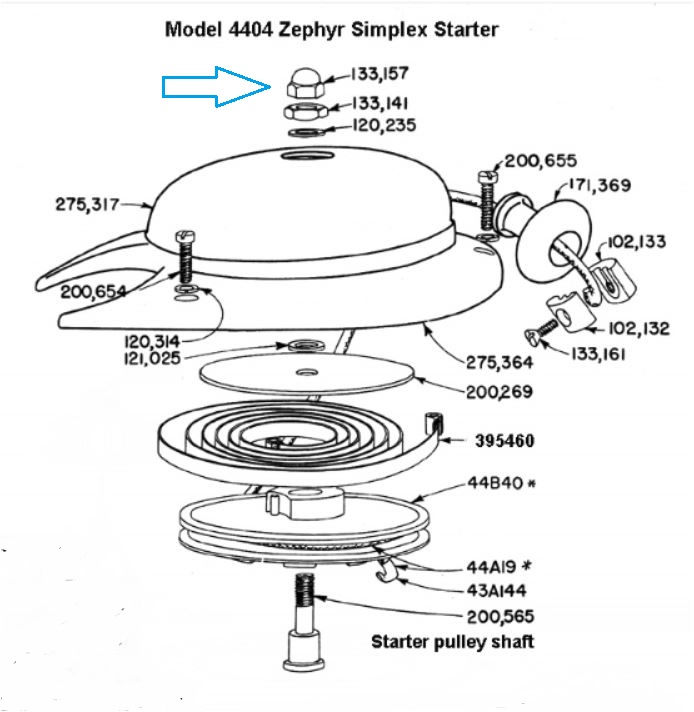

This one? It’s just a standard right hand thread. Righty tighty, lefty loosy.

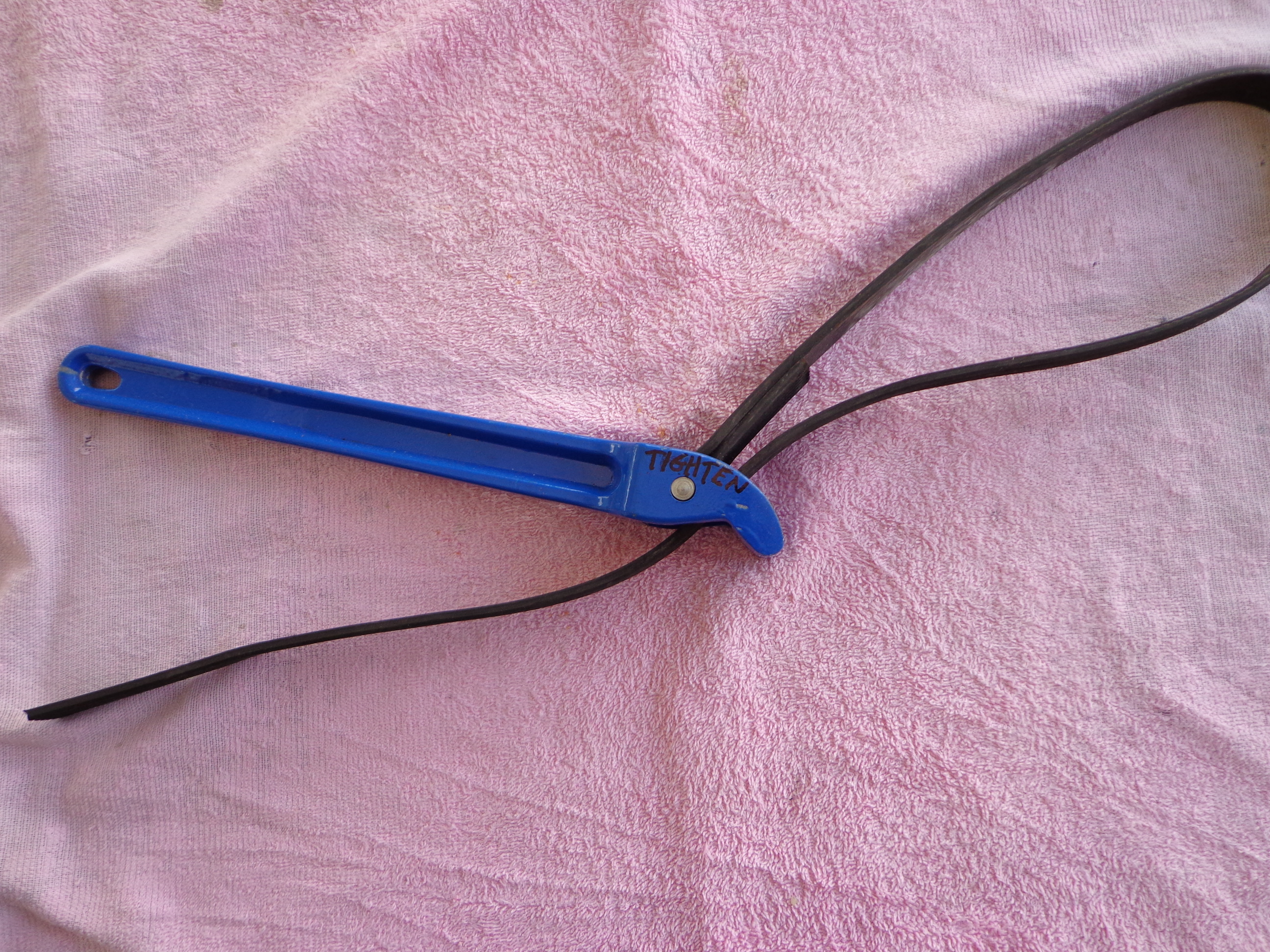

If you mean the flywheel nut, you will need a strap wrench to hold the flywheel while you remove it and torque it down.
