1940 champion 3.2 hp coil

Home › Forum › Ask A Member › 1940 champion 3.2 hp coil

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • July 13, 2021 at 4:05 pm #242756
    bmayer
    Participant

      I am looking for information on a replacement coil for a 1940 Champion 3.2 kingfisher motor model S1F. It appears to have a wico 2156 or 2158 not sure because the numbers are very hard to see! Any help would be much appreciated. This is a father son project that we would love to hear run again! Thanks

      July 13, 2021 at 7:14 pm #242774
      Buccaneer
      Participant

        US Member

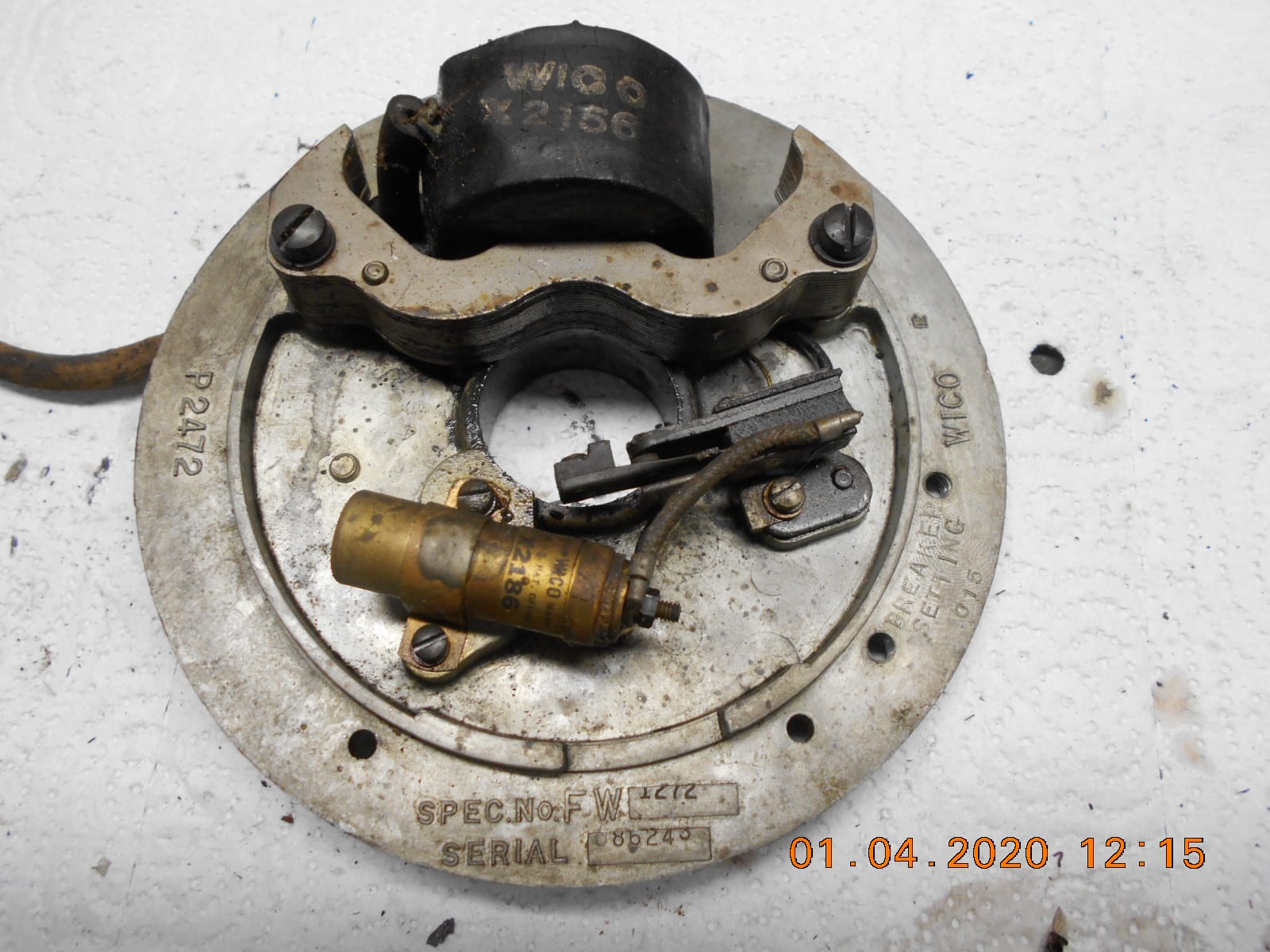

        This is the coil in my S1F Champion.
        Mine had good spark, but this magneto
        may be a candidate for an OMC universal coil transplant.

        How did you determine your coil is B.O.?

        DSCN8533

        Prepare to be boarded!

        July 14, 2021 at 3:39 pm #242848
        The Boat House
        Participant


          Video link—
          https://youtu.be/tVvSB5QxMrw

          July 14, 2021 at 11:49 pm #242889
          bmayer
          Participant

            I checked and have no spark. Points have been cleaned and set, plug wire tested good,primary coil tested okay but secondary was very weak.

            July 15, 2021 at 8:12 am #242903
            Buccaneer
            Participant

              US Member

              Are you saying you had good ohm meter readings on the primary but not the secondary?
              Did you install a new condenser?

              Prepare to be boarded!

              July 15, 2021 at 9:27 am #242911
              outbdnut2
              Participant

                US Member

                Ohms can test OK, but insulation could be breaking down inside the coil where you cant see it, shunting the spark away.
                Dave

                July 16, 2021 at 8:12 pm #243005
                jcrigan
                Participant

                  US Member

                  Have you checked the condenser on this? Those coils are usually good. There are several other brands that use that same coil. Also check the points with your meter to make sure the resistance is near zero. I have had problems with connectors having high resistance so that is another place to check.
                  Spark plug is a #7 or a Champion D16 gapped at 0.030″, points gapped at 0.015″, oil ratio is 3/4 pint oil to a gallon gas.
                  Good luck with your motor, they do run well.
