1940 Evinrude Sportwin 3.3 Throttle Question

Home › Forum › Ask A Member › 1940 Evinrude Sportwin 3.3 Throttle Question

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • July 2, 2016 at 2:32 pm #4649
    jdp
    Participant

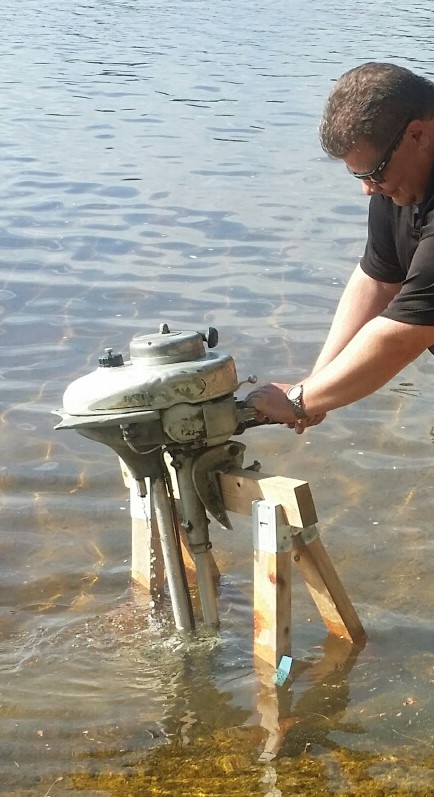

      I have been mechanically restoring a 1940 Evinrude Sportwin 3.3 model 4355. I have it cleaned up and running, however the throttle wont stay in positon, as soon as I let go it returns to the off position. I can’t figure out how to tighten up the throttle level. Any advice on making this adjustment?

      Edit Video Finally Loaded

      https://youtu.be/kXhaM_GZB0o

      July 2, 2016 at 6:27 pm #39473
      Steve A W
      Participant

        US Member - 2 Years

        It sounds and looks good especially being over sixty yrs old!
        I LOVE the test tank ❗ ❗ ❗

        Steve A W

        Member of the MOB chapter.
        I live in Northwest Indiana

        July 2, 2016 at 8:28 pm #39486
        garry-in-michigan
        Participant

          Lifetime Member

          Take off the front cover and look under the magneto base plate. You will see under there, close to the top bearing, a screw that adjusts the friction. Of course if some one has replaced a coil and not aligned it properly, the flywheel can rub on the coil pole shoes. That will make the base plate impossible to keep from moving. . . . . . 😉
          \

          July 5, 2016 at 1:53 pm #39628
          wyo307
          Participant

            Yep what Garry said. I have a 4355 that is a great little runner. I still need to track down one of those recoil starters though if anyone has a lead on one let me know!
