  • September 21, 2021 at 7:16 am #246989
    Steven Moore
    Participant
      Mumbles wrote:

      AT-10 coils are different than the horseshoe coils used in the HD, TD, or TN motors.

      Coils-Less-Heels

      HD-TN-Coils

      Mumbles: Excellent! Thank you very much for the part number. That’s a huge start for me.

      I’m still hunting for the condenser part number and/or the microfarrad value, so I may test what I have.

      September 21, 2021 at 11:03 am #246993
      Mumbles
      Participant

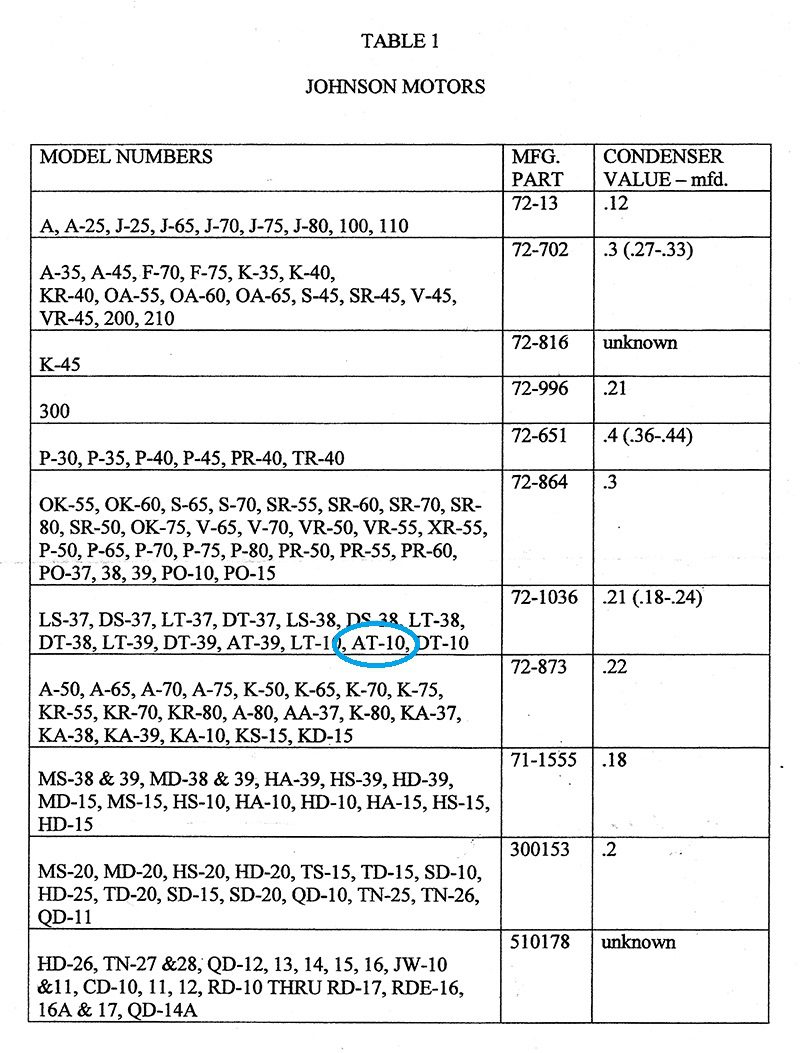

        The original P/N for your motors condenser is 72-1036 and it had a rating of .21 uF. Thanks goes out to Garry in Michigan who had compiled this list a few years ago.

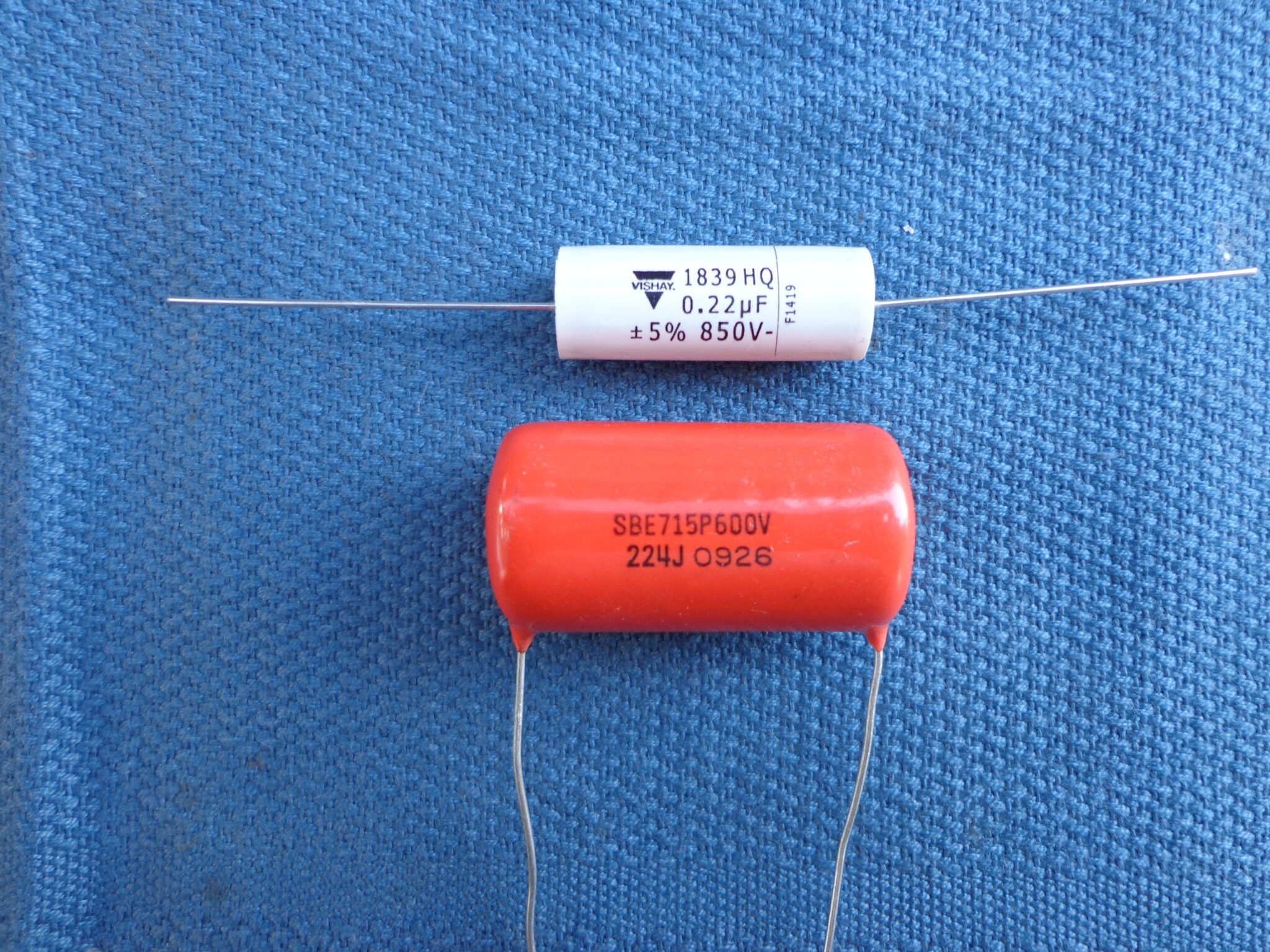

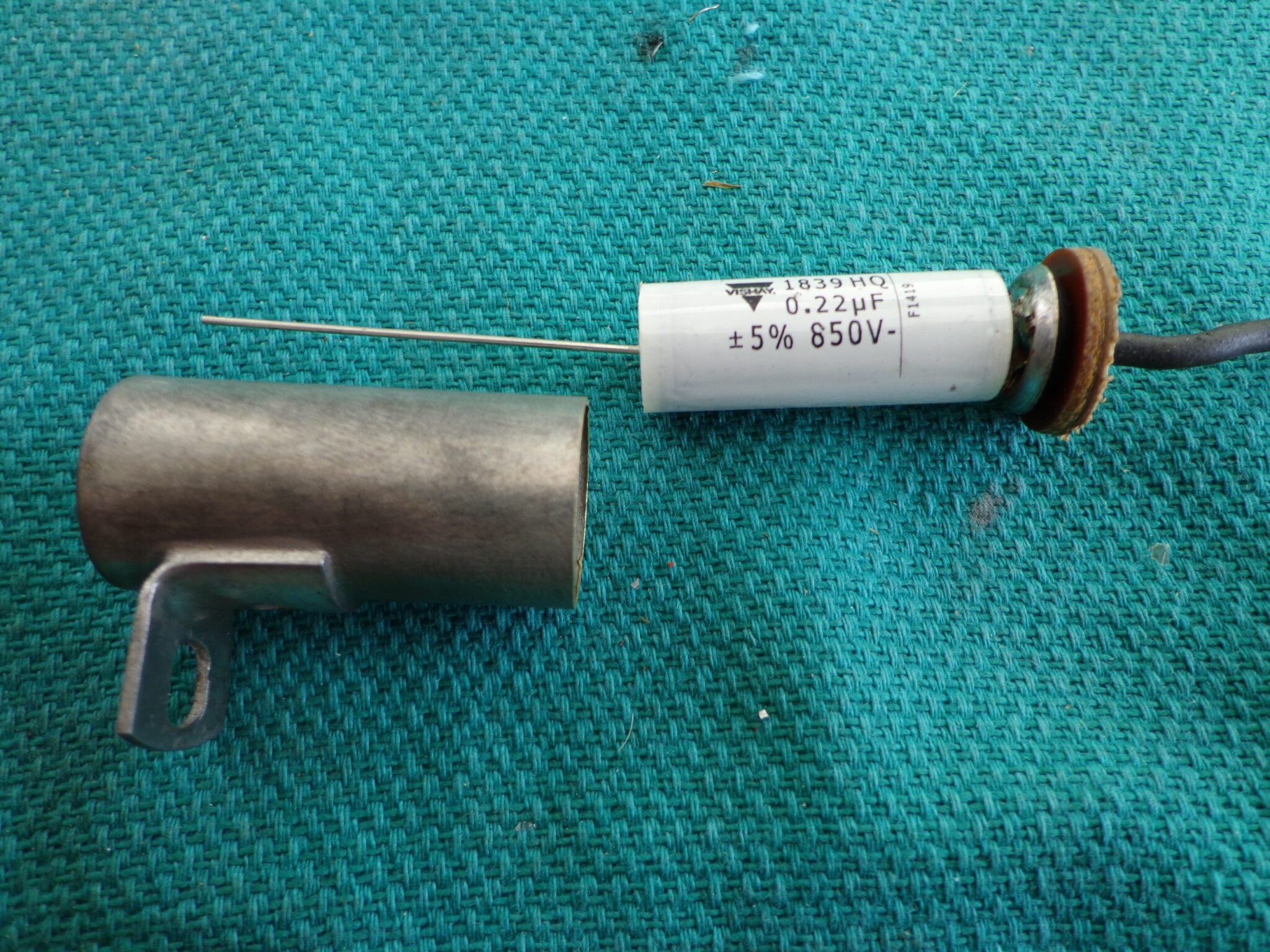

        Since the original condensers are NLA, certain Orange Drop or Vishay capacitors can be substituted for the originals. The axial Vishays can be mounted in the original can, or out in the open.

        Here’s a link to Digi-Key who supplies the High Quality series of Vishay caps in different ratings:

        https://www.digikey.com/en/products/detail/vishay-beyschlag-draloric-bc-components/MKP1839422084HQ/2260507?s=N4IgTCBcDaIEYGMwDYAMBOAtAOwCYgF0BfIA&vendor=0

        Caps-Johnson

        0.22-uF-Caps

        DSC00074

        September 21, 2021 at 4:11 pm #247016
        outboardnut
        Participant

          US Member

          Please correct me if I am wrong-
          but John Collins from Indiana wrote the article on values of condensers.
