April 7, 2023 at 11:39 am #274892
Buccaneer
Participant
US Member
Looking for a parts manual the the subject motor, especially
for the gear case and driveshaft details.

When I turn the drive gear by hand on the driveshaft, the driveshaft
turns, but there’s a lot of slack before it would turn the powerhead.
I see no reason to believe this model would have a stub shaft,
but it sounds like the slop is lower down, and not in the powerhead
receiver.

Thanks.

Prepare to be boarded!
April 7, 2023 at 12:50 pm #274893
frankr
Participant
US MEMBER PAY BY CHECK

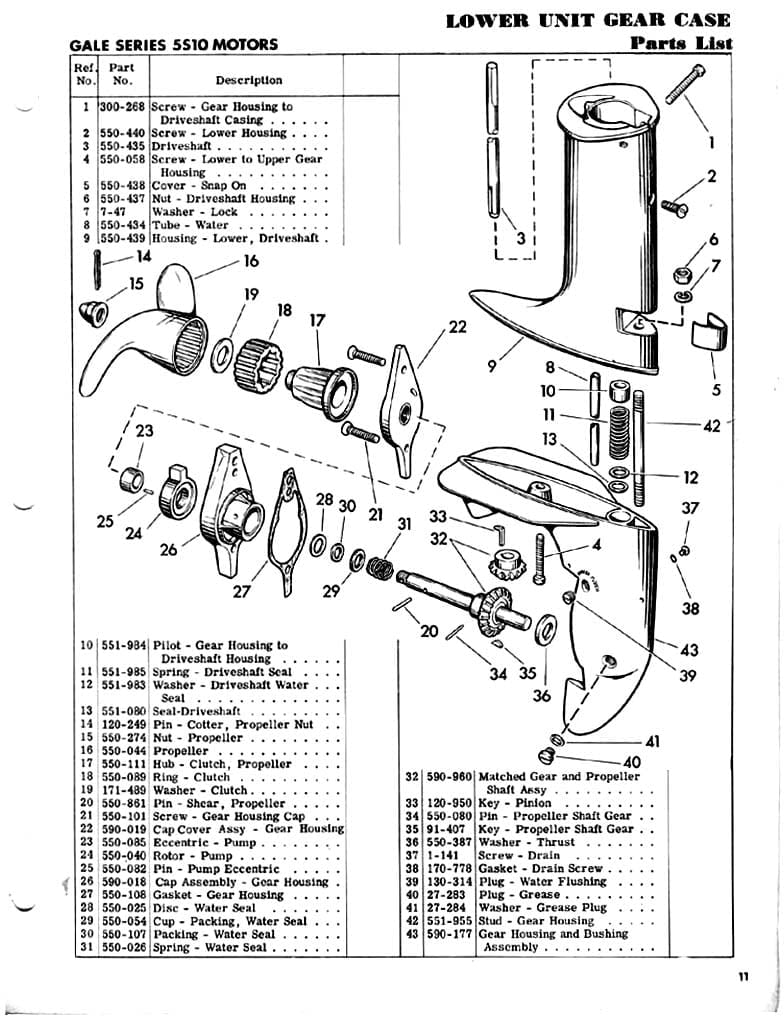

I have the parts list you asked for, but it isn’t very user friendly. This one might be more help. The drive shaft has square “splines” at top, and a key at the bottom. Pretty basic.
April 7, 2023 at 3:41 pm #274895
Buccaneer
Participant
US Member
Thanks Frank. That one looks like the shape of my gearcase.
Not sure if I have the spring loaded packing on the prop shaft
though. Will look again.

Prepare to be boarded!
April 7, 2023 at 3:54 pm #274899
frankr
Participant
US MEMBER PAY BY CHECK

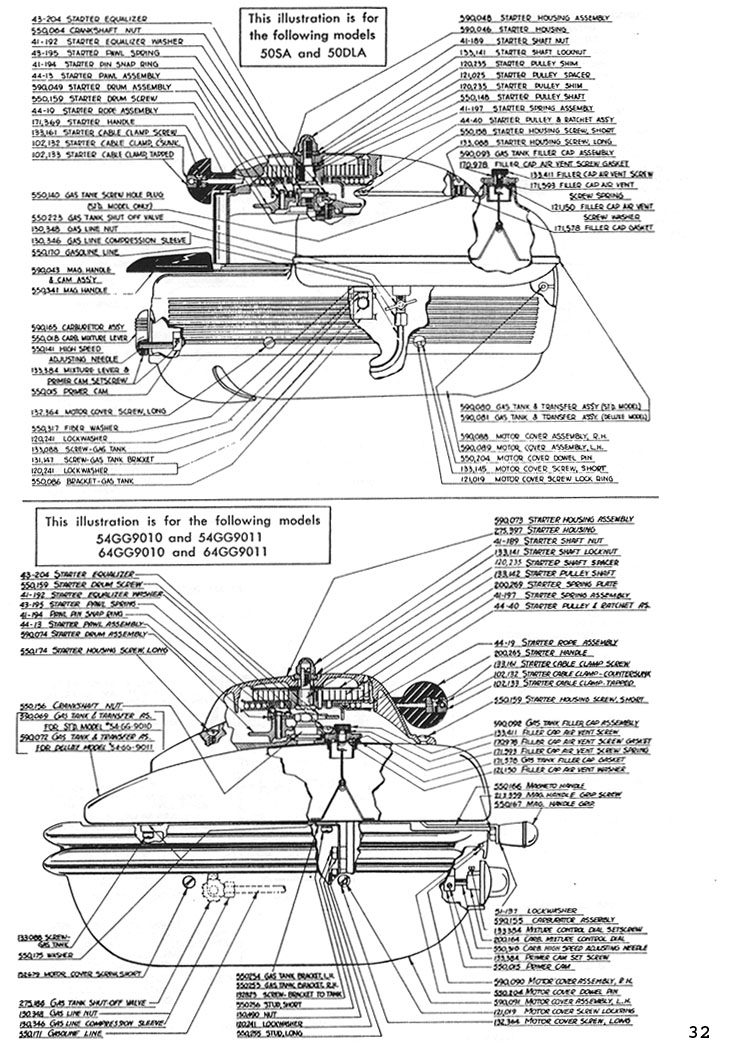

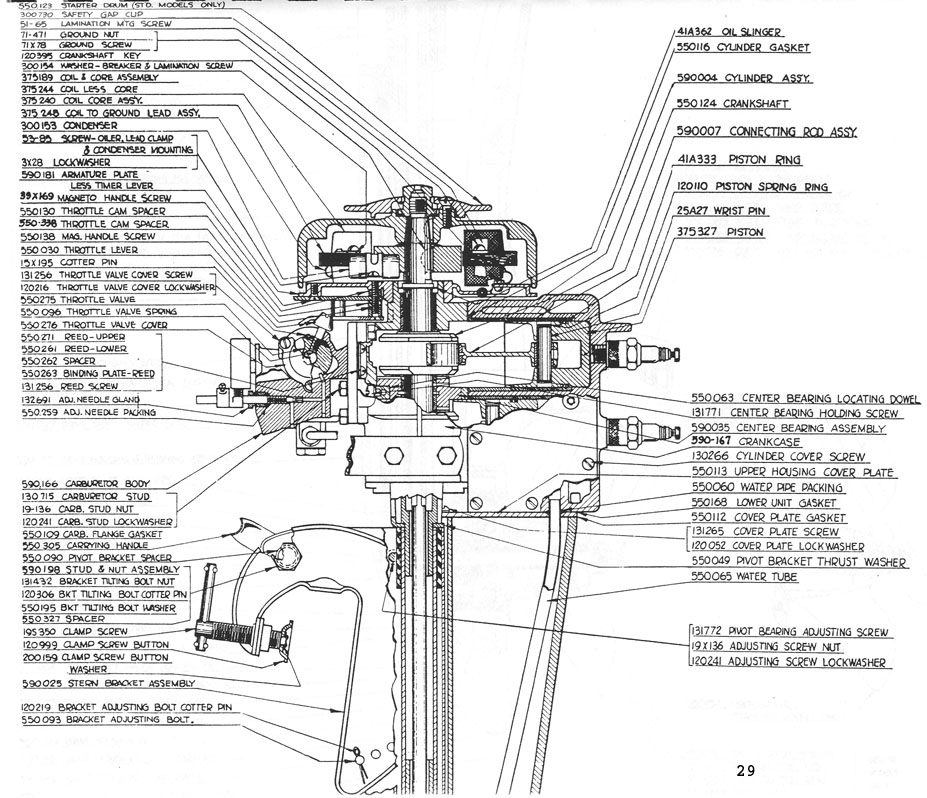

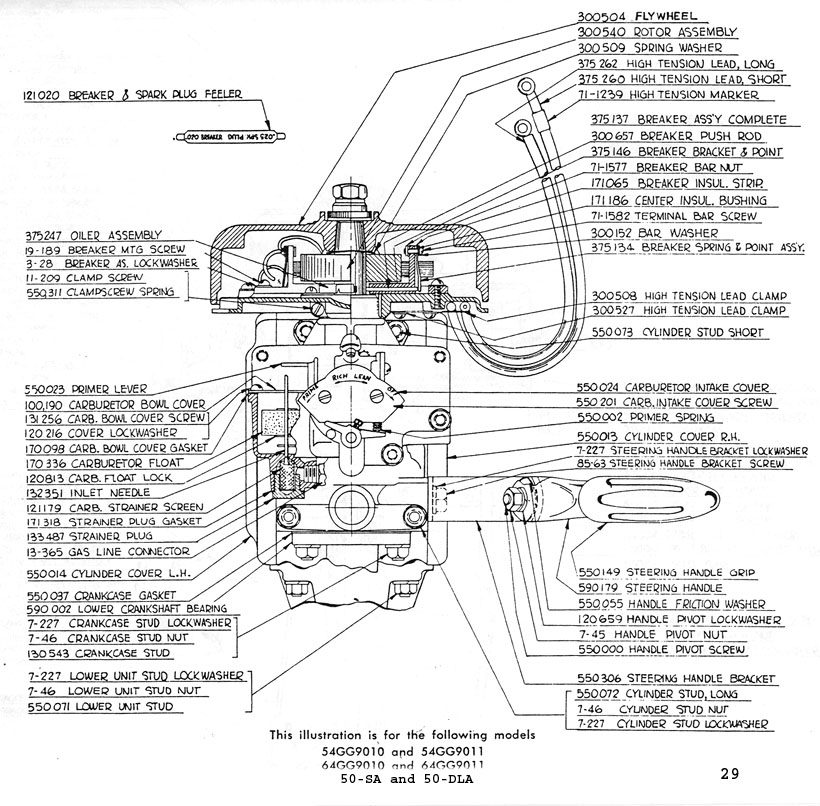

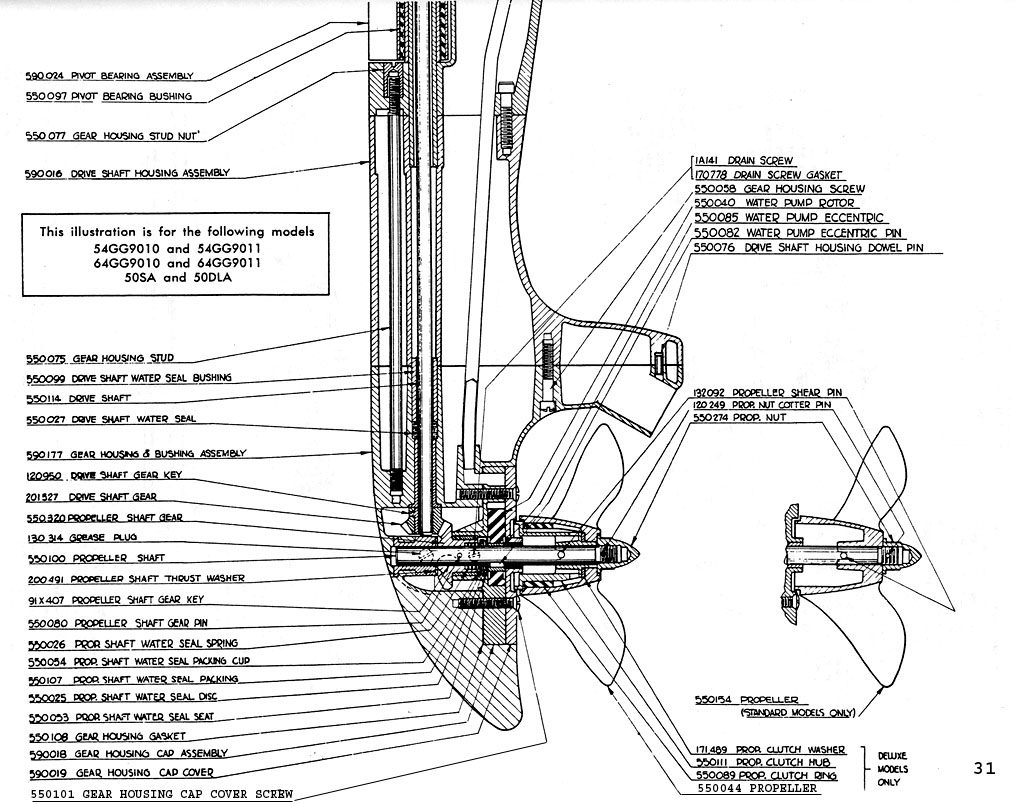

The correct parts book 54GG9011
April 7, 2023 at 9:19 pm #274915
Buccaneer
Participant
US Member
Those were “busy” parts drawings back in the day.
I ended up tearing apart a parts engine and it had
a better driveshaft and wobbler, so I switched them
out and the slack in the drivetrain is much better.
There was a spring on the inside the gearcase cap assembly.
Kind of a weird setup, but I guess it keeps the gear lash
constant perhaps?

Thanks!

Prepare to be boarded!
April 7, 2023 at 9:28 pm #274917
frankr
Participant
US MEMBER PAY BY CHECK
See 28, 29, and 30 in the first drawing I posted. #30 packing is a rubber washer. The spring keeps axial pressure on the parts and at the same time “mushes” the rubber to make it “hug” the shaft. Goofy setup that almost works.

Gear lash is a balancing act between the natural forces trying to move the gears apart and the forward force of the prop shaft from prop thrust.
April 7, 2023 at 9:40 pm #274923
Buccaneer
Participant
US Member
Gotta wonder how the 78 year old spring pressure is
compared to when new! Guess I’ll find out when
I fire it up.

Prepare to be boarded!
September 2, 2023 at 12:24 am #280058
John Gragg
Participant
US Member
A few months late…wondering ‘FrankR’ do you happen to have a parts diagram or other print materials on the Sea King 5hp 94GG9014A?

TIA

John Gragg

John Gragg
RIverside, CA

Just starting in the hobby, please be patient.

48 Sea King 5hp GG9014A
49 Sea King 5hp GG9014A
48 Johnson TD20
49 Johnson TD20
54 Johnson QD15
55 Johnson CD12
57 Johnson RJE-19M
57 Johnson RDE-19
September 2, 2023 at 10:52 am #280068
frankr
Participant
US MEMBER PAY BY CHECK

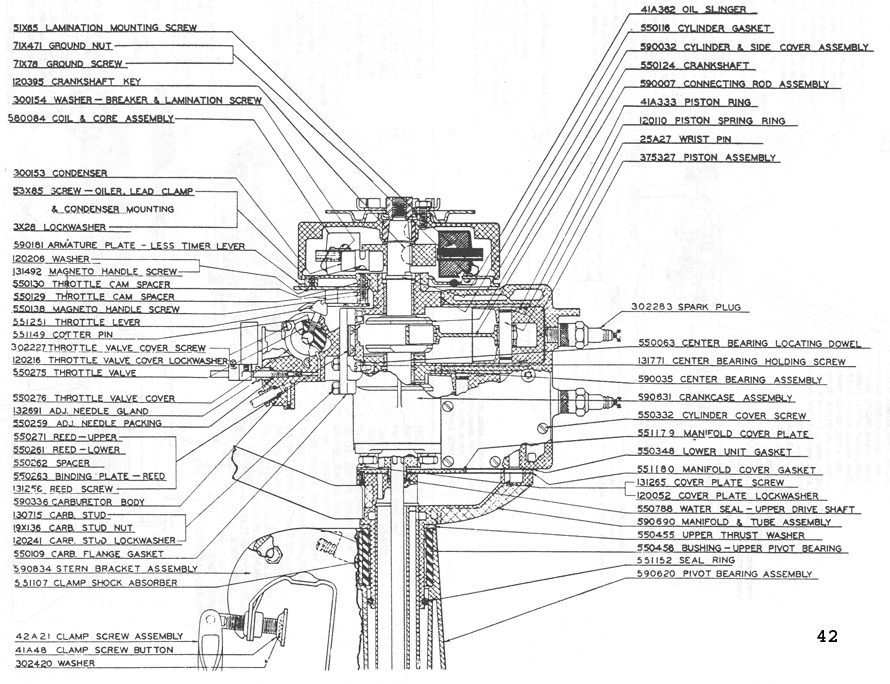

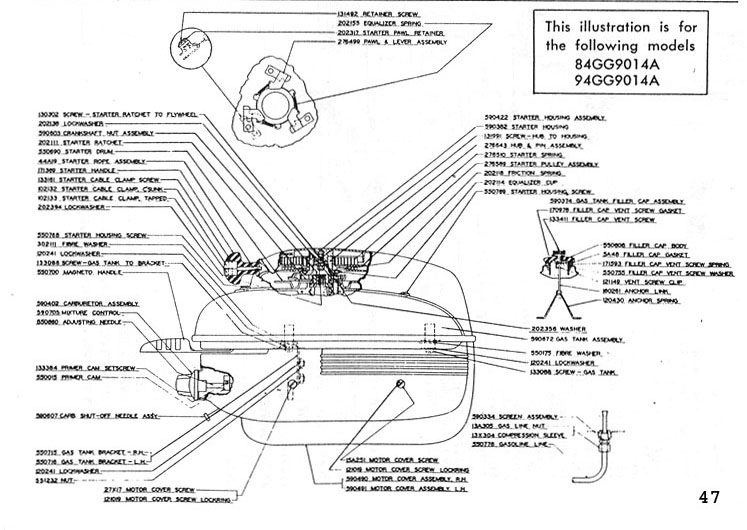

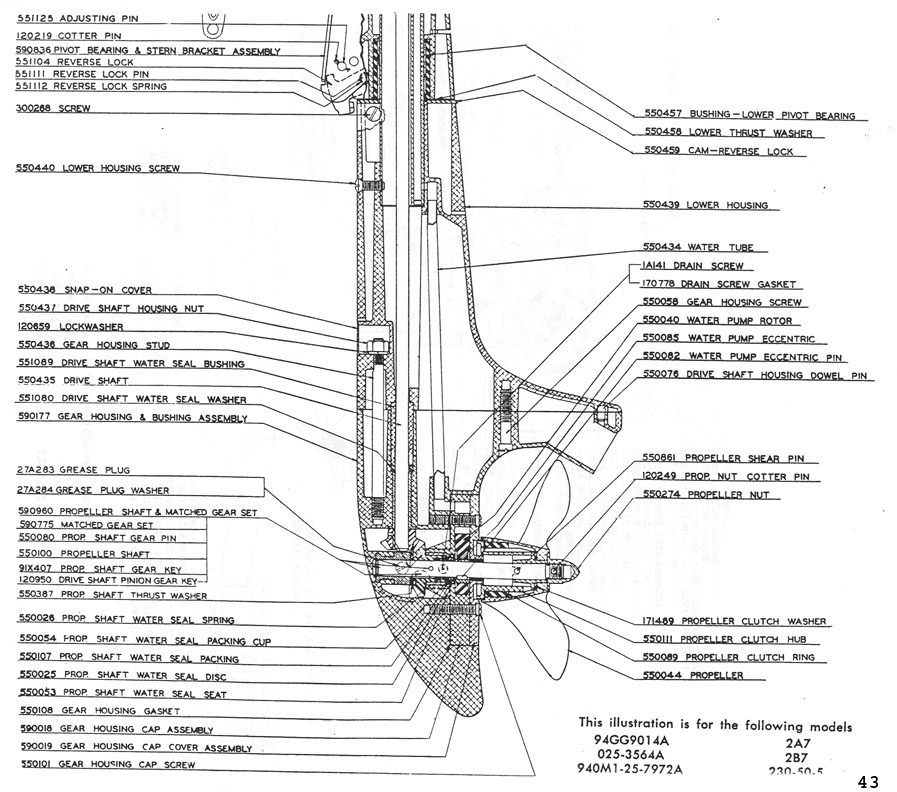

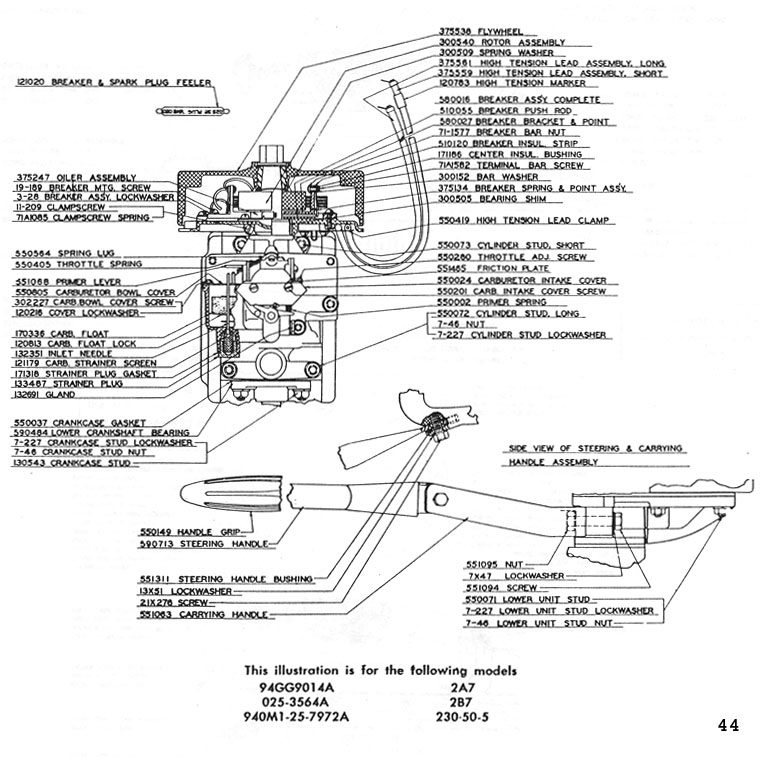

Here ya go….
September 2, 2023 at 7:55 pm #280098
John Gragg
Participant
US Member
Ask and ye shall receive….

Many thanks!

Very much appreciated.

Best Regards,

John Gragg
RIverside, CA

Just starting in the hobby, please be patient.

48 Sea King 5hp GG9014A
49 Sea King 5hp GG9014A
48 Johnson TD20
49 Johnson TD20
54 Johnson QD15
55 Johnson CD12
57 Johnson RJE-19M
57 Johnson RDE-19
