I’m not sure if you’re talking about a “certain” position to synchronize the
carb butterfly / throttle plate with the magneto, or elsewise.I have to think it’s purpose is just like any other engine to that uses throttle
plates in the fuel system, to regulate air flow through the carb, and hence
atmospheric pressure and fuel delivery.Prepare to be boarded!
1 user thanked author for this post.

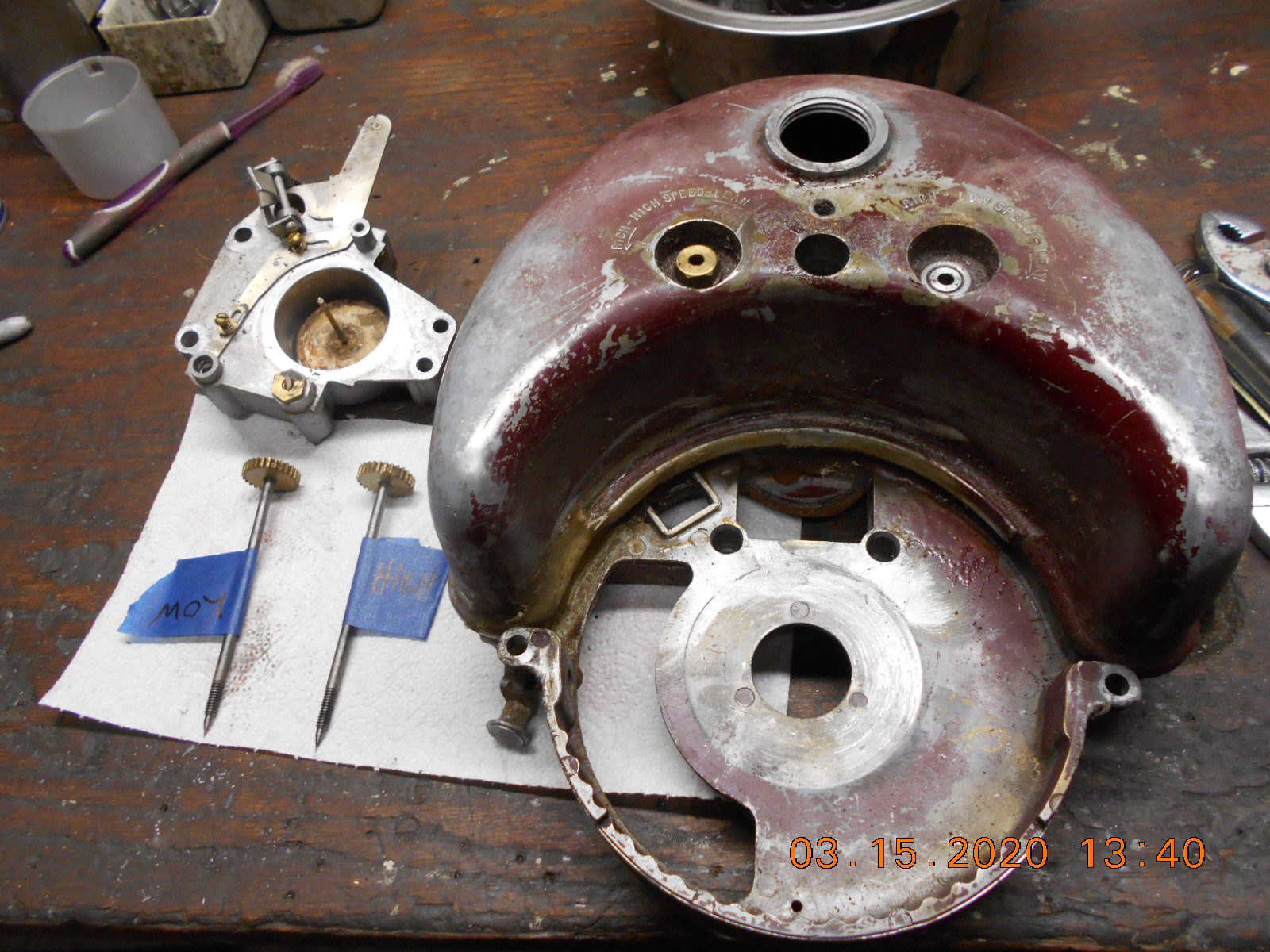

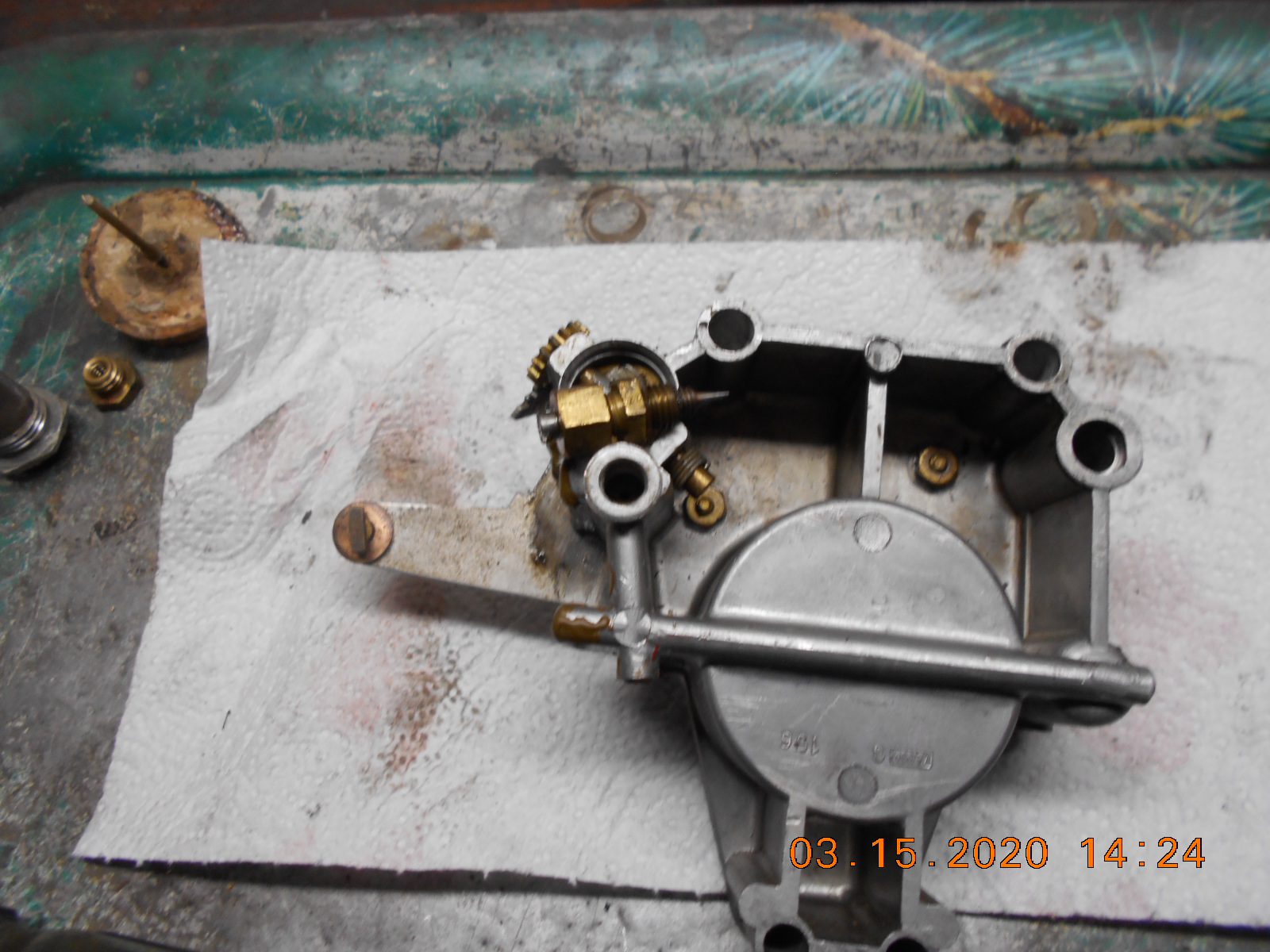

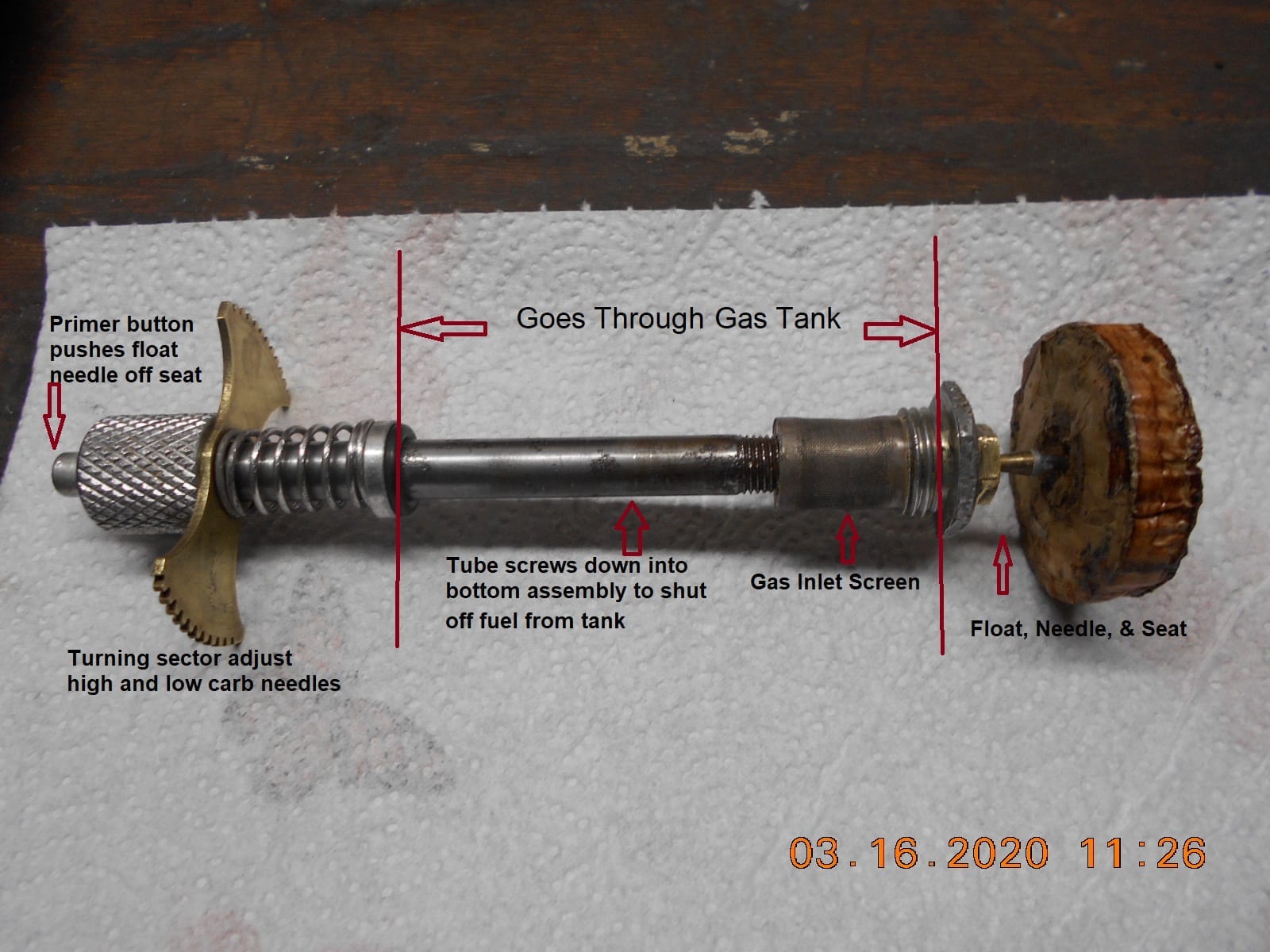

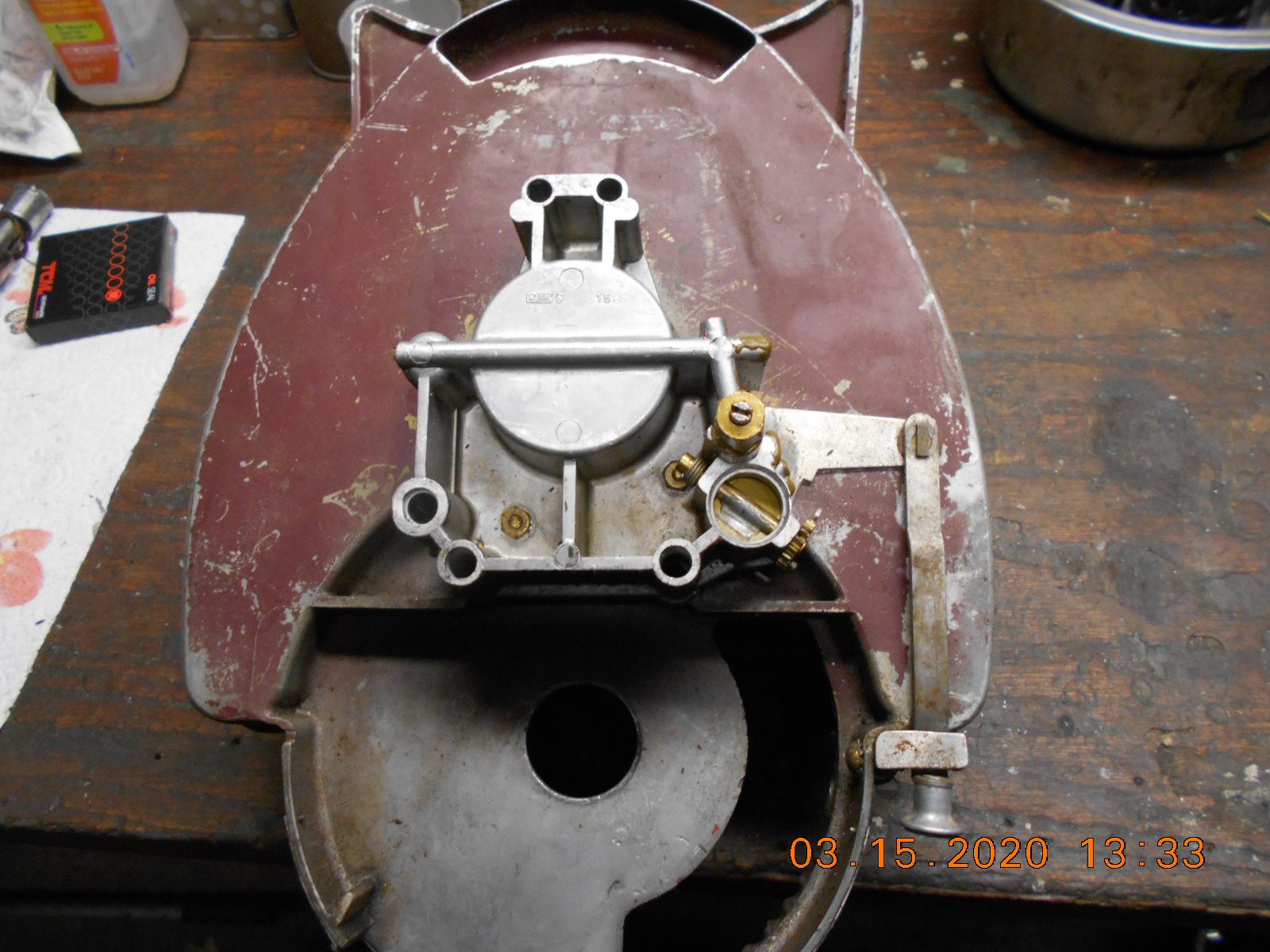

These are the only carb photos I have of my 5 hp Flambeau.
Prepare to be boarded!
1 user thanked author for this post.
At one time, there must have been a lever, or gear like mine,
attached to your broken throttle shaft.
Regarding the spring, it’s probably bent, or the end broken off.
One end is in a hole in the throttle shaft, and the other end
must have hooked on the carb body some how.Hopefully someone will come along with better photos or knowledge.
Keep an eye out on Ebay for Flambea parts or photos of carbs.Prepare to be boarded!
