March 30, 2020 at 11:51 am #198810
Ranger47
Participant
So i have this motor and i need to get access to ignition coil. can anyone help me?
March 30, 2020 at 12:27 pm #198817
Buccaneer
Participant
US Member
Most likely you’ll need a flywheel puller, if the flywheel is designed for one.
If not, a flywheel “popper” bolt and someone to hold the outboard
by the flywheel while the “popper” bolt is whacked. What’s the issue?

Prepare to be boarded!
- This reply was modified 4 years, 8 months ago by Buccaneer.
- This reply was modified 4 years, 8 months ago by Buccaneer.
March 30, 2020 at 12:45 pm #198824
Ranger47
Participant
can you send me a link of all of teh tools please and thankyou
March 30, 2020 at 12:47 pm #198825
Ranger47
Participant
Also does it pull out or push
March 30, 2020 at 3:55 pm #198835
Buccaneer
Participant
US Member
Read this thread about flywheel “poppers”…….

https://aomci.org/forums/topic/johnson-model-a-flywheel-removal-trouble/

Prepare to be boarded!
March 30, 2020 at 3:58 pm #198836
Buccaneer
Participant
US Member
If your flywheel has three opposing, threaded holes in the top,
you could get by with this type of puller, especially with that
small of a motor. They work okay on motors up to 10 hp usually.
Big ones need a better, heavier duty puller.

https://www.ebay.com/itm/13-Piece-Harmonic-Balancer-Steering-Wheel-Puller-Kit/292290247337?hash=item440ddb3aa9:g:ZnYAAOSwnHZYlnx6

Prepare to be boarded!
March 31, 2020 at 8:58 am #198865
fastjohn
Participant
US Member - 2 Years
I have a puller like the one you have a link to on ebay . I have used it to remove every flywheel on classic motors that I have worked on with no problems except larger two cylinder OMC’s. I never have had a problem with 4 or 6 cylinder Merc’s. It helps a lot to use an air impact when tightening the large center screw–but also leave the flywheel nut on the crank flush with the top of the crank. This will help to prevent mushrooming of the end of the crank and keeping the flywheel from flying off the crank in case it releases suddenly.
- This reply was modified 4 years, 7 months ago by fastjohn.
June 8, 2020 at 10:55 am #205130
Ranger47
Participant
I got it i had a gear sprocket and drilled holes and put a nut and she cam of thanks now i need a gas cap and new seals for everywhere and new coil.
June 8, 2020 at 10:55 am #205131
Ranger47
Participant
any idea where to get that stuff
June 8, 2020 at 1:48 pm #205136
Buccaneer
Participant
US Member

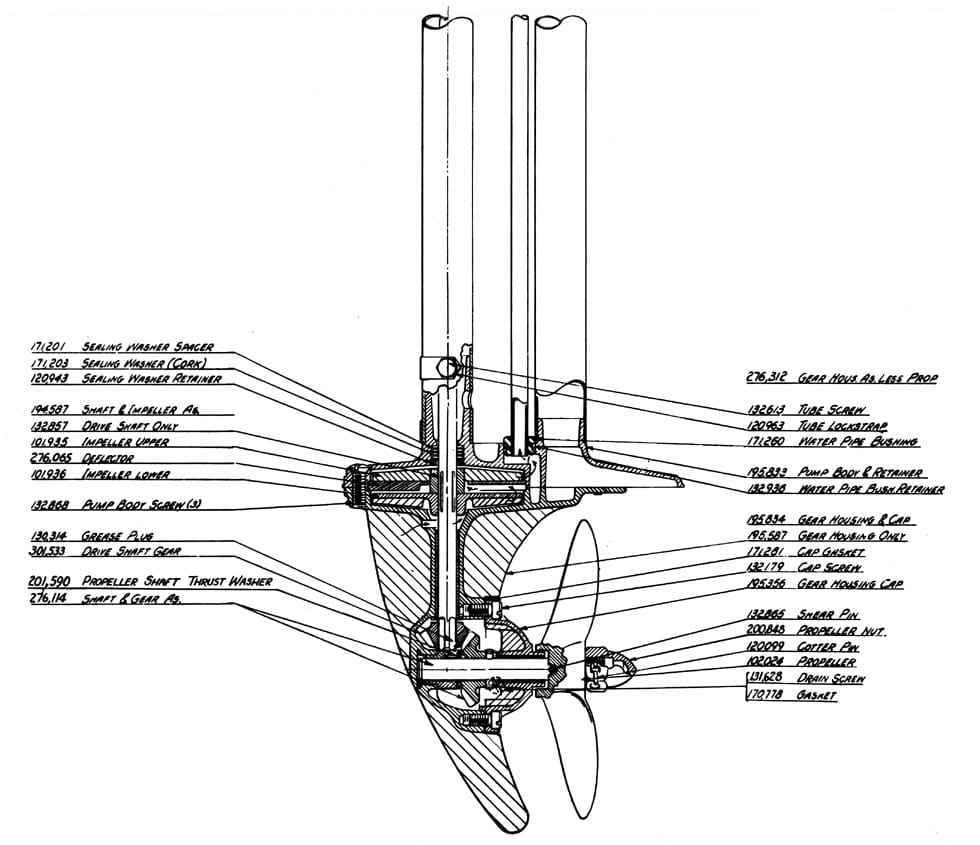

I’m not sure it has any actual rubber lipped seals anywhere. The drive shaft seal appears
to be cork washers stacked….. not sure what the prop shaft has. I don’t believe you’ll
find any over the counter gaskets for this motor for sale, so you’ll have to make them.

I’m not sure what kind of coil your motor takes. A photo would be helpful to
determine if an alternate coil could be fitted or substituted.
Have to tested the old coil with an ohm meter?

Prepare to be boarded!
