    Hi,

    I’m trying to rebuild a carb for a 1947 Evinrude Sportwin 4421 and I’m wondering if anyone knows where I can get gaskets and a float. Im sure I can make gaskets for the top covers (p/n 170098 & 171073) but I don’t know what to do for the float (p/n 170336) and the needle gland packing (p/n 171113) I have attached photos to help identify the parts. Any ideas are welcome….thanks!!!

    Attachments:
    Avatar
    garry-in-michigan

    Lifetime Member
    Replies: 3550
    Topics: 31
    #185735

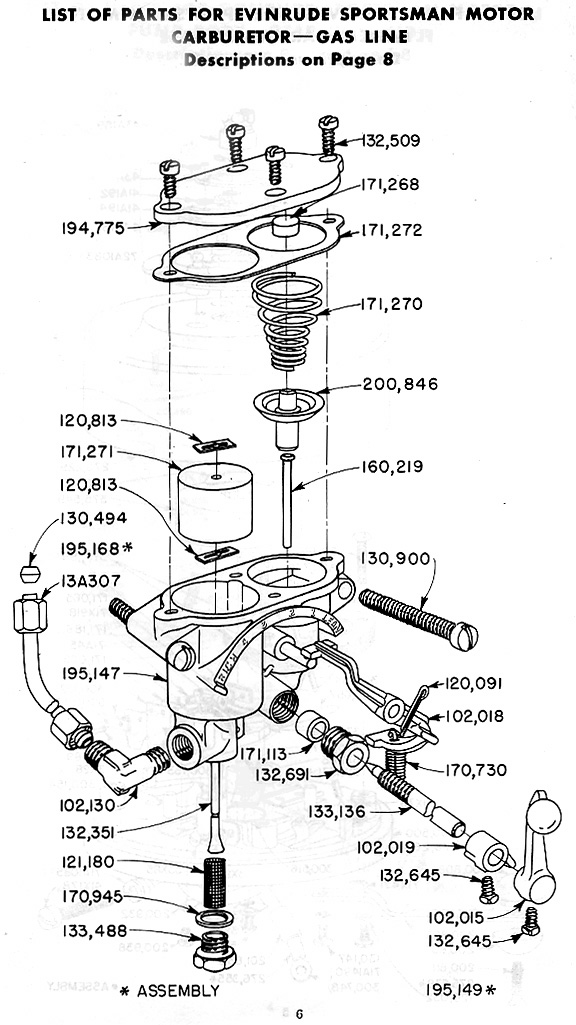

    As you say, the gaskets are not that difficult. Many are adapting the mercury float, as in the illustration. I had a collection of punches and punched out needle valve packing out of the neoprene impregnated cork I used to make fuel tank gaskets. The cut out in the center of the fuel tank gasket would make dozens. a stack of three or so would keep the valve from leaking and hold it in place. Do not allow the packing nut to bottom out. over tightening will break out a part of the threaded portion and render the casting useless.


    Avatar
    crosbyman

    Canada Member - 1 Year
    Replies: 1543
    Topics: 189
    #185790

    visit rhe poche family site

    http://www.pochefamily.org/outboard/CarbService.html

    Joining AOMCI has priviledges 🙂

    Avatar
    ede

    US Member - 2 Years
    Replies: 142
    Topics: 3
    #185833

    send me an email note regarding float, Ed Elliott eddelliott@cox.net

    Avatar
    robertf

    US Member - 1 Year
    Replies: 2
    Topics: 2
    #186118

    Ed I sent you an email
