July 21, 2017 at 2:51 am #61949
wbeaton
Participant
Canada Member
quote Garry in Tampa:

Have you checked out what is in my Dropbox account ?

No I didn’t, Garry. Where is the link located?

Jeff, I would love to see some photos of your blue KD4. Do you think it was a dealer repaint?

.

Wayne
Upper Canada Chapter

uccaomci.com
July 21, 2017 at 4:57 am #61955
garry-in-michigan
Participant
Lifetime Member
The link is in any of my posts in the Inner Sanctum – upper left corner . . . 😉
July 21, 2017 at 11:45 am #61957
wbeaton
Participant
Canada Member
Thanks. I’ll check it out.

Wayne
Upper Canada Chapter

uccaomci.com
July 21, 2017 at 7:54 pm #61983
green-thumbs
Participant
US Member - 2 Years
One very BIG advantage to modular design of the Early Kiekhaefer’s, compression is irrelevant.
Damaged cylinders or pistons can be replaced. Replacements parts can be sourced
from a range of models and years. No need to be concerned with over size rings or pistons
Corvair air cooled engine had same concept of replace problem cylinder, piston and rings
rather than get into machining and stocking oversize parts. VW beetle also a modular
design that make rebuilding a remove and replace concept
Louis
July 23, 2017 at 11:42 am #62066
jpatti75
Participant
US Member
Wayne,

The good guys of the Western New York Chapter have the parts list for all of the early K models posted online, but unfortunately there aren’t any diagrams:

http://pub9.bravenet.com/photocenter/al … /1/115388/

If you PM me with your email address, I can send you it in PDF form (my stinkin’ iPad won’t let me attach PDFs here).

JP
July 23, 2017 at 7:18 pm #62084
wbeaton
Participant
Canada Member
quote jpatti75:

Wayne,

If you PM me with your email address, I can send you it in PDF form (my stinkin’ iPad won’t let me attach PDFs here).

JP

Thanks, JP. I had a soft copy of the parts catalogue in my archives so I’m good. I ran the motor at our wet meet in the weekend. It started and ran, but it had obvious carb problems.

Wayne
Upper Canada Chapter

uccaomci.com
May 9, 2018 at 1:20 pm #75621
wbeaton
Participant
Canada Member
Update…

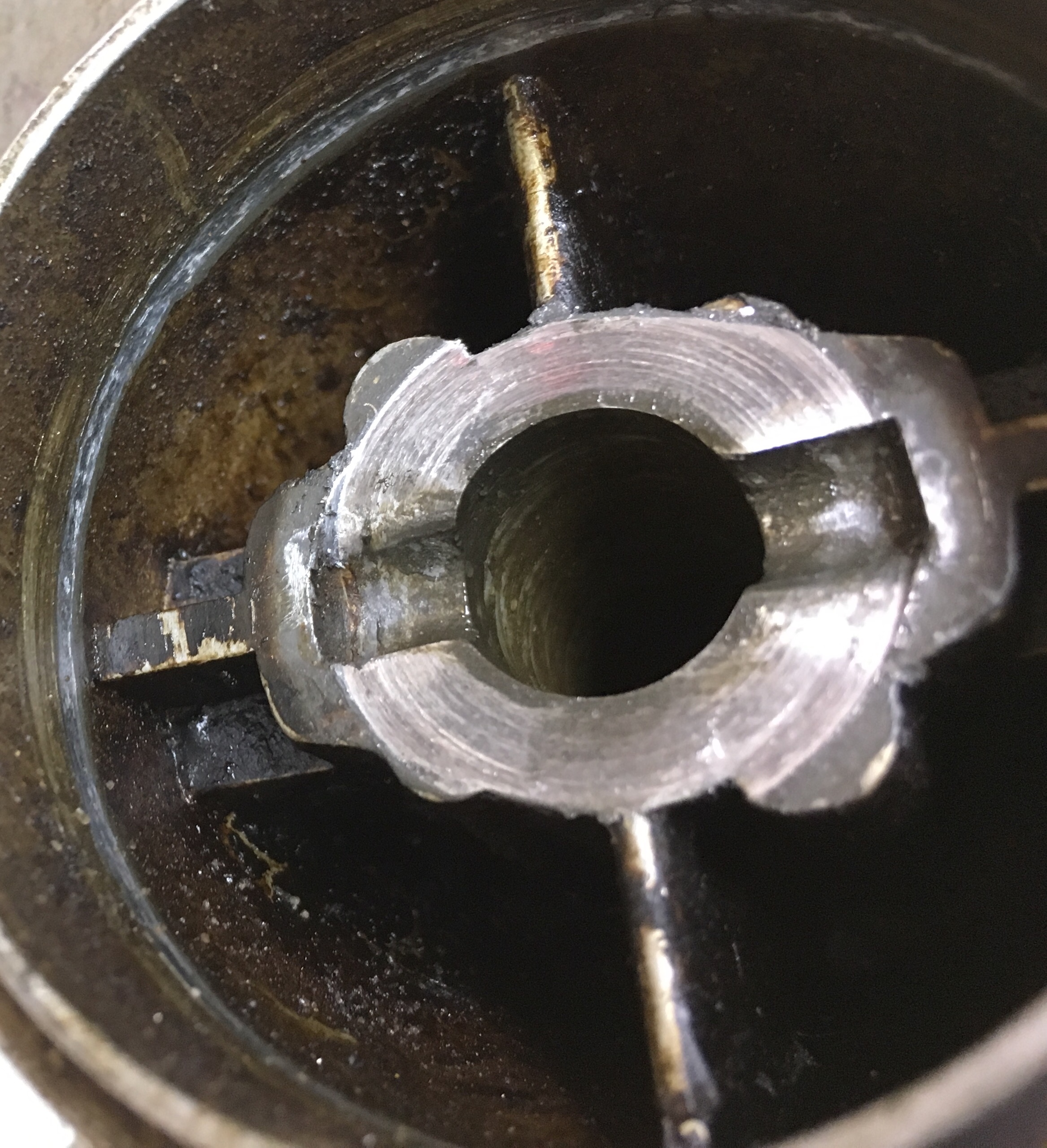

I cleaned the carb and then took the motor to the Upper Canada Chapter meet on Belwood Lake last weekend. It started and ran perfectly. However, it made a grinding noise under throttle that was coming from the lower unit. I pulled the prop and found that it was damaged. The manual shows a slip clutch behind the prop which this one is missing. Would anyone have a photo of the missing parts so I can see what it should look like.

Attachments:

Wayne
Upper Canada Chapter

uccaomci.com
May 9, 2018 at 1:45 pm #75622
dave-bernard
Participant
US Member
they can be run without the clutch. it slipped because your prop was not tight enough. put in a new shear pin tighten down firmly add the cotter pin. square up the slots if you need to. you will be fine. ran that way for years back in the 50’s as a kid.
August 4, 2018 at 11:25 pm #80666
wbeaton
Participant
Canada Member

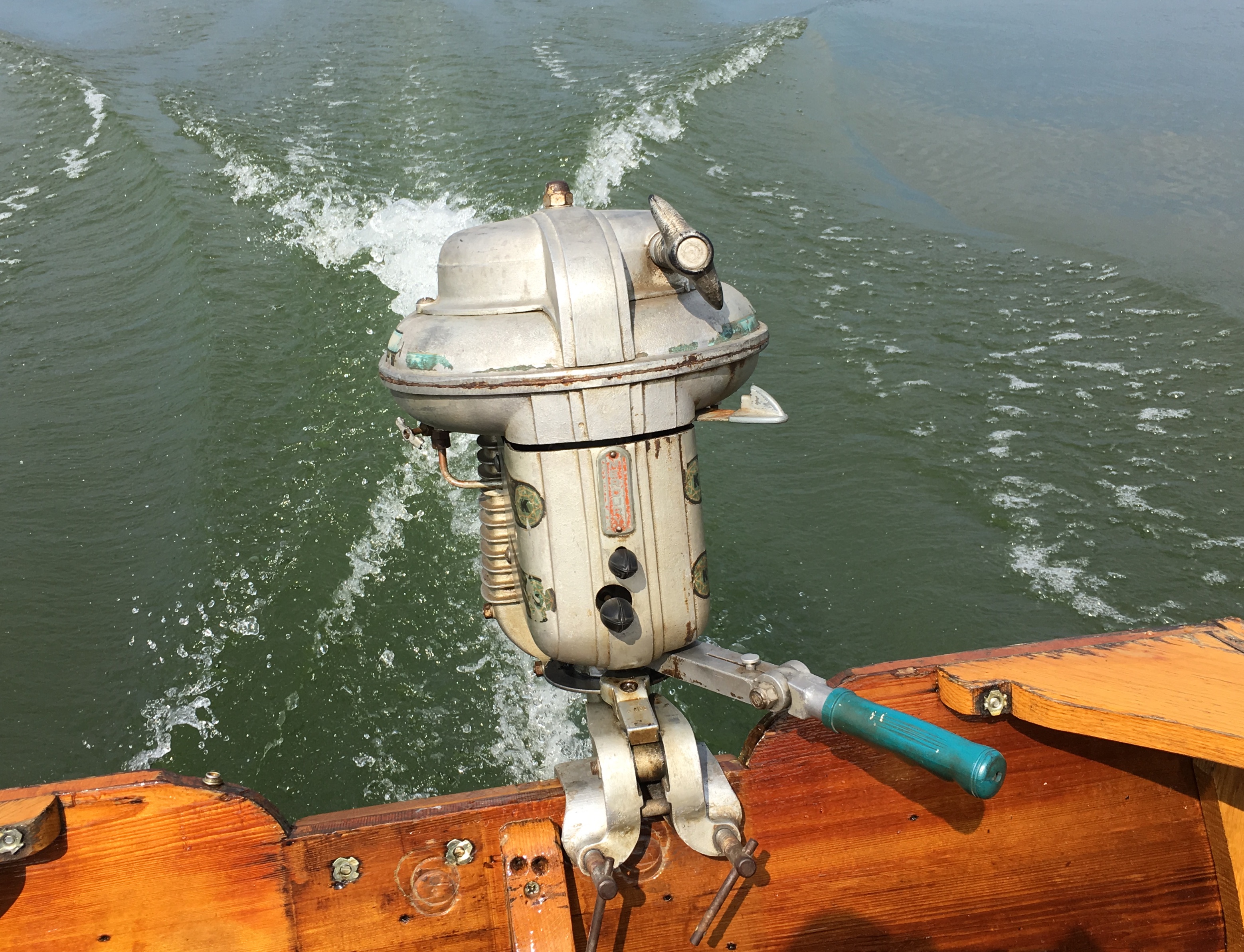

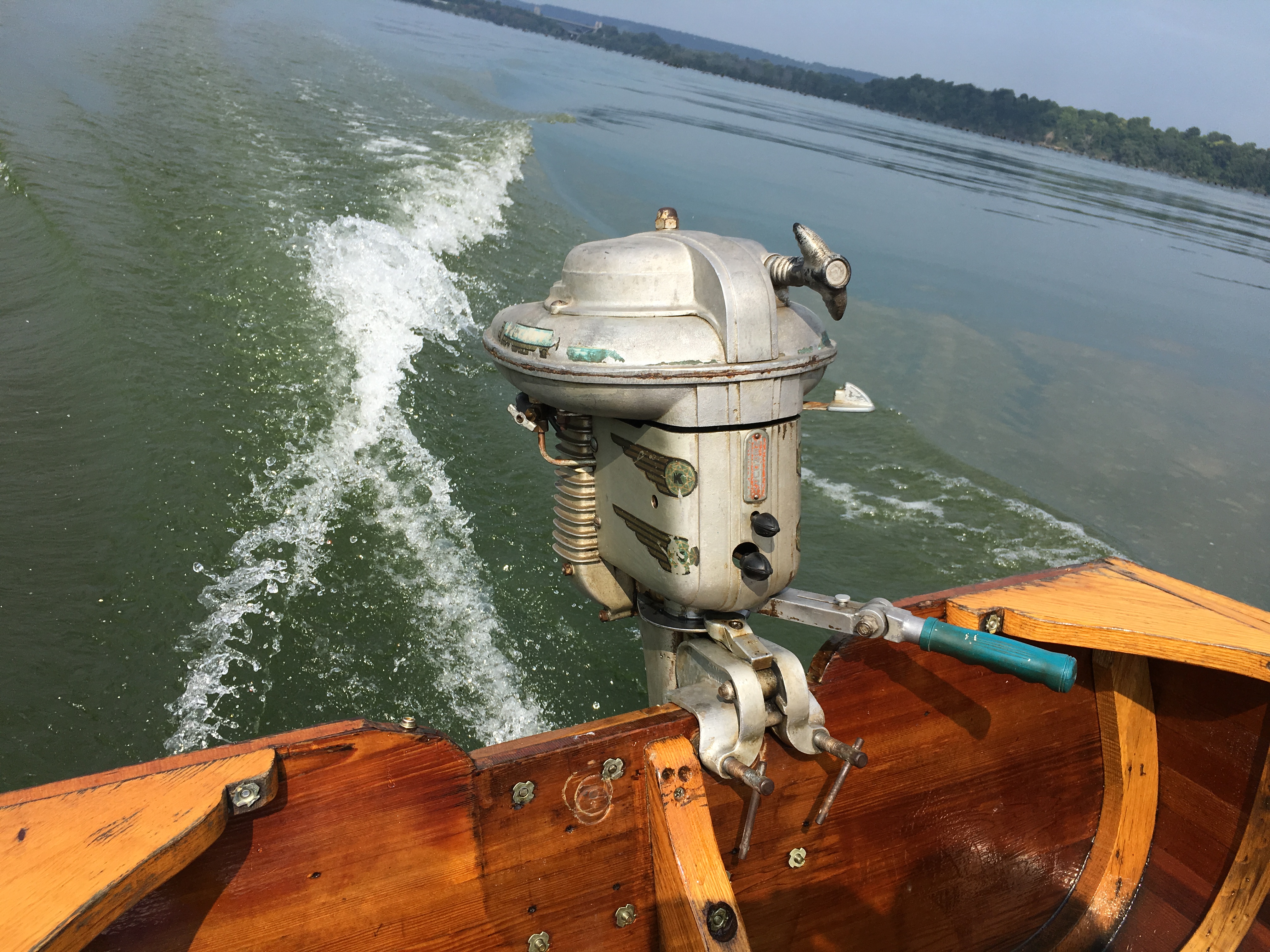

An update to the project…had the KD4S on the cartopper today. It ran beautifully. Thanks for all the help.

Wayne
Upper Canada Chapter

uccaomci.com
August 6, 2018 at 1:57 am #80701
green-thumbs
Participant
US Member - 2 Years
Running with sheer pin instead of the clutch assembly calls for a minor change to pin
in drive hub…a shorter pin and a spring that will fit into groove in drive hub to retain pin.
There is a second hole in prop shaft to accept a sheer pin to engage notches in prop/
Prop shaft is a hold over from models before adoption of clutch.
I would keep an eye open for another propeller and a clutch as having a spare prop is
always a good idea. Clutch mostly avoids having to do on the water repairs.
Louis

to engage slot in prop hub.
I suggest a brass sheer pin instead of steel,

Louis
