January 11, 2018 at 5:53 pm #8989
kevinrude
Participant
Hey guys,

Does anyone have a parts diagram for a 1948 3.3HP Evinrude? I looked in all of the usual places and couldn’t find one.

Thanks!

Regards,
Kevin
January 11, 2018 at 7:32 pm #69552
Buccaneer
Participant
US Member

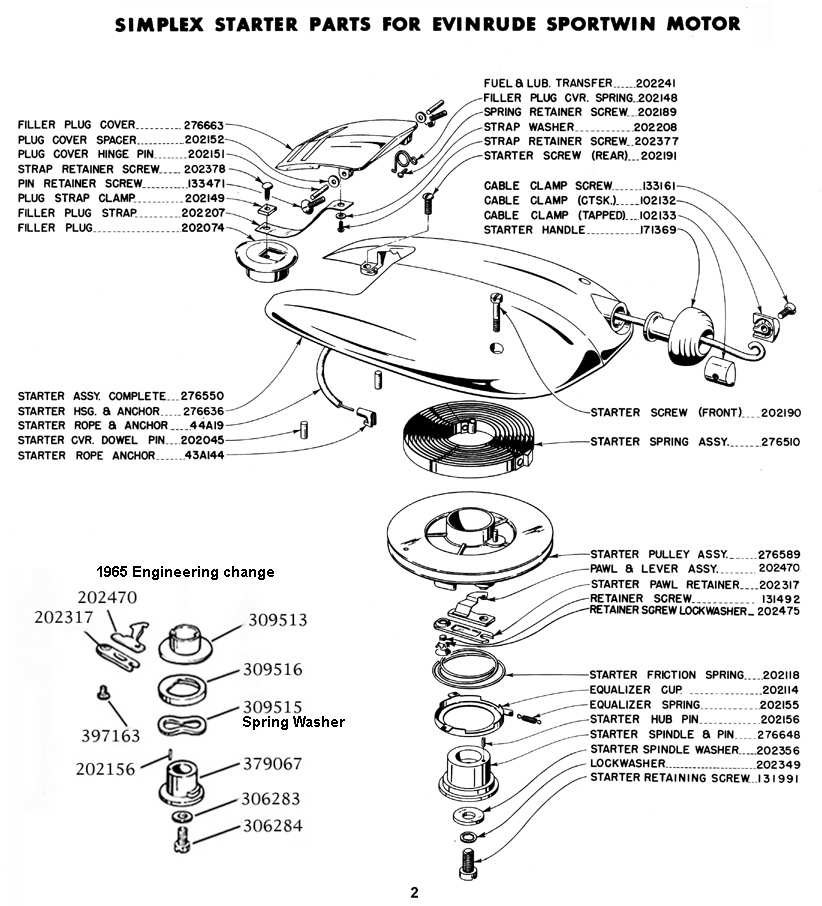

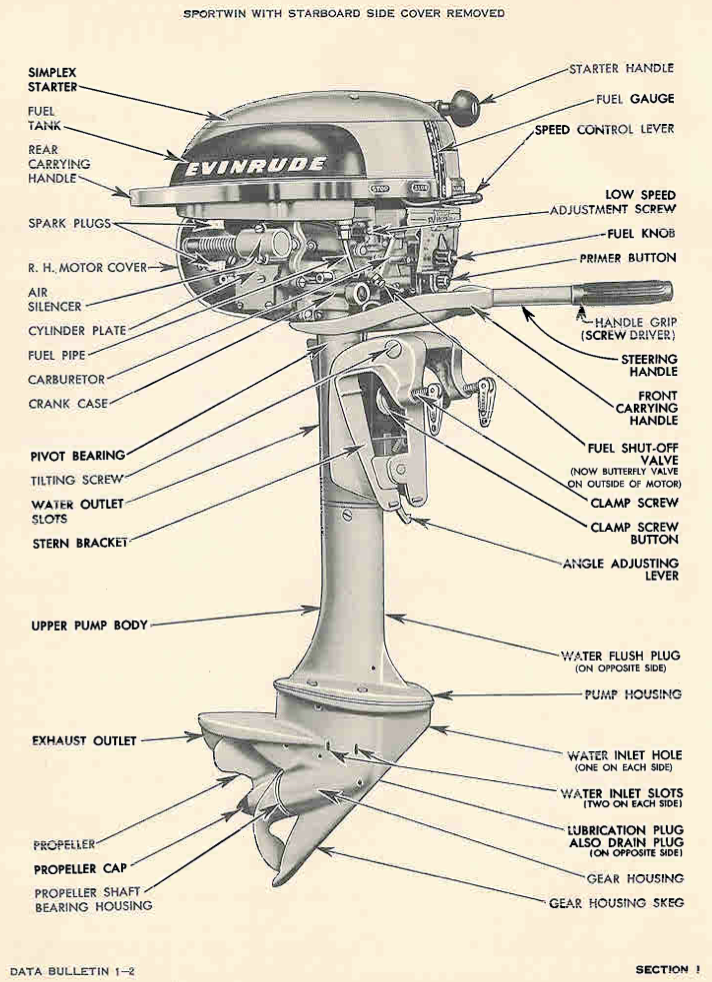

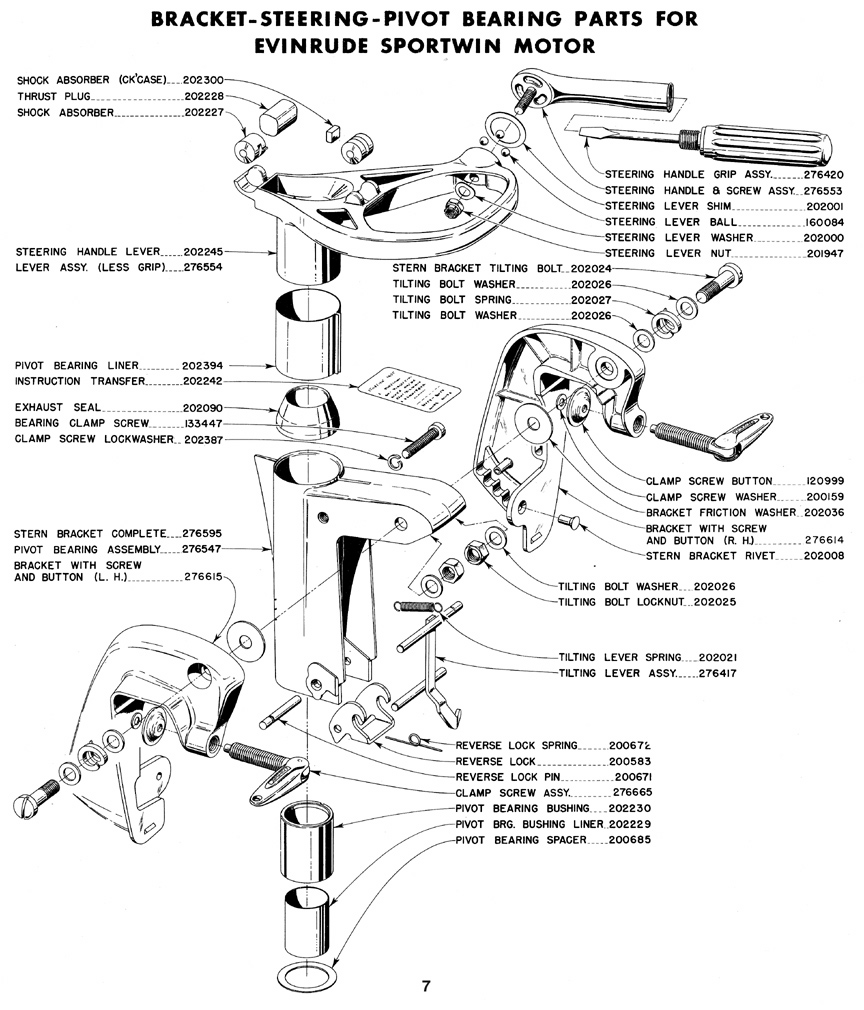

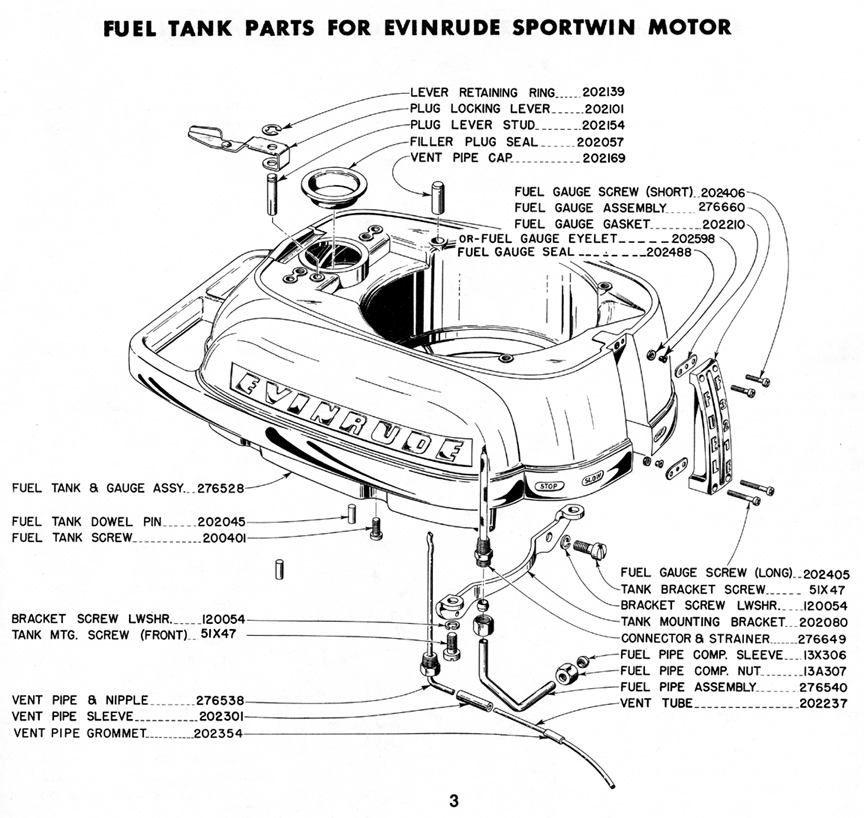

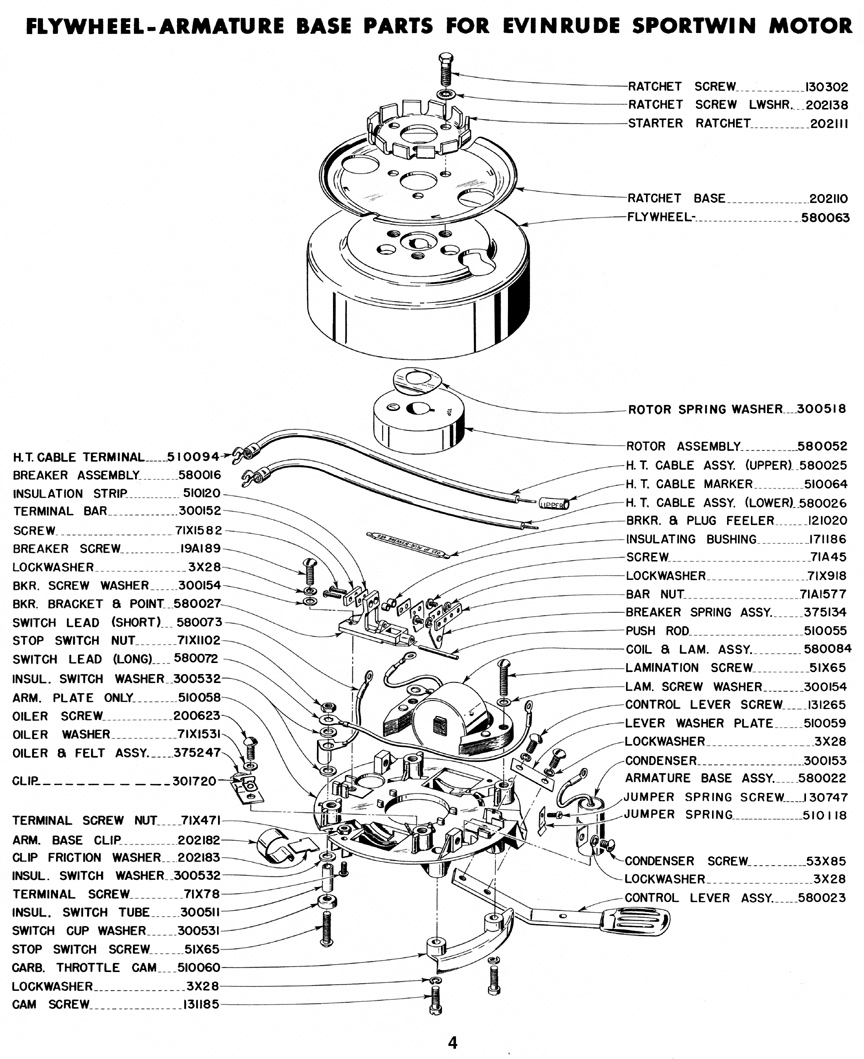

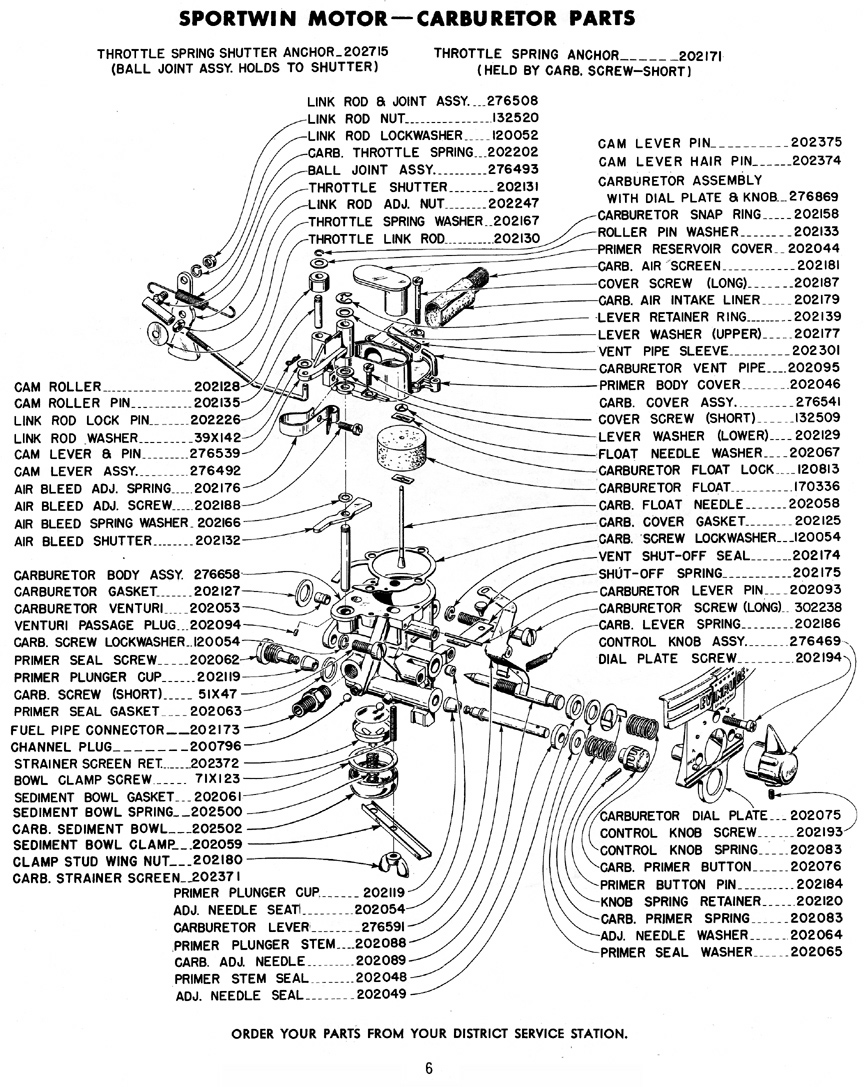

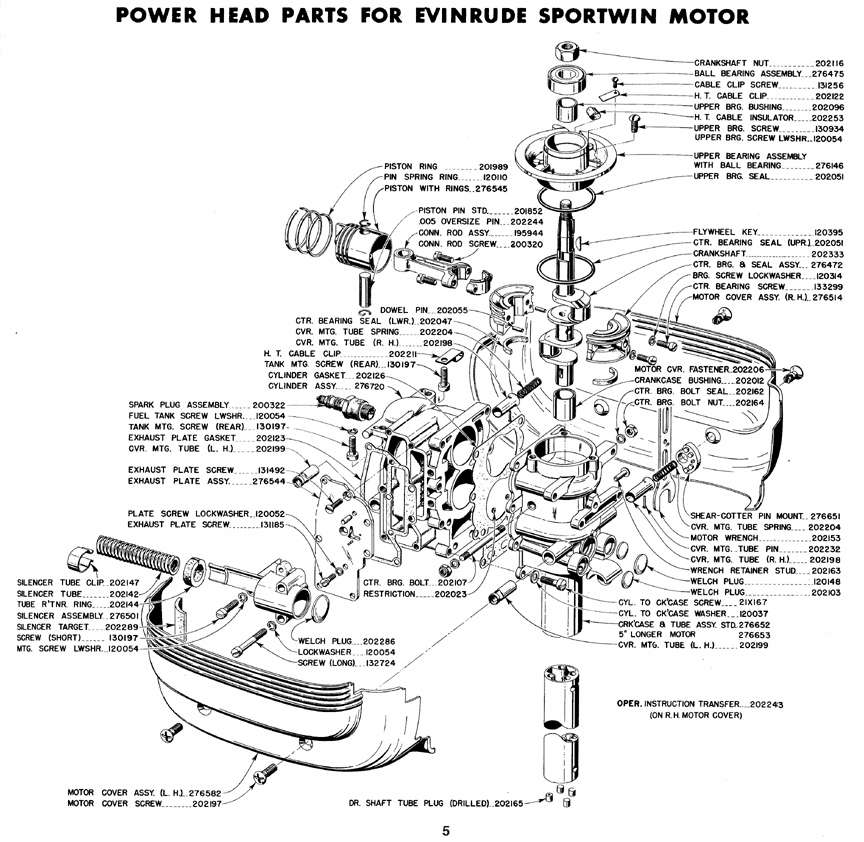

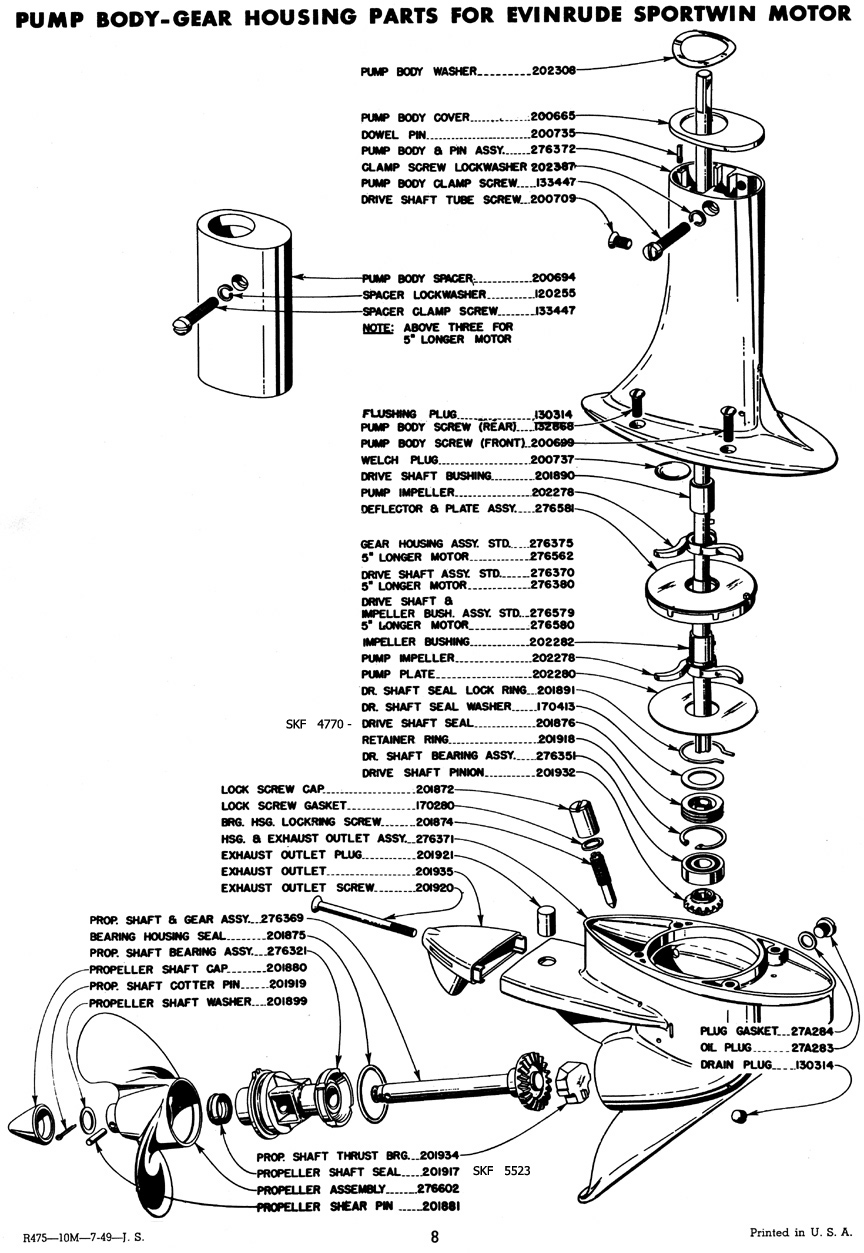

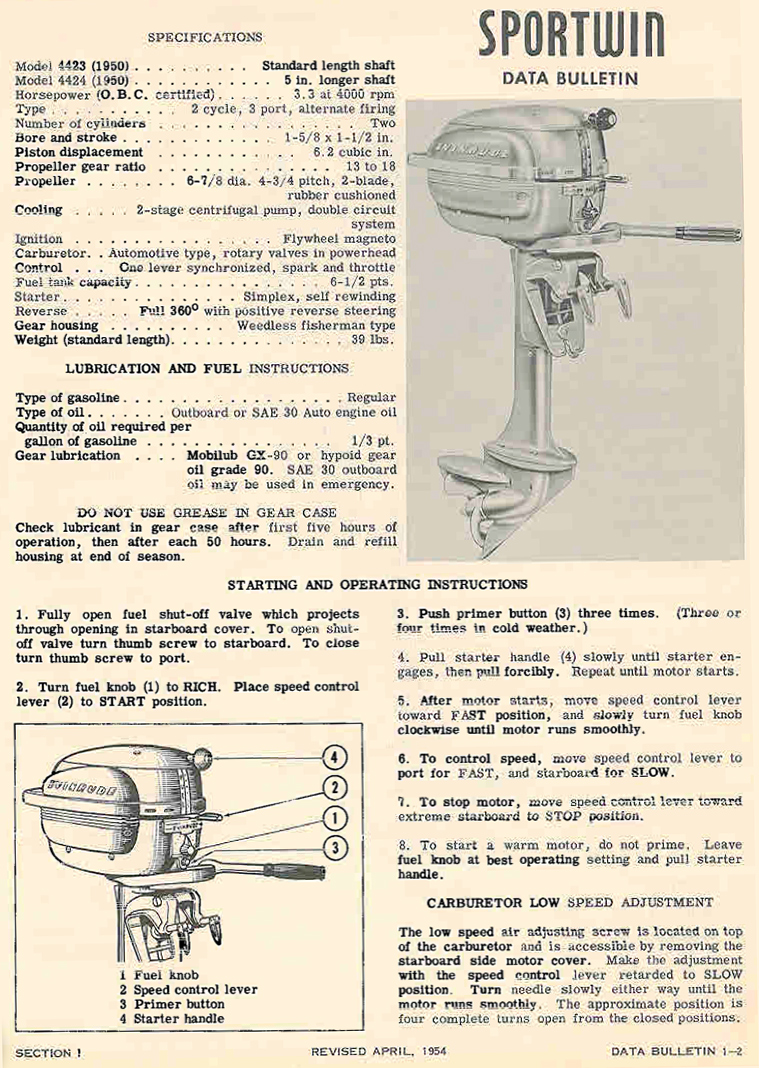

There’s some on this site if you search for 4423.

Prepare to be boarded!
January 11, 2018 at 9:53 pm #69560
garry-in-michigan
Participant
Lifetime Member
It’s in my DropBox Account – – – 😆

1 user thanked author for this post.

Acertap
January 11, 2018 at 10:23 pm #69561
kevinrude
Participant
Sweet. Thanks Garry!
January 12, 2018 at 8:50 pm #69589
chipster303
Participant
US MEMBER PAY BY CHECK
Sounds like you are working on one also, kevinrude. I am restoring one myself. Just gathering parts as I experience the need. Hope to find enough parts to get it going. Good luck with yours and let me know if I can help in any way.

Chip
January 13, 2018 at 2:05 am #69597
rjoynt
Participant
US Member
Hey Chip. I have one on the rack. Maybe time to pull it off of the rack and work on it during this cold Ohio winter! Brrrrrr…..
January 17, 2018 at 4:41 pm #69817
PHILLIP REESMAN
Participant
US Member
Want to thank Gary in Tampa for the posting of the 3.3 hp. I just acquired one in nice shape but needed that info.
January 18, 2018 at 11:44 am #69846
skanders01
Participant
Came across one of these for pretty cheap that is intact, started and ran OK last year. Won’t start now, so I am starting with a carb kit if I can find one. When I broke it down the float/chamber was full of small cork (float) particles clogging up the works. Float was not protected with any coatings. Any of you rebuilders find a good source for a carb repair kit?

Thanks,

Kyle

Kyle Anderson
Trempeleau, WI
skanders@triwest.net
920-764-0501
January 18, 2018 at 1:25 pm #69853
garry-in-michigan
Participant
Lifetime Member
The float was coated with lacquer, which is disolved by the alcohol in todays fuel. Sorry – no carburetor kits, you have to order the individual parts, Old stock floats would have to be resealed . . . 🙂
January 18, 2018 at 1:52 pm #69854
crosbyman
Participant
Canada Member
that float "looks" like the TN27 float….. could the mercury float be used ?

Dan had suggested the following … (My TN27 float was in great shape so I am just going to reseal it for now)

Get you a Sierra #18-7208 float. Same as Mercury #1395-8673. Works great & you don’t have to coat it or anything. Slight modifications. Just drill out the center to remove the little spring for the center rod & add the hole for the screw to hold the plate to set float heigth. Best way to go & cheap.

Joining AOMCI has priviledges 🙂
