Topic: 1948 Gale Hiawatha 5HP – Page 2 – Antique Outboard Motor Club,Inc

This topic has 51 replies, 8 voices, and was last updated 4 years, 7 months ago by frankr.

Viewing 10 posts - 11 through 20 (of 52 total)

← 1 2 3 4 5 6 →

Author

Posts
July 30, 2020 at 7:53 pm #210402
NBD925
Participant
Thanks for all the help Frank and Jcrigan. I ordered a Clutch Ring yesterday.

Any insight on the gaskets where the head meets the lower unit and that water passage plate below. Or is it best to try to make them?
July 30, 2020 at 9:15 pm #210408
frankr
Participant
US MEMBER PAY BY CHECK
The gaskets are 550348 and 550452 Marineengine has the 550452
July 30, 2020 at 11:39 pm #210427
NBD925
Participant
Wow, I feel like a dummy. I didn’t realize the old part numbers would still work. I’ll keep that in mind and look for them on that site and the internet.

Amazing I had no idea. Thanks Frank. I’ll let you guys know when I get her back together. Thinking I should have all the parts by next week.
July 31, 2020 at 12:03 am #210429
NBD925
Participant
Frank, any idea why the gasket and the plate has this hole? I see the hole is just above the water passage on the return side but the head has nothing.
The head does not have a hole that matches it. See pictures below: realize the head is upside down. If there was a hole it would be somewhere in the red circle I drew.

I was thinking that the mystery hole might be a universal fitting gasket and plate that may work on a different model. Is that correct?

The original gasket seemed to also have this hole.

Another question: what would be the purpose of the extra water passage Chanel that goes passed the inlet and outlet areas. See third picture of pump passage highlighted in green. Yellow square shows about where the water return hole is in the plate and gasket.
- This reply was modified 4 years, 9 months ago by NBD925.
July 31, 2020 at 6:18 am #210436
frankr
Participant
US MEMBER PAY BY CHECK
Hoo boy, I thought this might come up. Truth is, I am aware that there were changes made in that area along about that time, and some different gaskets to go along with the changes. BUT, the details of the changes I just don’t remember. The gasket numbers I posted are the correct ones for your model. Now the question might become if you order them will you get the correct ones, or will you get something that has gotten mixed up on some dealer’s shelf over the past 70 years? So many questions, so little rememberance. I’m afraid you are going to have to do some research and study/discovery on the subject.

Meanwhile, I’ll study your pictures and see if anything comes back to me. Hey, I’m 83 and counting.
July 31, 2020 at 6:39 am #210437
frankr
Participant
US MEMBER PAY BY CHECK

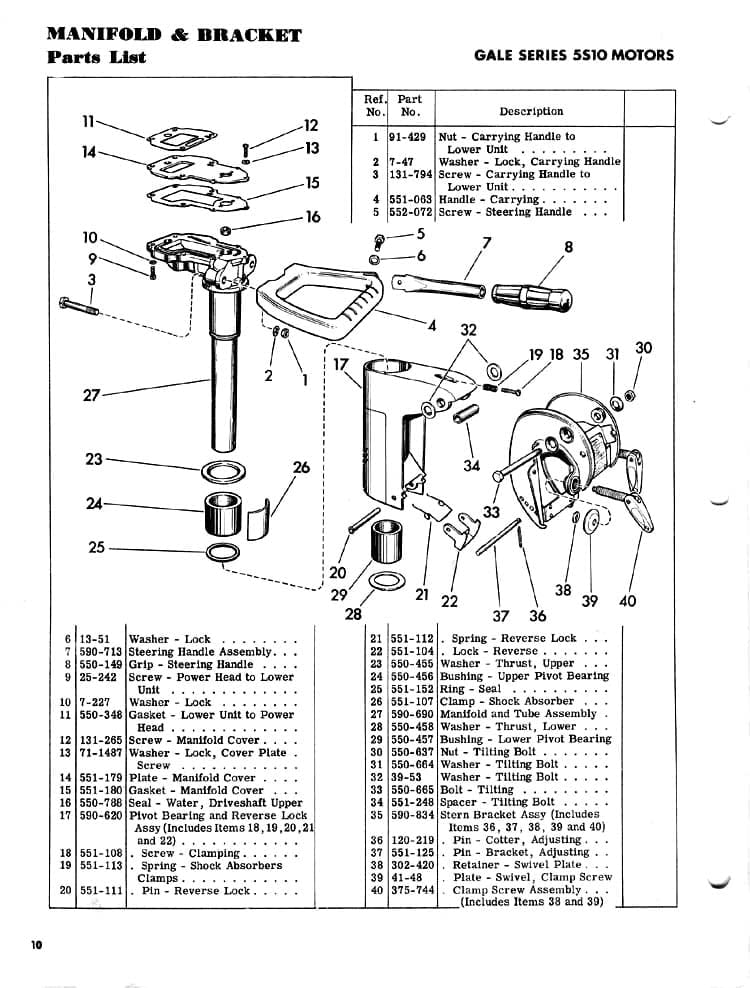

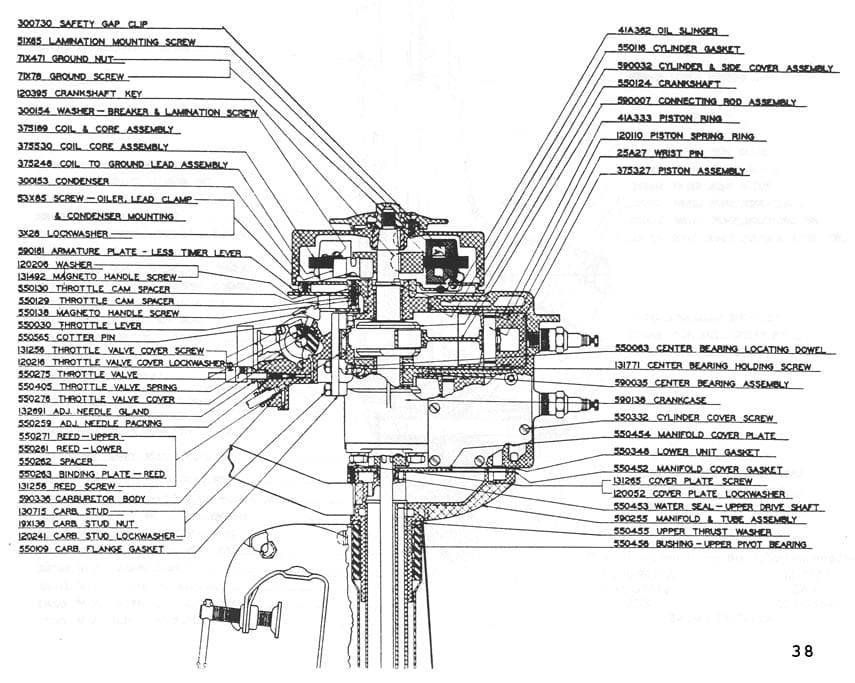

Just for your review and FWIW, here are the diagrams for your 1948 motor and the 5S10 (1951), Notice the different manifold cover gaskets.
- This reply was modified 4 years, 9 months ago by frankr.
- This reply was modified 4 years, 9 months ago by frankr.
August 5, 2020 at 1:02 am #210892
NBD925
Participant
What kind of torque should I be torquing these nuts down to connecting the head to the lower unit?

I believe there are three screws and 8 nuts with spring washers (Lock washers) holding the head down.
August 7, 2020 at 1:01 am #211050
NBD925
Participant
Any one know what that torque might be or do I just use a general accepted torque value For that size nut and thread?
August 7, 2020 at 5:50 am #211061
frankr
Participant
US MEMBER PAY BY CHECK
Generally accepted.
August 13, 2020 at 11:28 pm #211612
NBD925
Participant
Ok, a few new problems have popped up. I ordered a water pump from Brian Wilcox and it just arrived. But . . . The pump overall size is much smaller than the original. See attached pictures. Should I be asking for a different thing? Maybe it was just a mix up or maybe he just doesn’t make one for this 1948 Hiawatha 5hp. I have not herd back from Brian yet but will let you guys know when I do.

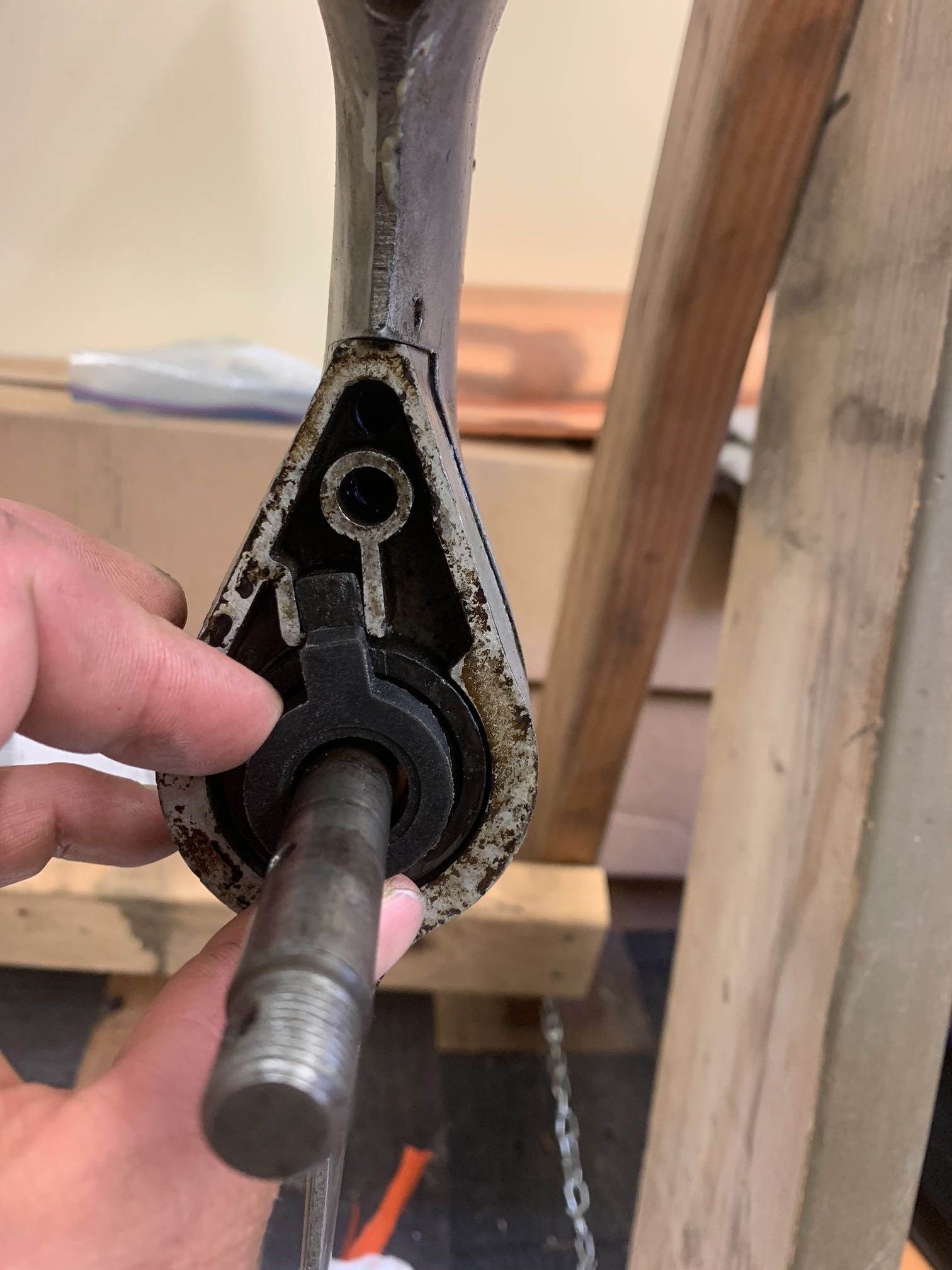

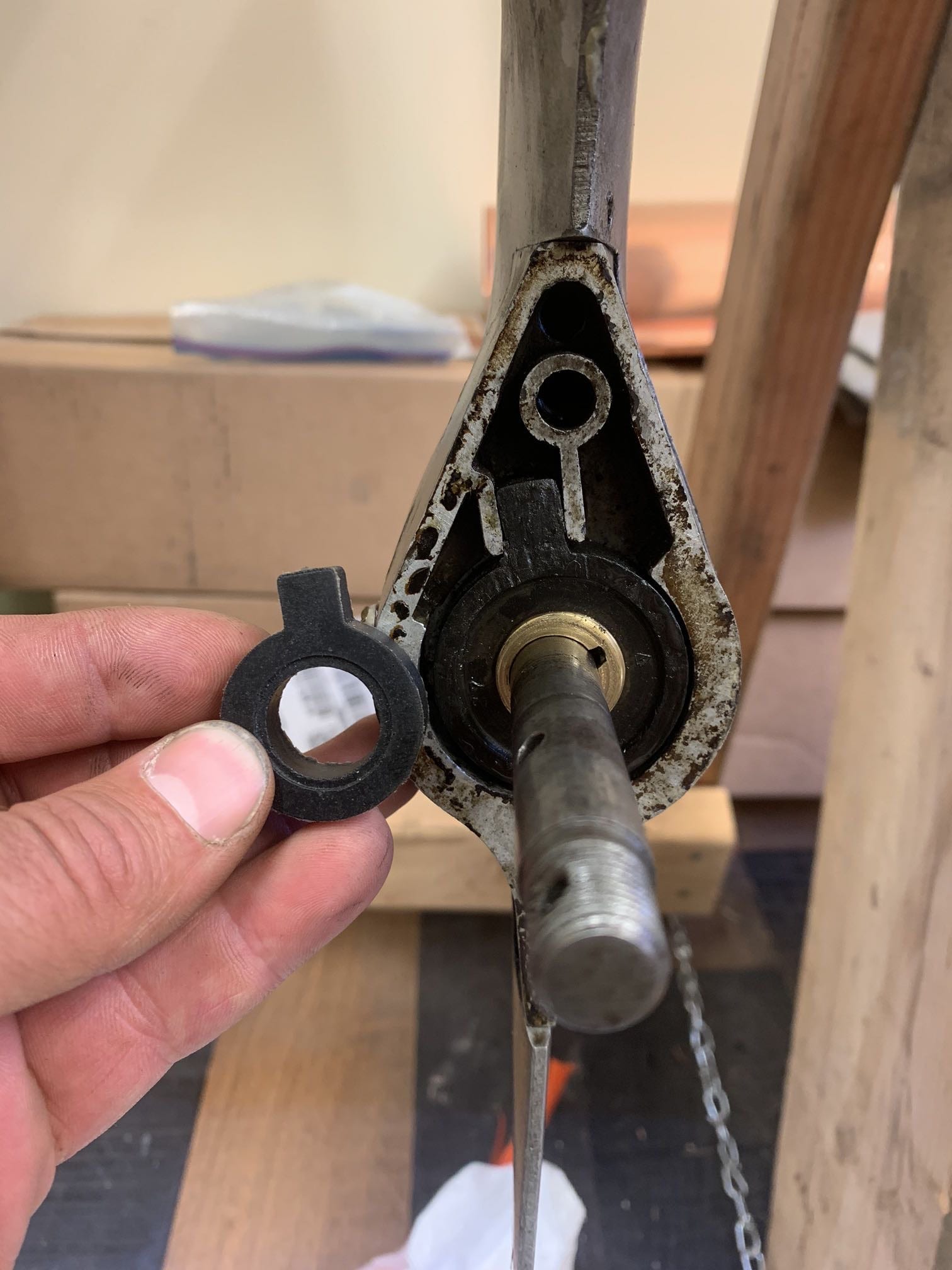

Next problem is the Prop. When I installed the prop and the new rubber clutch ring there was still some side to side play and some play in and out on the prop shaft. I tightened the prop nut and it looks like the shear pin was bending into a U before anything got tight. Any ideas here? I was thinking maybe the (Propeller Clutch Hub) was worn out.

How tight should the prop nut be? I tighten the nut by hand until the pin hole lines up and then how much tighter do you make the nut? Is there a general rule for all prop nuts?
- This reply was modified 4 years, 8 months ago by Mumbles.
