1949 wizard 6 hp

Home Forum Ask A Member 1949 wizard 6 hp

This topic contains 7 replies, has 5 voices, and was last updated by Avatar westwind 1 week, 1 day ago.

Viewing 8 posts - 1 through 8 (of 8 total)
  • Avatar
    GARY STEFFENEY
    US Member - 1 Year
    Replies: 2
    Topics: 2
    #182220

    looking at replacing waterpump impeller,, have taken off spring clip now how does plate come off is it screwed on or just pull off,, thank you for any info,,,,

    Avatar
    melugin
    US Member - 1 Year
    Replies: 253
    Topics: 20
    #182258

    When new, the plate would fall out. Now, it may take considerable persuasion. With plenty of WD-40 and gentle prying with a small screwdriver tip at the alignment slot, I have managed to loosen several.

    Avatar
    GARY STEFFENEY
    US Member - 1 Year
    Replies: 2
    Topics: 2
    #182281

    thank you,,,, I will keep you informed on progress,,,

    Avatar
    mercguy
    Lifetime Member
    Replies: 17
    Topics: 4
    #182303

    I often need to use this process: I remove the entire pump and shaft unit by removing the 2 screws. Then with no drive pin thru the shaft, I slide the shaft back so I can insert a pin thru the impeller driver and the outer hole of the shaft. Then tap on the shaft as a puller to remove the cover.

    fifty20ne
    fifty20ne
    US Member - 1 Year
    Replies: 180
    Topics: 331
    #182549

    Attachments:
    Avatar
    GARY STEFFENEY
    US Member - 1 Year
    Replies: 2
    Topics: 2
    #182905

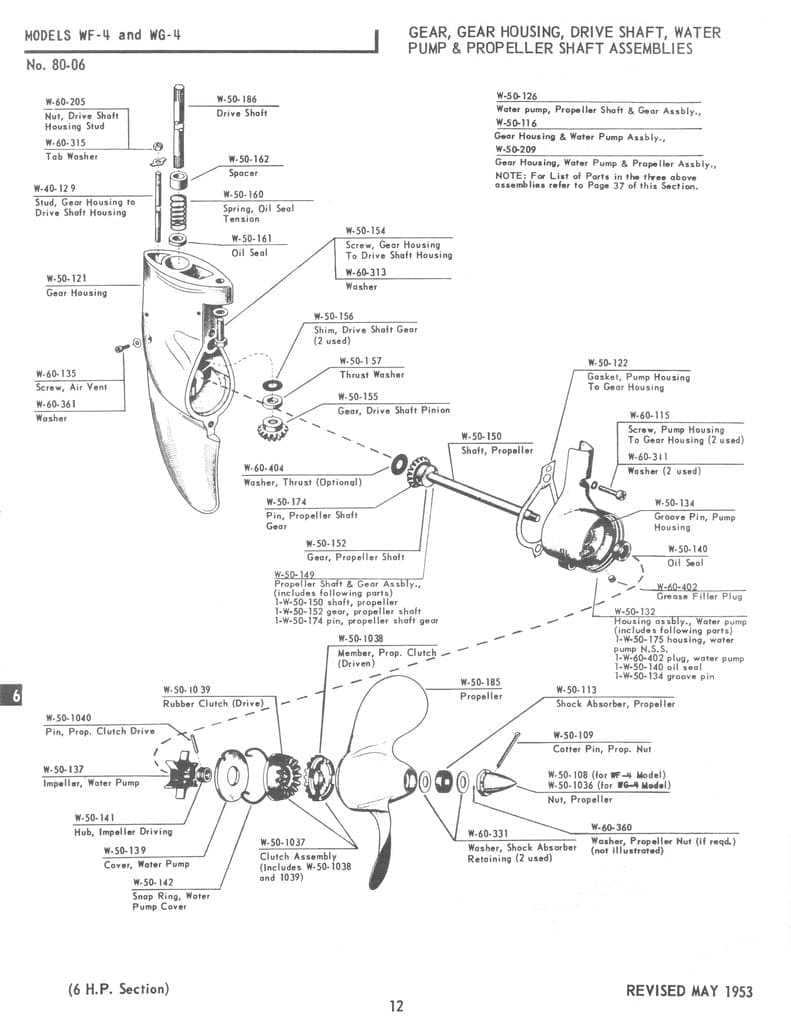

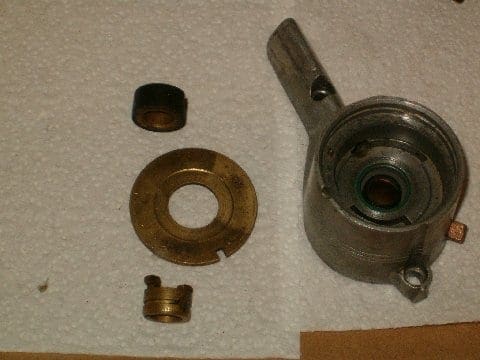

    thank you for help and diagram,, I did get it apart and impeller was reallyi bad, I ordered one but not correct I need one with two knotches for drive collar,, where do I look for this type,, and thank your for assistance,,,,,,

    fifty20ne
    fifty20ne
    US Member - 1 Year
    Replies: 180
    Topics: 331
    #183027

    Give Joe a call at Ferguson Poole.

    http://fergusonpoolemarine.com/enginecoolingsystem.html

    Avatar
    westwind
    Canada Member - 2 Years
    Replies: 353
    Topics: 8
    #183174

    Old Mercs might have one too.
