  • July 18, 2020 at 9:03 pm #209079
    Bc1972
    Participant

      When putting pistons back in block – what do you torque the rod bolts – regular head screws?
      When putting the head on, there are regular head screws around the outside and two inner screws. Do you start with the inner two screws first and then work you way around the outside in opposite fashion – and what torque?

      How to you torque regular head screws??

      July 19, 2020 at 7:51 am #209095
      fleetwin
      Participant

        US Member - 2 Years

        Regular headed screws?? Not sure I understand what you are referring to…
        In any event, torque the head bolts to 60-85 inch pounds, in three stages, working from the center out. Retorque after running and cool down…

        July 19, 2020 at 8:52 am #209102
        Steve Martin
        Participant

          US Member

          This illustration may help.

          July 19, 2020 at 8:55 am #209103
          Steve Martin
          Participant

            US Member

            1565005818332

            Try it again

            July 19, 2020 at 8:56 am #209106
            Steve Martin
            Participant

              US Member

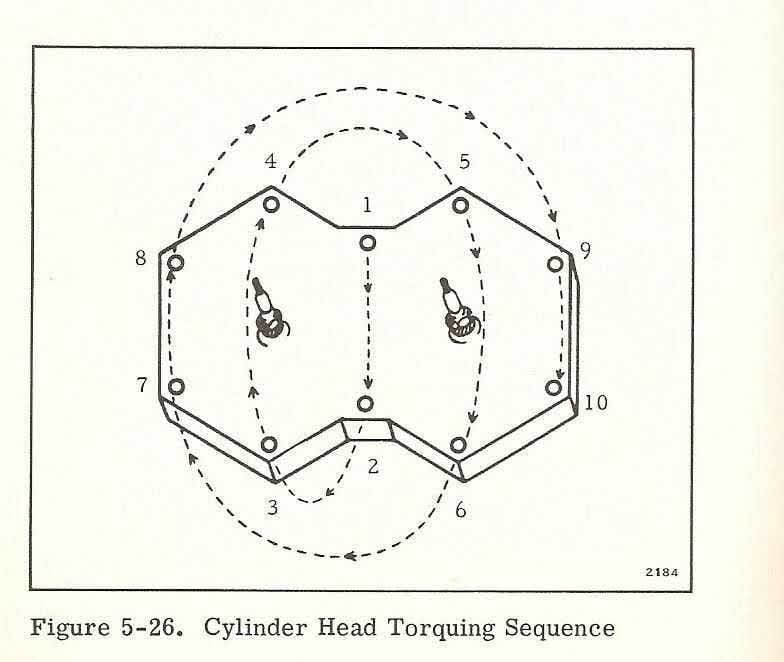

              1565005818332-1

              Try it again

              July 19, 2020 at 8:59 am #209110
              Steve Martin
              Participant

                US Member

                Sorry for the double entry. Can you tell I’m a rookie at posting pictures?
