  • #7042
    smokeonthewater
    Participant

      Gents,
      Would anyone know a part number for a modern replacement water impeller for this motor?
      It has the neutral clutch. Is this one of the models where the power head is removed to get access to the pump?
      Thanks in advance!
      She starts, runs, like a dream, but would like peace of mind since who knows the last line the impeller was replaced.
      Evinrude fleetwin 1952

      #57878
      chinewalker
      Participant

        US Member

        I have used the OMC/BRP 277181 impeller with good success. You must "thin it", though, to make it work. The side profile of the Fleetwin impeller is smaller, so I took the new impeller and thinned it on a belt sander. Flip frequently to take equal amounts off both sides until the profile dimension is the same as the one you removed. Take care to keep the impeller flat on the sander as you don’t want it uneven, either… My ’53 pumped great with its new impeller after this modification!

        No, you don’t have to remove the powerhead for the neutral clutch models. Drop the unit and undo the shift linkage from under the exhaust snout.

        #57882
        garry-in-michigan
        Participant

          Lifetime Member

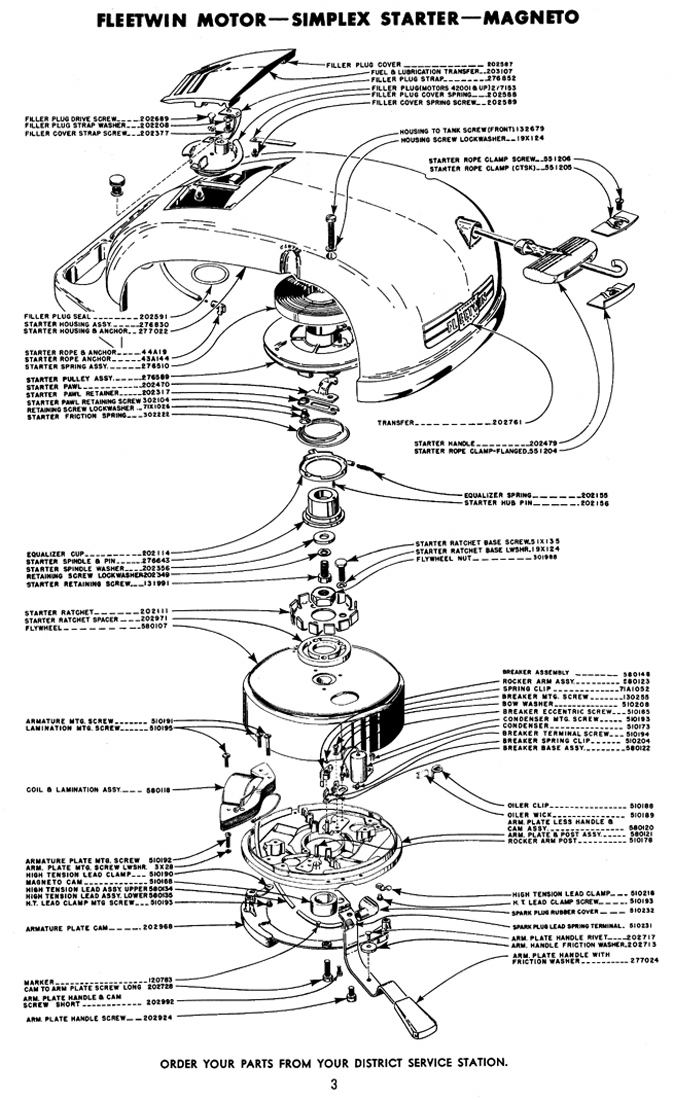

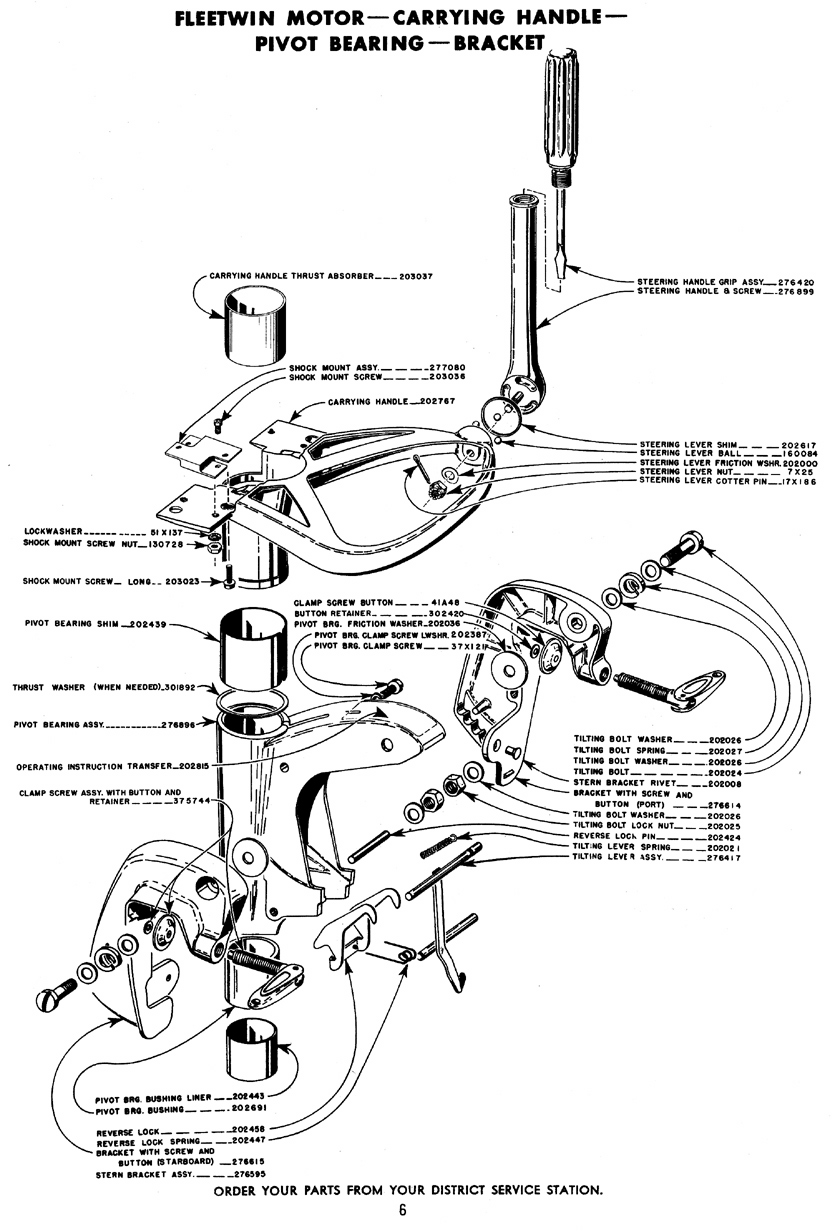

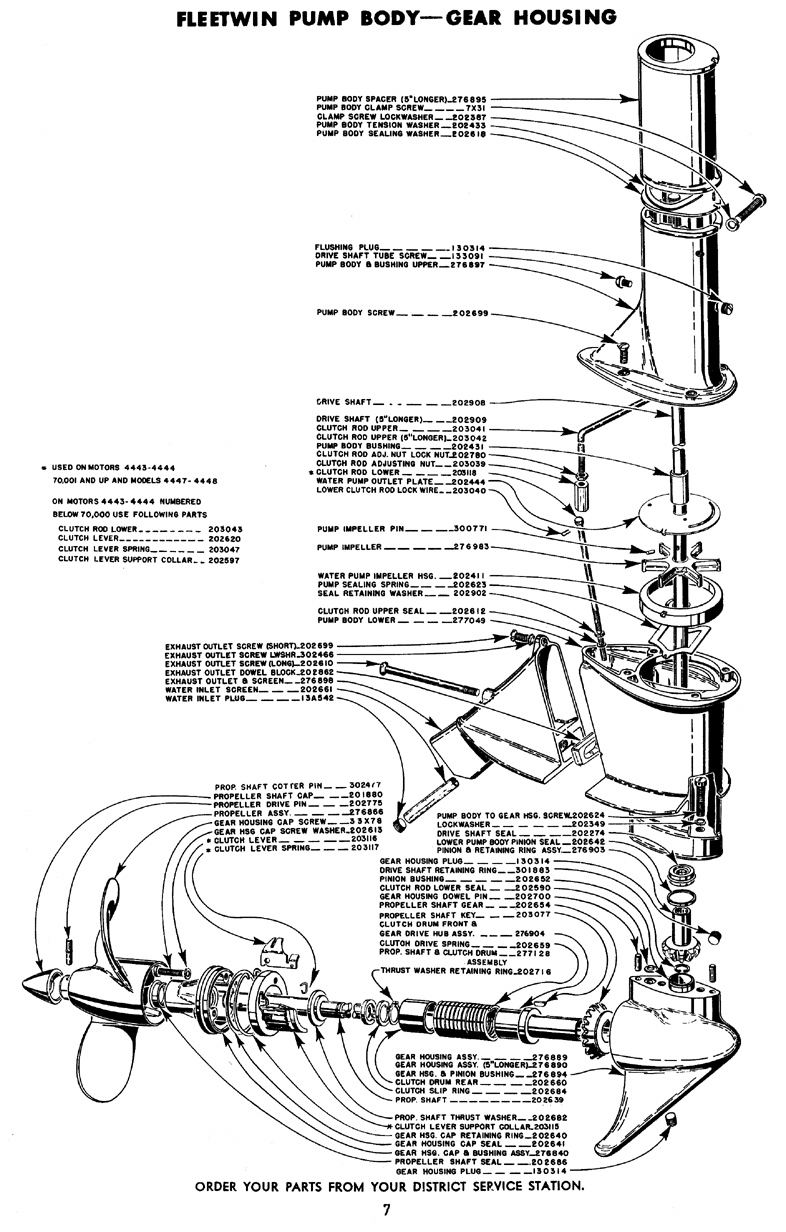

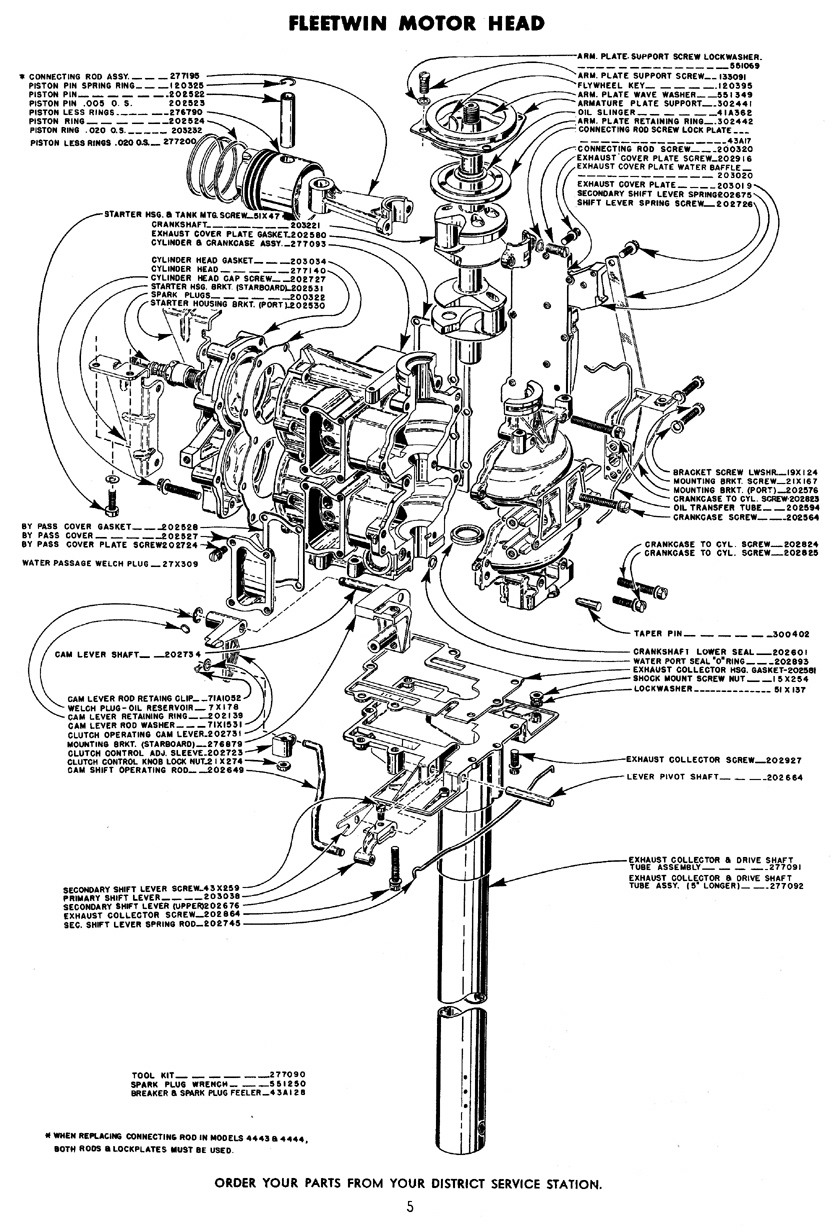

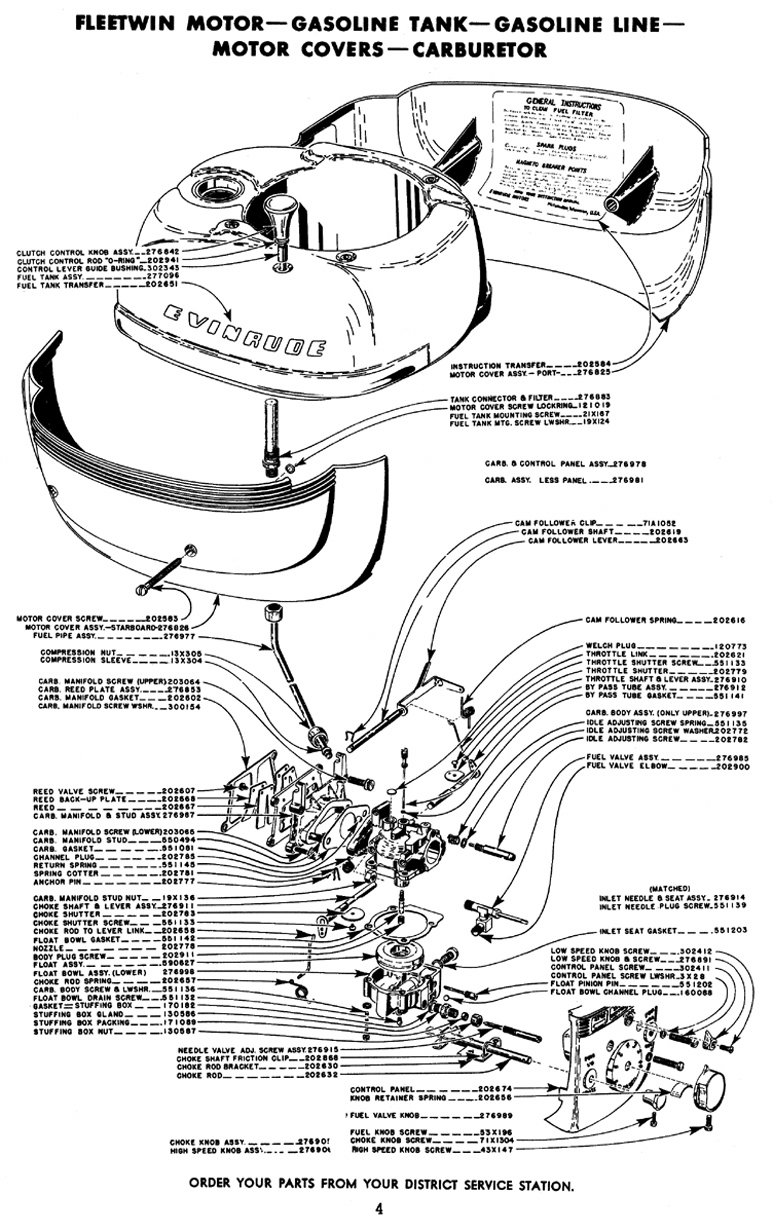

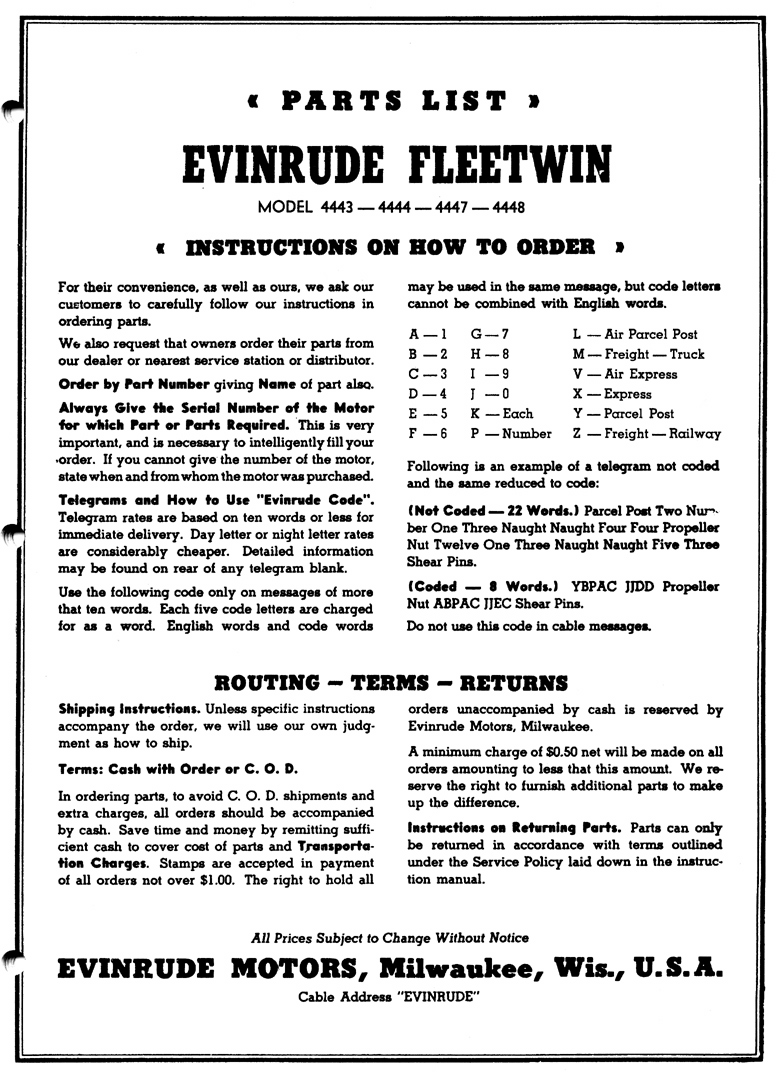

          Here is the parts book –

          The clutch discount is in front of the exhaust outlet. . . 😀

          #57886
          frankr
          Participant

            US MEMBER PAY BY CHECK

            Note that everything is "keyed" to keep it in proper alignment. And the flat spring under it is the only thing keeping it pressed together.
            Unusual, but what the hey, they worked. At least you won’t be busting off pump housing screws.

            #57914
            johng
            Participant

              US Member

              stan jackson in ohio. I have NOS impellors for this motor. $25 shipped to you. Where are you. Let me know Scj616@aol.com or 1-419-589-58one 8

              #57971
              dank
              Participant

                I’m jumping in here, hope you don’t mind. I just got one and it’s stuck. 15 minutes in I realized the lower unit was jammed with some rust. I’m going to replace the shaft seal and make a new cover seal. Did these use oil or the lubraplate equivalent grease? First time I’ve dealt with a shock absorber lower unit.

                #58006
                garry-in-michigan
                Participant

                  Lifetime Member

                  I have always used SAE 90 wt hypoid oil. . . 😉

                  #58048
                  dank
                  Participant

                    Thanks Garry! I think I’m missing a part or two in there – something doesn’t seem right and the engagement piece wasn’t working.

                    #58135
                    smokeonthewater
                    Participant

                      Thank you all so much for the replies !
                      Now, I’ve got everything I need to do this job!!
                      Thanks again!!!!
                      Jim

                      #58158
                      johng
                      Participant

                        US Member

                        I also have seal 202274 for that motor,if you need it Stan see above
