December 1, 2016 at 12:12 pm #48308
frankr
Participant
US MEMBER PAY BY CHECK
So, is this the rearward facing hole you are looking at? Actually, I think you should be seeing the end of the screw that holds the drain valve (#39 in the diagram). If the hole is open, the screw is missing. Simple fix.

20mb image hosting
December 1, 2016 at 3:08 pm #48316
PugetSoundBoater
Participant
David, i had to turn my laptop clockwise 90 degrees .Yes, that is the hole centered equal distance between the 2 exposed bolt ends. The hole itself shows as a half moon shaped light spot in David’s photo .The carb is in the upper left corner. a picture is worth 1000 words Thanks David !

"Some people want to know how a watch works, others just want to know what time it is"
Robbie Robertson
December 1, 2016 at 3:12 pm #48317
PugetSoundBoater
Participant
Frank, yes that is the hole. The screw must be missing Thanks .

"Some people want to know how a watch works, others just want to know what time it is"
Robbie Robertson
December 1, 2016 at 5:42 pm #48328
frankr
Participant
US MEMBER PAY BY CHECK
It should run better once you get that leak fixed and the puddle drain valves working.
December 1, 2016 at 11:08 pm #48344
kingstonlad
Participant
David, I own the motor that’s being discussed here. Yes, that is where the gas was spraying from: centered between the two bolt ends, down and to the right of the red splotch. Most of the ‘part breakdowns’ that I have, and those I’ve found on the net have the position of the "oil passage plug" part #301732 on the edge of the forward half of the crankcase. My motor has what you have pictured above, and yes the motor is a 1953, not a ’52. I have not been able to find the part listed on my regular ‘go to’ sites, but have softly wedged a taper pin into the orifice. Seems to be working, but I will continue to look for the part. Thanks for your input.

Kingstonlad
December 1, 2016 at 11:22 pm #48345
frankr
Participant
US MEMBER PAY BY CHECK
The missing screw is only half the problem. The screw holds the drain leaf valves on. It is not a matter of simply plugging the hole. Remove the intake manifold to fix it.
December 1, 2016 at 11:38 pm #48347
kingstonlad
Participant
It’s a bit hard for me to imagine that I left those parts out, or installed them improperly, but what you said makes sense. It is an easy task to check and see for sure, which I will do, but I also still seem to have a problem with not having a place for the "oil passage plug" which is shown on all my diagrams, but does not exist, where indicated, on my engine. One step at a time … I’ll let you know what i find when I remove the manifold.

Thanks, Kingstonlad
December 1, 2016 at 11:57 pm #48351
david-bartlett
Participant
quote kingstonlad:

It’s a bit hard for me to imagine that I left those parts out, or installed them improperly, but what you said makes sense. It is an easy task to check and see for sure, which I will do, but I also still seem to have a problem with not having a place for the “oil passage plug” which is shown on all my diagrams, but does not exist, where indicated, on my engine. One step at a time … I’ll let you know what i find when I remove the manifold.

Thanks, Kingstonlad

The "Red Splotch" in my picture is the pin.
December 2, 2016 at 12:59 am #48358
david-bartlett
Participant
To "beat a dead horse" so to speak, it finally dawned on me to use my disassembled powerhead for the pictures.

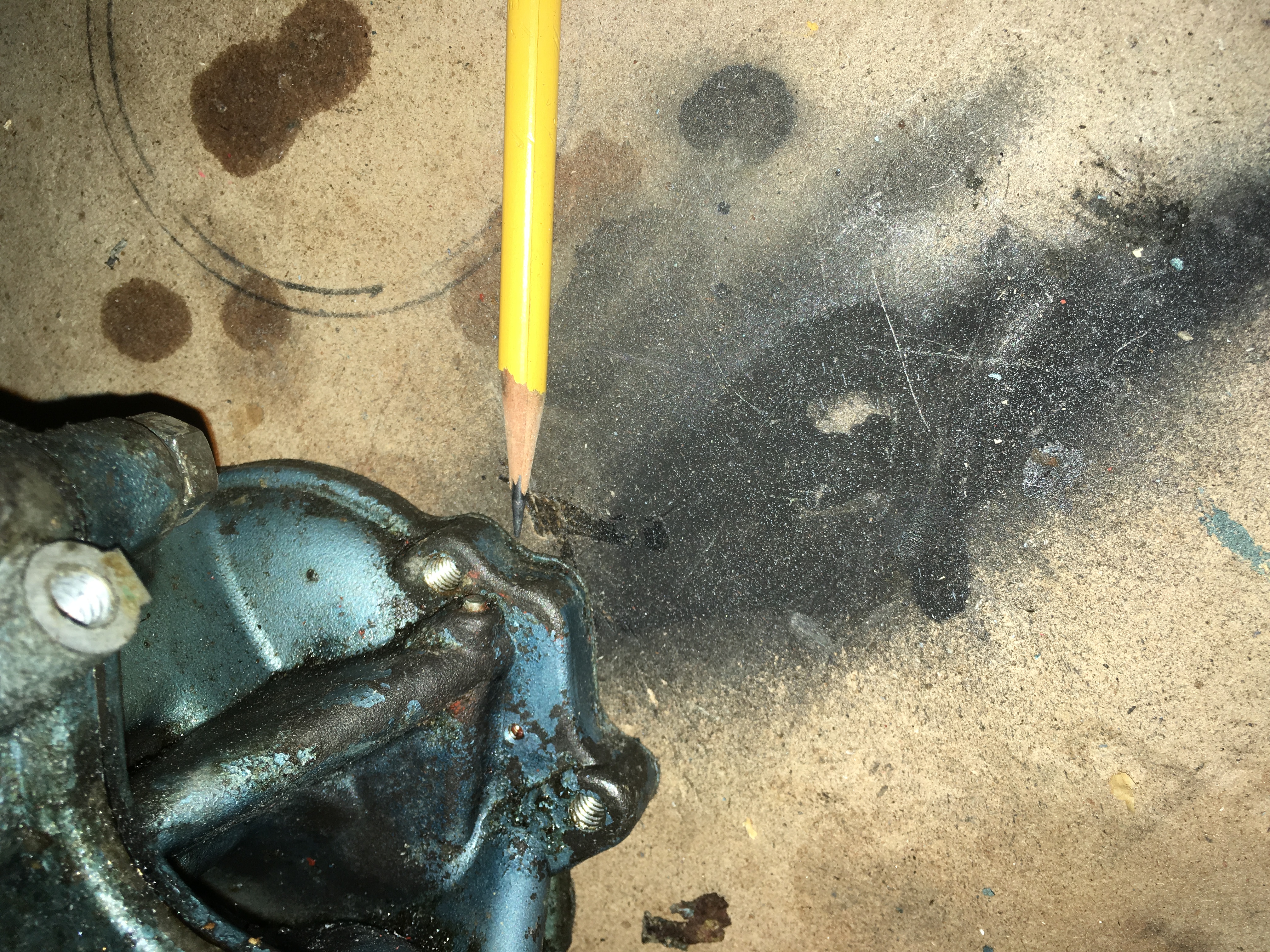

In the first pic the pencil points at the plug.

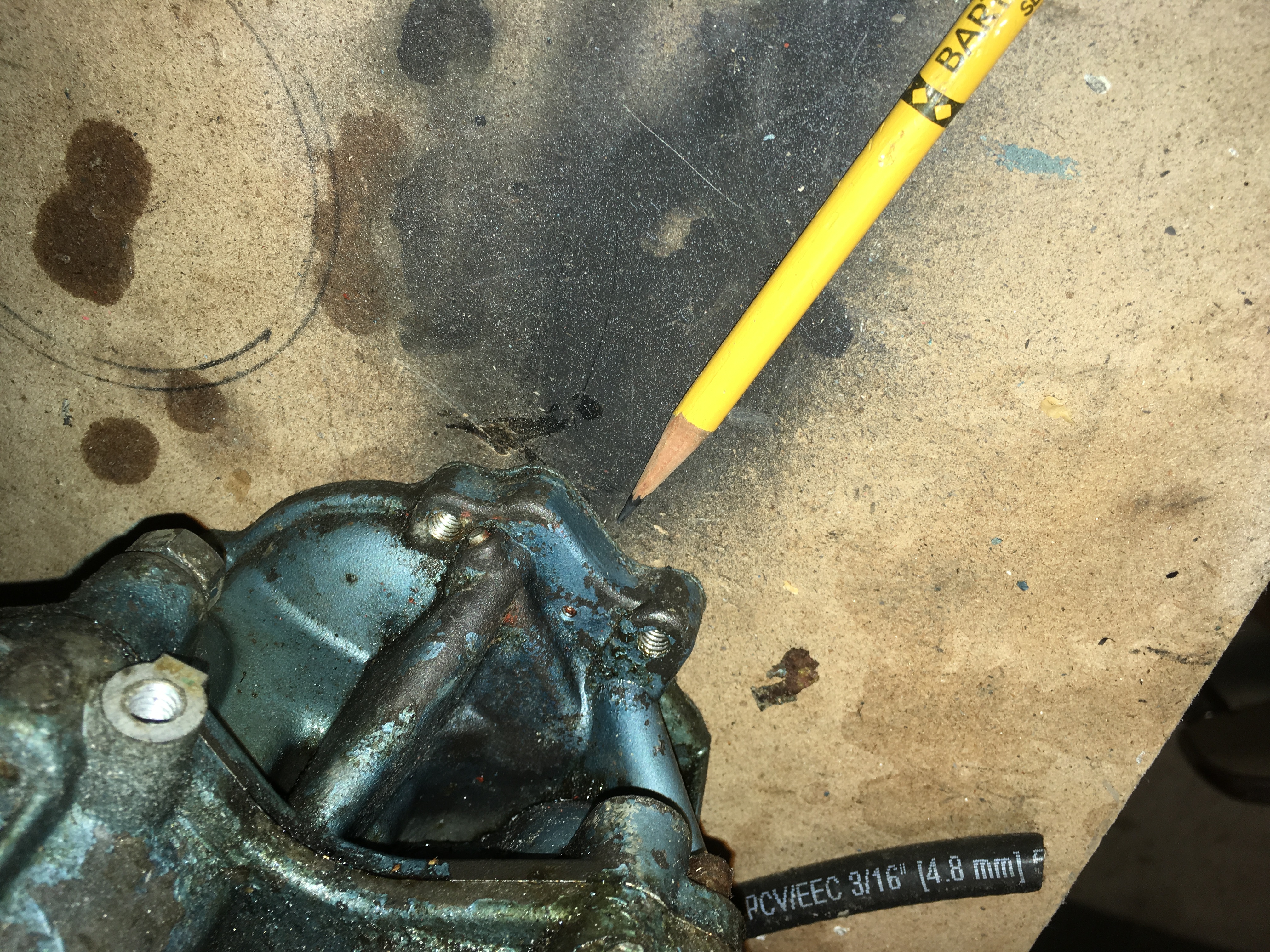

In the second the pencil points at the screw hole.

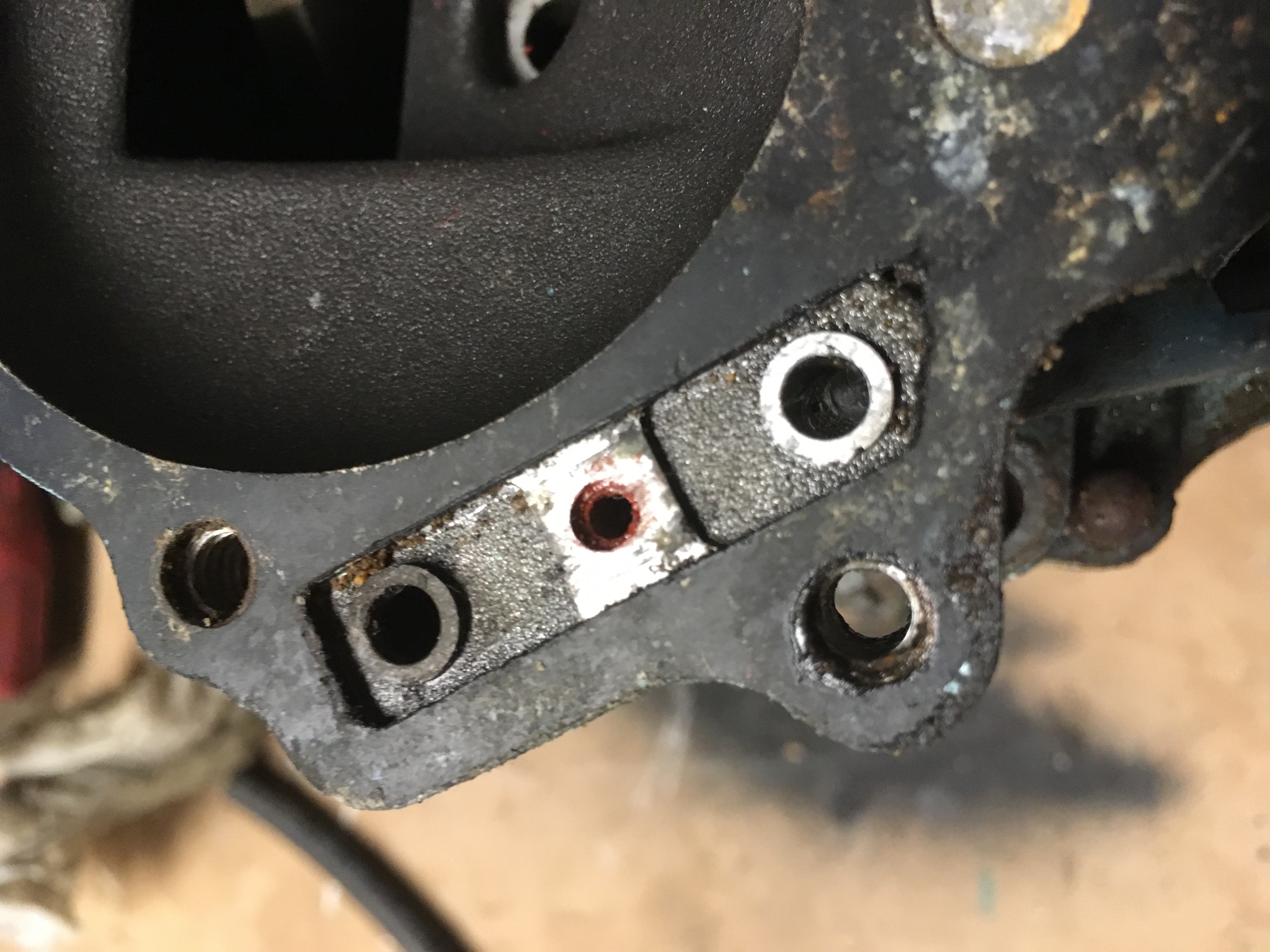

In the third you can see the screw hole from the inside.

Attachments:
December 2, 2016 at 1:02 am #48359
vintin
Participant
Have the reeds been sucked into the cylinders?
