1952 Johnson Seahorse qd 13

Home Forum Ask A Member 1952 Johnson Seahorse qd 13

This topic contains 64 replies, has 17 voices, and was last updated by Avatar shoestringmariner 2 years, 2 months ago.

Viewing 15 posts - 16 through 30 (of 65 total)
  • Avatar
    grunt311
    US Member - 1 Year
    Replies: 15
    Topics: 14
    #50173

    Check this guy out


    Attachments:

    Avatar
    grunt311
    US Member - 1 Year
    Replies: 15
    Topics: 14
    #50175

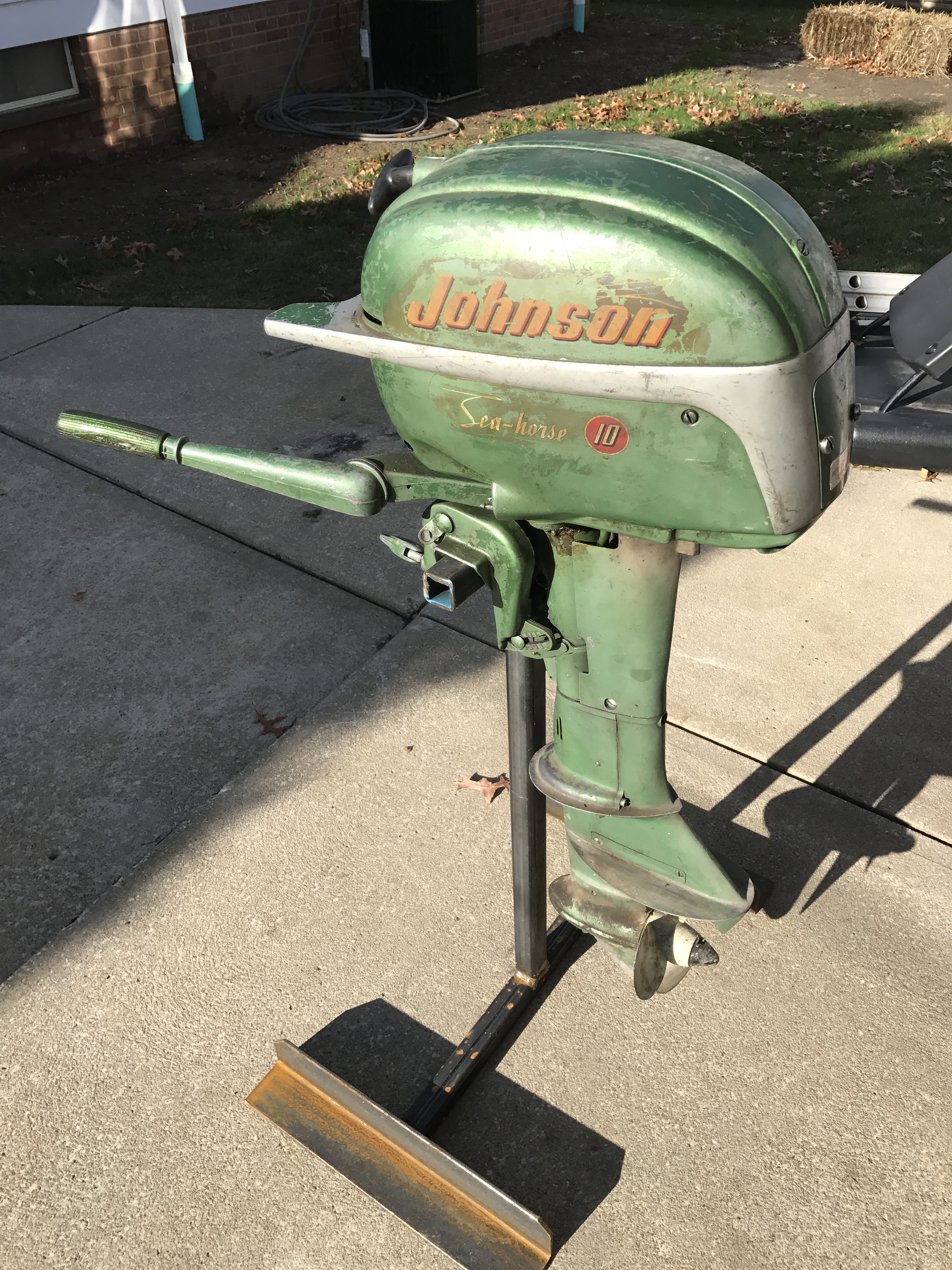

    This one may be a little easier on the neck


    Attachments:

    fisherman6
    fisherman6
    US Member - 2 Years
    Replies: 1737
    Topics: 39
    #50183

    That looks like a pretty nice one you have there. I’m hoping mine will be a runner with a magneto rebuild, a good carb cleaning, and a lower unit service. At least it’s complete and it was pretty cheap. It looks like I’m getting some leakage out of the top crankshaft seal. Quite a bit of oil under the flywheel.
    -Ben

    OldJohnnyRude on YouTube

    Buccaneer
    Buccaneer
    US Member - 1 Year
    Replies: 2992
    Topics: 835
    #50184

    I wonder if the sintered fuel filter needs cleaning?

    Prepare to be boarded!

    Avatar
    gjonz
    US Member - 1 Year
    Replies: 149
    Topics: 15
    #50186

    Good thought.

    Greg

    Avatar
    grunt311
    US Member - 1 Year
    Replies: 15
    Topics: 14
    #50224

    Ben
    Keep me posted on the motor. I love the style of the "52" cool lines and the color is just a classic. I’m in Ohio so it will be some time before i can get her in the water. Always seems to be the way i get into these cool at the beginning of the winter and have to wait until i can get them out and toy around. I need to get into the lower unit and replace the impeller and inspect everything in there but so far it seems to be a pretty sound motor.
    Keep me posted
    Nick

    labrador-guy
    labrador-guy
    US Member - 2 Years
    Replies: 193
    Topics: 25
    #50227

    Nick, I thought I would show you my early QD Johnson’s. I have a ’51 and a ’53. Good runners, only problem with them is that they are noisy. The 51 is a rattle can restoration, the 53 is original. The 53 has an excellent decal on the starboard side, port side not so good. I had the 53 at Constintine AOMCI event, on the water, last summer. She purred like kitten! Stop by there this summer if you can. Usually on the second weekend of July. In southern Michigan.

    dale

    labrador-guy
    labrador-guy
    US Member - 2 Years
    Replies: 193
    Topics: 25
    #50255

    Try again!

    Avatar
    grunt311
    US Member - 1 Year
    Replies: 15
    Topics: 14
    #50274

    Dale
    I don’t see them now I am curious

    labrador-guy
    labrador-guy
    US Member - 2 Years
    Replies: 193
    Topics: 25
    #50291

    Having trouble posting pictures. I have informed the webmaster. Hope we can get it straightened out. When I hit submit the darn thing tells me I am not logged in! Weird

    fisherman6
    fisherman6
    US Member - 2 Years
    Replies: 1737
    Topics: 39
    #50306

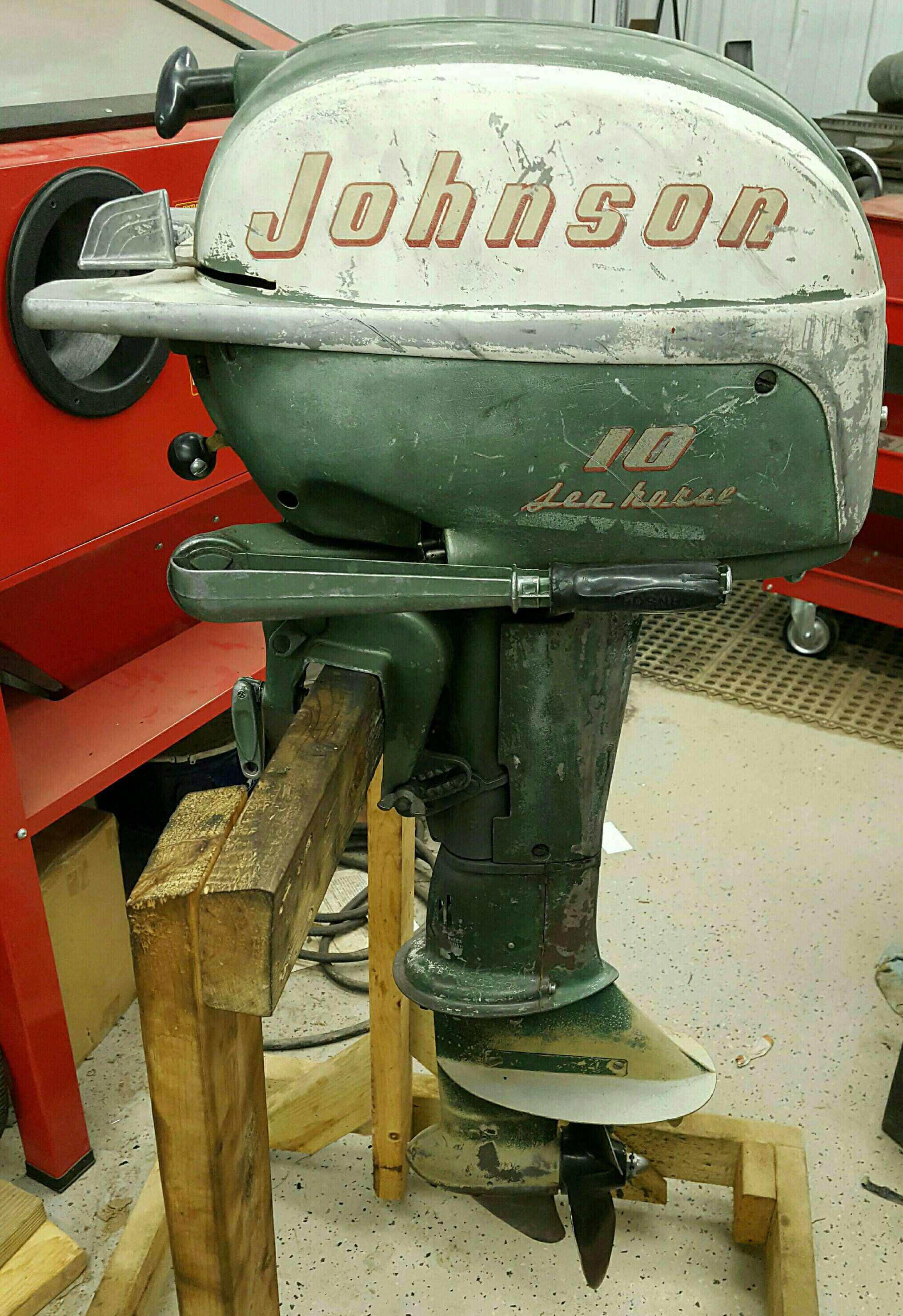

    Here are a couple pics of mine after I got the covers off. It doesn’t look too bad under there. A bit dirty, but it appears to have lived a fairly interesting life. Lots loft levers, rods, and linkages on that carb. Going to need to take plenty of pics as I go on the carb. The rest looks very familiar.

    The mag plate

    I should get back into it late this week or over the weekend.
    -Ben

    OldJohnnyRude on YouTube

    fisherman6
    fisherman6
    US Member - 2 Years
    Replies: 1737
    Topics: 39
    #50347

    Looks like someone before me didn’t do the best job of routing the plug wires.

    Also, they used automotive resistance core wires instead of proper copper core hi-tension leads. I’ll be replacing these with proper wires and new boots.

    Here is the oil slung under the flywheel apparently leaking around the top of the crankshaft.

    Not sure how long it took to get this way.

    -Ben

    OldJohnnyRude on YouTube

    Avatar
    grunt311
    US Member - 1 Year
    Replies: 15
    Topics: 14
    #50489

    Looks familiar. No worries on the carb it is far more complicated than it looks. Tore mine apart slowly but surely and laid it all out on the work bench in order with the way it was disassembled and had no problems. Took apart the entire lower unit and cleaned it all up yesterday. Surprisingly it was all in very good shape. For $75.00 the old beast was quit the bargain.

    Gaskets???? It seems most gaskets for this motor are nonexistent. I have no problem making my own just curious what material are they cut out of? I see some posted which discuss cork and others are neoprene. What material do you use?

    Thanks Nick

    fisherman6
    fisherman6
    US Member - 2 Years
    Replies: 1737
    Topics: 39
    #50972

    I have the magneto rebuilt other than the spark plug terminals and boots. I have the carb halfway apart, reattached the float pivot to the float. Part of me says I should make a new float, but I’m gong to try the original first. I am going to need to make a few new gaskets, but the float bowl gasket is still soft and should be OK.

    The compression isn’t great on this motor but it is even and the cylinders are pretty dry. There is no apparent damage or scoring on the pistons, at least not visible thru the bypass ports. The body of the carb still needs to be cleaned and the o ring for the low speed needle seems pretty loose. Once I finish the carb I’ll check spark and try starting it. The gearcase and water pump are next once it looks like it will run.
    -Ben

    OldJohnnyRude on YouTube

    fisherman6
    fisherman6
    US Member - 2 Years
    Replies: 1737
    Topics: 39
    #51006

    Labrador Guy sent me the pic he’s been trying to post. So I’m posting it for him. Here it is Dale. 🙂
    -Ben

    OldJohnnyRude on YouTube
