1953 Champion 6M-GS Shift 15 Parts Manual

Home Forum Ask A Member 1953 Champion 6M-GS Shift 15 Parts Manual

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 15 posts - 1 through 15 (of 17 total)
  • Avatar
    huntleybill

    US Member - 2 Years
    Replies: 259
    Topics: 101
    #199132

    Anyone have a parts manual for the subject motor, or know where I can get one?
    Please let me know at brauscher@sbcglobal.net

    Thank you for your help.
    Bill

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 4068
    Topics: 980
    #199137

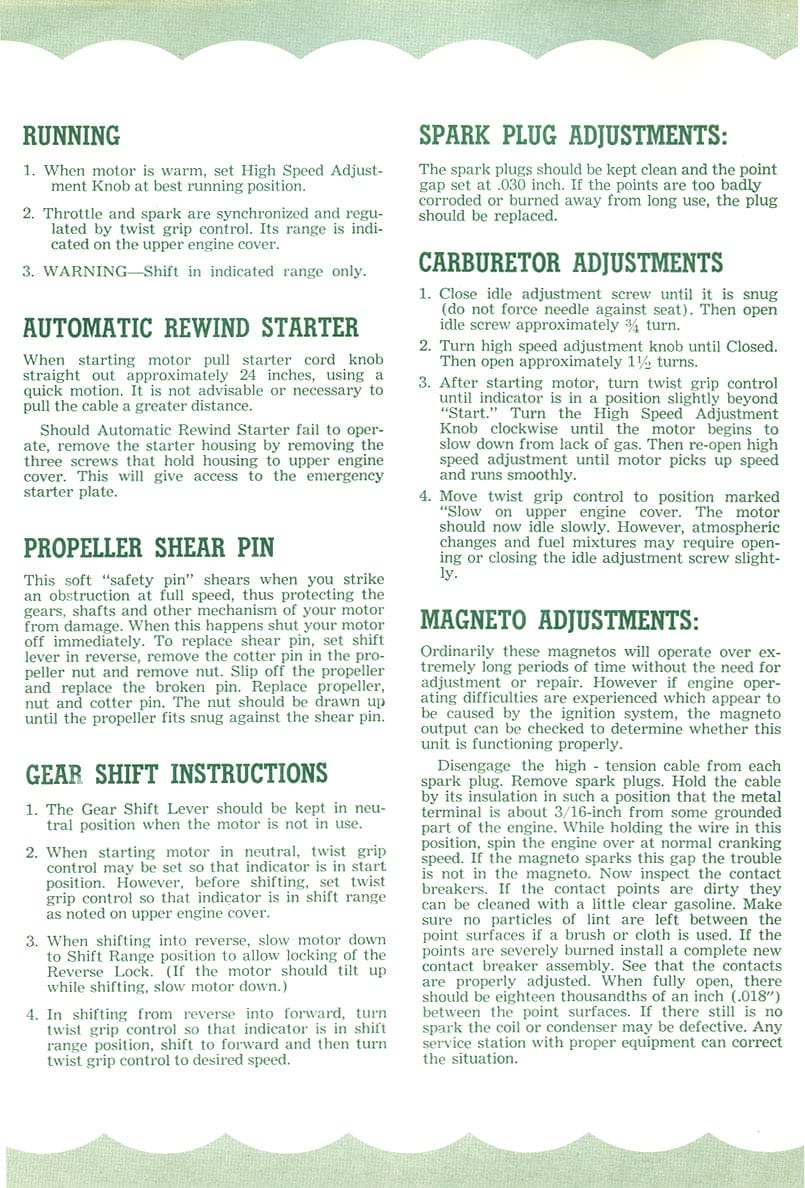

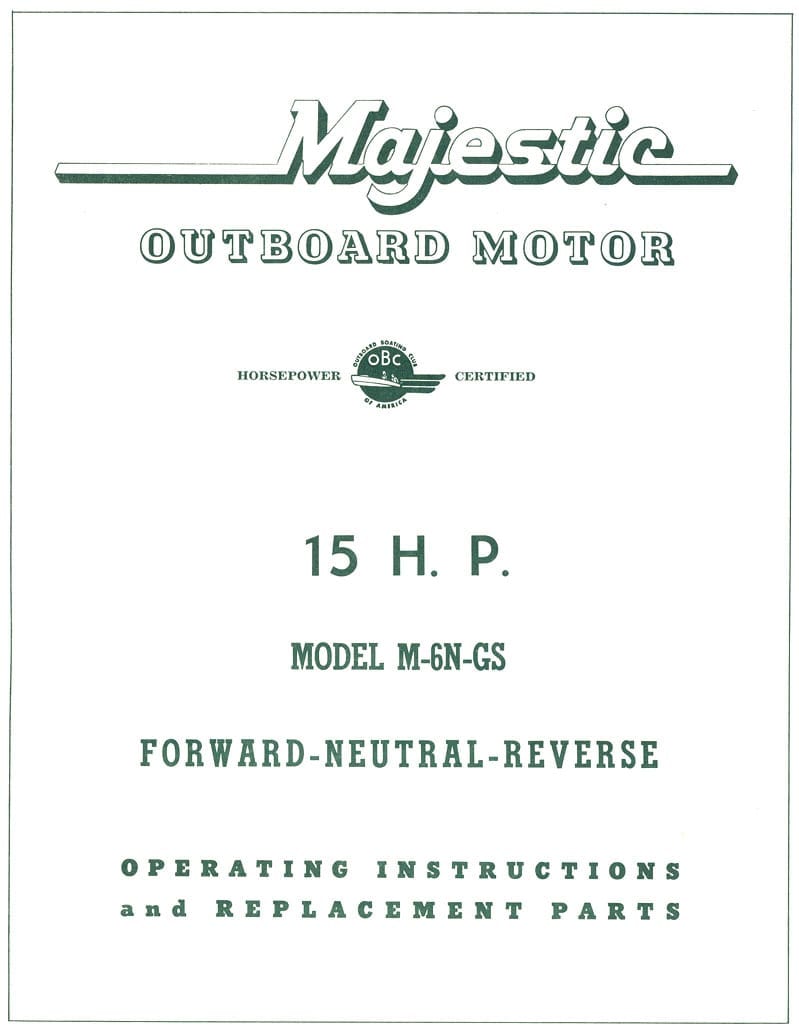

    I only have a photo of a manual, some instructions,
    and one ad, that may or may not be your motor!

    Majestic-15-hp

    Majestic-15-hp2

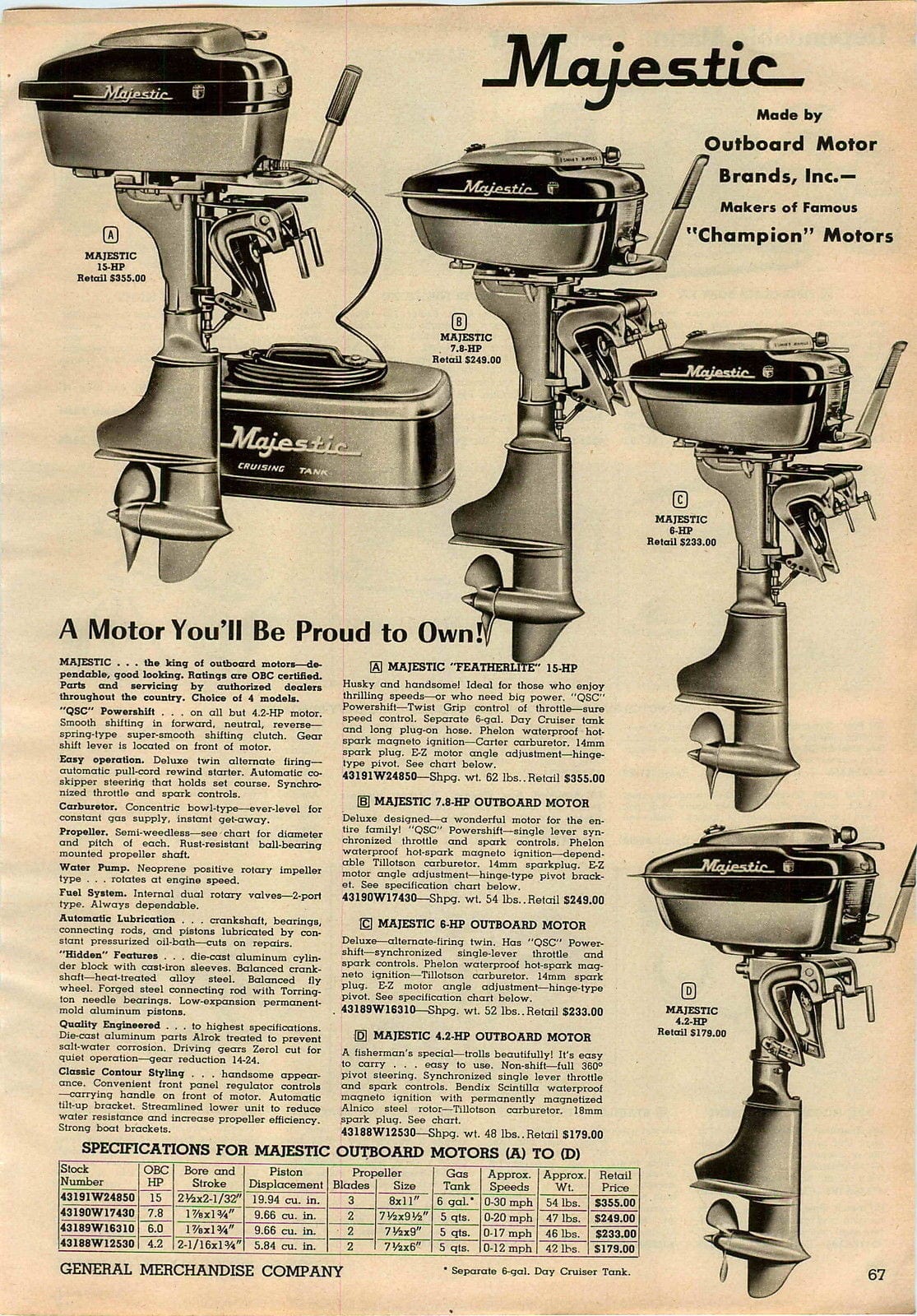

    Majestic-Outboards

    Prepare to be boarded!

    Attachments:
    Avatar
    huntleybill

    US Member - 2 Years
    Replies: 259
    Topics: 101
    #199151

    Thank you Buccaneer, but that is not quite my motor. I need a parts breakdown as this motor is going to need a few thing.

    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199153

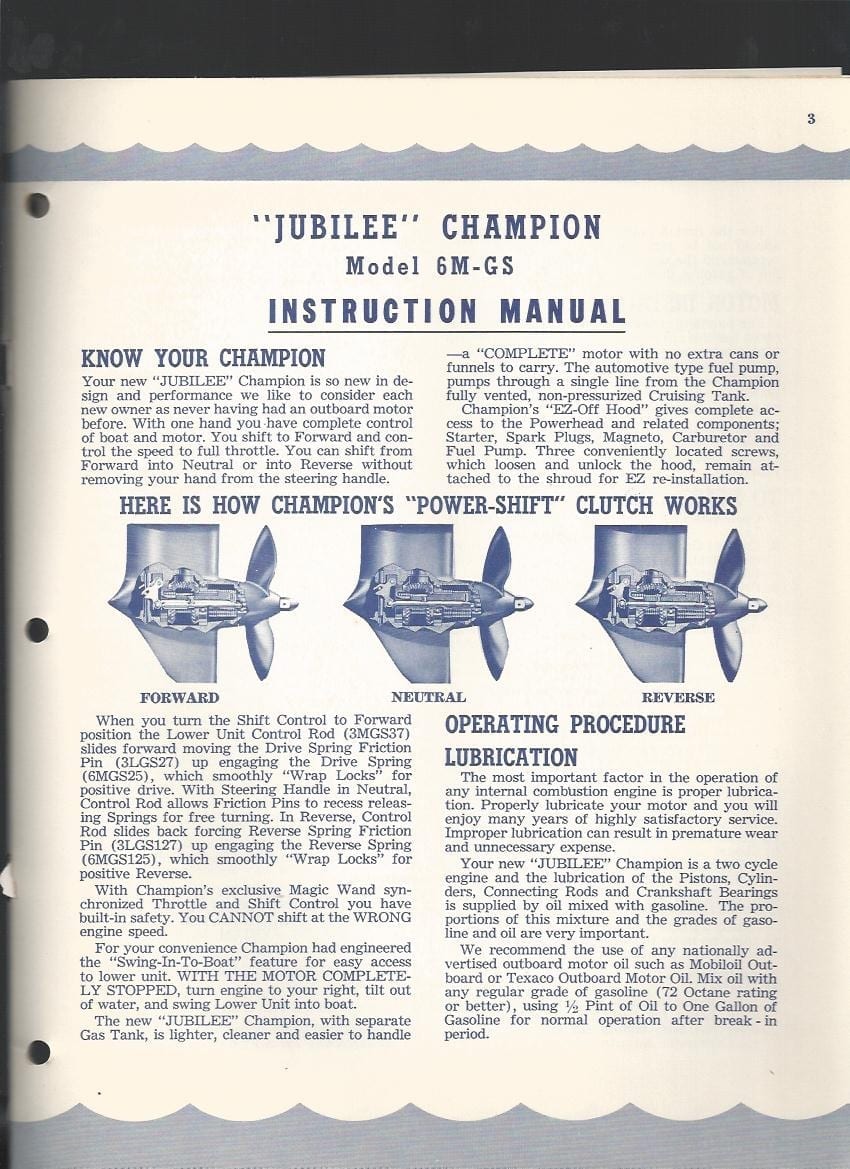

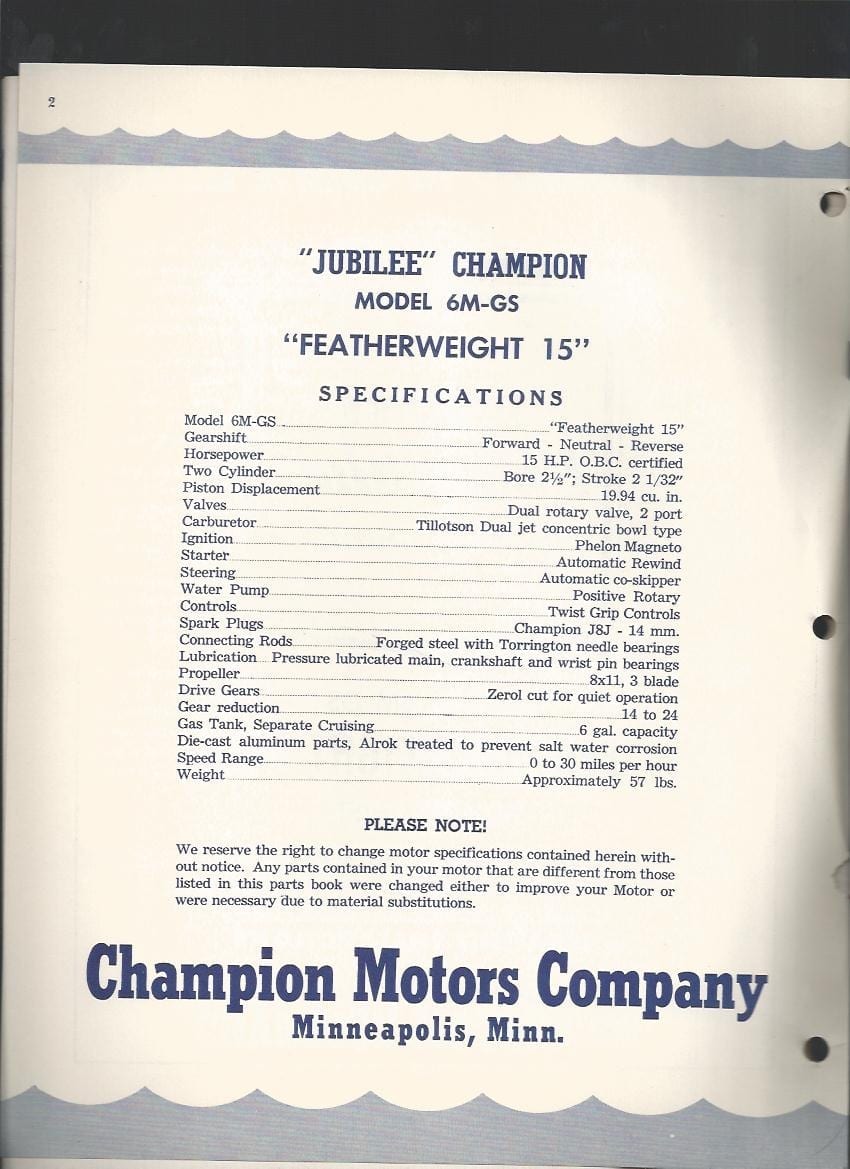

    Here’s the book for your model.

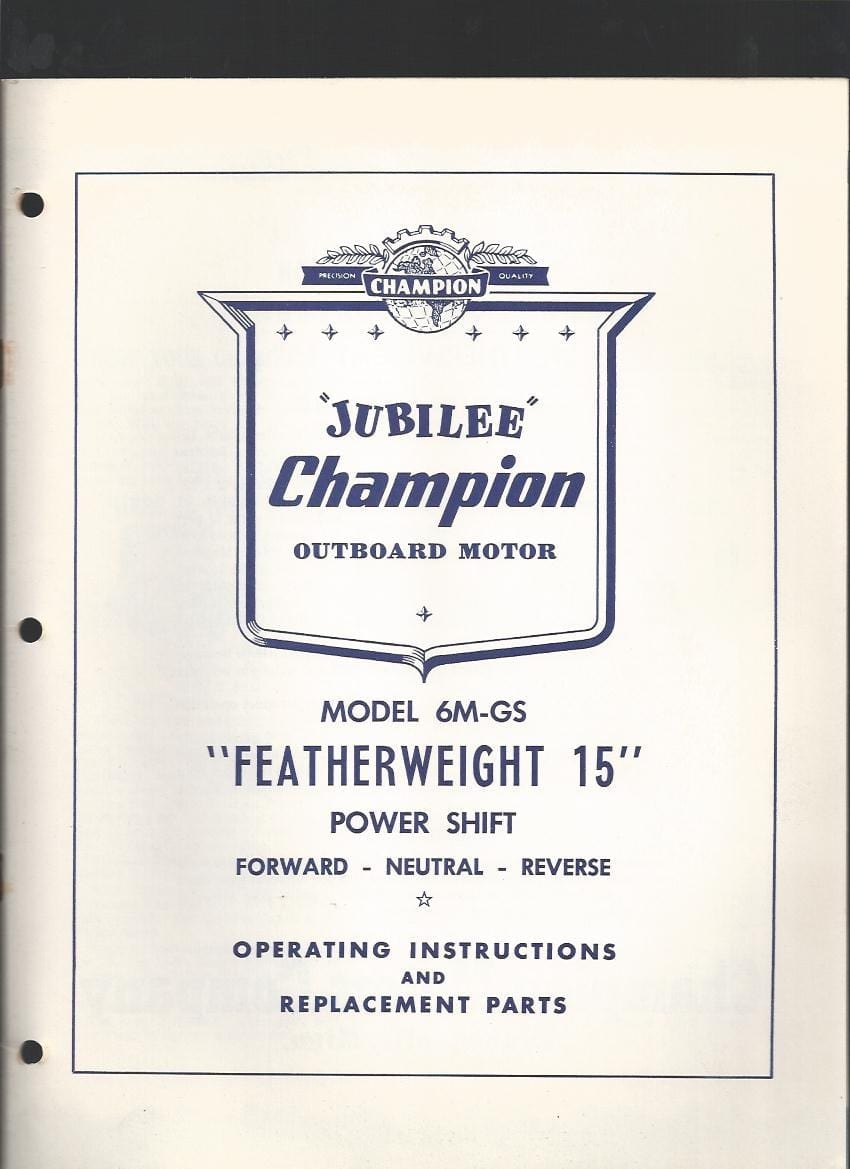

    PG010001

    PG010002

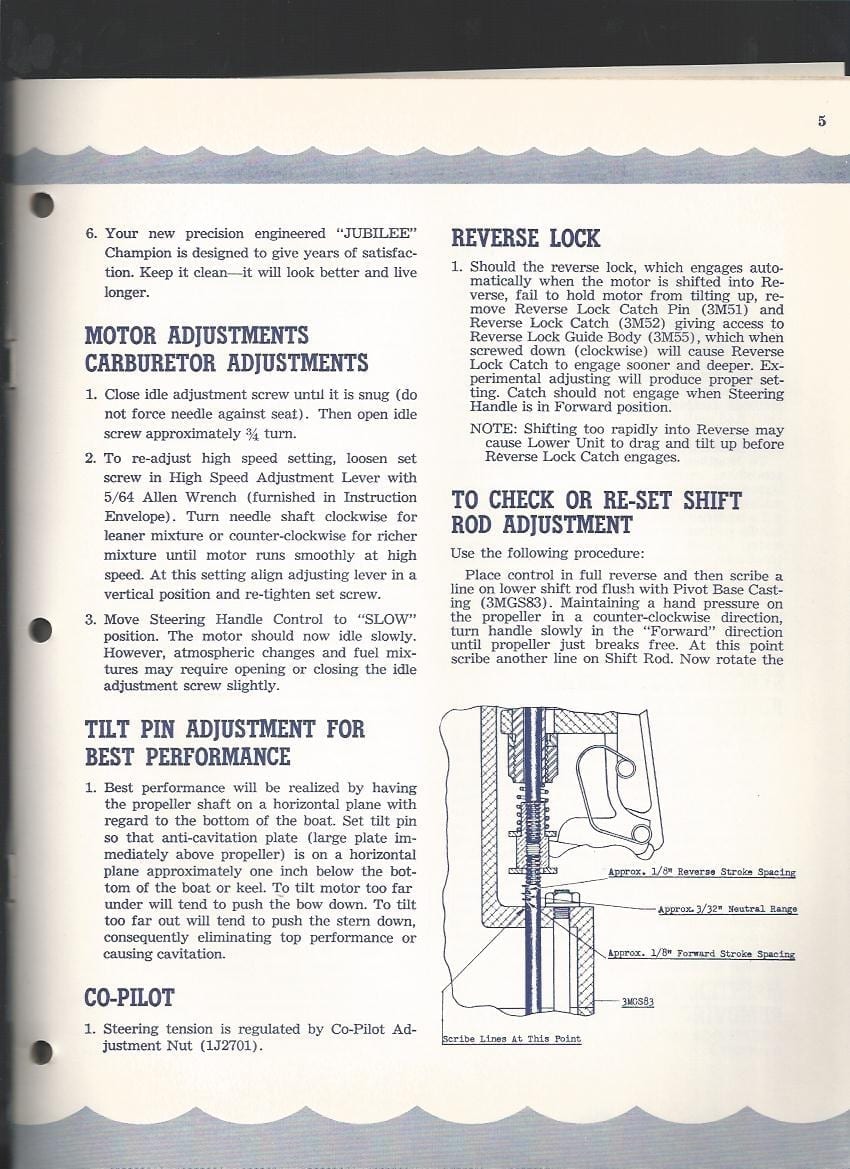

    PG010003

    PG010005

    Attachments:
    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199159

    More—

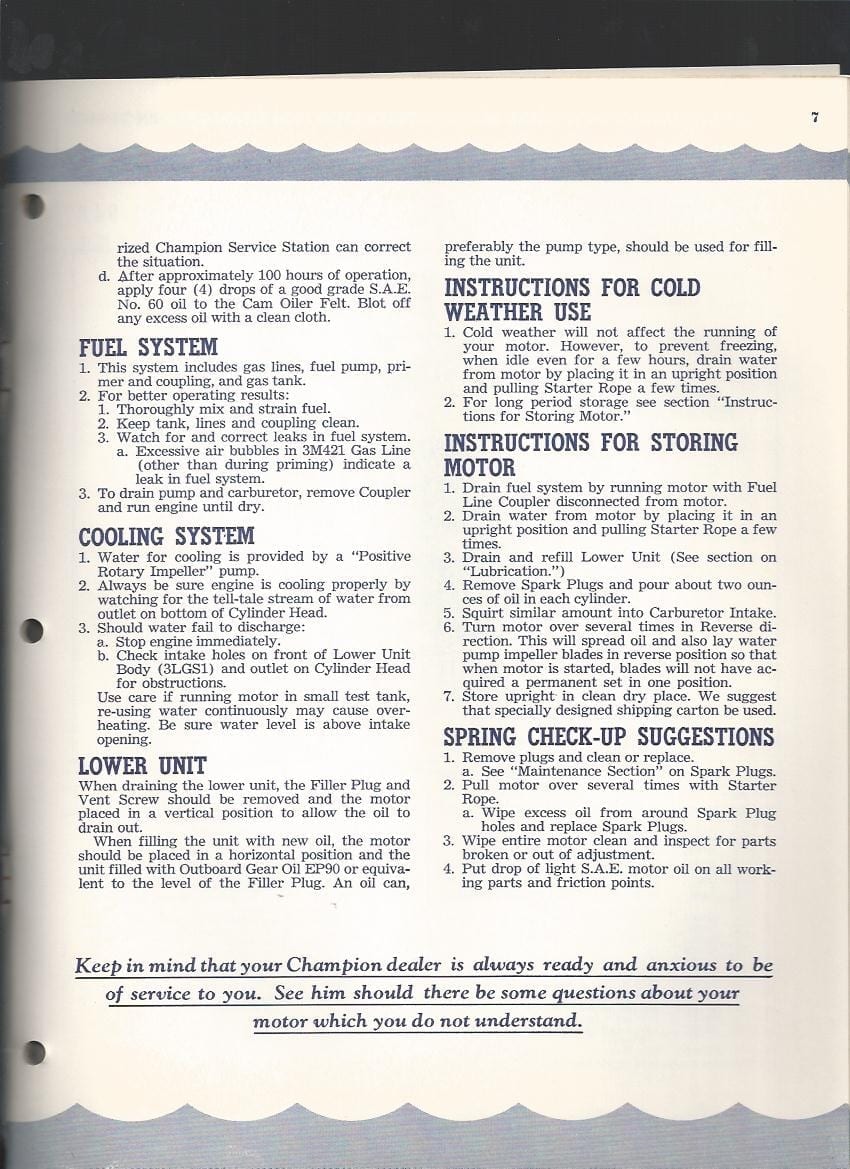

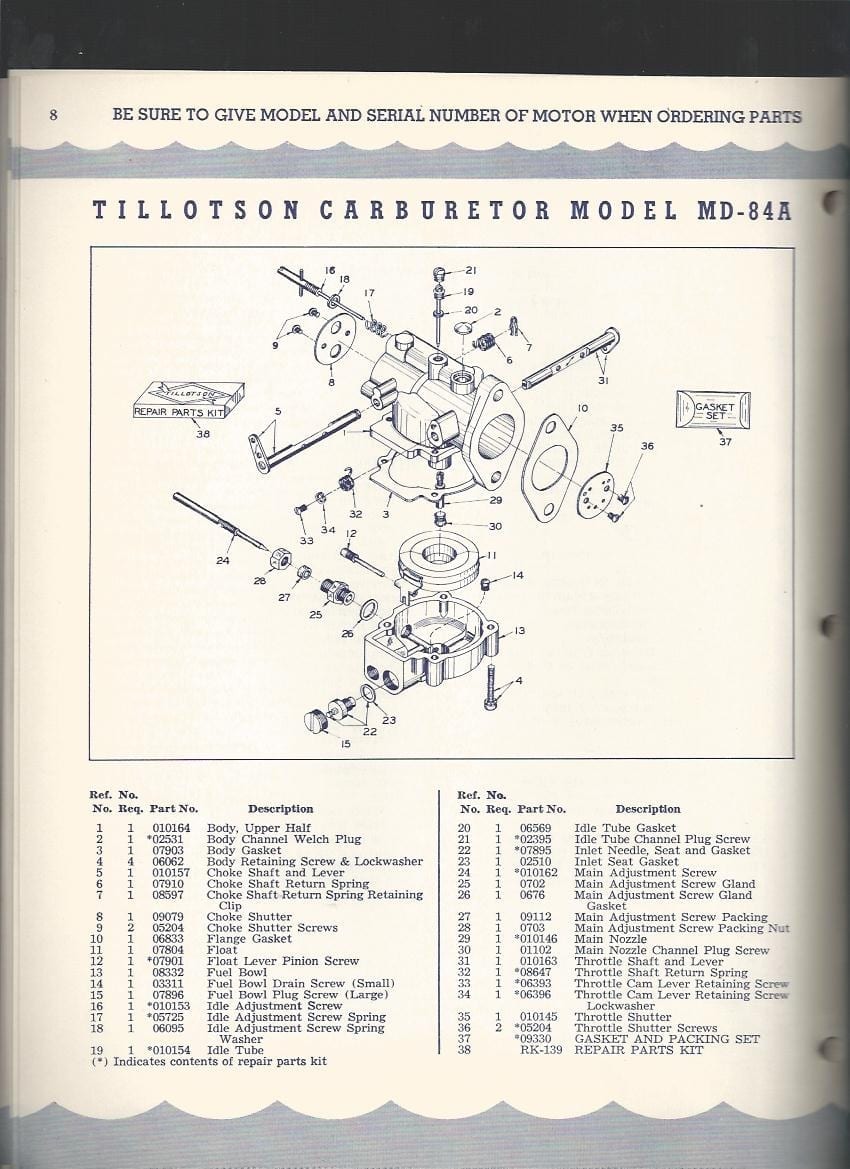

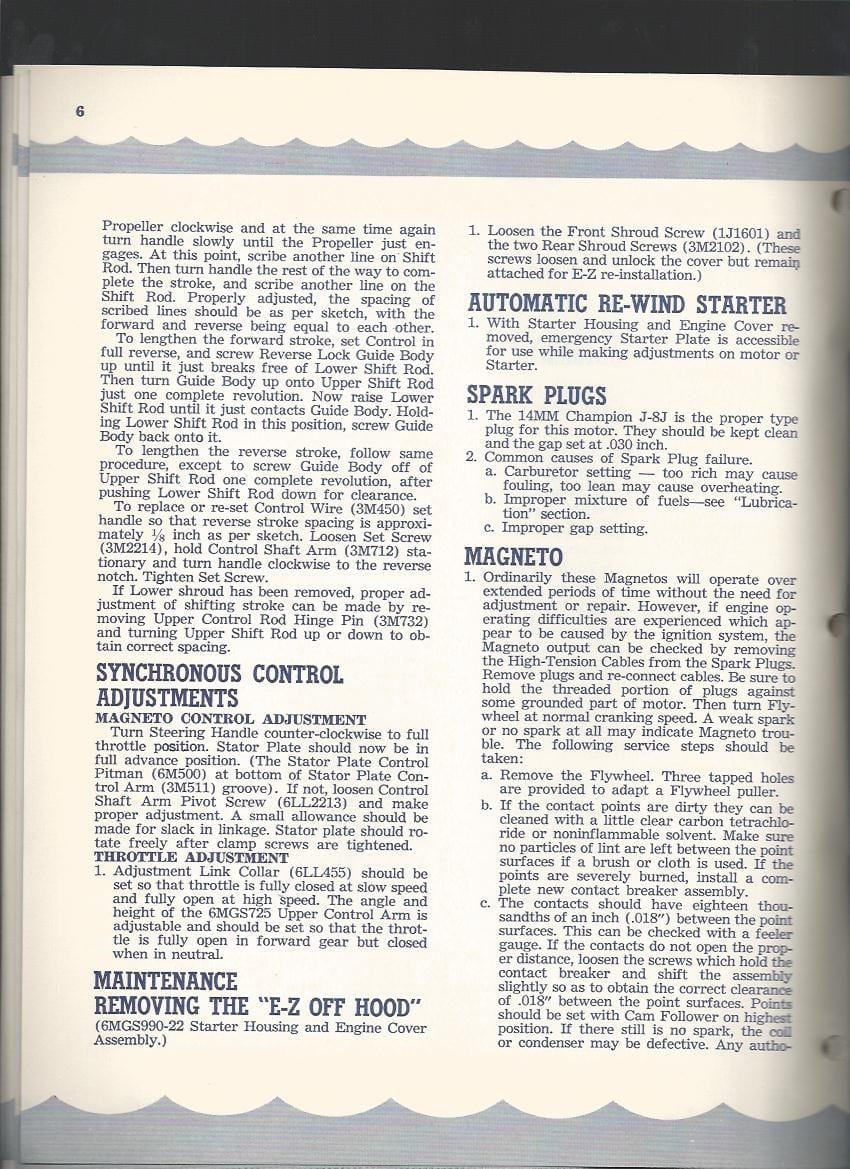

    PG010006

    PG010007

    PG010008

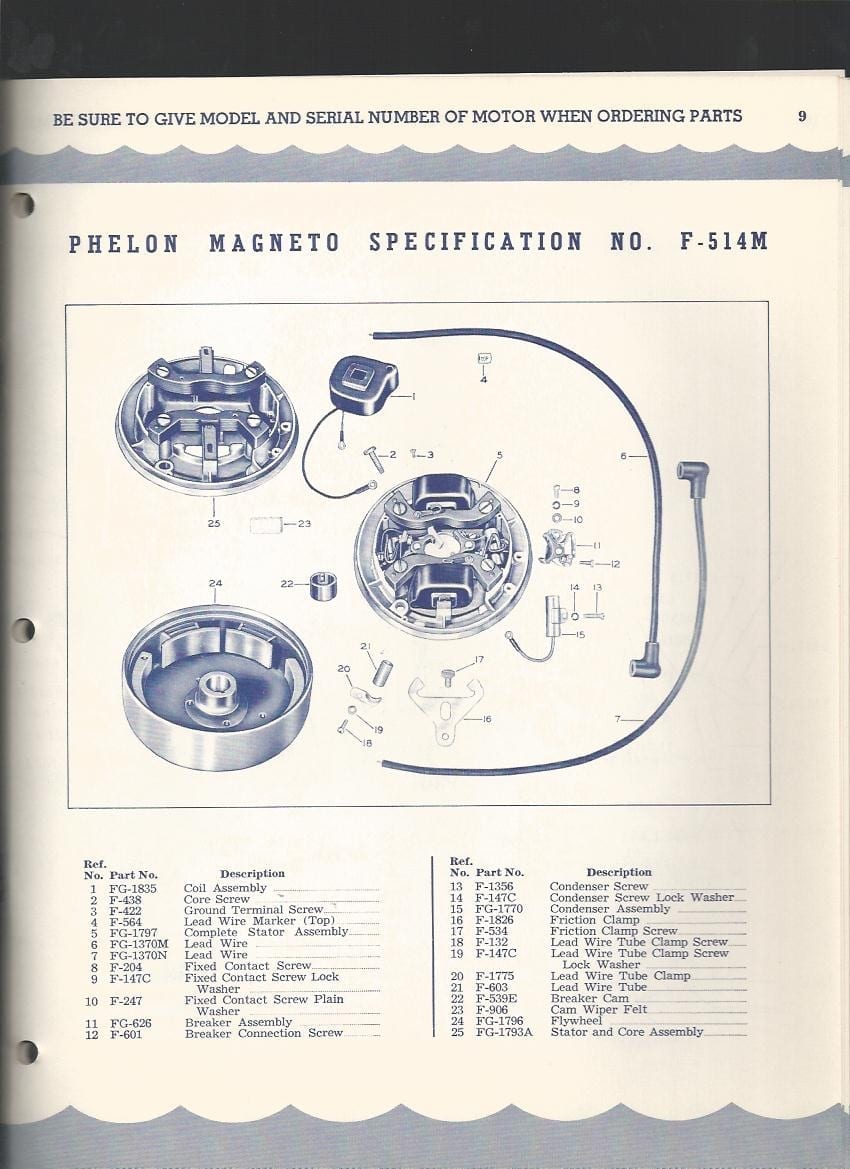

    PG010009

    Attachments:
    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199165

    And more–

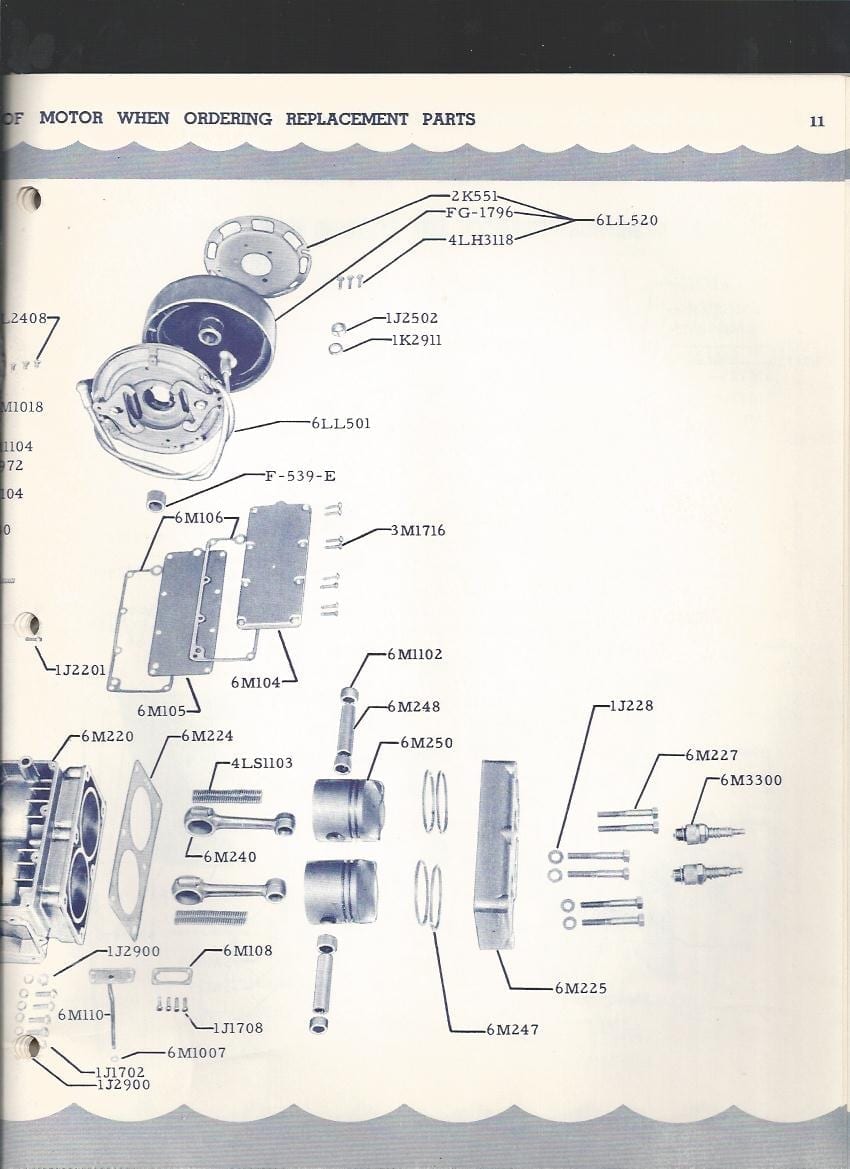

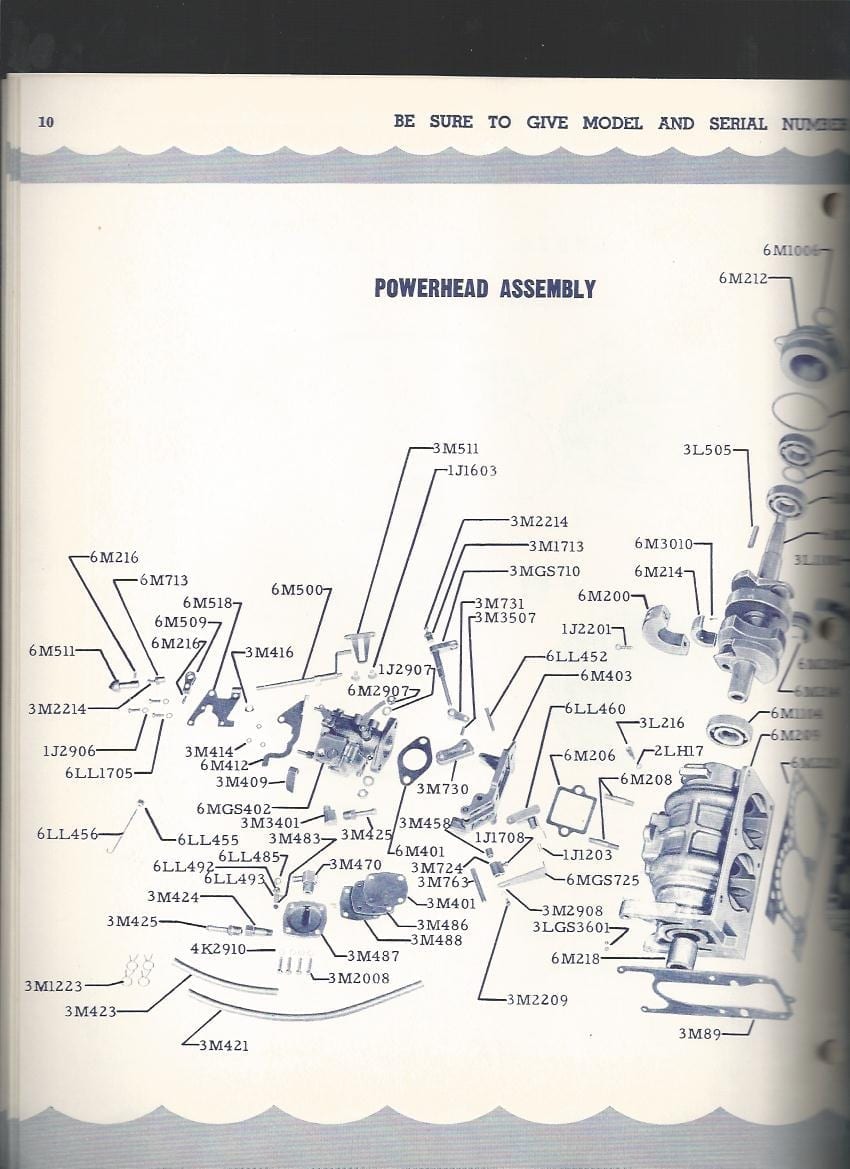

    PG010010

    PG010011

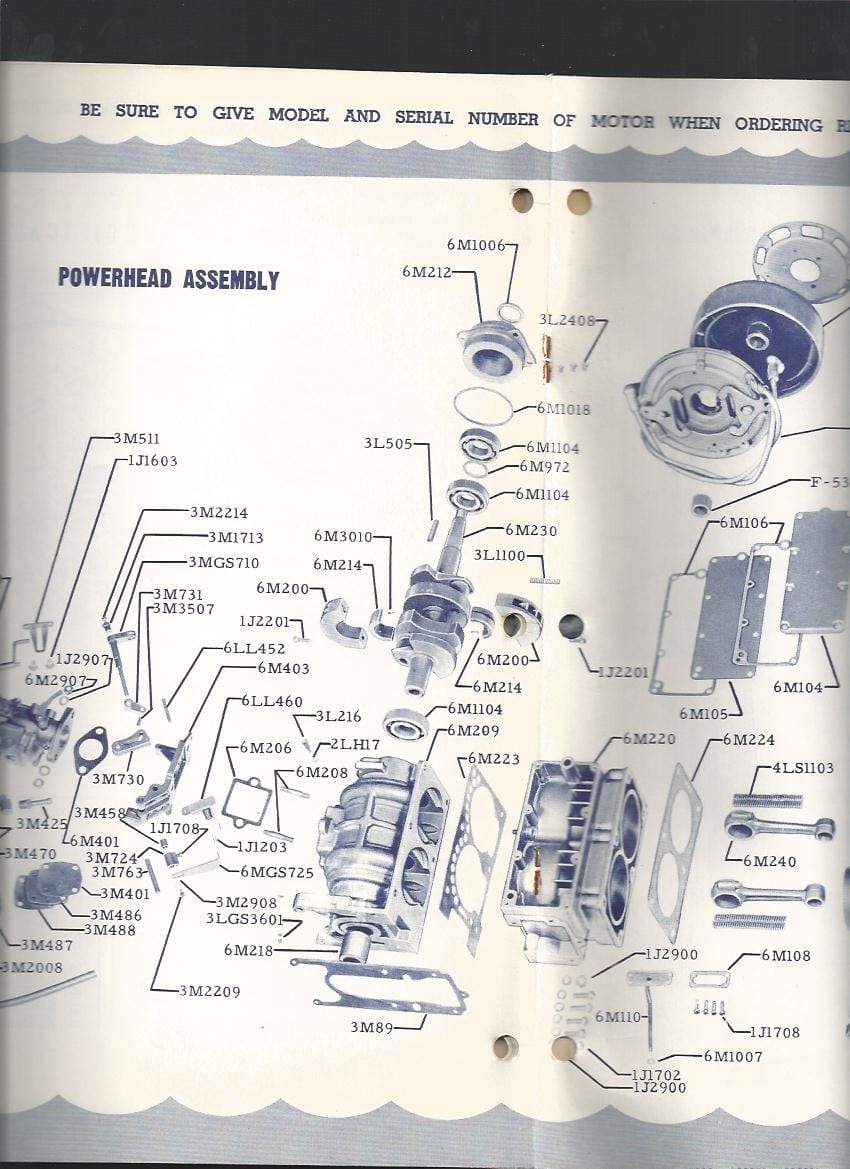

    PG010012

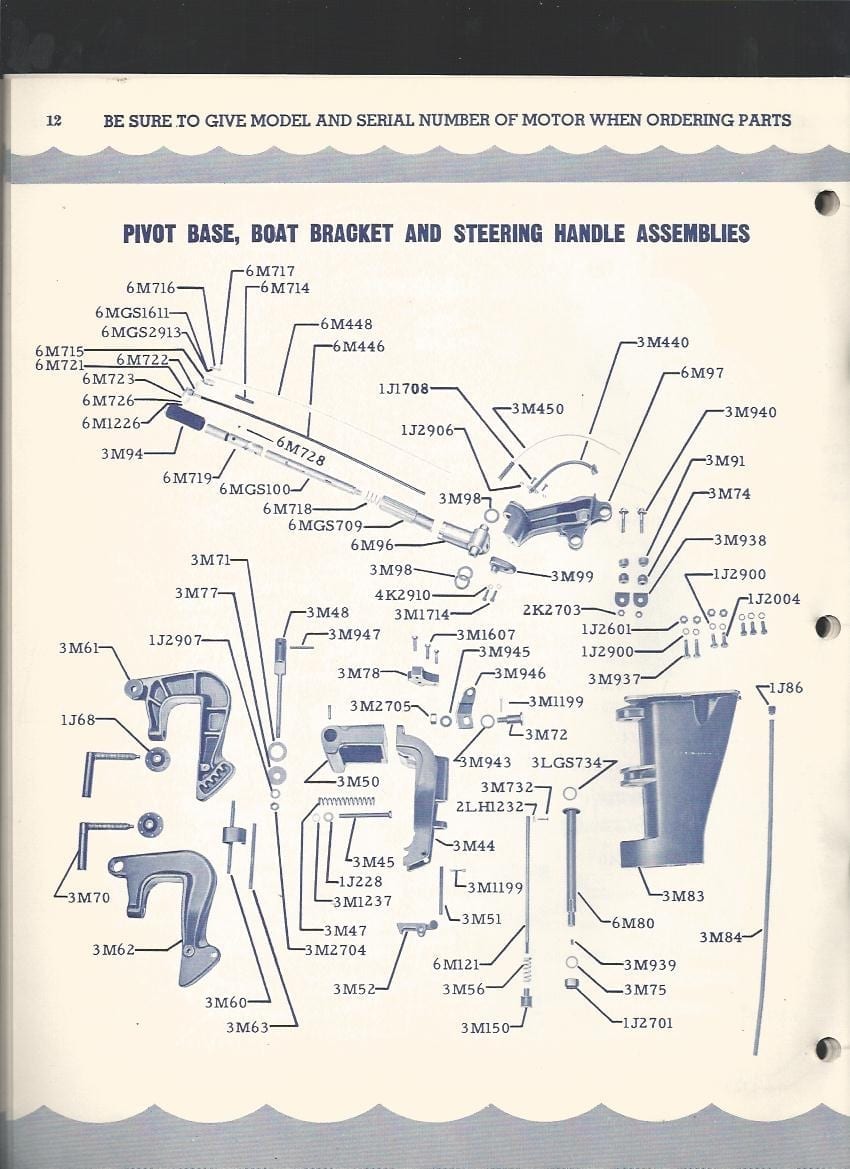

    PG010013

    • This reply was modified 5 months, 3 weeks ago by frankrfrankr.
    • This reply was modified 5 months, 3 weeks ago by frankrfrankr.
    Attachments:
    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199172

    More

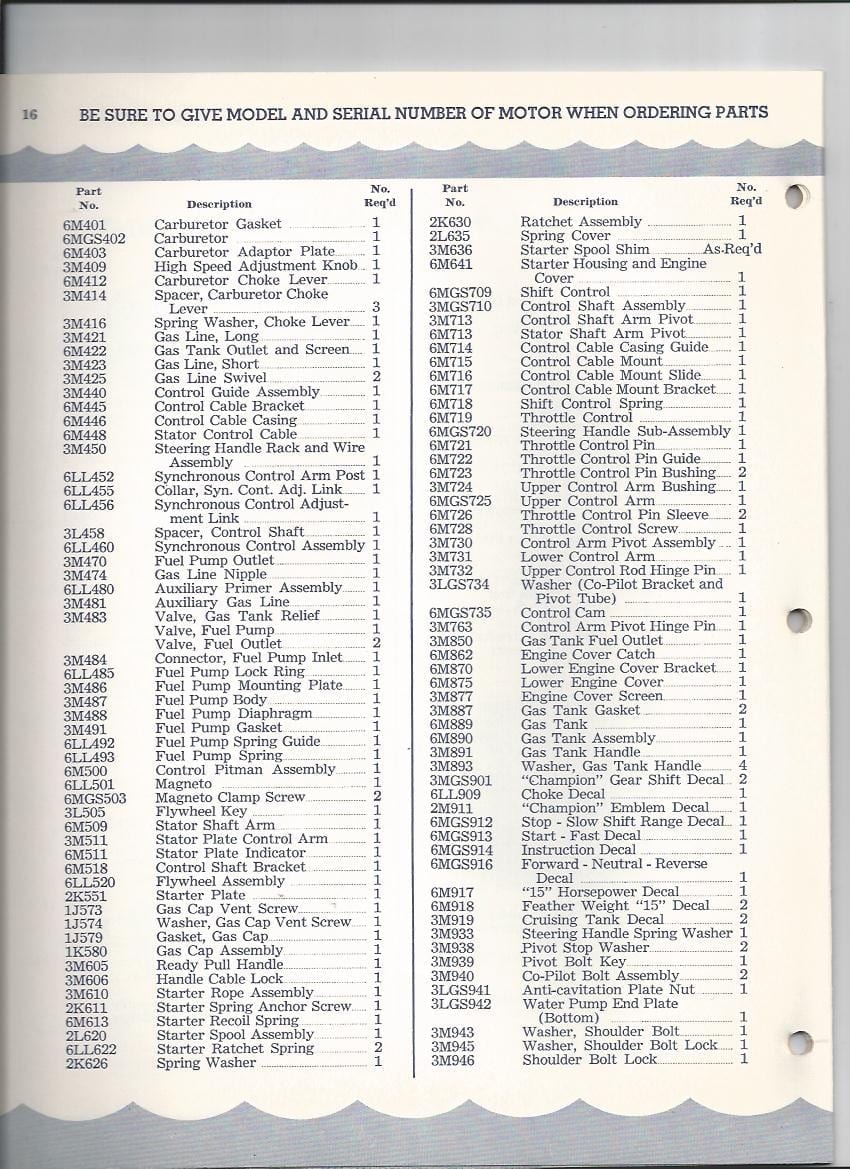

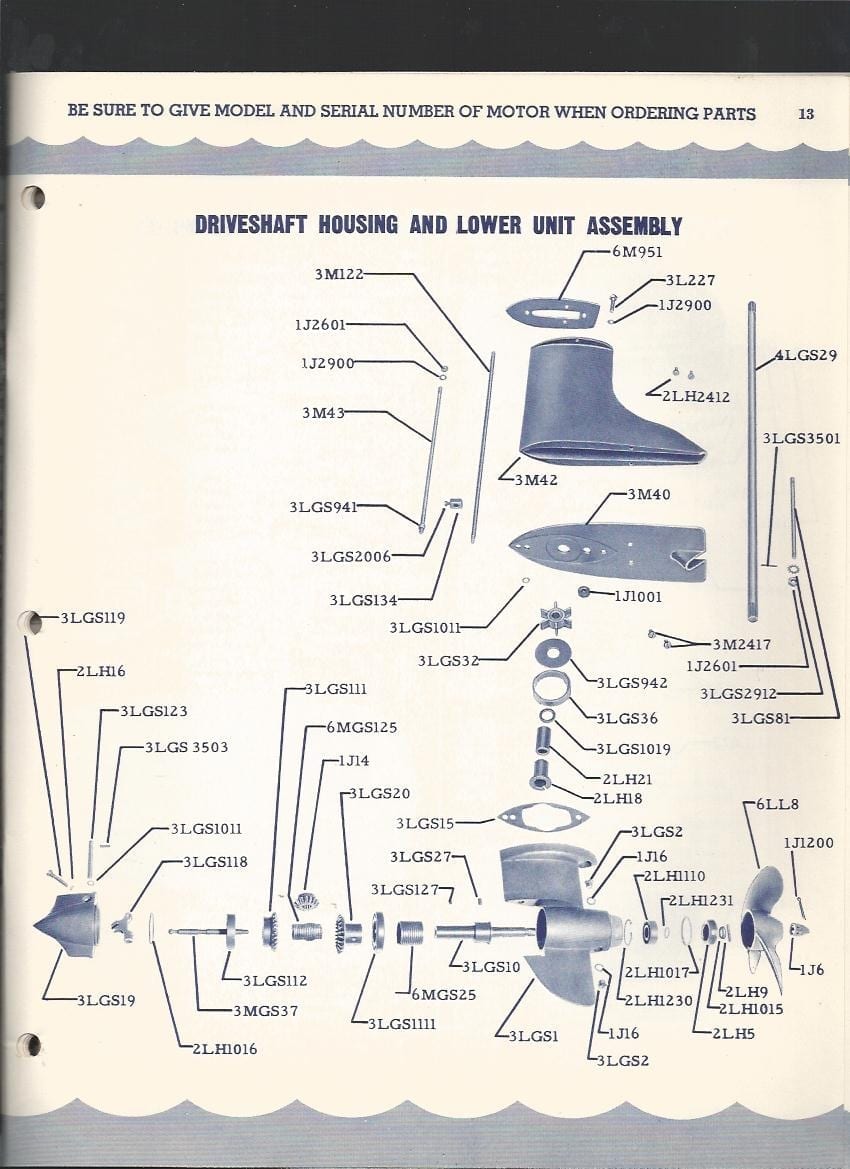

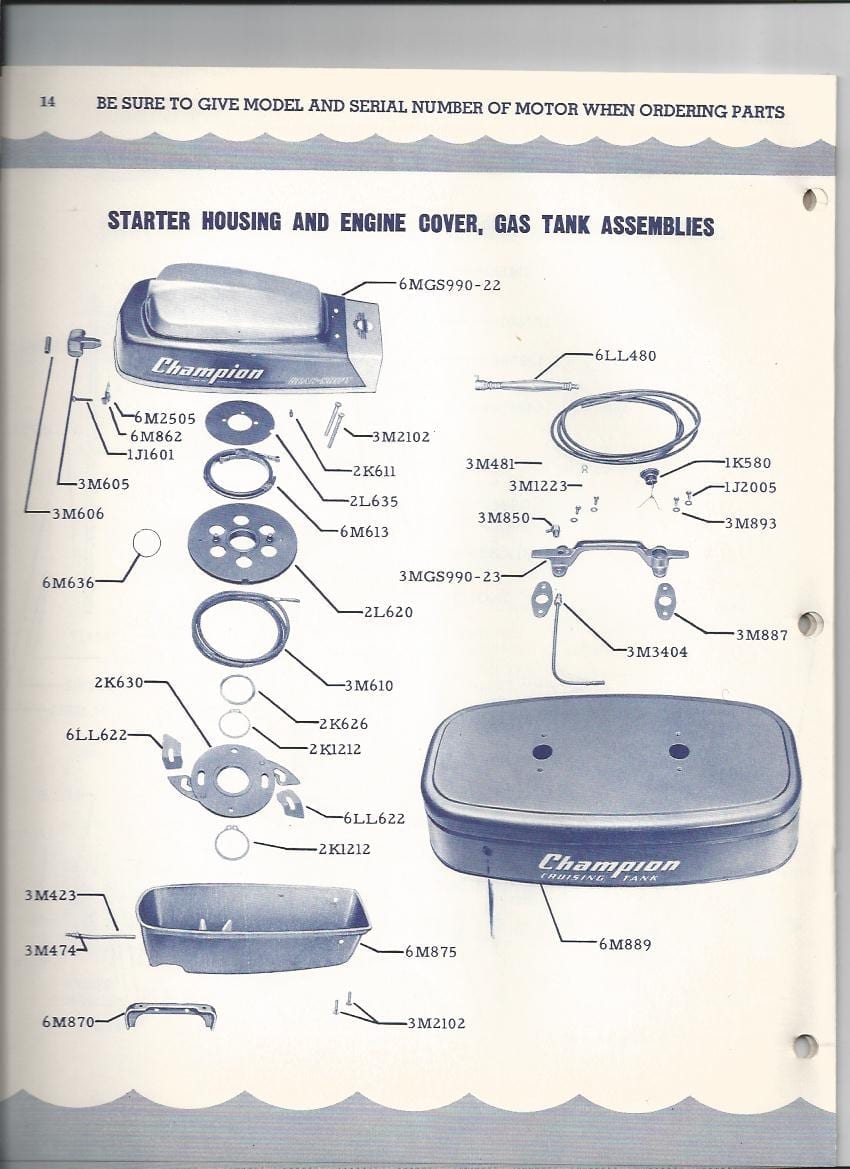

    PG010014

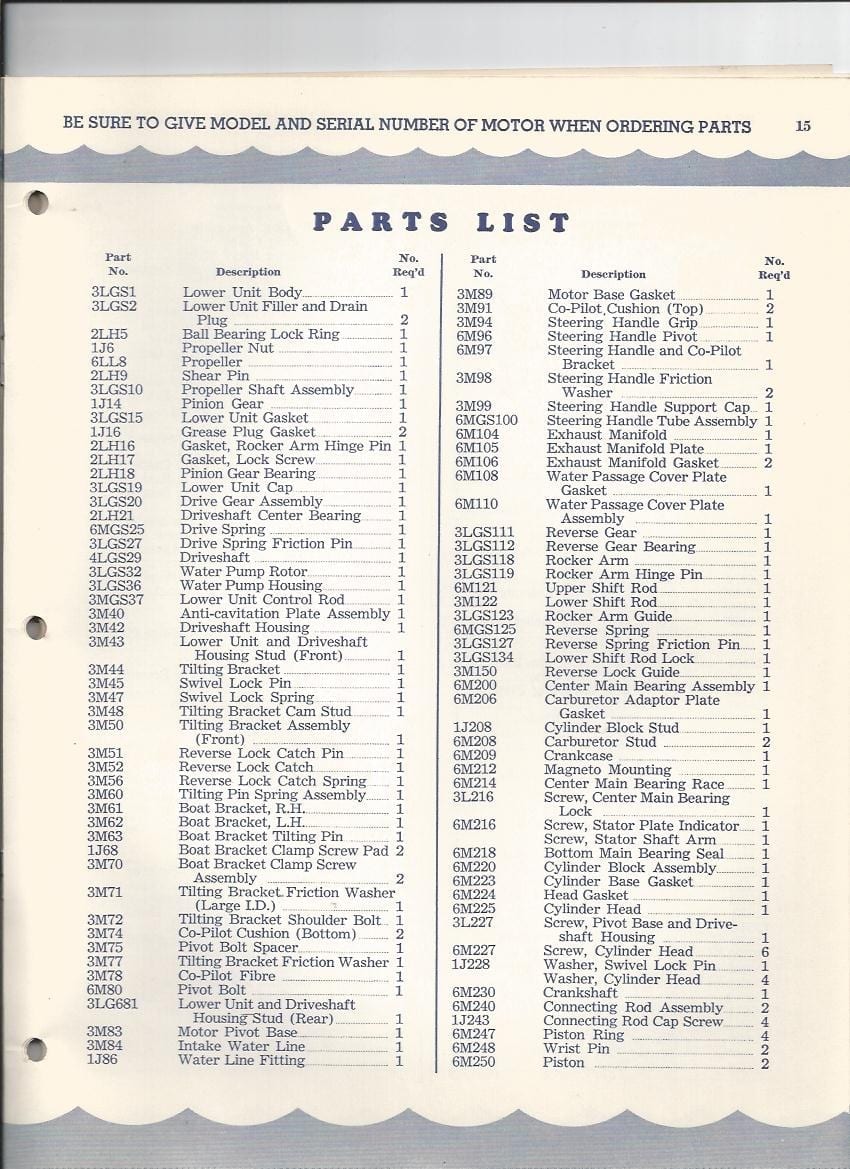

    PG010015

    PG010016

    PG010017

    Attachments:
    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199178

    Lastly—

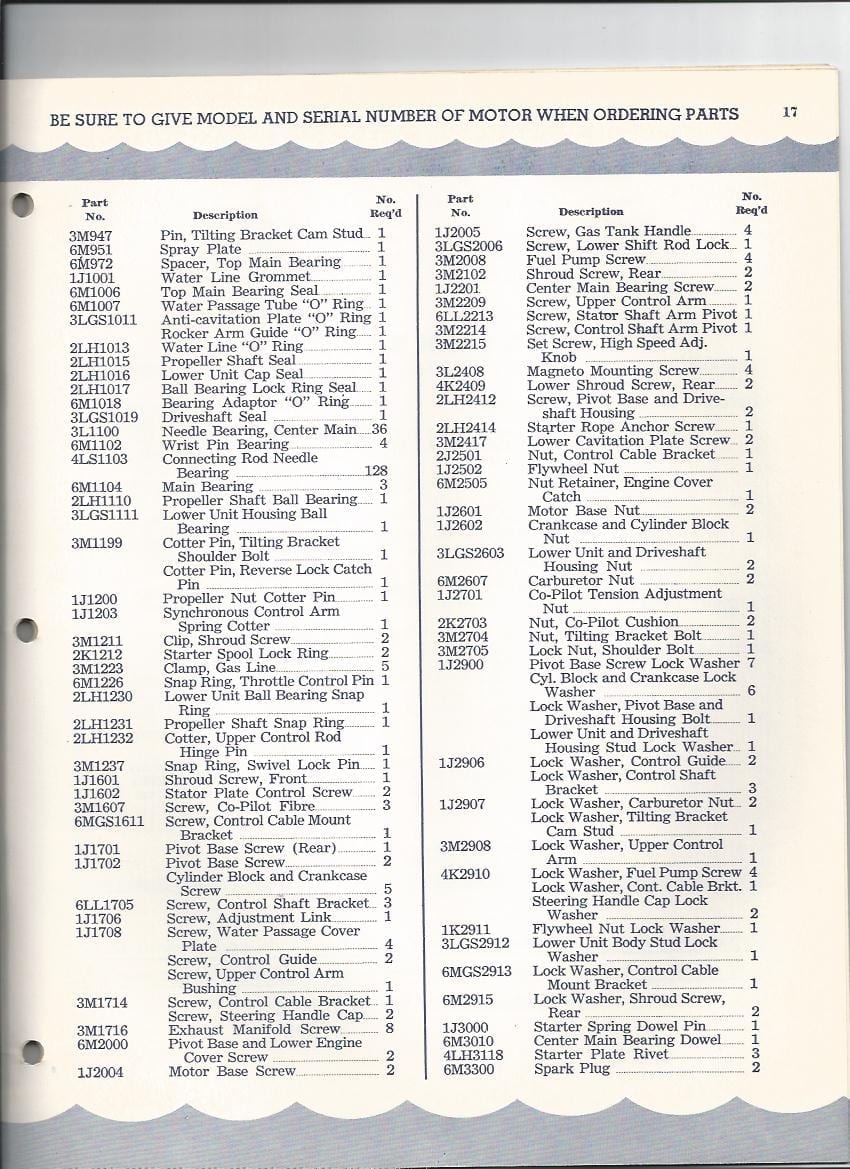

    PG010018

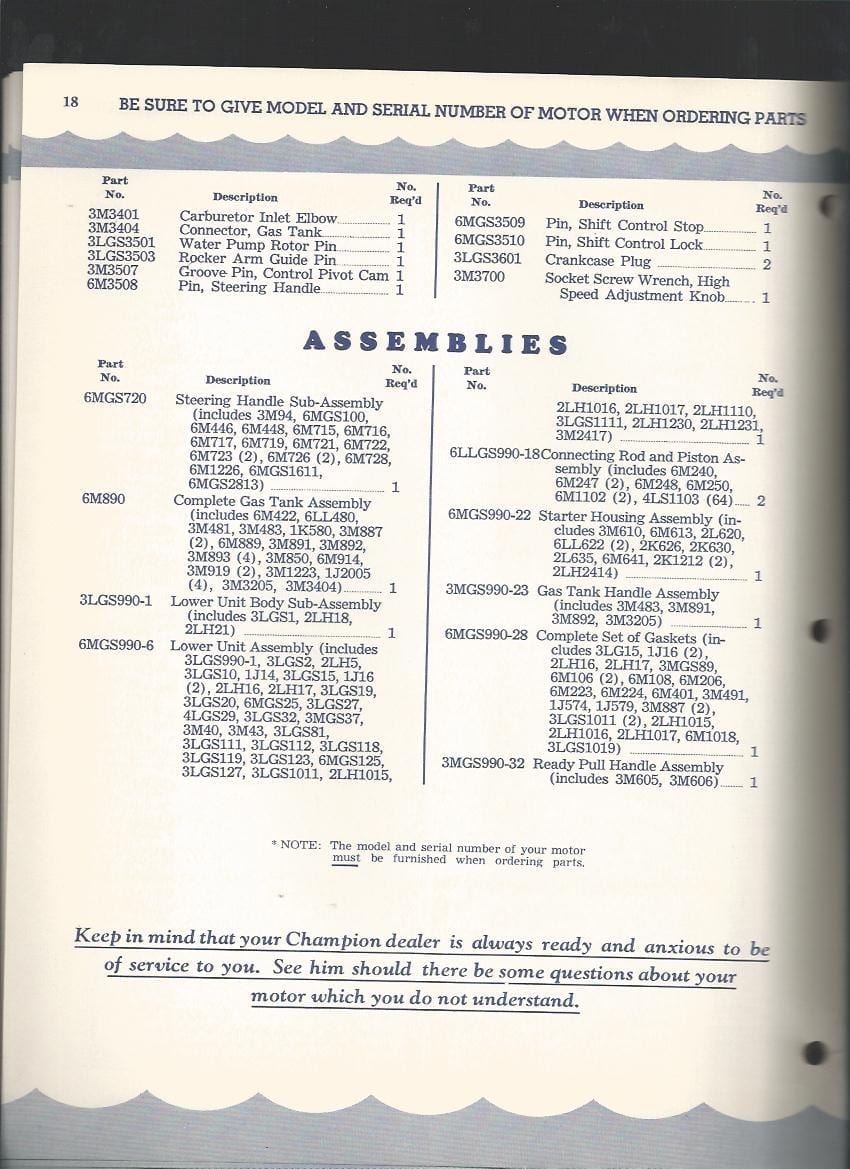

    PG010019

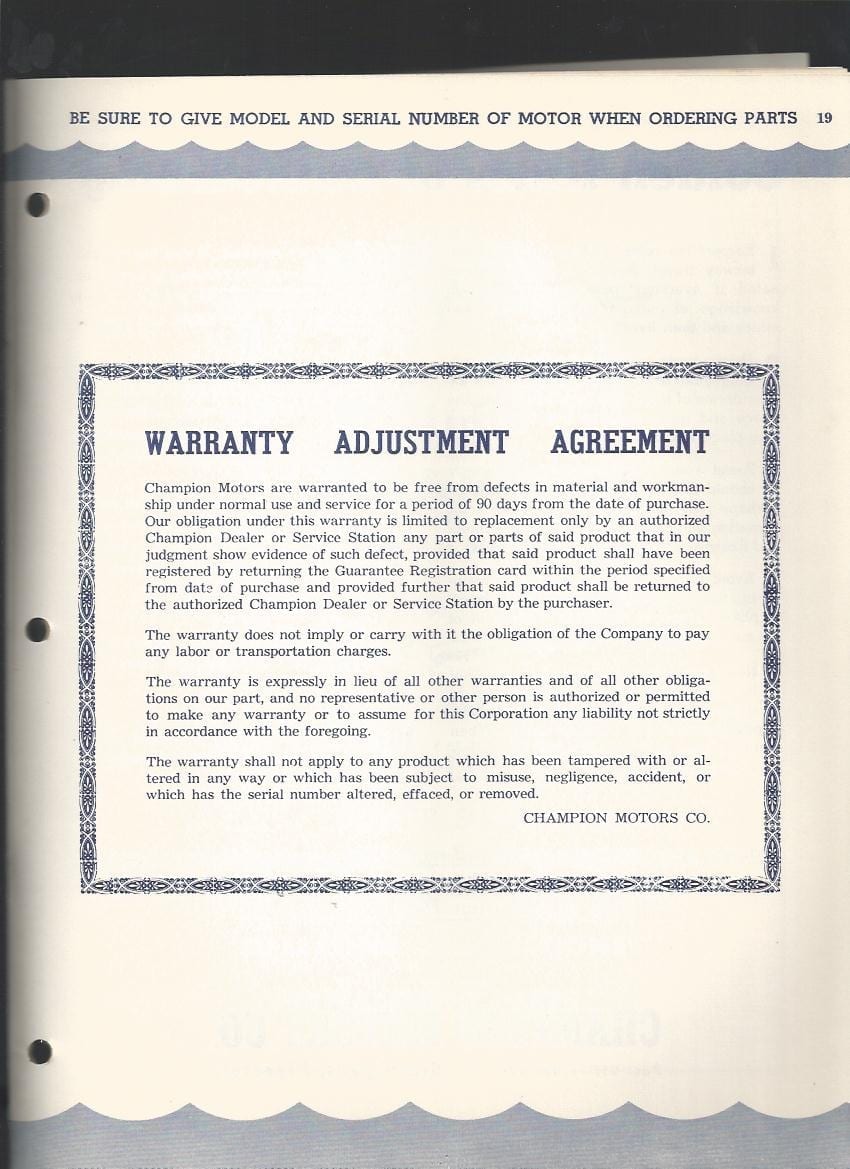

    PG010020

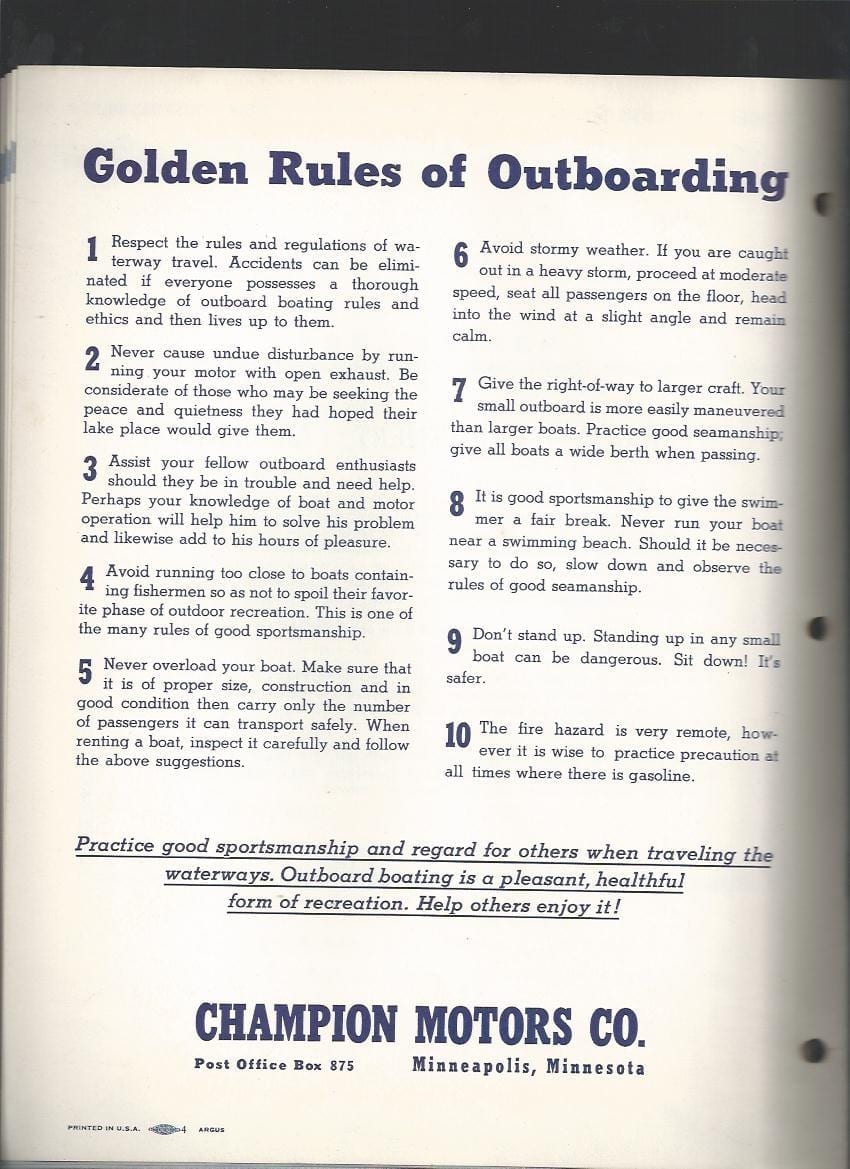

    PG010021

    • This reply was modified 5 months, 3 weeks ago by frankrfrankr.
    • This reply was modified 5 months, 3 weeks ago by frankrfrankr.
    Attachments:
    Avatar
    huntleybill

    US Member - 2 Years
    Replies: 259
    Topics: 101
    #199203

    Thank you sooooooooooooo much Frank.

    Avatar
    huntleybill

    US Member - 2 Years
    Replies: 259
    Topics: 101
    #199214

    One more question. This motor is going to need the usual stuff (coils, impeller, etc ) Where would you recommend getting parts for these motors from?

    frankr
    frankr


    Replies: 5300
    Topics: 48
    #199220

    One more question. This motor is going to need the usual stuff (coils, impeller, etc ) Where would you recommend getting parts for these motors from?

    That’s a good question, that I don’t have an answer for. Brian Wilcox MIGHT be able to make a new impeller, using the old hub.

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 4068
    Topics: 980
    #199227

    Bill, did you measure the old impeller and look in the Sierra or OMC charts and try to
    find one adaptable? Sometimes an option in Repro’s aren’t available.

    Prepare to be boarded!

    Avatar
    Mike-Sea

    US Member - 2 Years
    Replies: 14
    Topics: 9
    #199239

    I am restoring a Tandem 33 and bought impeller, piston, gaskets and misc. parts from Cooper Jess. The Champion special interest group leader.
    Mike

    Avatar
    huntleybill

    US Member - 2 Years
    Replies: 259
    Topics: 101
    #199240

    I wasn’t aware there was a chart to compare impellers. I’ll look into that.

    Looks like I need to contact Cooper Jess

    Thank you

    seakaye12
    seakaye12

    US Member - 2 Years
    Replies: 584
    Topics: 125
    #199415

    If any of you would perfer Frank’s pages in a PDF format; you can download it here:

    Champion-Model-6M-GS-Featherweight-15-Parts-Manual

    Attachments:
