Home Forum Ask A Member 1953 Johnson QD-14

Viewing 10 posts - 1 through 10 (of 11 total)
  • Author
    Posts
  • #208765
    Stallgen
    Participant

      I recently inherited a 1957 Crestliner Commander with a 1953 Johnson QD-14 10hp motor. I also have a complete spare that was stored with it. I ordered what I believed was the correct kit to rebuild the carb, but turned out to not be the case. Can anyone lead me to a rebuild kit, if they still exist? Or is this a situation where I have to source individual seals/orings and cut my own gaskets? Any leads or tips would be greatly appreciated.

      Thanks!

      #208768
      elgin2
      Participant

        US Member

        I think that carb was just made one year.

        #208770
        crosbyman
        Participant

          Canada Member - 2 Years

          https://www.vintageoutboard.com/collections/johnson-evinrude-fuel-systems/products/302043-johnson-carburetor-bowl-gasket

          contact vintageoutboard.com ask if they have what you need

          Joining AOMCI has priviledges 🙂

          #208883
          Stallgen
          Participant

            Thanks for the lead! They have a couple of the parts I need like the float and gasket. I emailed them about the seals/o-rings to see if they have them. I’ll post the info for future users when they get back to me. I Also bought a timing tool from https://richardsoutboardtools.com/, but passed on the coil locating ring. I am not experienced with these magneto ignition systems, so I am not sure how critical this tool is to ensuring the coils are positioned properly. There doesn’t seem to be very much adjustment in the coil location, but I’ll find out soon enough if it was a mistake on my part to not purchase the tool.
            I installed new coils, plug wires and am waiting for my points and condensers to arrive. Hopefully I can get this thing running soon. Thanks for the help, guys!

            #208887
            crosbyman
            Participant

              Canada Member - 2 Years

              the coil is a fine tool but your fingernail will help to align the coil on the edge… just tuck in all wires as far as possible from the crankshaft

              the timing toll is a great investment ….see video on timing not very complicated

              http://www.youtube.com/watch?v=ga1Cjymj6ms&feature=youtu.be

              see the johnson bible for all the info you need

              https://bit.ly/2wqMPTb

              Joining AOMCI has priviledges 🙂

              #208888
              crosbyman
              Participant

                Canada Member - 2 Years

                see url on this red book picture go to it for all the info you need

                posting that link asa text string makes our posts go poof.. !!!

                the ring is a fine tool but your fingernail will tell you if the coil is lined up

                Joining AOMCI has priviledges 🙂

                #208890
                crosbyman
                Participant

                  Canada Member - 2 Years

                  see timing utube…

                  http://www.youtube.com/watch?v=ga1Cjymj6ms&feature=youtu.be

                  Joining AOMCI has priviledges 🙂

                  #209560
                  Stallgen
                  Participant

                    Was told today by vintage outboards that they do not sell a carb kit for the QD14 and don’t know anyone that does. Some of my seals had to be chipped away, so I don’t really have anything to compare against. Not sure if Napa will be able to find info, but that’s going to be the next place I go. Any drawings or other info on this carburetor would go a long way in helping me get this thing running.

                    see url on this red book picture go to it for all the info you need

                    posting that link asa text string makes our posts go poof.. !!!

                    the ring is a fine tool but your fingernail will tell you if the coil is lined up

                    Do I have to become a member to see what is in the little red book? All I get is a picture of the book when clicked.

                    #209624
                    crosbyman
                    Participant

                      Canada Member - 2 Years

                      THE JOHNSON RED BOOK IS AVAILABLE TO ALL

                      JUST RECOPY THE URL ON TYE TOP LINE OF THE PICTURE AND GOOGLE IT AND YOU SHOULD BE ABLE TO ACCESS IT AND PRINT OFF NEEDED PAGES

                      PRINT THEM IN A PDF FILE FOR SAFEKEEPING AND PAPER FOR BACK UP

                      OR TRY https://bit.ly/2wqMPTb

                      Joining AOMCI has priviledges 🙂

                      #209631
                      Buccaneer
                      Participant

                        US Member

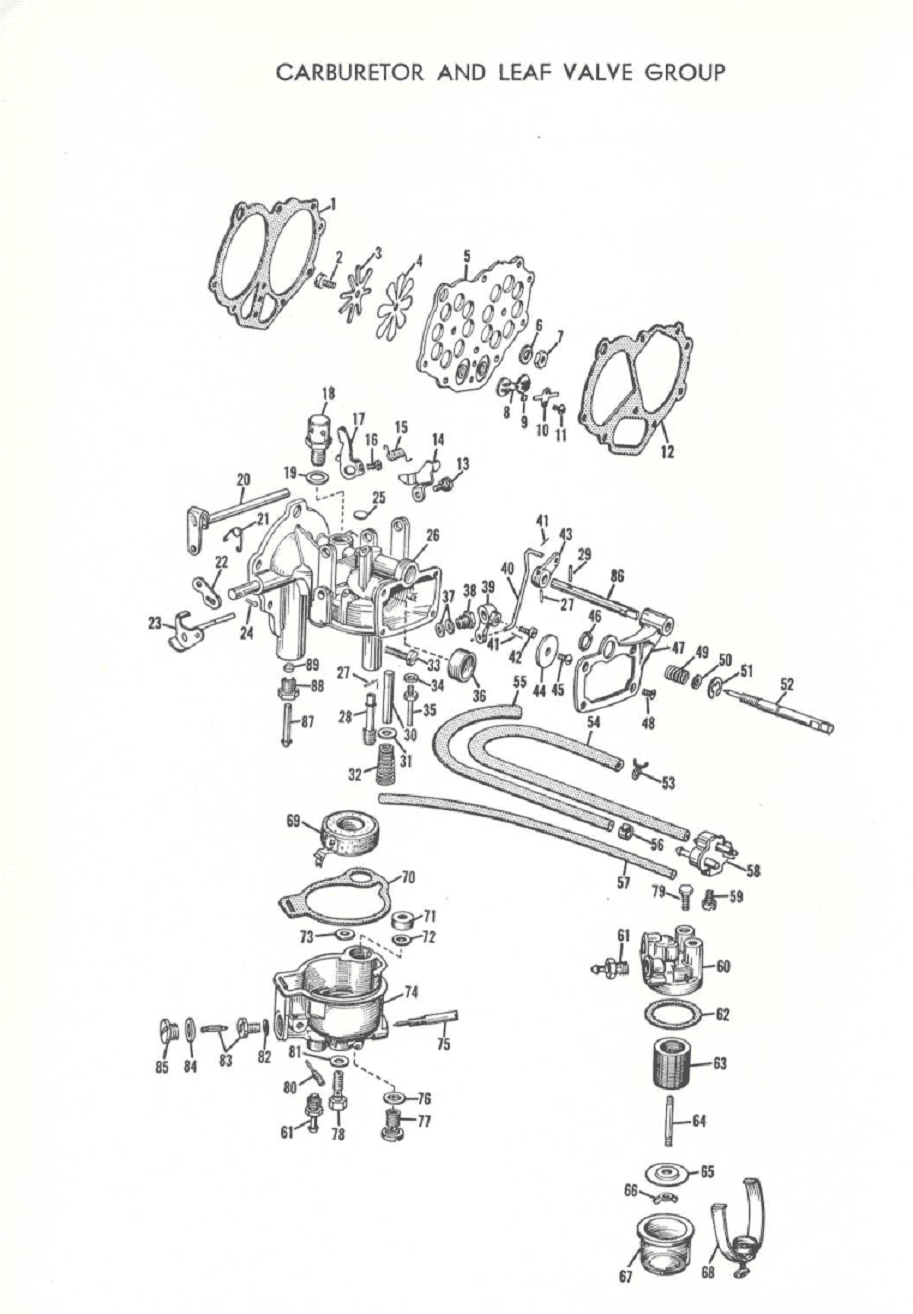

                        QD14-Carb1

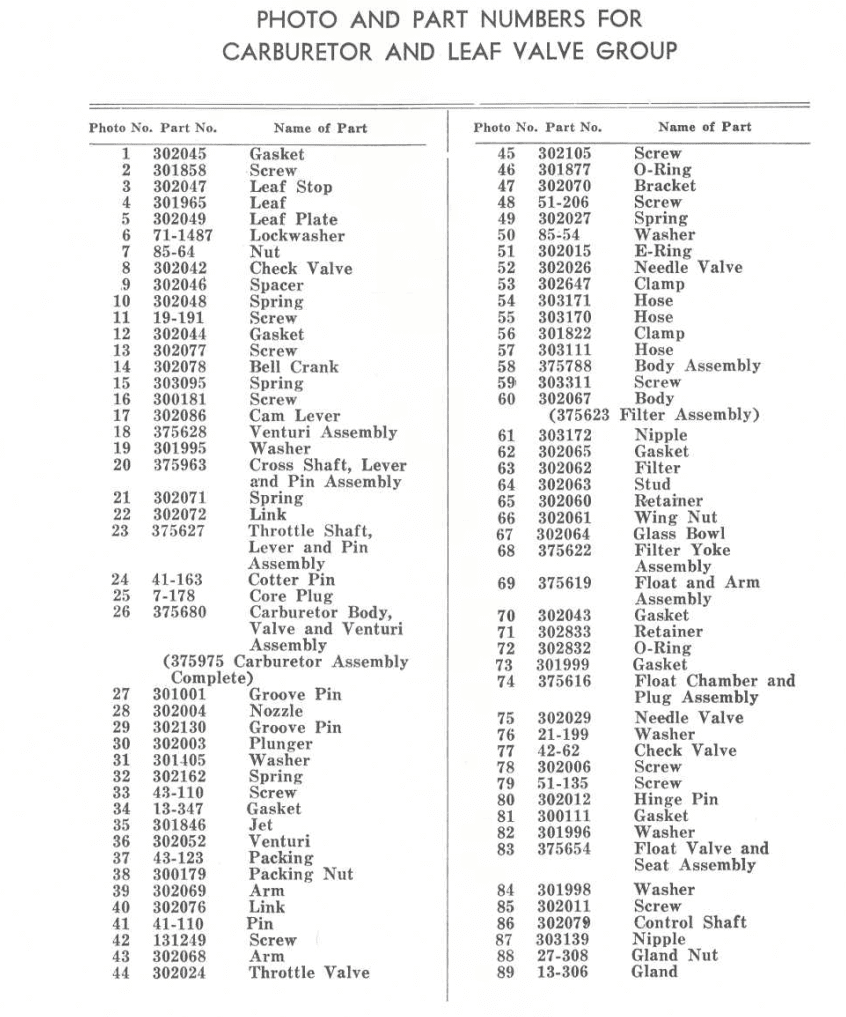

                        QD14-Carb2

                        Prepare to be boarded!
