Topic: 1953 Johnson QD13 Carb Float – Antique Outboard Motor Club,Inc

This topic has 6 replies, 3 voices, and was last updated 4 years, 9 months ago by Tinman.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
June 16, 2020 at 12:50 pm #205904
grunt311
Participant
Hello, I am looking for a carb float for a 1953 QD13. The float i have now is broke in half and is very brittle. Is there another float that would work in this motor or an aftermarket one that may work. I assume i could make one out of cork again but am worried it will not work correctly. Any advice is appreciated.

Thanks Nick
June 16, 2020 at 1:52 pm #205908
seakaye12
Participant
US Member
What you need is OMC Part Number #375619.

This e-bay seller lists one in his inventory:

https://www.ebay.com/itm/New-Parts-OMC-Johnson-Evinrude-Outboard-NOS-375773-/392395919233
June 16, 2020 at 3:11 pm #205918
grunt311
Participant
seakaye12.
I did see that and emailed but i guess they are moving their shop currently. Said check back in a month or two.
June 17, 2020 at 1:56 pm #205989
Tinman
Participant
US Member

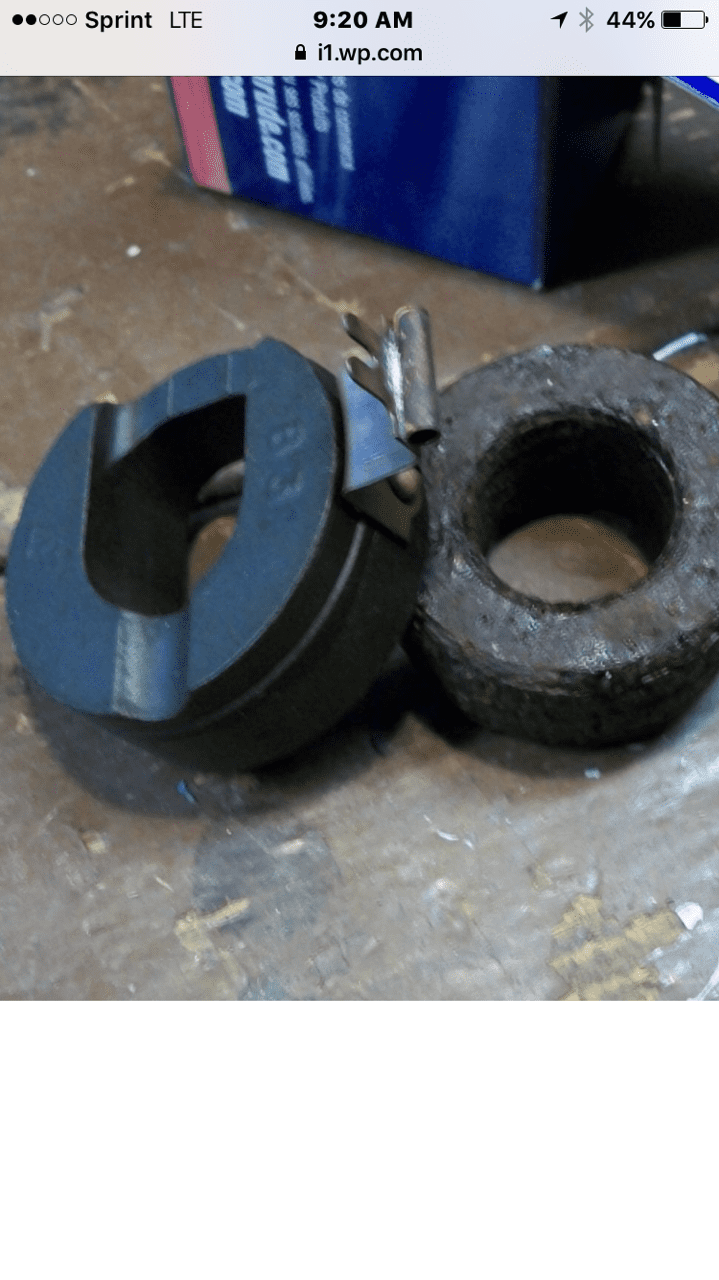

I can’t take credit for this. Another member showed me how to do this. Take a new float, cut off the metal bracket and grind it flush with the float. Gently so as not to damage the float. Then attach the old bracket to the new float. I have a qd-12 and it worked great. No issues so far.
June 18, 2020 at 8:38 am #206053
grunt311
Participant
Tinman that is perfect. Do you have a model number for the float you used?

Thanks Nick
June 18, 2020 at 10:20 am #206066
seakaye12
Participant
US Member

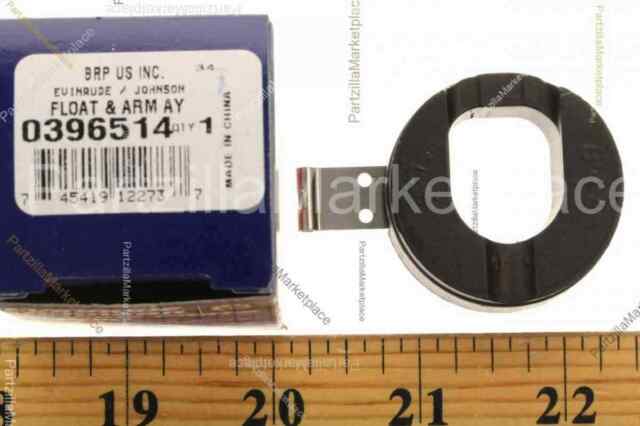

0396514 – Float And Arm
June 18, 2020 at 1:25 pm #206088
Tinman
Participant
US Member
Just an omc float. Seakaye 12 has got it pictured there. Just take it easy on removing the bracket. I broke a float the first time I tried.
