1955 15 HP Evinrude Model 15014 lower unit

Home › Forum › Ask A Member › 1955 15 HP Evinrude Model 15014 lower unit

Viewing 10 posts - 1 through 10 (of 12 total)
1 2
  • Author
    Posts
  • June 28, 2019 at 3:24 pm #178122
    mercuryman
    Participant

      I put a pump impeller in this lower unit and noted the impeller drive pin was short. When I tried motor in barrel no water. I took apart again and the drive pin is below the plate under impeller. The drive shaft hits bottom with the pin hole about 1/8 ” below the plate. Is this condition repairable ?

      June 28, 2019 at 3:58 pm #178124
      frankr
      Participant

        US MEMBER PAY BY CHECK

        Snap ring is missing from bottom of pinion gear. Drive shaft normally rests on the snap ring.

        June 28, 2019 at 7:19 pm #178134
        Mumbles
        Participant

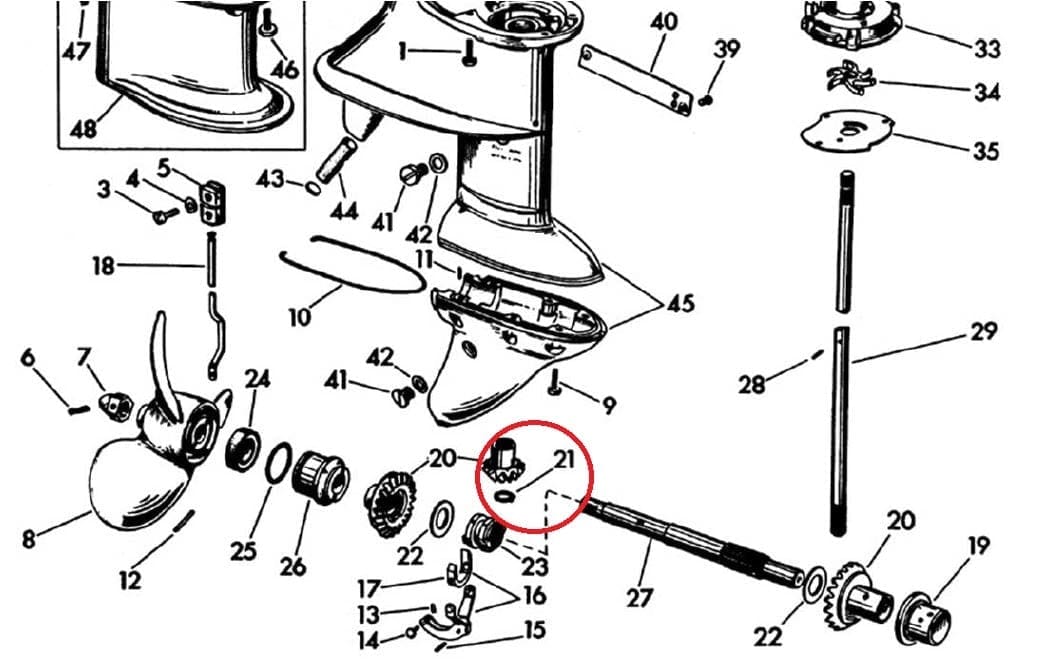

          Doesn’t that snap ring go on the bottom of the shaft below the pinion to prevent the shaft from being pulled out?

          I’m not sure how a missing snap ring would allow the shaft to drop down.

          1955-15-GC

          June 28, 2019 at 9:25 pm #178139
          frankr
          Participant

            US MEMBER PAY BY CHECK

            What I said is my story and I’m sticking to it. The drive shaft rests on the snap ring.

            June 28, 2019 at 10:47 pm #178142
            mercuryman
            Participant

              Thank you Frank I will drain the oil and take it apart tomorrow.

              June 29, 2019 at 11:28 am #178165
              Mumbles
              Participant

                After sleeping on it, I’ll bet the snap ring goes inside the bottom of the pinion gear. It’s been a while but that would make more sense.

                June 29, 2019 at 1:32 pm #178168
                frankr
                Participant

                  US MEMBER PAY BY CHECK

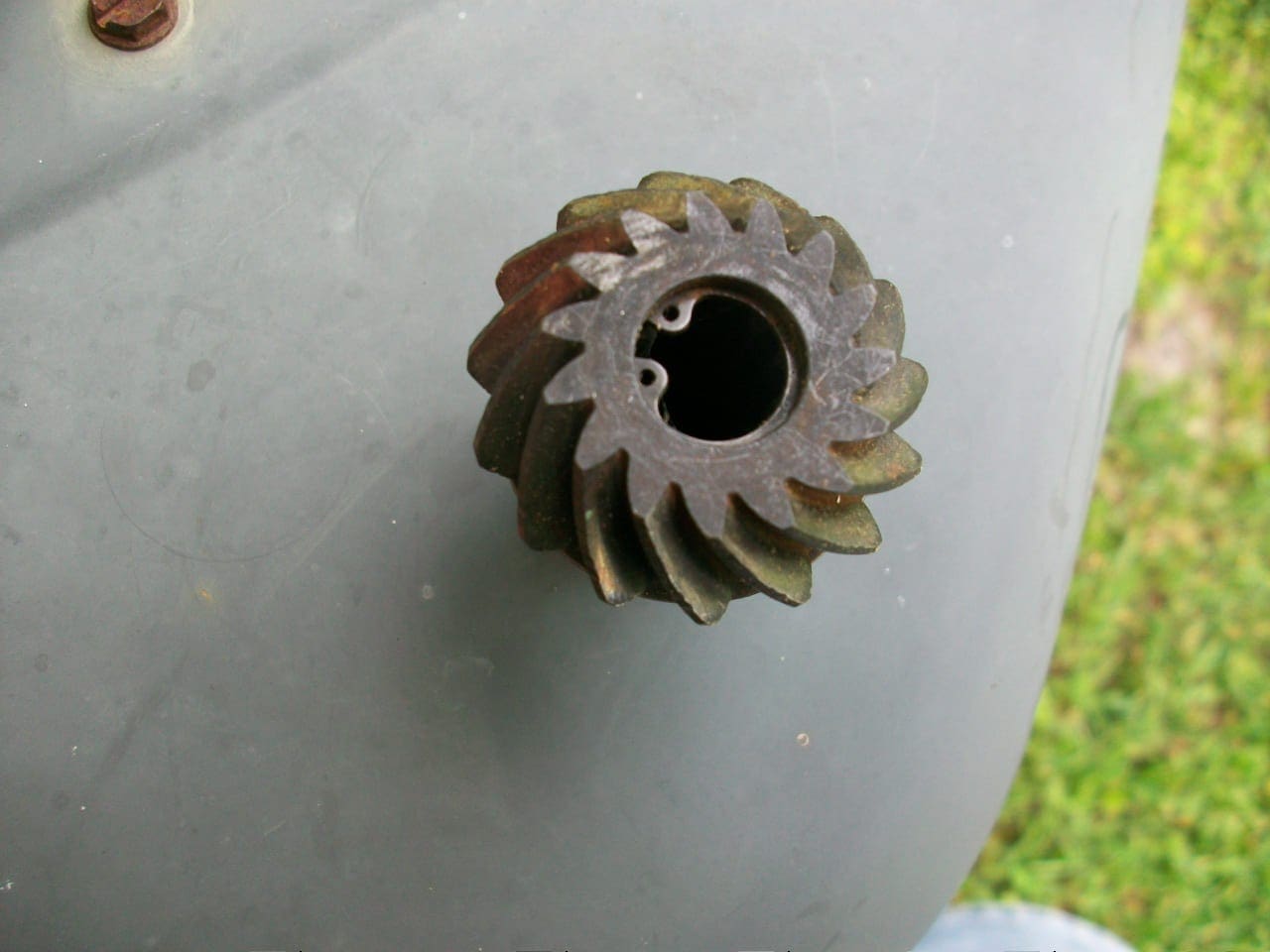

                  Like this

                  100_1775

                  June 29, 2019 at 1:49 pm #178171
                  Mumbles
                  Participant

                    Exackary!!!

                    June 30, 2019 at 8:25 pm #178256
                    jeff-register
                    Participant

                      US Member - 2 Years

                      i’ve learned not to dispute Mr. “R” when OMC mtrs are the subject.

                      July 1, 2019 at 5:19 pm #178294
                      mercuryman
                      Participant

                        I got it fixed, got a snap ring from NAPA for .25 cents . Its amazing how easy a evinrude gear case is to take apart compared to Mercury.

                      • Author
                        Posts
                      Viewing 10 posts - 1 through 10 (of 12 total)
                      1 2
                      • You must be logged in to reply to this topic.
