1955 25hp Prop

Home › Forum › Ask A Member › 1955 25hp Prop

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • July 23, 2024 at 3:06 pm #289389
    Scott Springer
    Participant

      What is the stock prop that came on a 1955 25 hp Johnson?

      July 23, 2024 at 7:59 pm #289395
      labrador-guy
      Participant

        US Member - 2 Years

        Scott my 25 has a amc (aqua master cushioned) #380 brass propeller.  I think it is a 10″ diameter x10″pitch.  amc 381 is a 10×12 propeller my ’53 has that one on it.   I think brass props were very popular back then.   The propeller used on those 50’s motors were used for many years.  Your motors propeller would depend on how big the boat was that it was pushing.

        dale

        July 23, 2024 at 8:38 pm #289397
        Steve D
        Participant

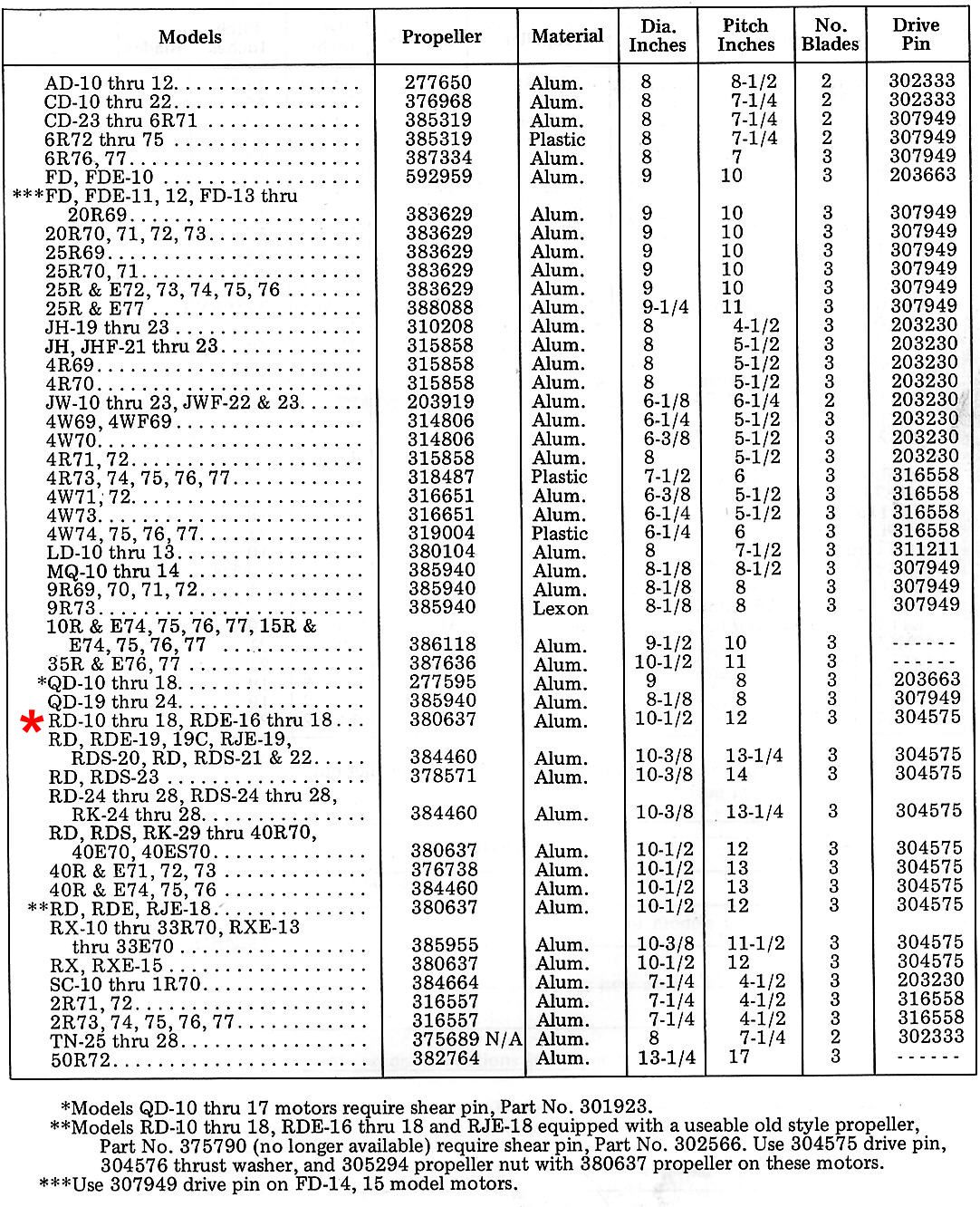

          Prop-Chart-Johnson

          ============================================================================

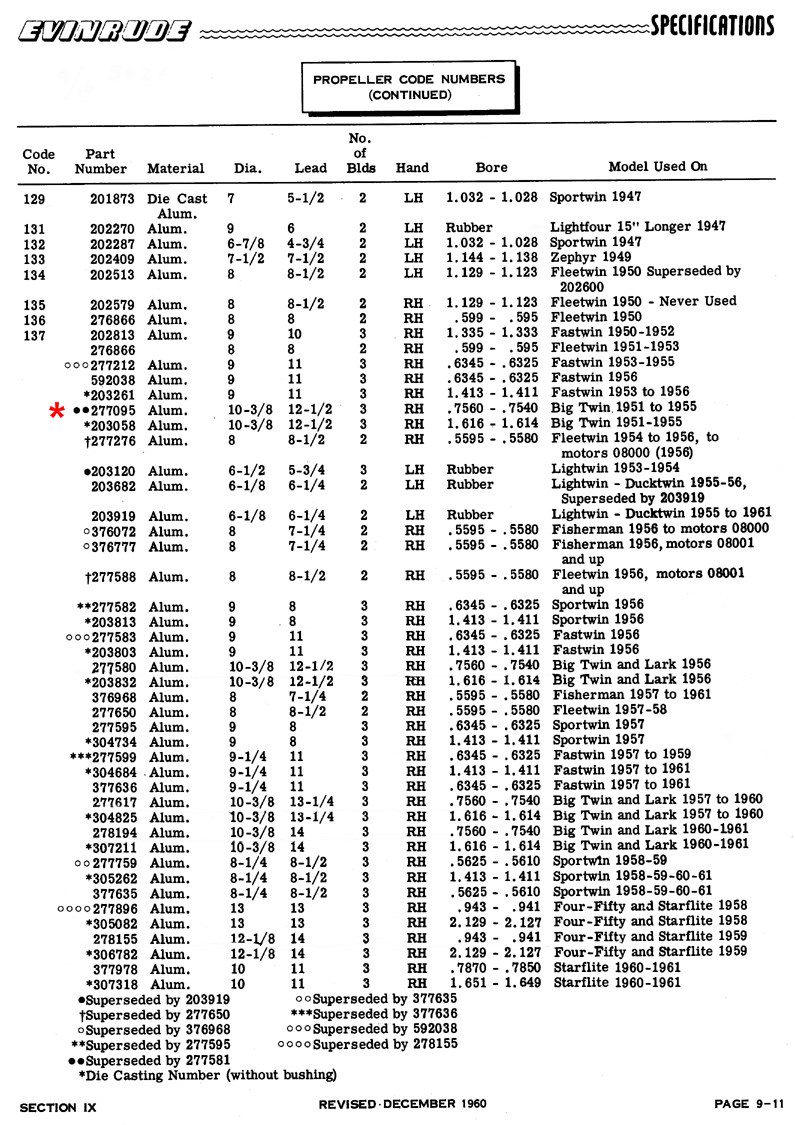

          Prop-Chart-Evinrude

          July 23, 2024 at 8:53 pm #289400
          labrador-guy
          Participant

            US Member - 2 Years

            Thanks Steve obviously they came with aluminum!  I have three of those brass buggers.  Maybe I should sell them for scrap!

            dale

            July 23, 2024 at 9:42 pm #289401
            Steve D
            Participant

              I think you’re right though Dale. I remember seeing a lot of brass props being used on those kinds of motors. When I first got into this hobby I remember even getting a few 18’s that the previous owner put a brass prop on. They don’t seem to show up too much anymore.

              July 24, 2024 at 7:30 am #289403
              frankr
              Participant

                US Member

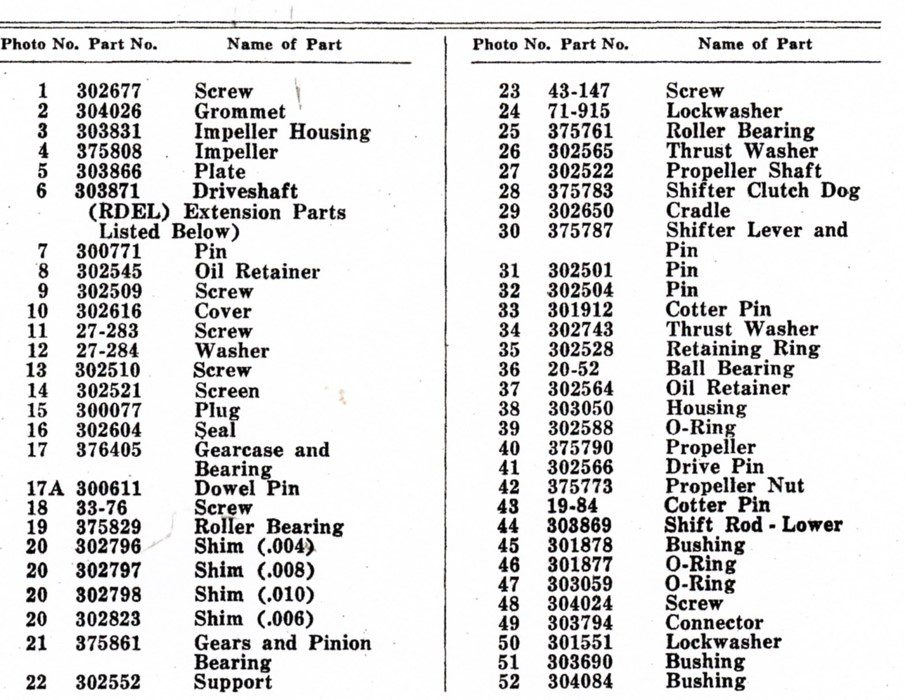

                Original part number as shown in the 1955 RD-17 parts list was 375790 (#40).  That number seems to have gotten lost in the dustbin of history.

                rd-17-gearcase-parts

                July 24, 2024 at 8:02 am #289405
                frankr
                Participant

                  US Member

                  Found it in the dustbin of history (1963 parts price book).  375790 was superseded by 277581.  Then 277581 was superseded by

                  “Use (1) 378580 Propeller, (1) 304575 Drive Pin, (1) 304576 Thrust washer, and (1) 376731 Prop Nut.

                  All this was because the original rubber cushion hub and brass SHEAR pin was replaced by a rubber “Slip Clutch” hub with a stainless steel DRIVE pin.  Competition y’know from the folks that advertised “No Shear pin”.



                  steveD’s chart above shows 378580 as being 10-3/8 x 12-1/2.
