  • November 6, 2024 at 7:53 pm #291945
    Craig Allen
    Participant

      US Member

      I  took my lower end apart a couple months ago and just got back to putting it back together. I can not figure out how to put  the 1 3/4 spring and what looks like clutches back together. Does the spring go in the propeller  and in what order? Can someone send me  a picture or a parts diagram? Many thanks.

      November 7, 2024 at 10:47 am #291962
      seakaye12
      Participant

        US Member

        Hi Craig,

        I remember your last post.  Here’s the link to what I sent you then.  Hopefully others can send more detailed instructions.

        https://www.aomci.org/forums/topic/gear-shift-cable-on-a-1955-elgin-5-hp/

        1 user thanked author for this post.
        Craig Allen
        November 8, 2024 at 3:08 pm #291995
        Craig Allen
        Participant

          US Member

          Hi seakaye12. my model 571-58571 is different than the diagrams you sent last time. I have a big 1 3/4 spring and a set of what look like clutches to me. Last night I think I got it put back the right way but I had a flat washer left over which may be important . I’m also not sure if I put the clutches back together right. I think they are to protect the lower end if something is hit by the prop. I’m trying to find a manual to show me how this goes back together. Thanks for the help.

          November 8, 2024 at 4:10 pm #291996
          stanley
          Participant

            US Member - 2 Years

            Try Art DeKalb he has lots of Elgin parts and manuals.Just google Arts precision serve and it should get you there

            1 user thanked author for this post.
            Craig Allen
            November 9, 2024 at 3:31 pm #292023
            oldlure
            Participant

              US Member

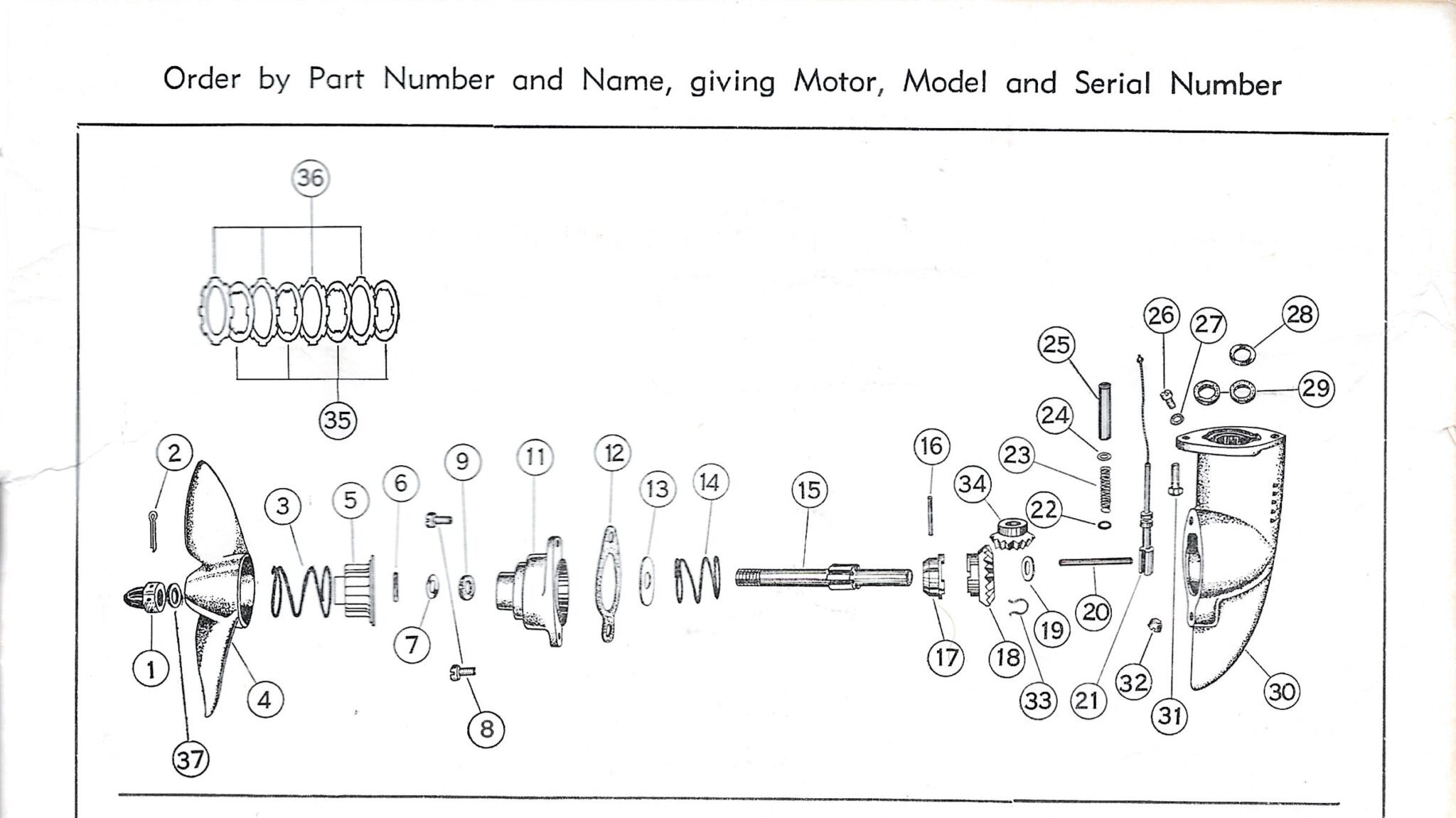

              Here is the parts diagram.

              Elgin



              November 10, 2024 at 11:22 am #292028
              Craig Allen
              Participant

                US Member

                thanks oldlure, that’s just what I needed
