      Gents,

      My Dad’s coworker just picked up a boat with an electric starting ’55 Big Twin on it. I’m trying to help him with parts diagrams, and I don’t have that model in my collection of diagrams. If anyone has the diagrams for that specific model to share, I’d really apprciate it.

      Best,
      JP

      #60155
      frankr
      Participant

        US Member

        PM me your e-mail address.

        #60157
        jpatti75
        Participant

          US Member

          Just sent you an email, Frank. Thanks!

          #60159
          Mumbles
          Participant

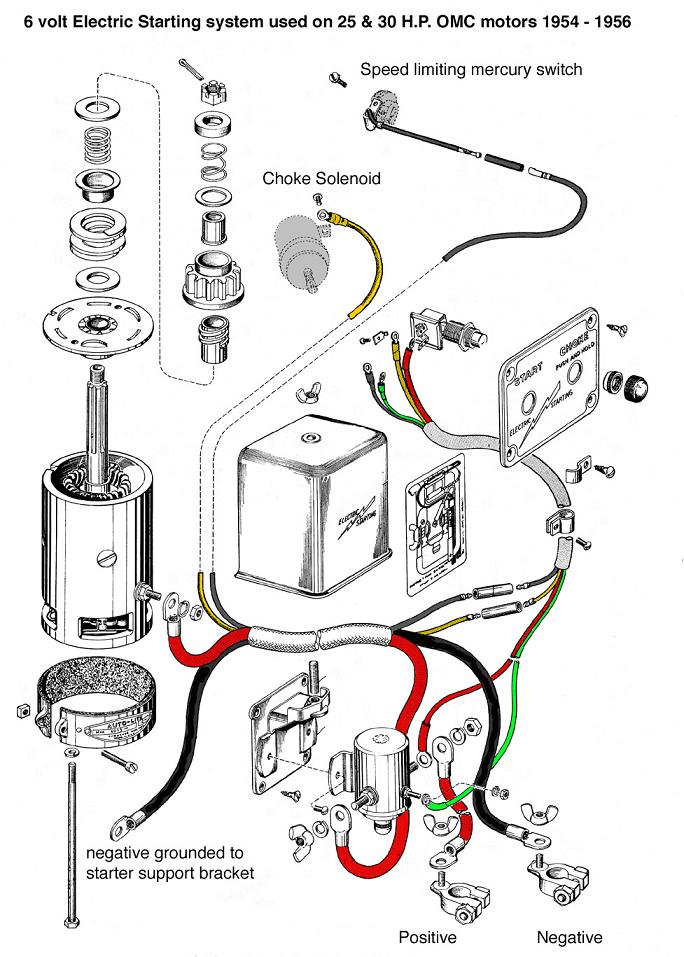

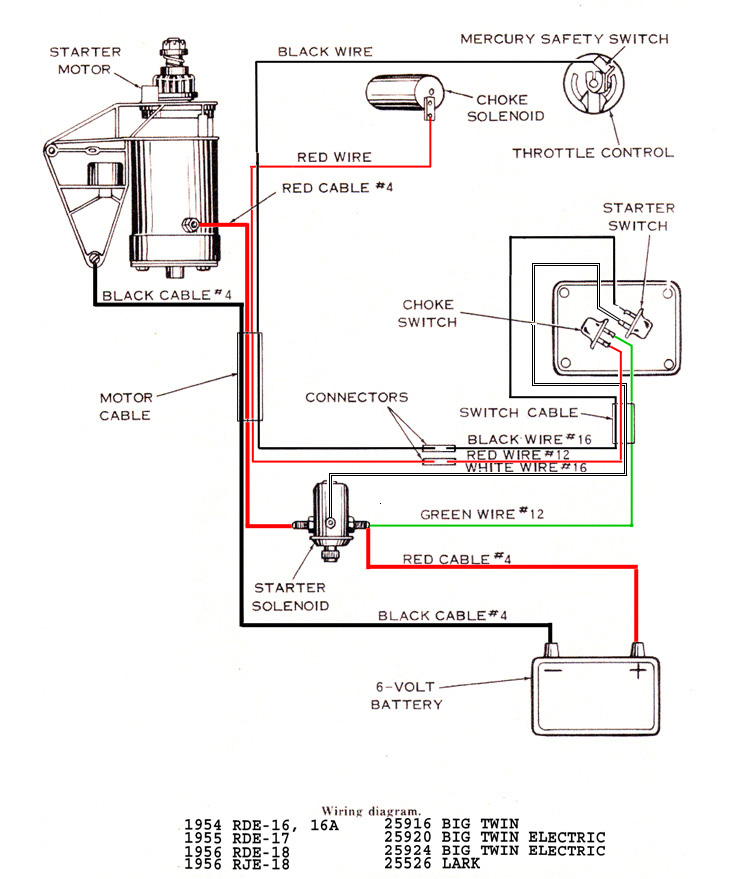

            Here you go. Thanks to whoever posted them originally and the parts manual is at the bottom.

            #60162
            jpatti75
            Participant

              US Member

              Thanks for all the help. John will really appreciate it!

              JP

              #60180
              outbdnut2
              Participant

                US Member

                Here’s an item not many people seem to know about the starter solenoid:

                One the bottom of the solenoid is a metal cap that you can unscrew and remove. Removing the cap exposes a button that, when pushed up into the solenoid, makes the starter crank. It will do this even if the dashboard starter switch is bad or missing and/or if the solenoid is bad and won’t energize. Be careful though, cranking this way bypasses the mercury switch, so it will start even if it is at full throttle. I think it was 1957 when this "feature" was eliminated. The button is handy if you are sitting next to the motor working on it and need to crank the starter without walking up to the driver’s seat.

                That is a 6 Volt system. To convert to 12 volts, replace the starter solenoid with a 12 volt one (Sierra 18-5807) and add a resistor in series with the choke solenoid that is same resistance as the choke solenoid,and suitable wattage rating to soak up half the voltage. The 6 volt starter motor will work fine on 12 volts, and will draw some more current, but not double current due to it’s complex inductive nature.
                Dave

                #60276
                garry-in-michigan
                Participant

                  Lifetime Member

                  Yes, the 6 volts starter works GREAT on on 12 volts. It spins 50% faster so a well tuned outboard will start instantly. Keep in mind in overheats twice as fast so if you are using the electric starter because it’s not in good enough shape to hand crank, know you will soon be buying a 12 volt starter to complete your conversion. It is good practice to be sure that everything is properly set and adjusted before you start cranking. . . 😀
