1955 RDS-17 Johnson 25 hp-adjustment/shifting

Home › Forum › Ask A Member › 1955 RDS-17 Johnson 25 hp-adjustment/shifting

Viewing 6 posts - 11 through 16 (of 16 total)
1 2
  • Author
    Posts
  • May 11, 2020 at 4:11 pm #202806
    frankr
    Participant

      US MEMBER PAY BY CHECK

      60 years ago, I could have told you the differences, and why, but that was then. But prowling around some parts books. I find 303720 for 1955 25hp, 304378 for 1957 18hp, and 304379 for ?

      May 14, 2020 at 2:14 pm #203082
      outboardnut
      Participant

        US Member

        I took the power head off and now have access to the linkage of the upper shift rod. I have determined that the holes on #24 are elongated.

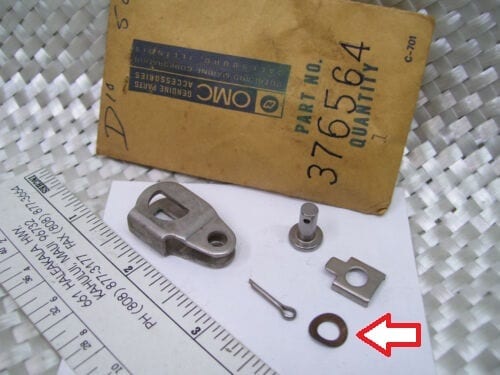

        I noticed that “kit” comes with a wave washer. The parts list does not show a wave washer .Nor was there a wave washer originally. If was to use the wave washer. (Maybe the wave washer would tight things up a bit) Where would it go?????

        kit-lever

        May 14, 2020 at 2:19 pm #203086
        David Bartlett
        Participant

          US Member

          I would put the washer on the pin, then insert the pin in the clevis thingy.

          David Bartlett
          Pine Tree Boating Club Chapter

          "I don't fully understand everything I know!"

          May 21, 2020 at 2:17 pm #203703
          outboardnut
          Participant

            US Member

            A bit of an update. It was number 24. Shifts great now.

            May 21, 2020 at 2:45 pm #203705
            bobw
            Participant

              US Member

              Great news – glad it worked out.

              Bob

              1937 Champion D2C Deluxe Lite Twin
              1954 Johnson CD-11
              1955 Johnson QD-16
              1957 Evinrude Fastwin 18
              1958 Johnson QD-19
              1958 Johnson FD-12
              1959 Johnson QD-20

              “Every 20 minute job is only a broken bolt away from a 3-day project.”
              "Every time you remove a broken or seized bolt an angel gets his wings."

              May 22, 2020 at 9:38 am #203772
              fleetwin
              Participant

                US Member - 2 Years

                Cool!
