1956 12 hp Sea King Model GG9016B

Home › Forum › Ask A Member › 1956 12 hp Sea King Model GG9016B

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • June 30, 2024 at 5:38 pm #288749
    lonestartom23
    Participant

      US Member

      I purchased a 1956 12 hp Sea King last year at Tomahawk.  I got a chance to go through it this summer and ran it a couple of weeks ago.  I’ve been told that the lower seal can be an issue with these motors.  I’ve been on line and found a parts manual, but it does not have any parts numbers.  Can anyone help me out here with a part number and where to get the lower seal?  Thanks, Tom

      June 30, 2024 at 6:35 pm #288750
      frankr
      Participant

        US Member

        That is the “Standard” model and does not have the troublesome seal.  Or any lower seal at all.  Not a problem because it uses the old style exhaust housing.

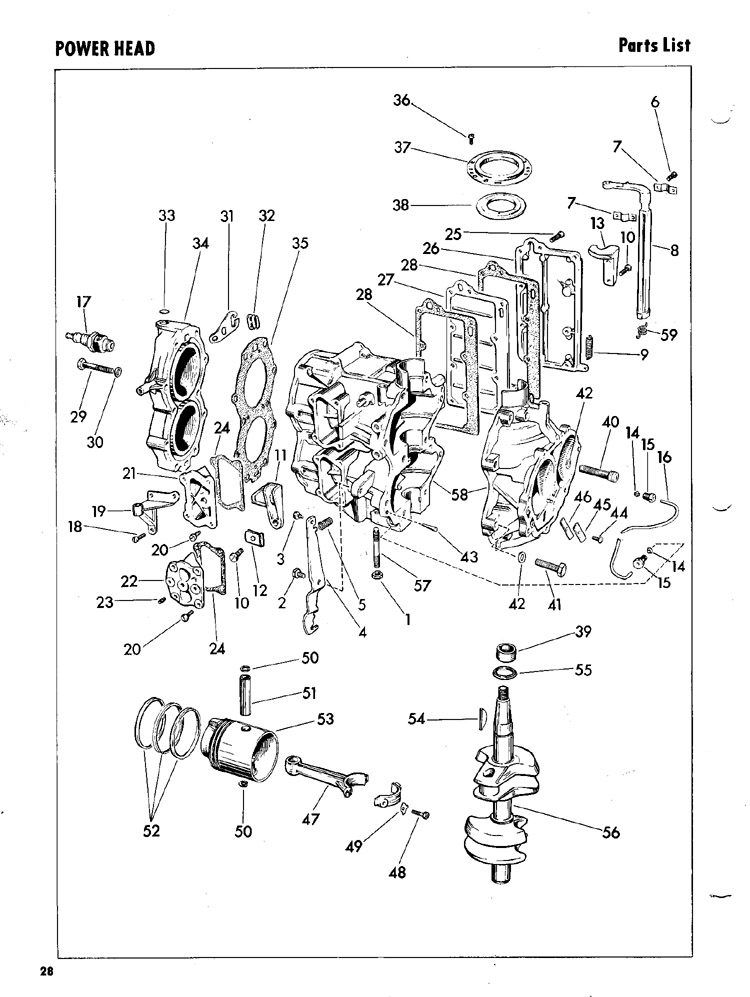

        Pg-28-Powerhead

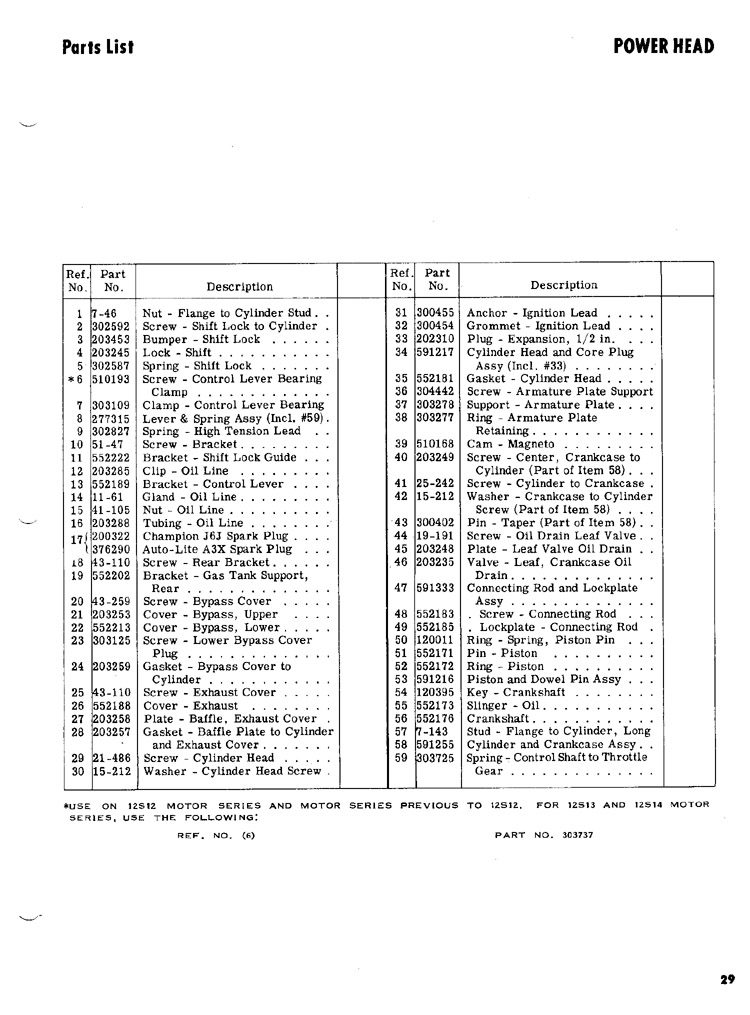

        Pg-29-Powerhead-Parts-List

        Pg-30-Manifold-and-Bracket

        Pg-31-Manifold-and-Bracket-Parts-List

        June 30, 2024 at 6:42 pm #288756
        frankr
        Participant

          US Member

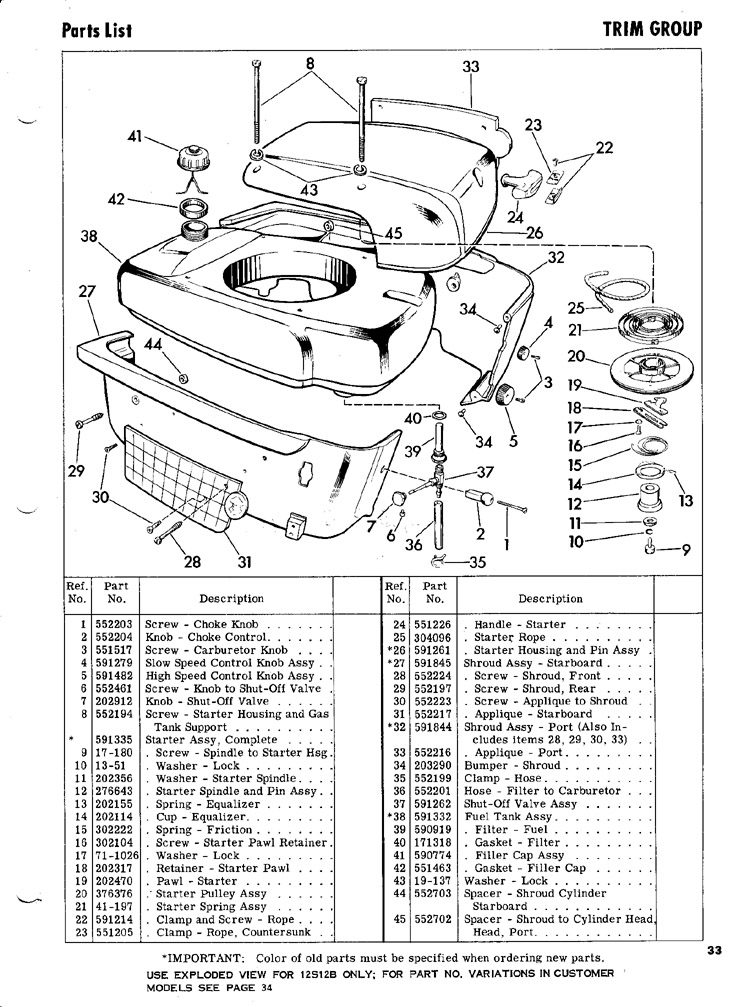

          Pg-33-Trim-Group

          Pg-26-Carburetor

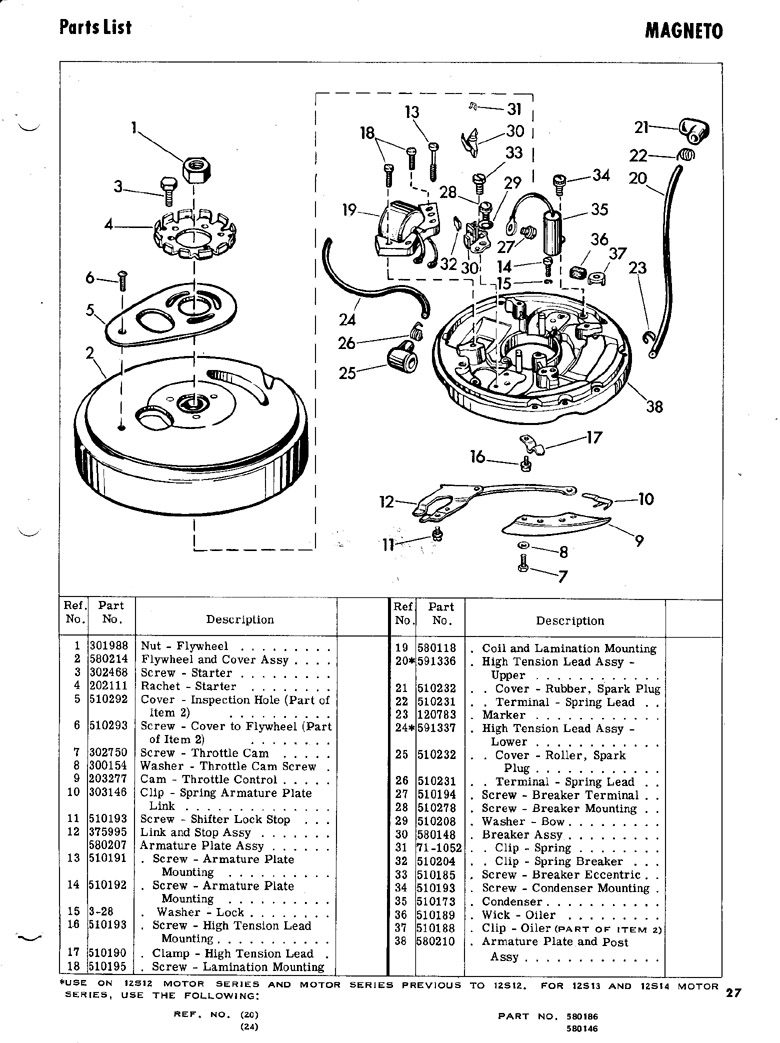

          Pg-27-Magneto

          Pg-32-12S12-12S13-Gearcase



          June 30, 2024 at 6:44 pm #288761
          frankr
          Participant

            US Member

            Pg-33-Trim-Group-1

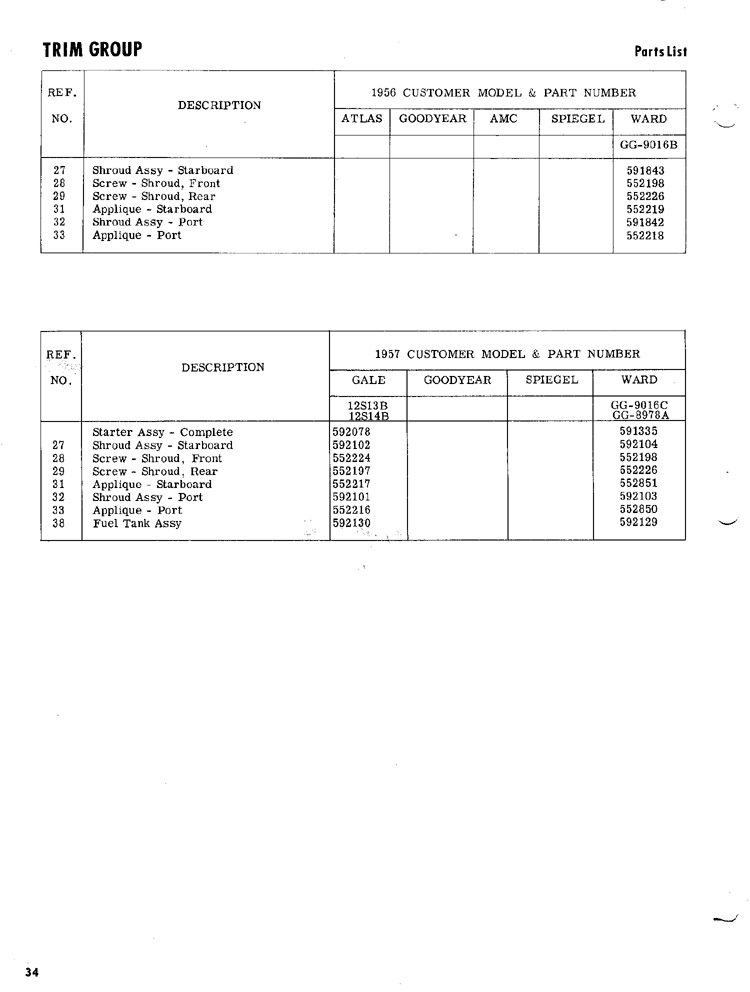

            Pg-34-Trim-Group-Variations

            June 30, 2024 at 9:46 pm #288766
            lonestartom23
            Participant

              US Member

              Thank you Frank!  I’ll be back out on the water with that motor in the next week!
