Home Forum Ask A Member 1956 Scott Atwater 7.5 hp Bail-a-matic Carb

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • #227170
    Buccaneer
    Participant

      US Member

      Took the carb apart today, and I’m wondering about the bowl drain.
      It has a spring loaded valve pin that protrudes through the front
      of the bowl, and when the high speed adjustment knob is pushed
      in, it allows the bowl to drain out the bottom of the bowl.

      When I removed the parts, there was a chunk of deteriorated
      rubber that came out, that makes me wonder if it had a rubber
      seat inside?

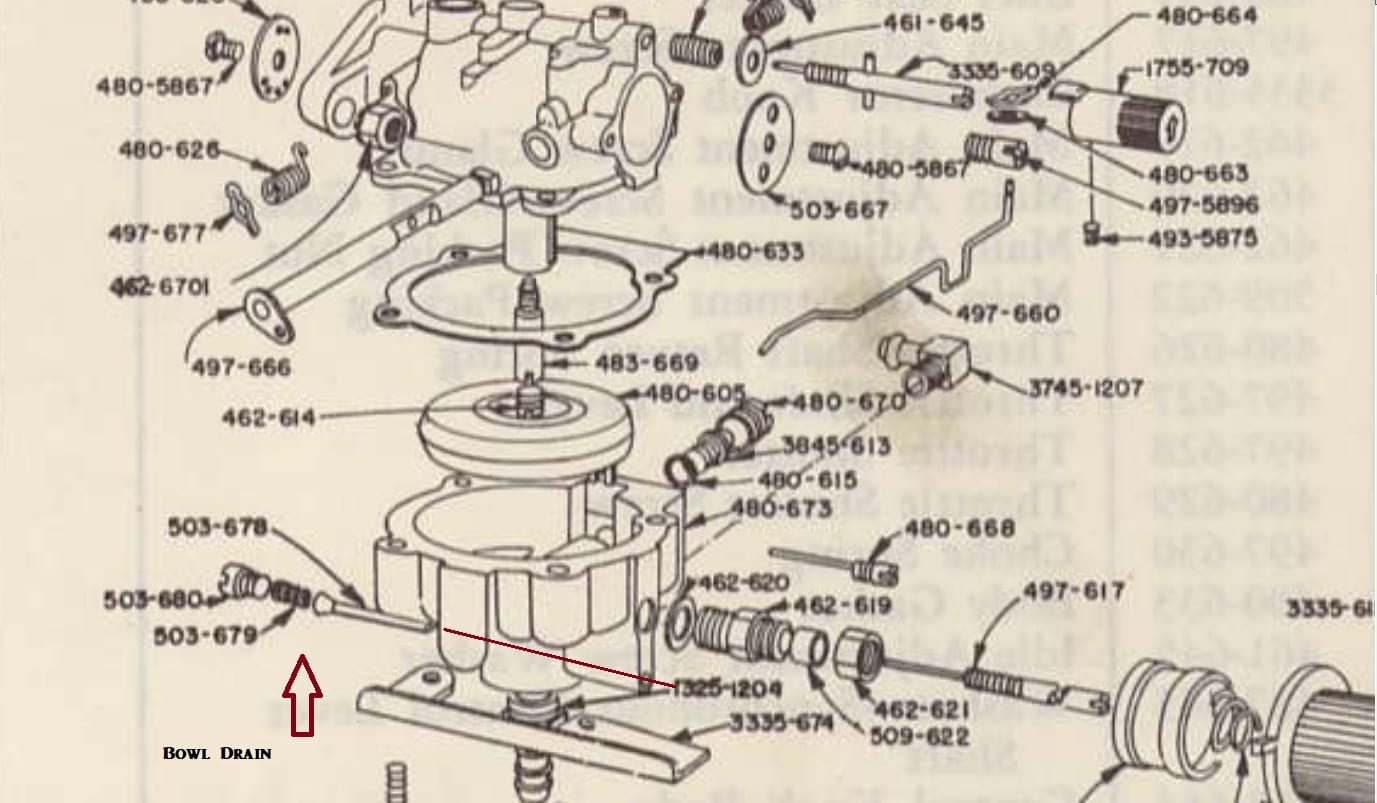

      The parts diagram does not show any seat period, nor list in
      in the parts, but perhaps it was considered part of the bowl?

      I’m not sure I like the whole idea of the bowl drain. Sounds like
      a good way to end up with a nagging leak!
      I’m may just end up blocking the whole drain off is some fashion.
      Thoughts?

      Carb-diagram

      Prepare to be boarded!

      #227173
      Tom
      Participant

        US Member

        IIRC, I tapped and plugged that hole after many attempts to find a replacement for the seal.

        T

        #227174
        frankr
        Participant

          US MEMBER PAY BY CHECK

          Took the carb apart today, and I’m wondering about the bowl drain.
          It has a spring loaded valve pin that protrudes through the front
          of the bowl, and when the high speed adjustment knob is pushed
          in, it allows the bowl to drain out the bottom of the bowl.

          When I removed the parts, there was a chunk of deteriorated
          rubber that came out, that makes me wonder if it had a rubber
          seat inside?
          The parts diagram does not show any seat period, nor list in
          in the parts, but perhaps it was considered part of the bowl?

          I’m not sure I like the whole idea of the bowl drain. Sounds like
          a good way to end up with a nagging leak!
          I’m may just end up blocking the whole drain off is some fashion.
          Thoughts?

          Carb-diagram

          Yep, I agree, nagging leak. I plugged a bunch of them back in “The Day”

          #227175
          Buccaneer
          Participant

            US Member

            Frank, sounds like a plan. If they were a problem “back in the day”,
            then they’re still a problem. Suppose I can put a brass plug in
            the front valve stem hole and a pipe plug in the bottom where
            the drain barbed fitting is.

            Prepare to be boarded!

            #227177
            Mumbles
            Participant

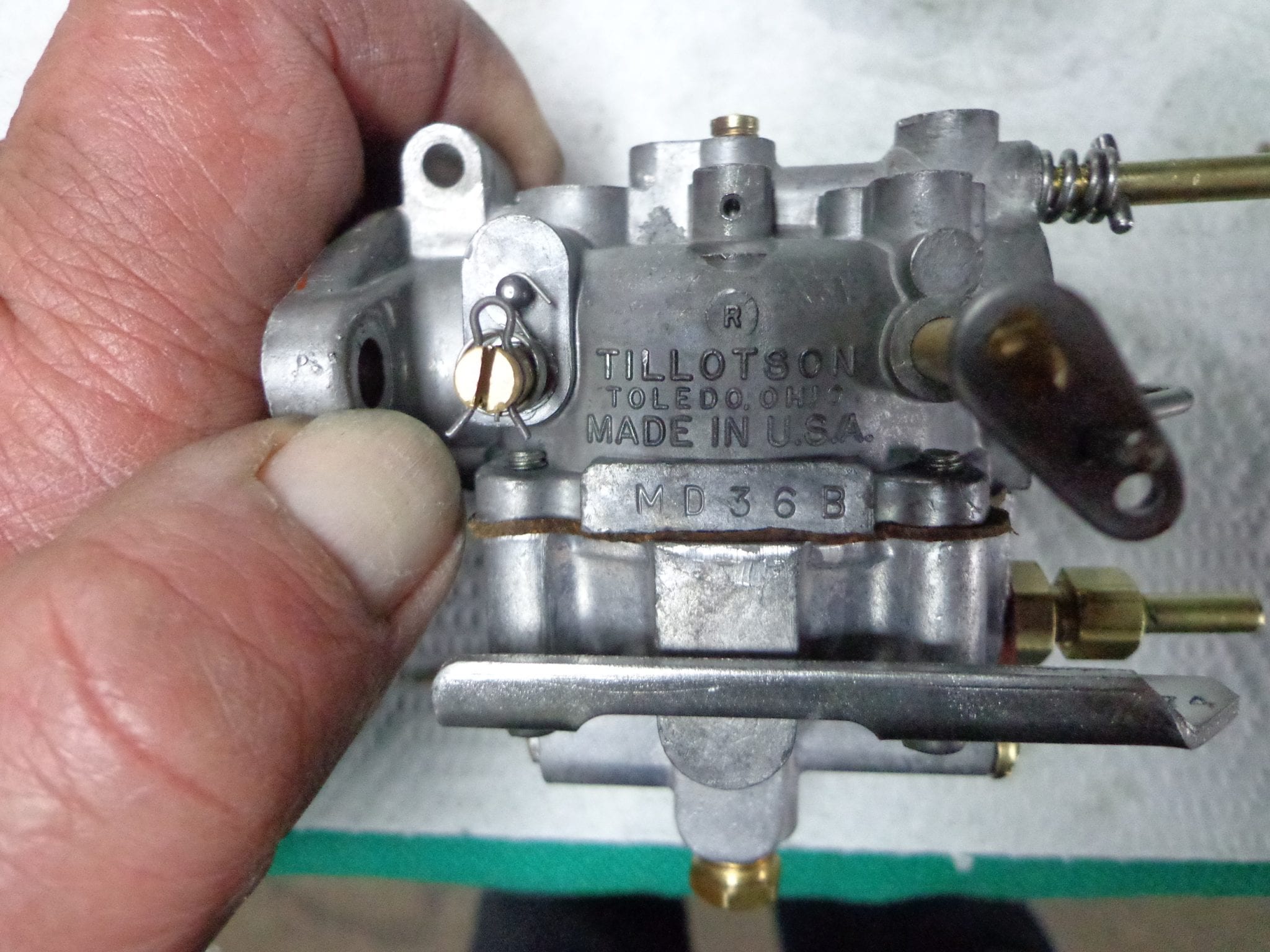

              In this photo, you can just make out a brass plug in the bottom. I must have tapped and plugged it like Tom suggested.

              DSC01487

              #227199
              Buccaneer
              Participant

                US Member

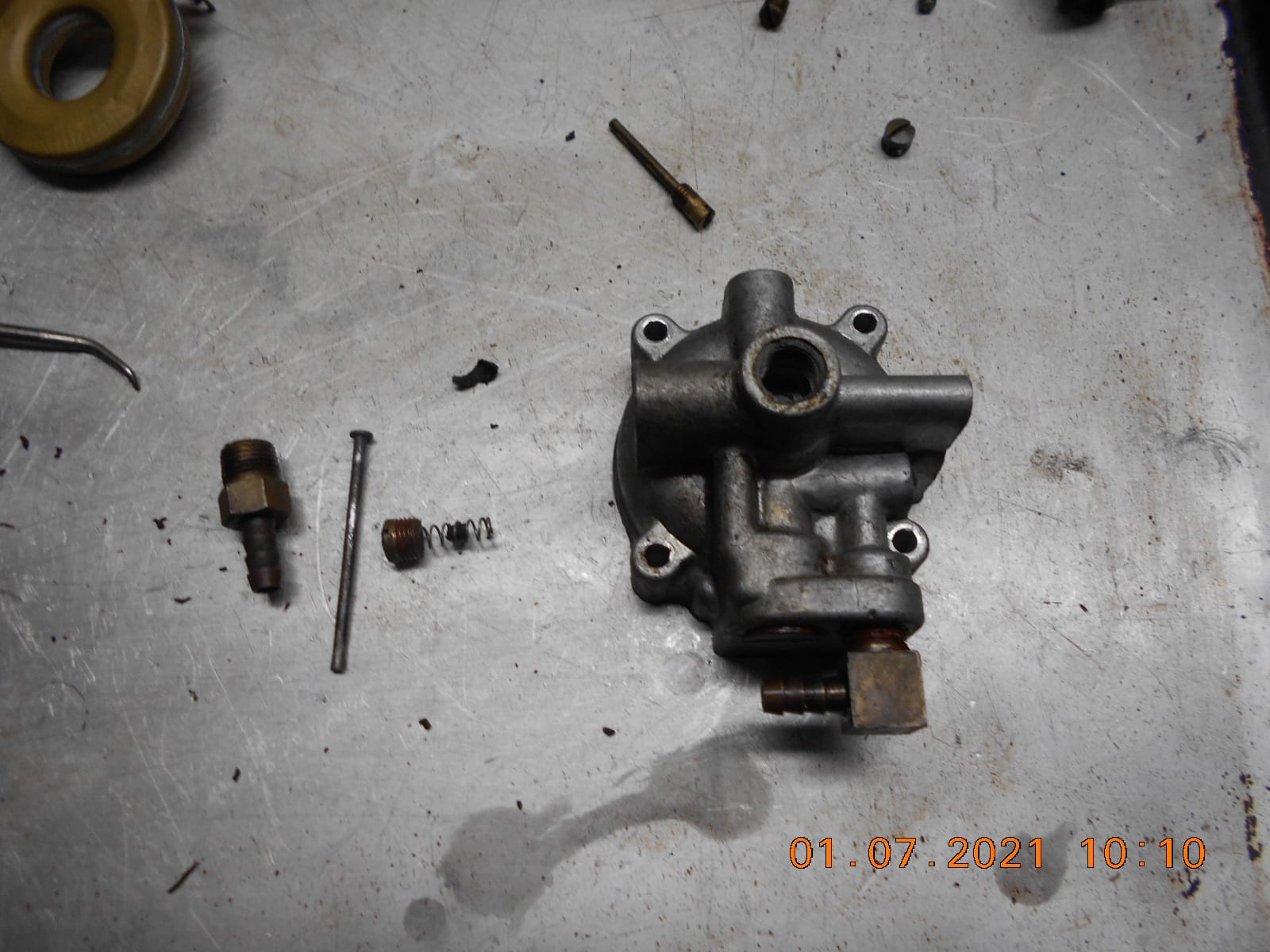

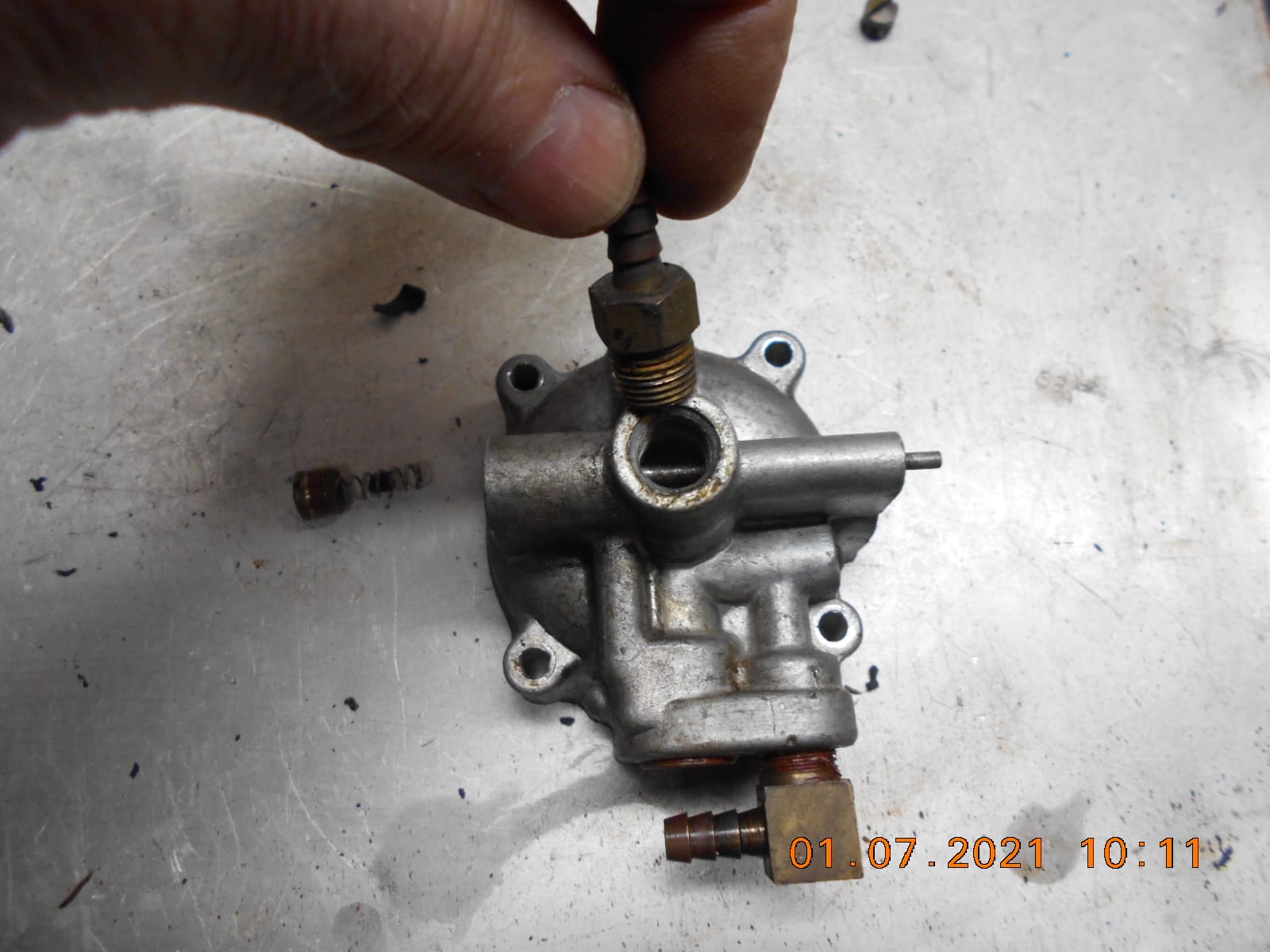

                Mumbles, your carb looks a lot cleaner than mine….. it’s soaking in cleaner now though!

                DSCN0145

                DSCN0147

                Prepare to be boarded!
