  • #210178
    Buccaneer
    Participant

      US Member

      Are you looking manual start or electric start flywheel????
      I have a manual start flywheel from a 1955 25 hp RD-17??
      Would that work?
      Free – you pay shipping
      Al
      630-624-8282

      Al, It’s a manual start engine, but I’d take either if it fit.
      I only have an RDE17 manual for a 25 hp, (electric start flywheel)
      that shows part #580177.
      Looking on M.E. in 1957 for the 35 hp Big Twin electric,
      they’re showing #580229. Not sure if they’re the same
      crankshaft taper, etc. between those years and models,
      but the 1957 electric start flywheel is showing a cogged hub
      for a generator, which the 1955 did not have, so it would be
      a different part number anyway.

      Perhaps someone “parts savvy” can let us know if your flywheel would
      fit my motor…… if so, I’m most interested in your generous offer.
      Thanks!

      Prepare to be boarded!

      #210184
      frankr
      Participant

        US MEMBER PAY BY CHECK

        You wade through it. Too complicated for me

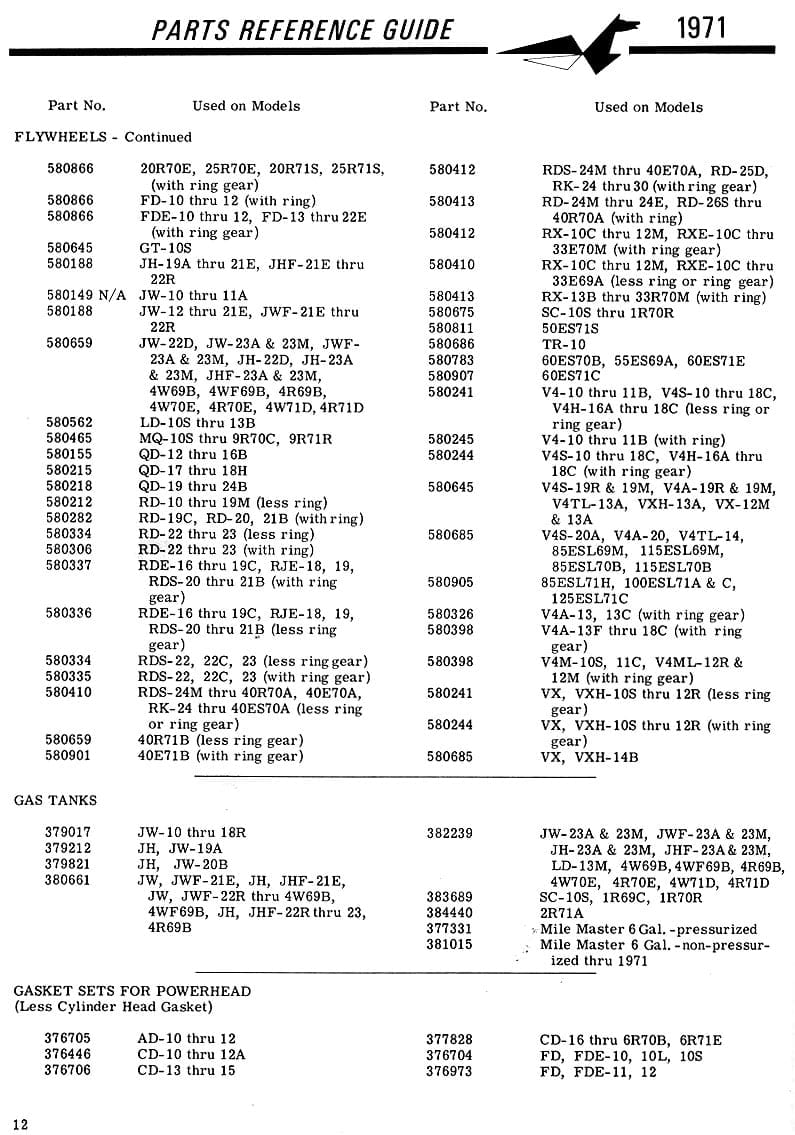

        12.-Flywheels-to-Gasket-Sets

        #210192
        Buccaneer
        Participant

          US Member

          Thanks Frank! I’ll give it a try, but if it’s too complicated for you,
          I already know I’m in trouble!

          Prepare to be boarded!

          #210193
          Buccaneer
          Participant

            US Member

            Al, I sent you a PM

            Prepare to be boarded!

            #210205
            outboardnut
            Participant

              US Member

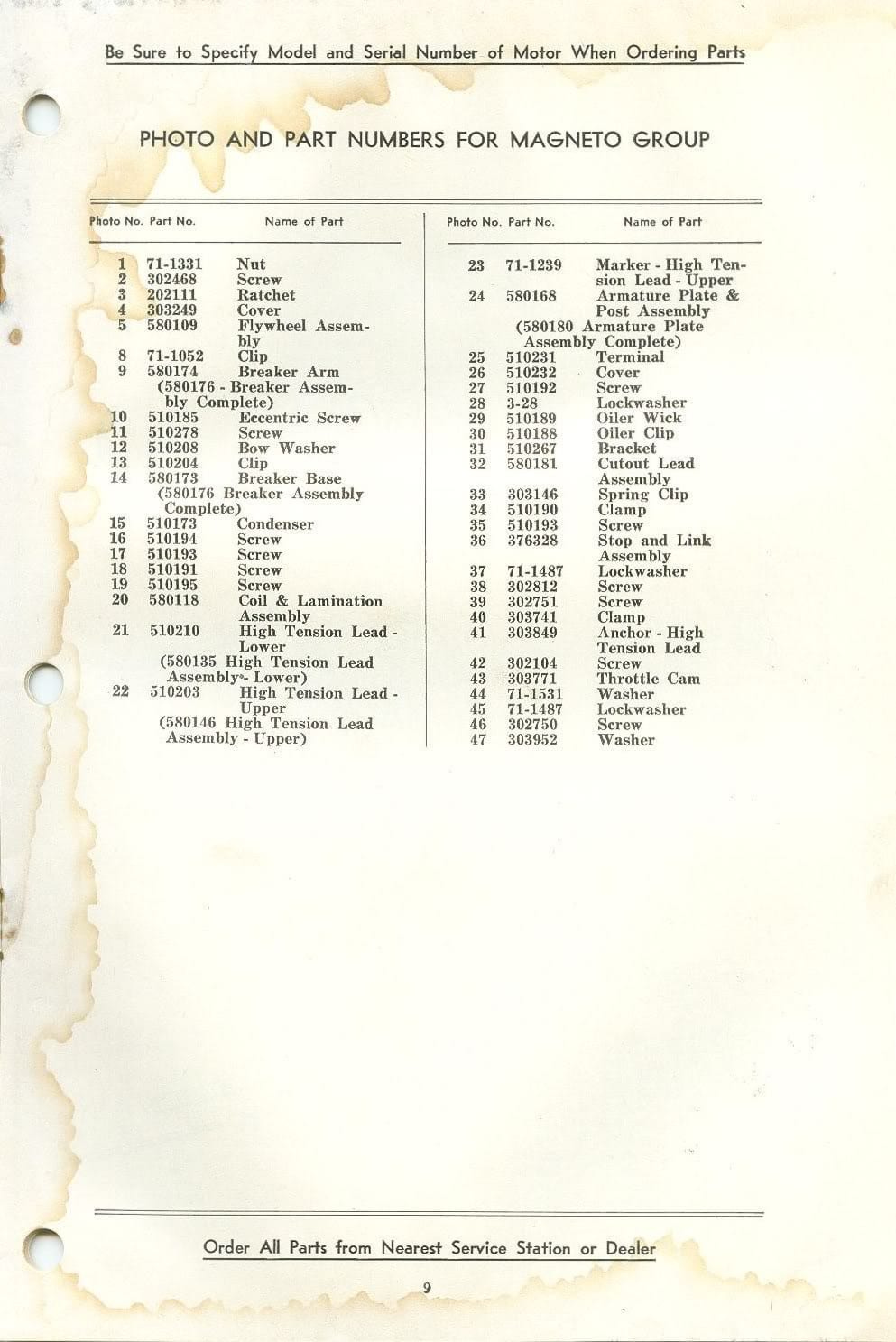

              The flywheel I have is from a RD-17S
              The parts list that I posted RD-17S
              It shows the flywheel is 580109

              1955_RD-17-mag-list

              #210210
              outboardnut
              Participant

                US Member

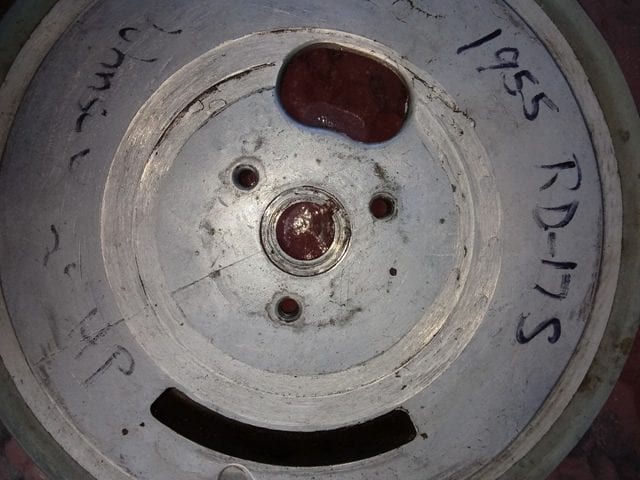

                20200728_194930

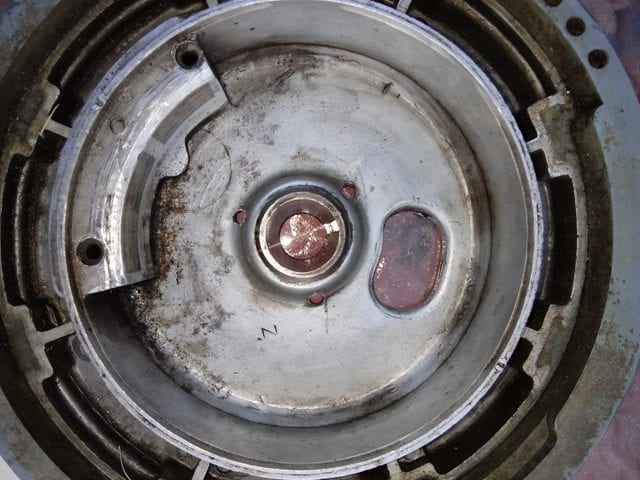

                bottom

                #210214
                outboardnut
                Participant

                  US Member

                  I don’t think my flywheel will work for you
                  Flywheel for manual start 1957 35 hp RD-19 is 580212
                  What makes no sense-
                  In Franks list it says-
                  RD-10 thru Rd-19M (less ring} is 580212
                  My RD-17S falls in that range but yet has part number 580109
                  http://www.marineengine.com/parts/johnson-evinrude-parts.php?year=1957&hp=35&model=RD-19&manufacturer=Johnson&section=Magneto+Group

                  • This reply was modified 4 years, 6 months ago by outboardnut.
                  #210217
                  Buccaneer
                  Participant

                    US Member

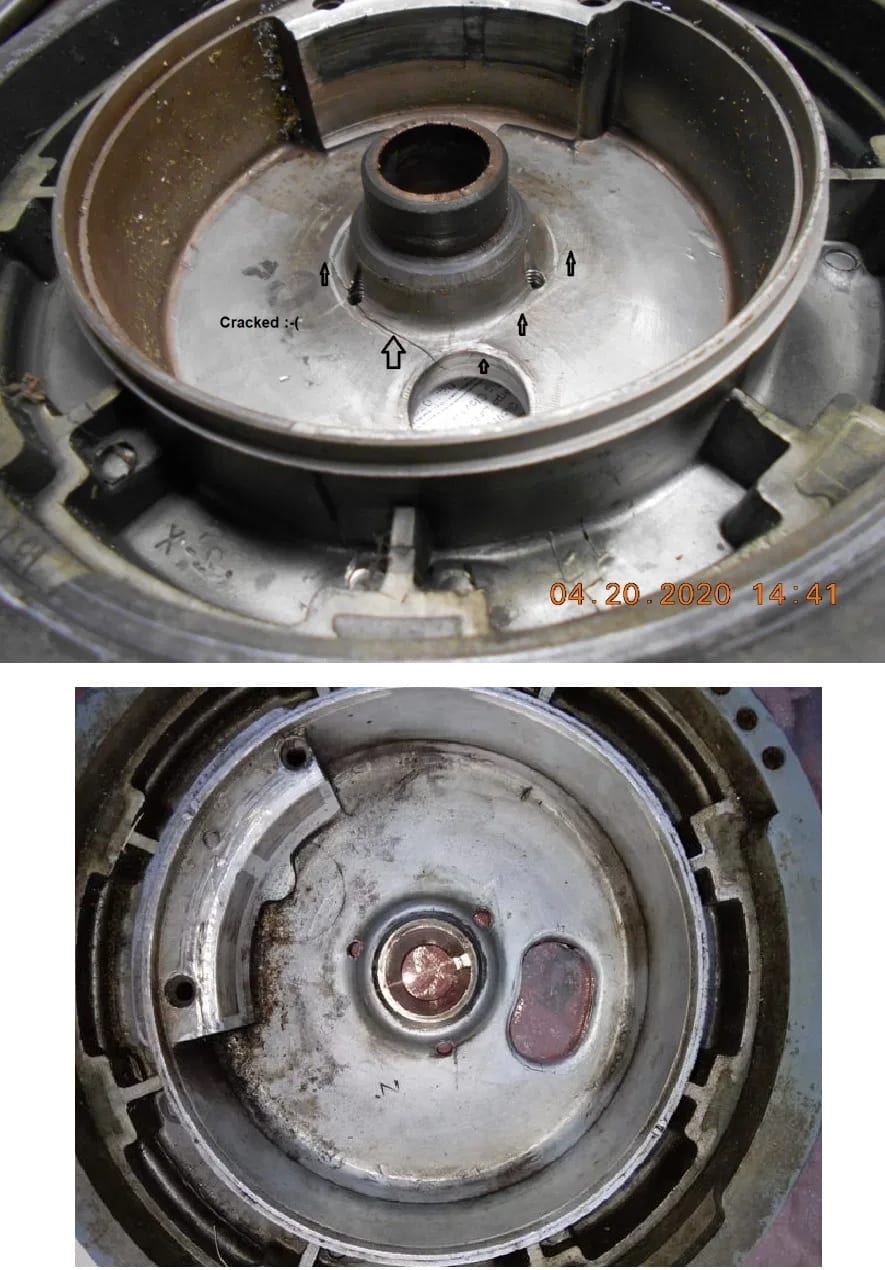

                    Al, I guess our flywheels are quite a bit different in the hub area.
                    Thanks for the offer and trying…… close but no cigar.

                    flywheel-comparrison

                    Prepare to be boarded!

                    • This reply was modified 4 years, 6 months ago by Buccaneer.
                    • This reply was modified 4 years, 6 months ago by Buccaneer.
