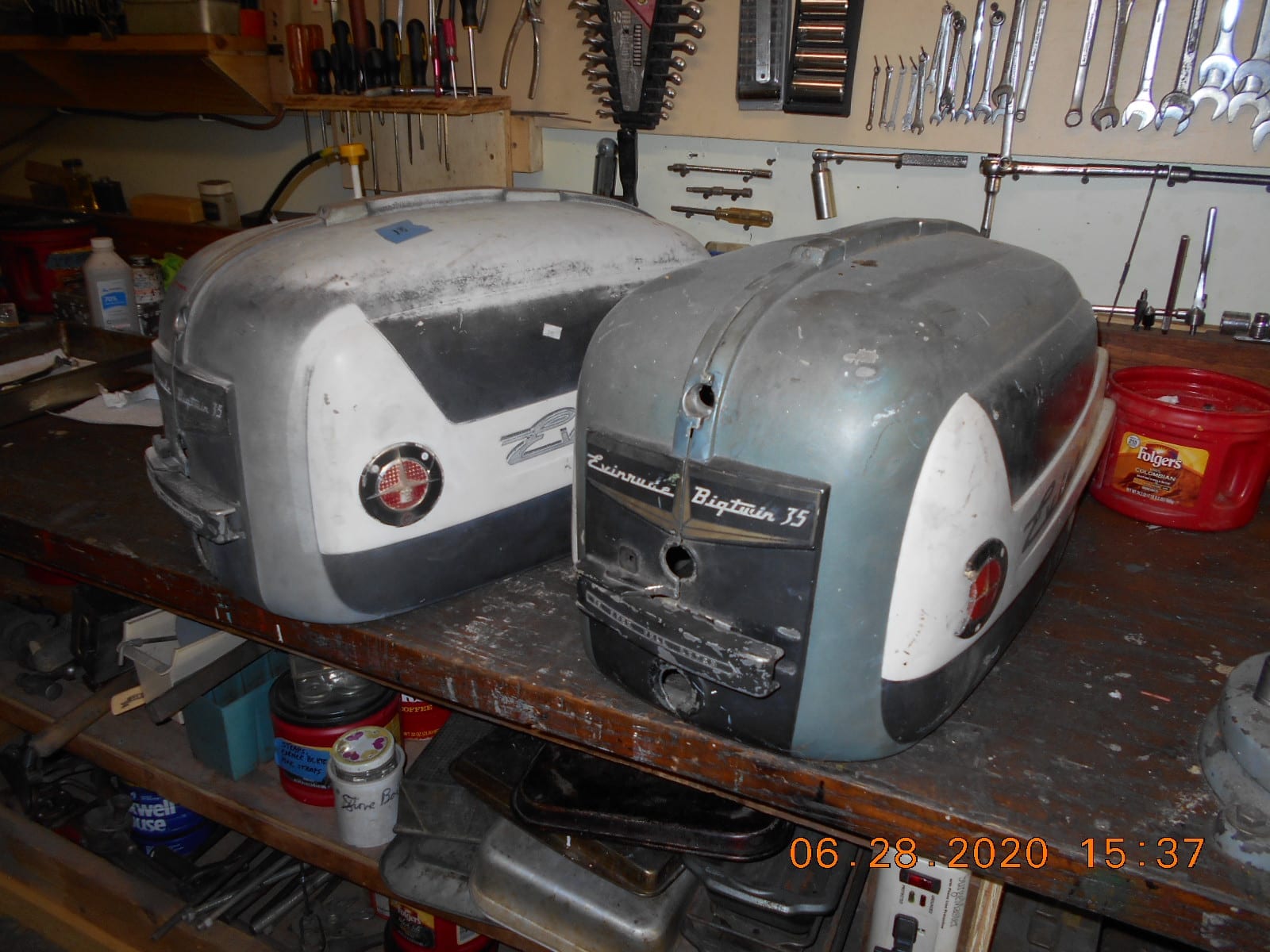

    The project is going back together, and if it actually runs and is deemed
    viable to put to water, then I’ll need to address the hood.
    The electric start parts motor was made whole via other motors, and
    I never had the electric start model’s hood.
    Is the only difference in the electric start and non-electric hoods for 57
    the decals?

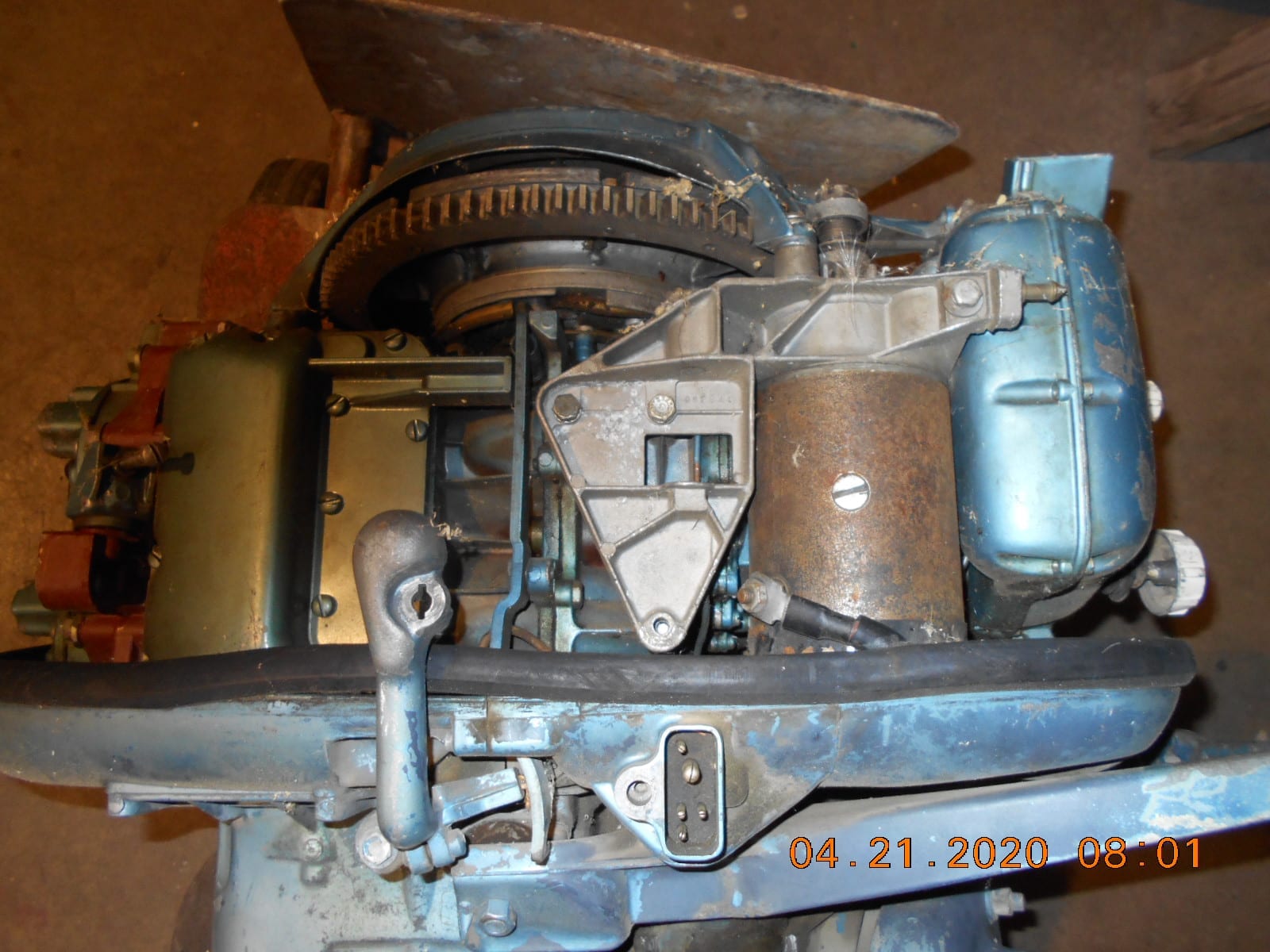

    The motor came with a non original 6 volt starter motor, and I’m assuming
    it’s mounted on the 6 volt starter bracket, as it has the brass, forward pointing
    hood mount of some kind, which I don’t see on the 1957 parts diagram.
    I adapted the starter bracket by drilling and tapping
    a hole for the rubber cushioned hood side mount.
    I test fit the non-electric hood prior to refurbishment of the motor,
    using the adapted side mount, and it seemed like it would work okay.

    Looks like I’ll need to come up with four different colors of paint for said hood.
    I’ve seen some pretty nice looking painted hoods on your projects.
    I’m curious on your procedures in doing so, being there’s four different
    colors to contend with.
    After priming, do you paint the whole hood the polychromatic blue, then
    tape off and add the different colors? Or ??????

    Thanks!

    DSCN9100

    DSCN9332

    DSCN9333

    Prepare to be boarded!

    Attachments:
    Avatar
    mas

    US Member - 2 Years
    Replies: 168
    Topics: 41
    #207029

    Hi,

    The forward pointing pins are for the Johnson hoods.

    outboardnut
    outboardnut

    US Member - 2 Years
    Replies: 673
    Topics: 458
    #207030

    I’m curious
    Why use a Johnson Starter bracket?
    I’m assuming it was from a 55 or 56
    Please correct if I am wrong but-
    How about using a rds bracket and make it 12 volts????

    lindy46
    lindy46

    US Member - 1 Year
    Replies: 333
    Topics: 23
    #207031

    Looks like those hoods are from manual start motors. The electric start had the evinrude script in the dark gray painted area and an “electric starting” script in the white painted area toward the rear. The front of the hood said “BigTwin Electric 35” instead of “Evinrude BigTwin 35”. I would paint the entire hood polychromatic blue, let it cure well, then paint the “bulged out” area on the sides with the white, then mask and add the gray to the appropriate areas.

    • This reply was modified 2 weeks ago by lindy46lindy46.
    • This reply was modified 2 weeks ago by lindy46lindy46.
    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207054

    Hi,

    The forward pointing pins are for the Johnson hoods.

    I learned something new today. Thanks!

    Prepare to be boarded!

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207056

    I’m curious
    Why use a Johnson Starter bracket?
    I’m assuming it was from a 55 or 56
    Please correct if I am wrong but-
    How about using a rds bracket and make it 12 volts????

    That’s the bracket and starter that came on motor, and starter motor appears
    to be in like new condition on the inside, so I thought I’d use it. I plan to use
    a 12 volt battery regardless.

    Prepare to be boarded!

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207057

    Looks like those hoods are from manual start motors. The electric start had the evinrude script in the dark gray painted area and an “electric starting” script in the white painted area toward the rear. The front of the hood said “BigTwin Electric 35” instead of “Evinrude BigTwin 35”. I would paint the entire hood polychromatic blue, let it cure well, then paint the “bulged out” area on the sides with the white, then mask and add the gray to the appropriate areas.

    • This reply was modified 2 weeks ago by lindy46lindy46.
    • This reply was modified 2 weeks ago by lindy46lindy46.

    Yes, both hoods from manual start motors.
    Your paint method sounds “sound” to me!
    If it runs, I will proceed with the hood. I need to
    get the paint and some “fine line” tape.
    Thanks!

    Prepare to be boarded!

    Avatar
    outbdnut2

    US Member - 2 Years
    Replies: 1254
    Topics: 65
    #207059

    A 12 volt battery should work good with a 6 volt starter. The starter current does not double like a resistive load would due to the complex inductance of the motor spinning. Just don’t crank forever if it’s not starting. It is very common practice on old 6 volt cars to use the same starter on 12 volts, and that is working out fine on my ’51 Buick that I converted to 12 volts. All you have to change is the starter solenoid and either change the choke actuator solenoid to a 12 volt one, or put a resistor in series with it of equal resistance to that of the 6 volt choke solenoid coil. Minimum power rating (watts) of the choke solenoid’s added resistor is critical. The power rating needed for the resistor must be greater than “6 volts squared divided by resistance”, or 36/R. I measured that resistance years ago, but don’t remember what it was.
    Dave

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207081

    A 12 volt battery should work good with a 6 volt starter. The starter current does not double like a resistive load would due to the complex inductance of the motor spinning. Just don’t crank forever if it’s not starting. It is very common practice on old 6 volt cars to use the same starter on 12 volts, and that is working out fine on my ’51 Buick that I converted to 12 volts. All you have to change is the starter solenoid and either change the choke actuator solenoid to a 12 volt one, or put a resistor in series with it of equal resistance to that of the 6 volt choke solenoid coil. Minimum power rating (watts) of the choke solenoid’s added resistor is critical. The power rating needed for the resistor must be greater than “6 volts squared divided by resistance”, or 36/R. I measured that resistance years ago, but don’t remember what it was.
    Dave

    Dave, I just made up a junction box for my boat and 1955 RDE-17 that has a 6v starter,
    using a 12 volt battery to crank it over, and a 1.6 ohm resistor for the choke coil.
    The choke coil sounds like it’s activating okay, but have not taken the hood off
    yet to observe.

    Prepare to be boarded!

    Steve D
    Steve D


    Replies: 550
    Topics: 67
    #207090

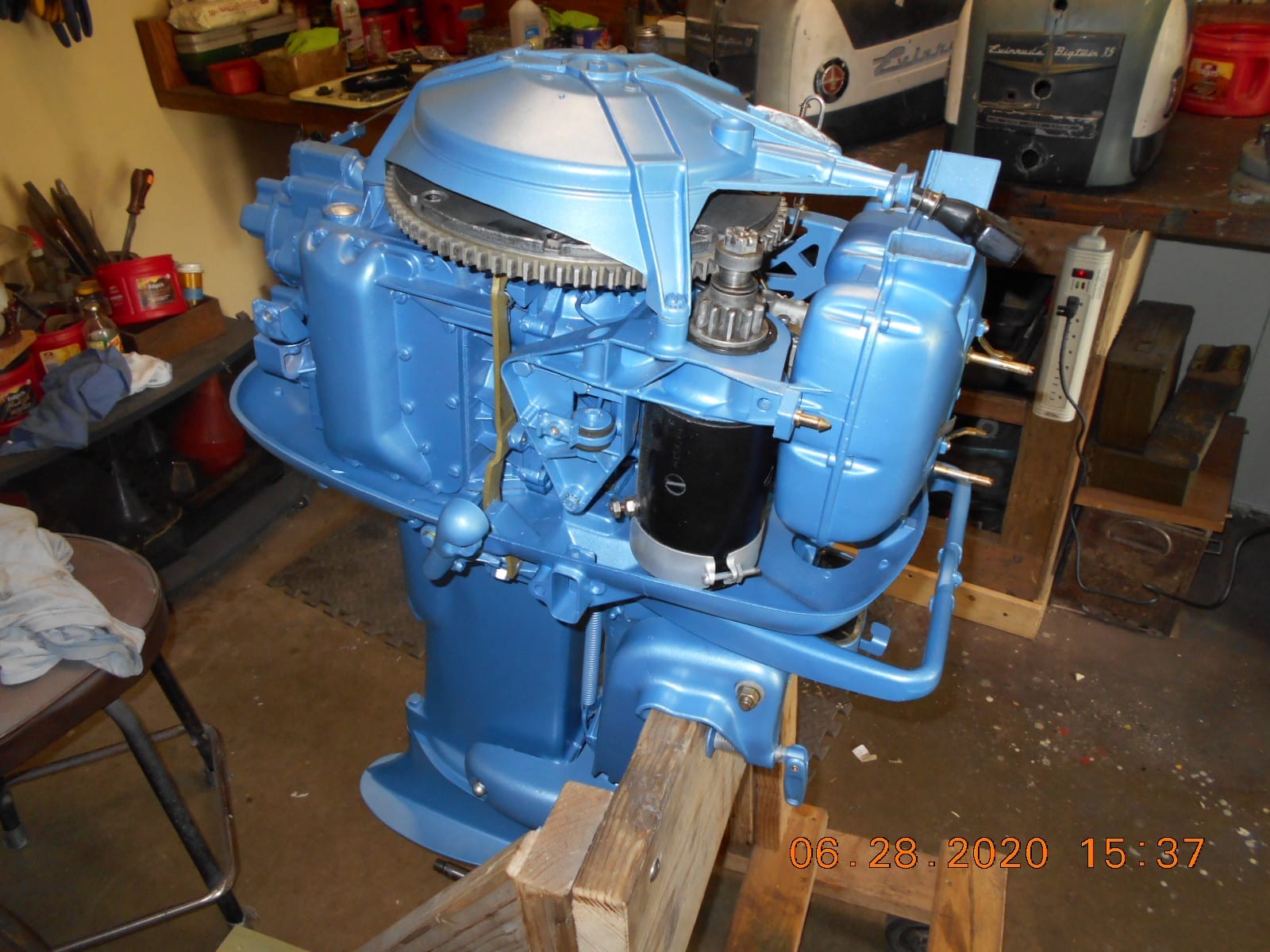

    Love the way that blue came out Buc! You did a great job!

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207096

    Love the way that blue came out Buc! You did a great job!

    Thanks, looks okay, but if I did it again, I think I would just “buck up” for the Reprotint, etc.,
    instead of using the DupliColor……….. took almost seven 8 oz spay cans just for the Blue!

    If I redo a hood and go to the trouble to buy decals, I’ll go with the good paint for that,
    then probably grumble that it looks a lot different than the Duplicolor!

    Prepare to be boarded!

    • This reply was modified 1 week, 6 days ago by BuccaneerBuccaneer.
    Steve D
    Steve D


    Replies: 550
    Topics: 67
    #207100

    What number/color Duplicolor is it?

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3938
    Topics: 971
    #207119

    What number/color Duplicolor is it?

    Dupli-Color EBGM05397 Light Blue Metallic General Motors
    It’s a lacquer paint. I put clear coat over it, but I’m guessing it’s not
    as gasoline resistant as their engine enamel.

    Prepare to be boarded!

    • This reply was modified 1 week, 6 days ago by BuccaneerBuccaneer.
    Steve D
    Steve D


    Replies: 550
    Topics: 67
    #207154

    ok thanks Buc.

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 3168
    Topics: 48
    #207241

    Looks like that bracket will fit both the Evinrude and Johnson electric models…I see the forward pin for the johnson rubber cover mount, and I see the threaded hole on the side for the Evinrude models.
    The 1957 Bigtwin electrics actually had a chrome trim piece (cursive “Evinrude”) that mounted on the upper black area.
    Nice paint job, wish I could paint like that….
