1957 FDE11 carb question

Home › Forum › Ask A Member › 1957 FDE11 carb question

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • September 1, 2024 at 10:50 pm #290362
    JohnRude
    Participant

      Canada Member

      Working on a 1957 FDE-11. The parts manual shows a bushing, part number 303947. This bushing goes into the low speed opening in the carb. In this motor the bushing simply spins when I try to tighten the needle valve. It threads itself onto the needle valve pushing the washers out. Isn’t this thing supposed to be fixed in there? I applied some 847 to it and waited a couple of hours. Didn’t work. (Epoxy?) Is there a solution or do I look for another carb? Thanks in advance.

      1 user thanked author for this post.
      frankr
      September 2, 2024 at 2:12 am #290365
      frankr
      Participant

        US Member

        Assemble it correctly and it will work. Pre-assemble everything on the needle, Bushing, packings, nut, etc.  Start the bushing onto the needle just a few threads.

        Now push the whole thing into the carb and tighten the packing nut just enough to prevent the bushing from spinning. Now you can proceed to lightly seat the needle and back it out for the preset.

        Once final adjustment is made and everybody is happy, tighten the packing nut enough to provide enough friction to hold it in place.

        September 2, 2024 at 7:39 am #290366
        JohnRude
        Participant

          Canada Member

          Thanks for the secret solution. I’ll give it a try this morning. I tore down another carb from an FD 12 just in case but that bushing seems fixed (stuck?) inside. I won’t mess with it.

          September 2, 2024 at 10:42 am #290372
          seakaye12
          Participant

            US Member

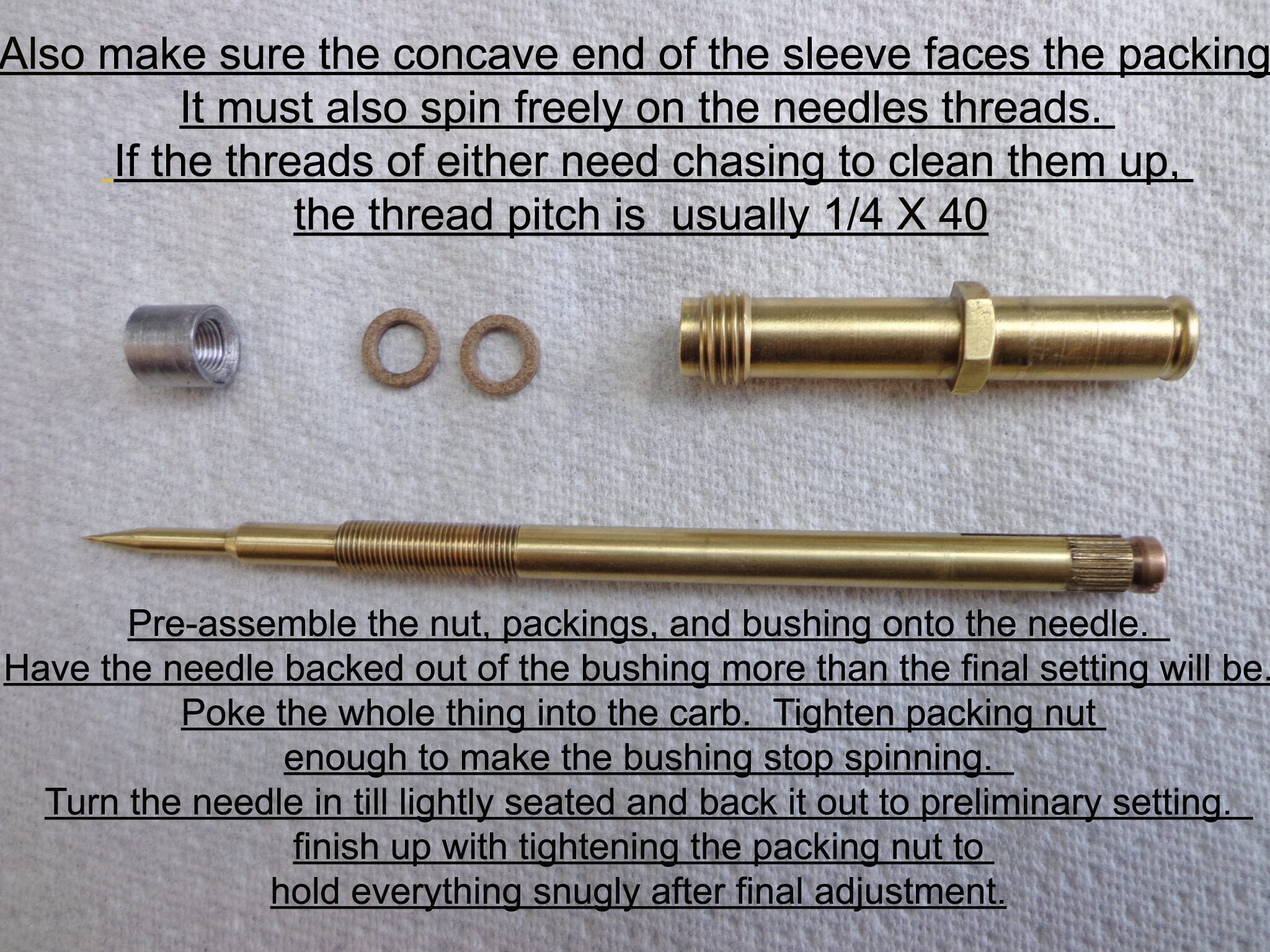

            Frank; I think I shamelessly copied your explanation a couple of years ago.  Here’s a pic

            Slow-Speed-Needle-Parts-Assembly

            September 2, 2024 at 12:01 pm #290376
            frankr
            Participant

              US Member

              Wow, nice post.  Heh, heh.  I’d forgotten I ever made it.

              If you or anyone else have any of my old stuff feel free to share it. At my age and health it is in danger of being lost forever.

              Please, for hobby use only. Not for commercial use.

              Frank.

              1 user thanked author for this post.
              The Boat House
              September 2, 2024 at 10:39 pm #290395
              JohnRude
              Participant

                Canada Member

                WoW is right. Thanks Frank. And thanks to AOMCI. This information is not in the Red Book and I couldn’t find anyone who understood the problem. It took me a couple of tries but I remembered to be gentle with the turns. It worked. The motor started and idles down. Another 18 lives.

                September 5, 2024 at 10:16 am #290496
                fleetwin
                Participant

                  US Member - 2 Years

                  Cool!  I wish I understood the engineering rationale behind this strange design.  Cost savings?  Easier to produce?

                  September 5, 2024 at 3:23 pm #290514
                  frankr
                  Participant

                    US Member
                    fleetwin wrote:

                    Cool!  I wish I understood the engineering rationale behind this strange design.  Cost savings?  Easier to produce?

                    I once had that figured out but right now the reason escapes me.
