      Good Morning

      Working on a 1957 javelin and had to replace the ignition switch as it came with no key.  When I was starting to run through things I realized that the orgiginal push button choke was removed and had been hooked up directly with the key switch. I think this feed power continously to the choke solinoid which appears to be burnt out.

      So a couple of questions, any way that the solinoid can be repaired? and if not is there something to replace it with or is it not possible?  in that case I guess i have to track down a used unit that works, assuming that the solinoid was likely used on various motors in the late 50’s and perhaps into the early 60’s?



      Thanks for any advise or guideance



      Billy T

      #262266
      frankr
      Participant

        US MEMBER PAY BY CHECK

        If it is burnt out as you suppose, then it is toast.  But take heart, those things were used for lots of years, and I would think there should be lots of them around.  Just be aware that pre-1956 are 6 Volt.

        #262268
        billy-t
        Participant

          Thanks Frank for the info and the tip pre 1956 on the voltage.  Have a great day.

          #262269
          outboardnut
          Participant

            US Member

            Out of curiosity- Does anyone know till what year that type of solenoid was used?

            #262274
            johnny
            Participant

              US Member

              Actually, 1956 and earlier were 6 volt solenoids. I know they used that 12 volt choke # 376806 from 1957 through 1959 but I’m not sure if it was used after 1959.

              #262281
              frankr
              Participant

                US MEMBER PAY BY CHECK

                Aw heck, they were used on12V, 28hp 33hp, 35hp, up through  some 40hp ups into the 1970’s at least.  Also 18-20-25hps same time period.  Also Gale-built motors.  Lets just say if mounts similarly and doesn’t have an automatic choke that would be it.  I guess it was used on some V-4’s too.

                #262282
                frankr
                Participant

                  US MEMBER PAY BY CHECK

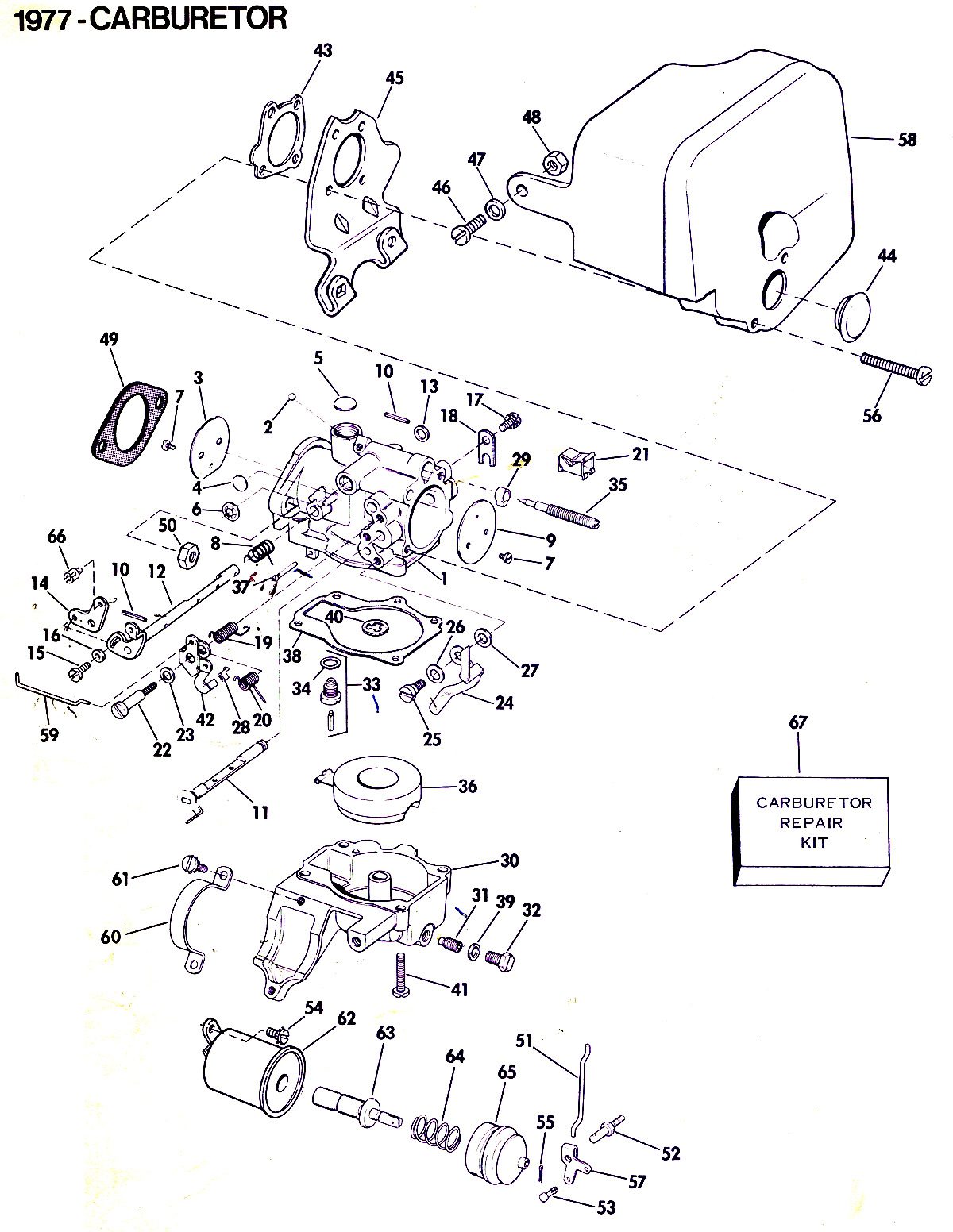

                  Look familiar?



                  8.-Carburetor

                  #262288
                  outboardnut
                  Participant

                    US Member

                    Good to know when looking for one.Thank You Frank
