Topic: 1957 Johnson 35hp Carb Linkage – Antique Outboard Motor Club,Inc

This topic has 9 replies, 7 voices, and was last updated 6 years, 3 months ago by outboardboy3.

Viewing 10 posts - 1 through 10 (of 10 total)

Author

Posts
October 22, 2018 at 10:46 pm #11648
outboardboy3
Participant

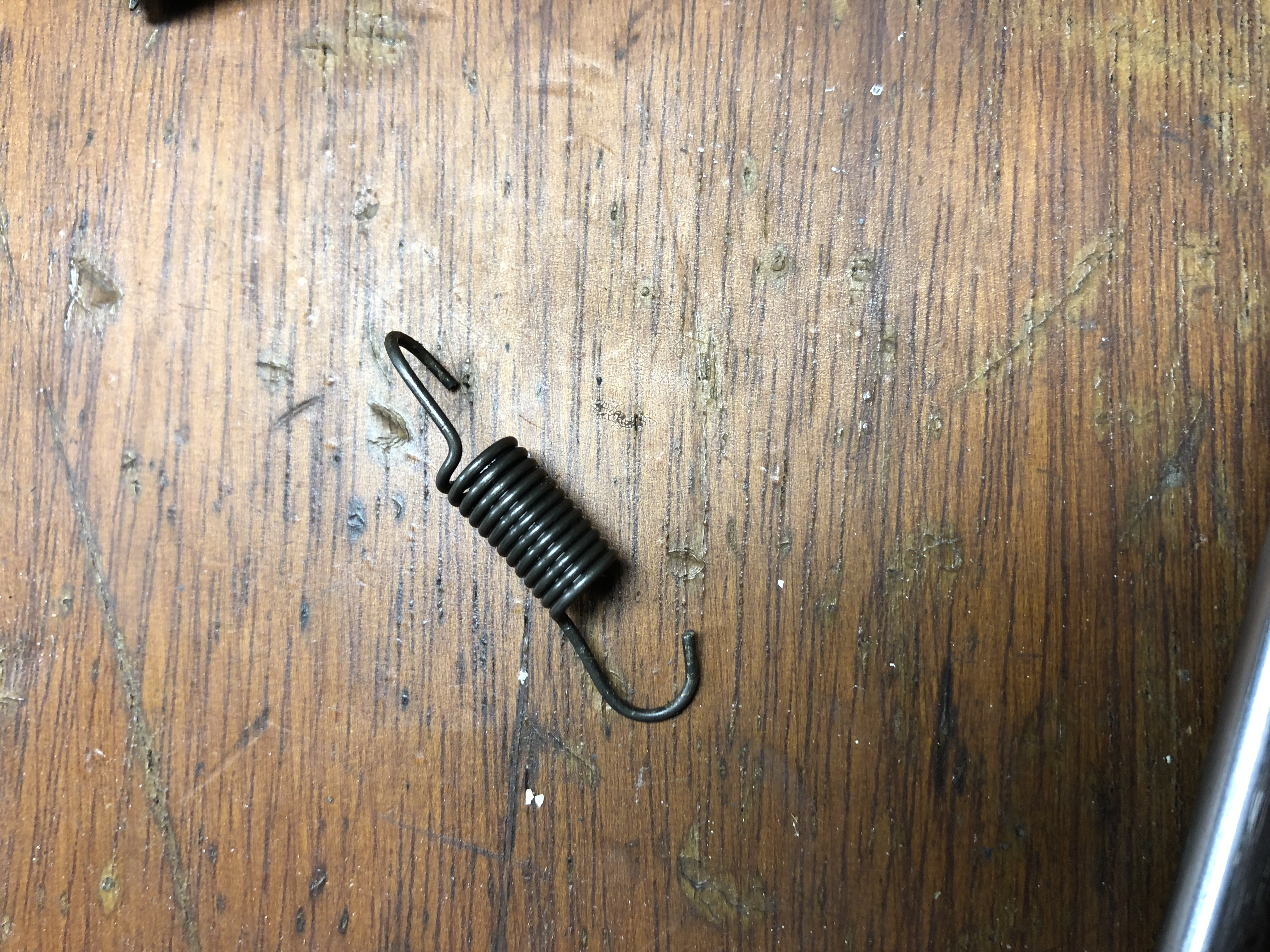

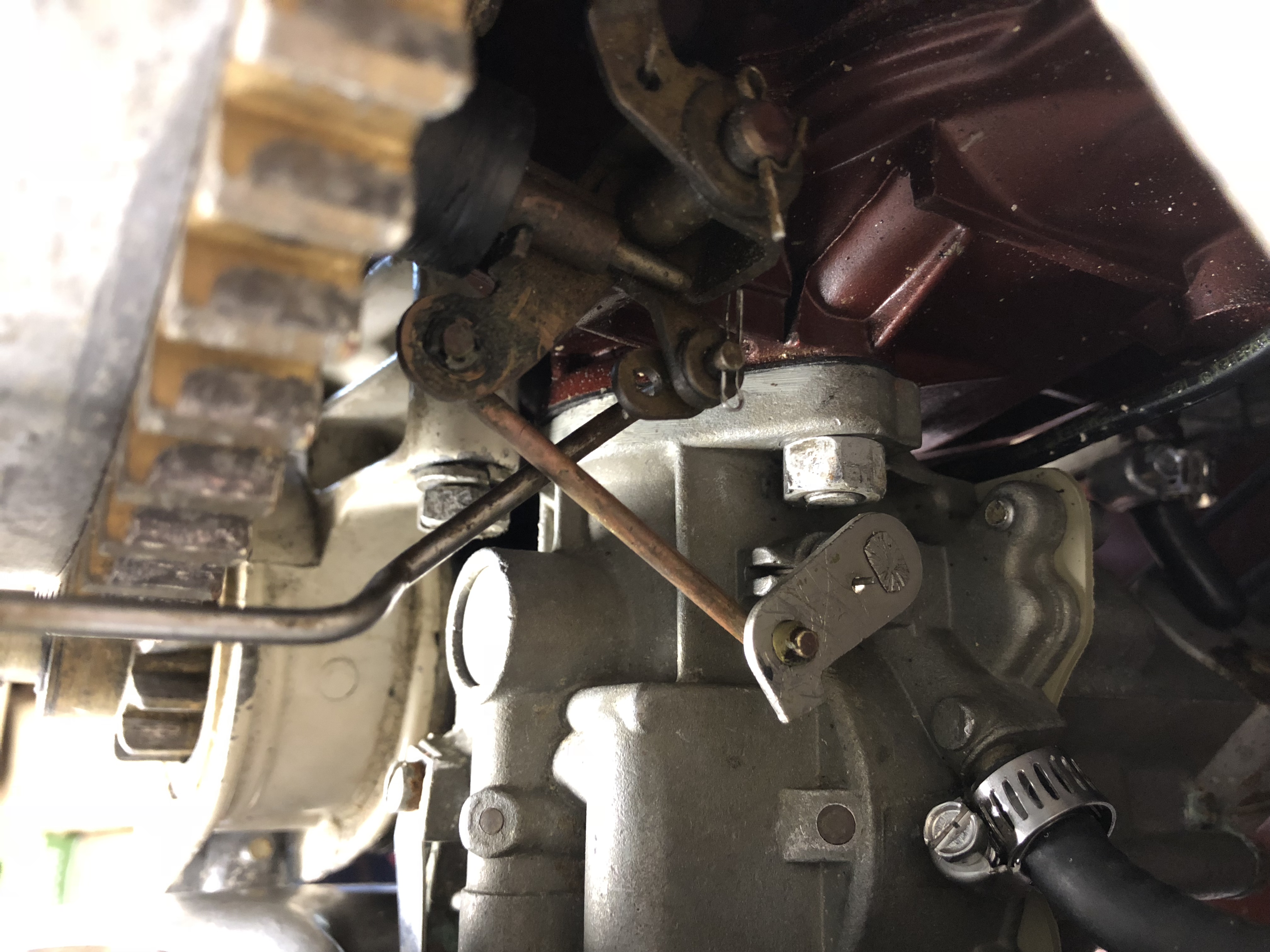

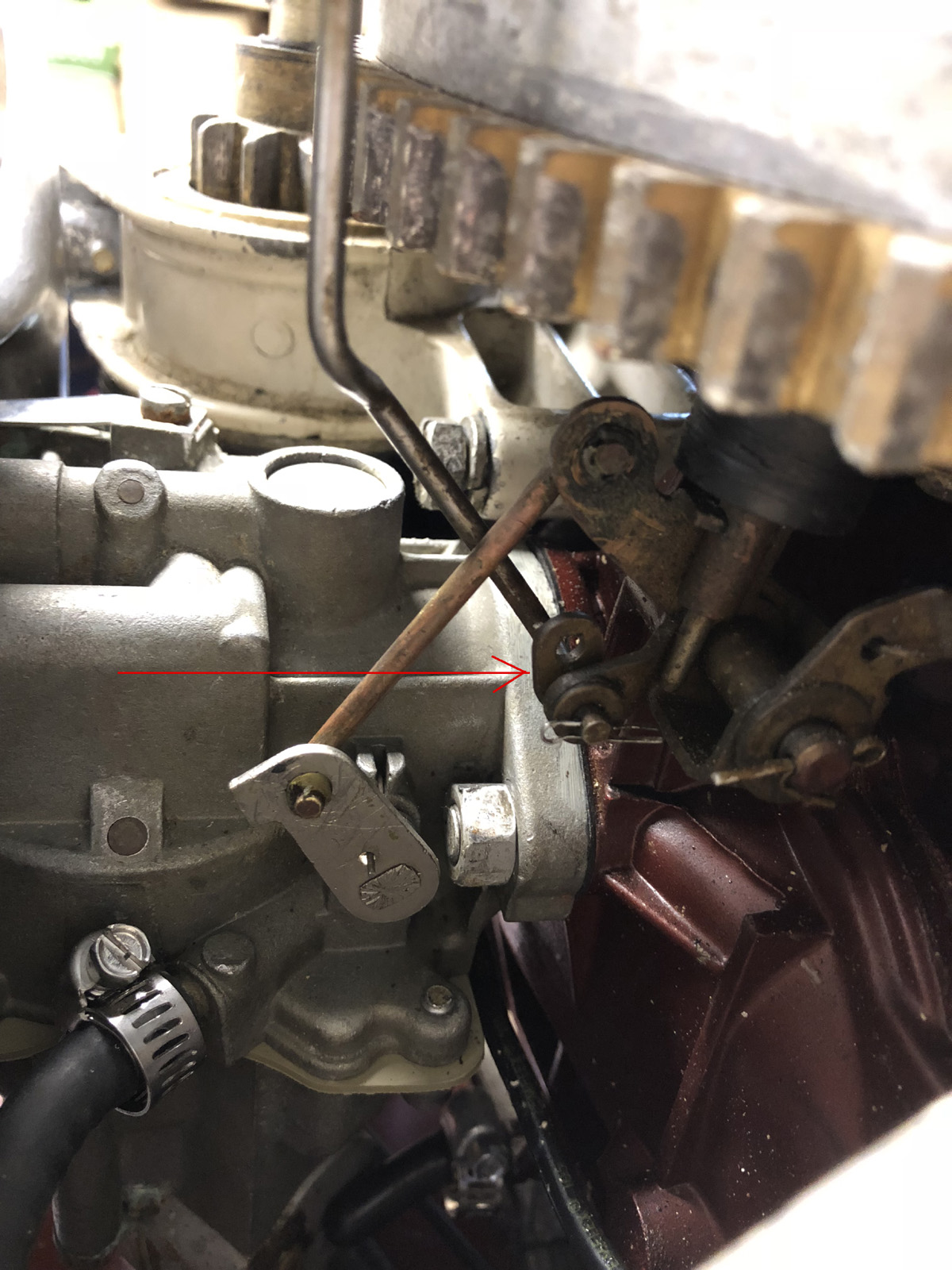

I recently rebuilt the carb on this outboard, and put everything back together, but I don’t exactly remember where this spring hooked on to, is it suppose to hook on to the small bracket on the cam follower, if so then where does the other side of the spring hook on to?

Attachments:
October 22, 2018 at 11:49 pm #84833
Buccaneer
Participant
US Member

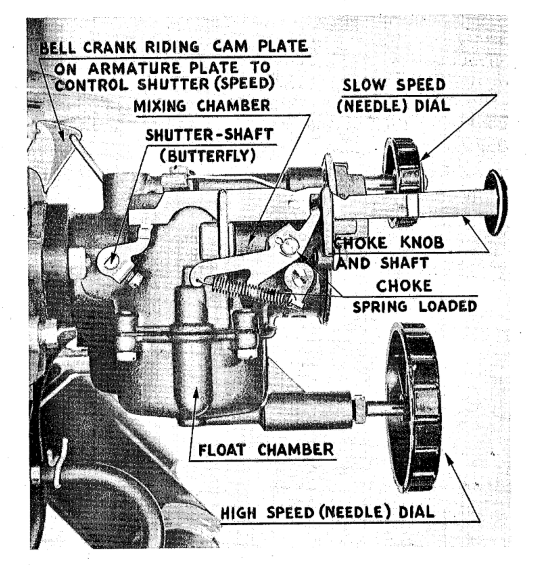

This cam follower spring is on a 1955 RDE-15 25 hp.
Not sure it would be the same as yours.

Attachments:

Prepare to be boarded!
October 23, 2018 at 12:48 am #84834
dan-in-tn
Participant
US Member
I believe that spring goes on the stainless rod you show in your second picture. It’s the rod going straight up towards the rewind starter housing. You will see a little tab around that link with a hole in it. The spring hooks there & the other end hooks in a hole on the rewind housing. Wish I had a picture. Just did my Lark a few months back.

Dan in TN
October 23, 2018 at 2:42 am #84843
crosbyman
Participant
Canada Member - 2 Years

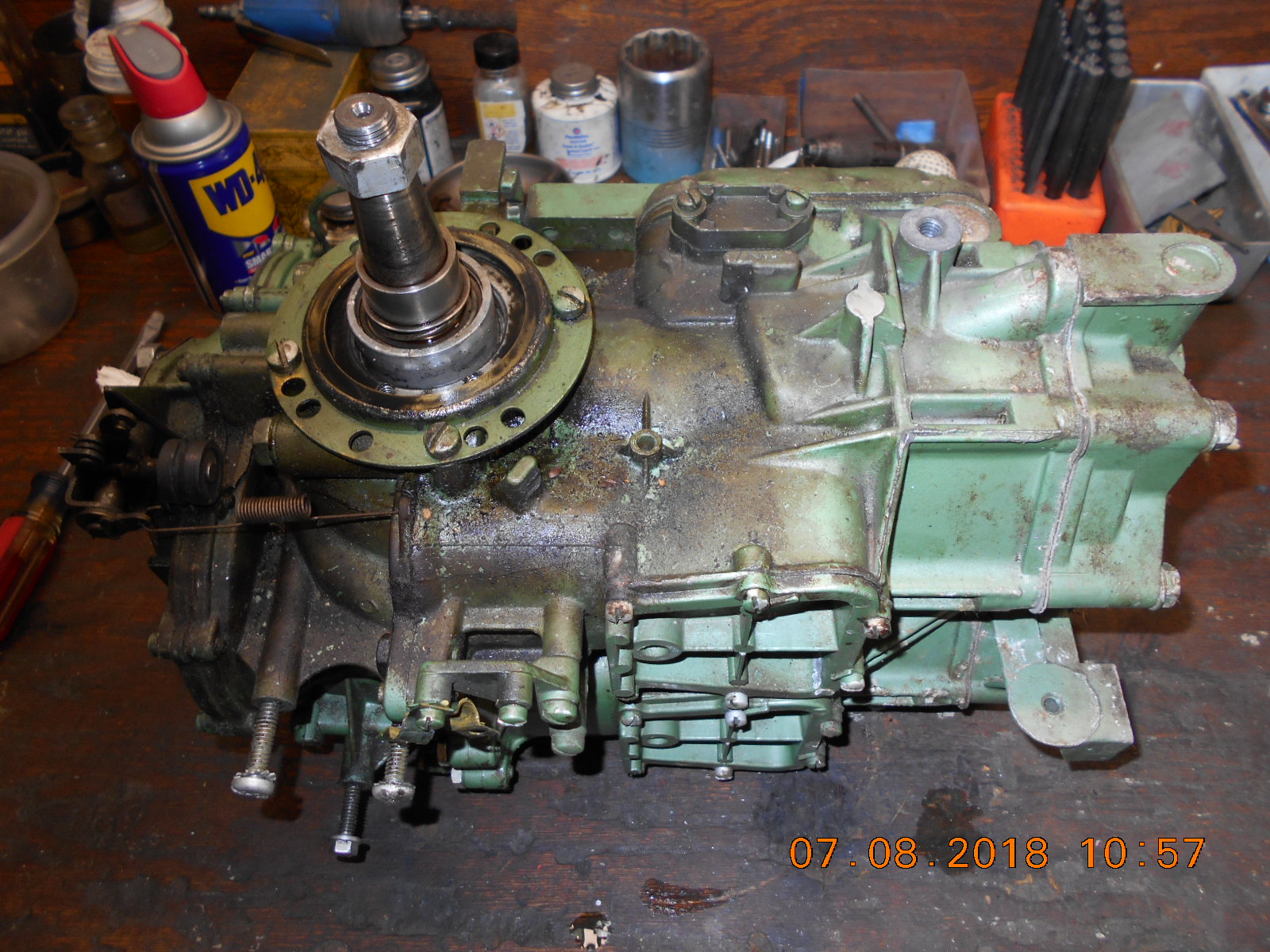

this could be it ??

Attachments:

Joining AOMCI has priviledges 🙂
October 23, 2018 at 2:43 am #84844
Buccaneer
Participant
US Member

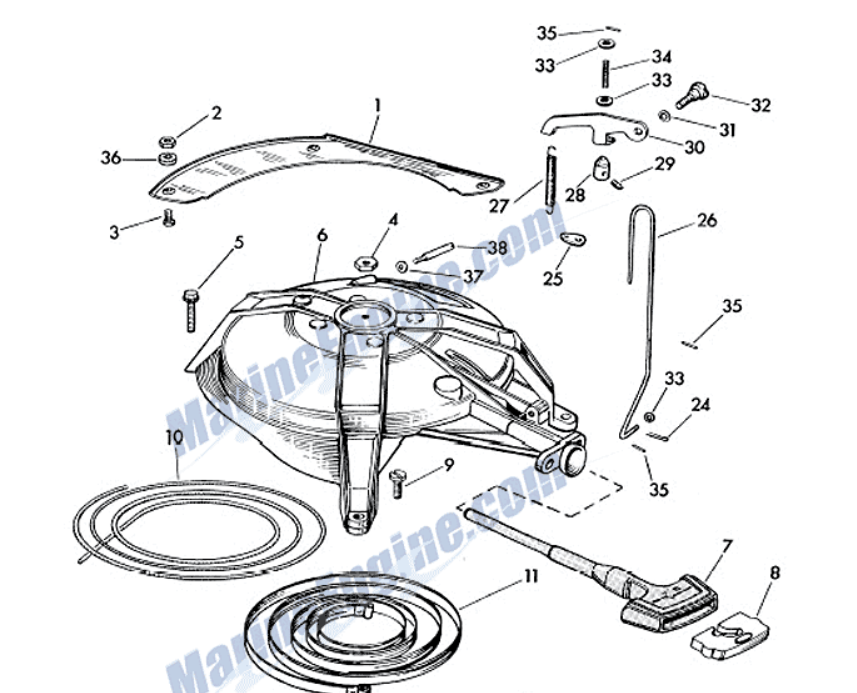

This Spring?

Attachments:

Prepare to be boarded!
October 23, 2018 at 5:14 am #84849
garry-in-michigan
Participant
Lifetime Member
Number 27 – going to the starter lock out . . . 😎
October 23, 2018 at 1:16 pm #84851
retro-outboard-guy
Participant

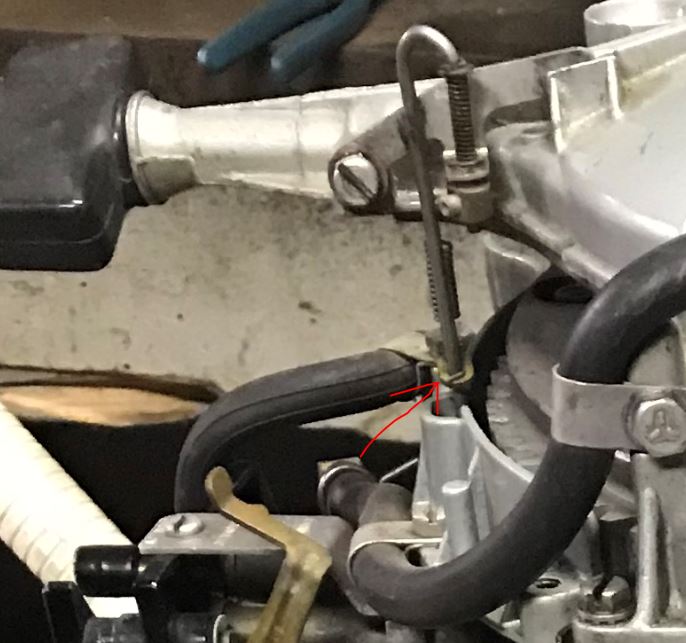

Not the best picture but this show’s the flat plate( item 25 in the diagram posted above)with the hole in it for the spring that slides on the vertical linkage rod. Hard to tell in the picture you posted but it looks like the plate is installed incorrectly at the base of the linkage rod.
October 23, 2018 at 2:52 pm #84860
frankr
Participant
US MEMBER PAY BY CHECK
OutboardBoy, the tab has merely slid down on the rod (as they do). Simply slide it back up and hook the spring between it and the recoil housing.
October 23, 2018 at 2:54 pm #84861
frankr
Participant
US MEMBER PAY BY CHECK
BTW, it looks like your electric starter mounting bolt is loose. You might want to tighten it up.
October 26, 2018 at 1:01 am #84981
outboardboy3
Participant
Ok, great, thanks to all!
