1957 Johnson 7.5

Home › Forum › Ask A Member › 1957 Johnson 7.5

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • July 27, 2024 at 5:39 pm #289466
    steveh
    Participant

      US Member

      Quick question guys,

      Just arrived at the cottage and the tilt-lock release mechanism disconnected itself.  Anyone have a photo of how that is supposed to be assembled?

      Thanks,

      Steve.

      July 27, 2024 at 9:07 pm #289477
      bobw
      Participant

        US Member

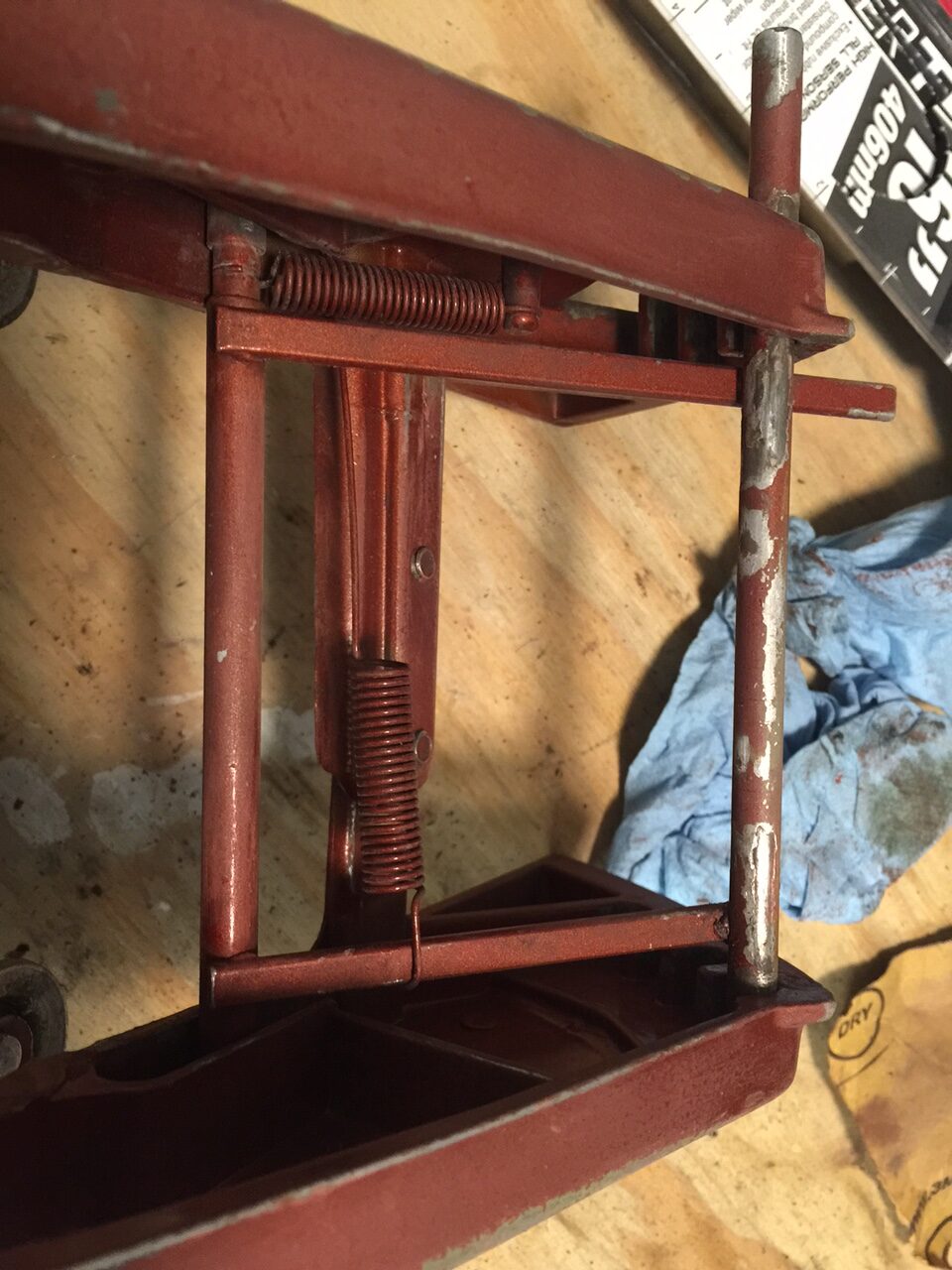

        Here’s one off my ’58 10hp.  I think yours will be similar.

        Tilt-Linkage-3

        Bob

        1937 Champion D2C Deluxe Lite Twin
        1954 Johnson CD-11
        1957 Evinrude Fastwin 18
        1958 Johnson QD-19
        1958 Johnson FD-12
        1959 Johnson QD-20

        “Every 20 minute job is only a broken bolt away from a 3-day project.”
        "Every time you remove a broken or seized bolt an angel gets his wings."

        July 28, 2024 at 1:05 am #289481
        steveh
        Participant

          US Member

          Thanks Bob for the pic.  I think what you are showing me is the tilt mechanism for setting the running angle?  If that makes sense.  The one I am looking for is the one for the lever on the front of the motor that allows you to tilt the motor up when done for the night.

          Thanks,

          Steve.

          July 28, 2024 at 5:32 pm #289504
          fleetwin
          Participant

            US Member - 2 Years

            I hear ya.  I don’t have any pictures but perhaps if you posted a few pictures of what you have got, we can see what needs to be connected and where…

            July 29, 2024 at 7:49 am #289515
            steveh
            Participant

              US Member

              Thanks guys, I did figure it out.  The parts diagram I had showed all the parts, just not how it all went together.

              The other issue I am having is that it wont throttle up under load.  Might just be weeds around the prop, or carburetor adjustments, but is there something common I should be looking at also?

              Other than that, the  motor runs like a dream.  Throttles down to where I can count the rpm.  Eventually will lean sneeze, so I might have a small leak in the pressure tank, but not enough to cause issues.  I have less than an hour running the thing, so still figuring it out.

              Steve.

              July 29, 2024 at 10:02 am #289520
              bobw
              Participant

                US Member
                steveh wrote:

                Thanks Bob for the pic.  I think what you are showing me is the tilt mechanism for setting the running angle?  If that makes sense.  The one I am looking for is the one for the lever on the front of the motor that allows you to tilt the motor up when done for the night.

                Thanks,

                Steve.

                Steve – sorry. guess I didn’t read your original post closely enough, but glad you were able to get it fixed.

                Bob

                1937 Champion D2C Deluxe Lite Twin
                1954 Johnson CD-11
                1957 Evinrude Fastwin 18
                1958 Johnson QD-19
                1958 Johnson FD-12
                1959 Johnson QD-20

                “Every 20 minute job is only a broken bolt away from a 3-day project.”
                "Every time you remove a broken or seized bolt an angel gets his wings."
