Home Forum Ask A Member 1957 RD 19 Johnson 35 HP conversion to fuel pump

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • #287563
    William Fitzgerald
    Participant

      US Member

      Looking for a step by step instruction on how to convert from a dual line tank to a fuel pump single line fuel system on a Johnson 35hp RD19.

      Any info will be greatly approeciated.

      #287578
      crosbyman
      Participant

        Canada Member - 2 Years

        basically the process involves getting  a source of crankcase pulse   to  run the new fuel pump.

        changing the side  fuel connector  (find out beforestarting your project)

        hooking up the new side connector to the pump inlet   and the  pump outlet sent to the   fuel inlet   where the old hose  was.

        you can use  the  old  pulse nipple feeding air to the old gas tank but you must modify the   flapper  valve  behind the   carb base  plate.

        gets tricky but not hard to do. never done it on a  RD  but most likely doable….

        look at this video on a smaller engine   same  principle.

        https://www.youtube.com/watch?v=FtG4M7ye1N8



        one simple method is to plug the pressure nipple shut  carefully remove and    drill   a .25  hole  in a bypass cover  center  and tap it for a nipple (Apply red locktite to threads)    this will provide pulsing for the pump via  a  new “pulse hose”  to reach the pump’s  pulse nipple.

        hook it up to the  fuel pump pulse nipple  and hook up the in-out fuel lines desc. above.   see  example  picture  of  a tapped  bypass cover

        Another   method on a smaller 10 hp FD  is to drill  the bypass cover and fit a drilled  /16th aluminum plate (with a hole behind the pump)  plate & mount  pump & gasket  over it…if it fits under the cowl

        pictures are just a guide  you will need to  adapt the pump but it is all the  same process

        • get a  crankcase pulse to drive the pump
        • hook-up the pump
        • change the side connector to single line.



        suggest you download the bible  for your RD maintenance and  clear pictures.. book covers oldies from TN JW cd ad fd rd   maintenance

        https://watercraftmanuals.com/outboard/johnson/manuals/johnson-302231.htm





        Joining AOMCI has priviledges 🙂

        #287642
        frankr
        Participant

          US Member

          Your 1957 RD-19 is one of the easiest ones there are to convert.  It came from the factory ready to convert with a fuel pump conversion kit. Here is a picture showing the original kit installed.

          Fuel-pump-kit-for-iboats

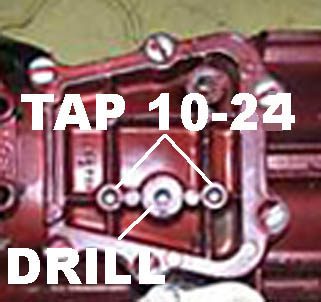

          For clarity, I’ll be using some newer models to illustrate how it’s done.   Your 1957 will already have the proper bypass cover to mount the pump on.  Just drill the center hole on thru and tap #10-24 threads in the other two holes.



          Fuel-Pump-Mount-1957-35hp



          Pump shown is one of the best ever made but is obsolete or hard to find or expensive.  Fortunately, there are many replacements/substitutes out there.  Of course you will have to reroute the hoses through the jungle of parts on your 35



          Fuel-Pump-on-40hp2



          .

          Finally, remove the air hose from intake manifold and block or plug the fitting.

          #287646
          crosbyman
          Participant

            Canada Member - 2 Years

            thanks FR  for the update. I should have looked up UTUBES… so easy !!

            1957 Johnson 35 Hp restore and double to single fuel line conversion (youtube.com)

            Joining AOMCI has priviledges 🙂

            #287658
            William Fitzgerald
            Participant

              US Member

              Thank you Crosbyman and FrankR. I will give it  try. I will let you know how it works out. Thanks
