      Hi all,
      New member here. I just picked up a restored 1962 Elgin 14′ runabout with a 1958 Elgin Skipper 35HP motor. I’m new to the vintage boat thing and had a few questions:

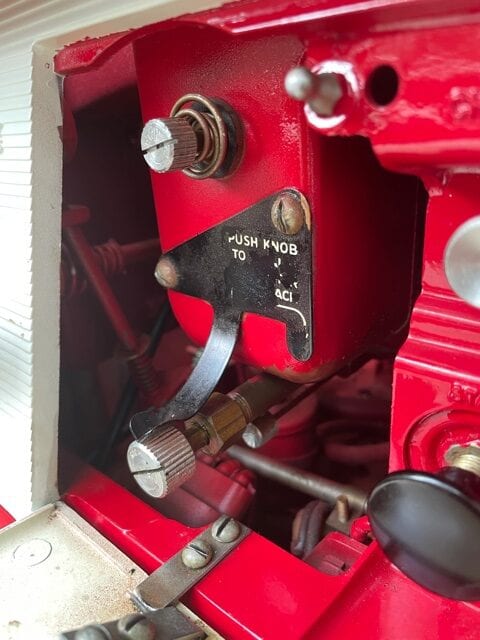

      1) The carb has 2 mixture screws (high and low speed) and a small knob underneath that I don’t know its function. It appears to be spring loaded (push action) and maybe turns too? Anyone know what it’s for?

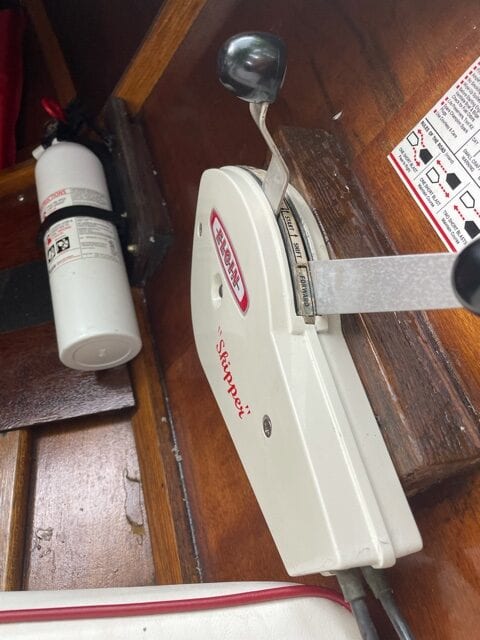

      2) I’m not familiar with the remote control operation. Trying them out with the engine off, it seems like there’s some type of interlock that only allows one of the levers to move if the other one is in a specific position. Can anyone tell me the proper operation?

      Boat

      Motor

      Carb

      Controls

      #241793
      Buccaneer
      Participant

        US Member

        I believe that the motor is made by West Bend, so if you can find a West Bend
        manual, you might find what you need.
        Could the other little knob you describe be a “bowl drain” on the carb?

        Prepare to be boarded!

        #241794
        dave-bernard
        Participant

          US Member

          bring the tall throttle handle back to idle then you can shift F N R may need to be running or turning it over.
          I agree on the small knob carb drain . IF it does not leak DON’T mess with it.

          • This reply was modified 3 years, 9 months ago by dave-bernard.
          #241797
          Patrick McFadden
          Participant

            Thanks, guys. It came with a service manual, but strangely has little to say about the carb and nothing about the remote controls. It runs fine, but I haven’t put it in the water yet. I’ll fire it up in a drum full of water and play with it some more.

            #241808
            bill-mcnamara
            Participant

              Canada Member

              Welcome to the Club! You will find it an extremly valuable source of info and expertise.
              Nice looking boat, I’m a sucker for wooden runabouts having 3 in the water.
              Bill.

              1 user thanked author for this post.
              #241870
              Patrick McFadden
              Participant

                As planned, I started it up in a drum of water and it seems to run pretty well. However, even though the control was in neutral, it appeared that the prop was turning, judging by the amount of water being churned. When the motor is off and in neutral, the prop spins freely and has the expected resistance when in gear. Is it possible that the motor jumps into gear when under power?

                Also, there was a significant black oil slick in the drum after running the motor for less than 5 minutes. Bad news?

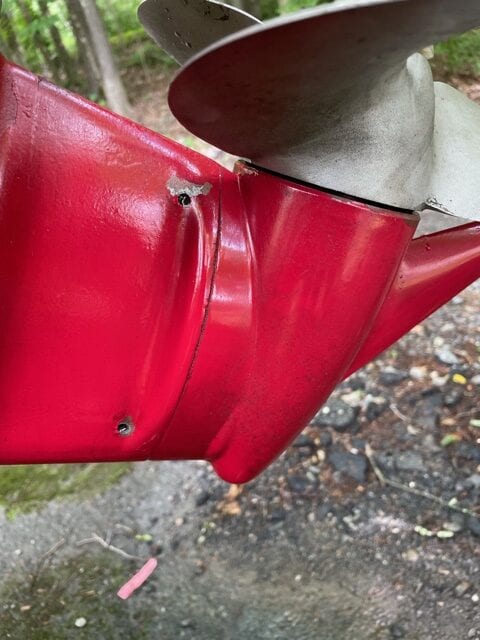

                One more thing – any idea what these 2 holes are for in the shaft housing?

                FYI – I’m a decent mechanic, but new to boats.

                Thanks,
                Pat


                #241873
                dave-bernard
                Participant

                  US Member

                  oil slick no problem 2 holes water drain OK.
                  Got video?

                  • This reply was modified 3 years, 9 months ago by dave-bernard.
                  #241876
                  Patrick McFadden
                  Participant

                    oil slick no problem 2 holes water drain OK.
                    Got video?

                    • This reply was modified 3 years, 9 months ago by dave-bernard.

                    Thanks.

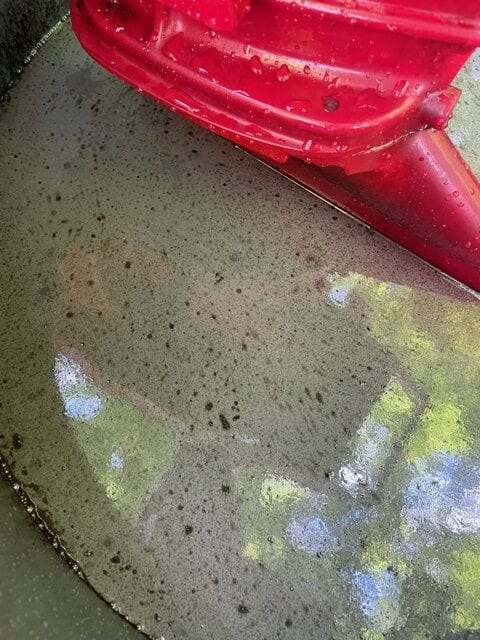

                    Where do you think the oil is coming from? See pic. Looks like a lot and smells pretty strong. Left a black ring on the trashcan when I dumped it out. Is there crankcase oil that gets changed (and could be leaking)?

                    No video. I’ll try to remember next time I fire it up.

                    oil-slick

                    #241880
                    dave-bernard
                    Participant

                      US Member

                      unburnt fuel !!!!!!

                      1 user thanked author for this post.
                      #241912
                      frankr
                      Participant

                        US MEMBER PAY BY CHECK

                        You put oil in the gas. Guess where it goes? Yep, out the exhaust and into the barrel.
