Home Forum Ask A Member 1959 Johnson 35HP Model/SN tag help needed….

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • #170427
    huntleybill
    Participant

      US Member - 2 Years

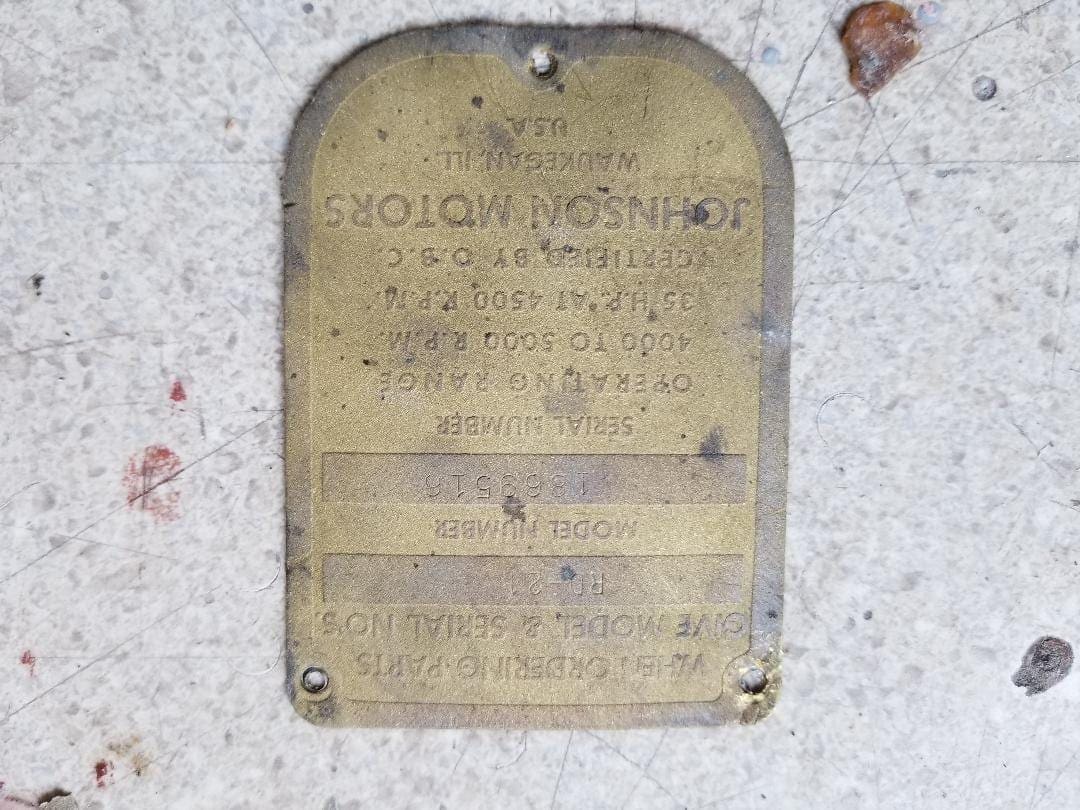

      I got this motor in a cardboard box in pieces. I got it all back together and restored. The ID tag plate looks to have been sand blasted and ruined. (see pic). Does anyone make re-pops of these? I would have no idea how to restore this. Can these be gotten at all? If so, where?

      Your advice would be appreciated. Thank you

      Bill

      thumbnail

      #170433
      Mumbles
      Participant

        Maybe try a trophy shop which does engraving. We have a local trophy shop which advertises they can make items like this. I plan on visiting them some day to see if they can make repops for Johnson 300 and PO-15 carb emblems.

        If I can find their ad, I’ll post it here.

        EDIT: OK, I found a link to their ad. I think a shop like this could make anything we need for our outboards.

        https://www.usedvictoria.com/classified-ad/Lamacoid-Tags–Signs_32993480

        • This reply was modified 5 years, 2 months ago by Mumbles.
        #170439
        labrador-guy
        Participant

          US Member - 2 Years

          I don’t know how particular you are but if you want to experiment here is what I did on a Merc55 a few years ago. First paint the entire tag. Let the paint dry for a week at least. Then gently scrap the paint off the raised letters with a razor blade. (Hope the pictures will post) Have some before and after pics to show you.

          dale

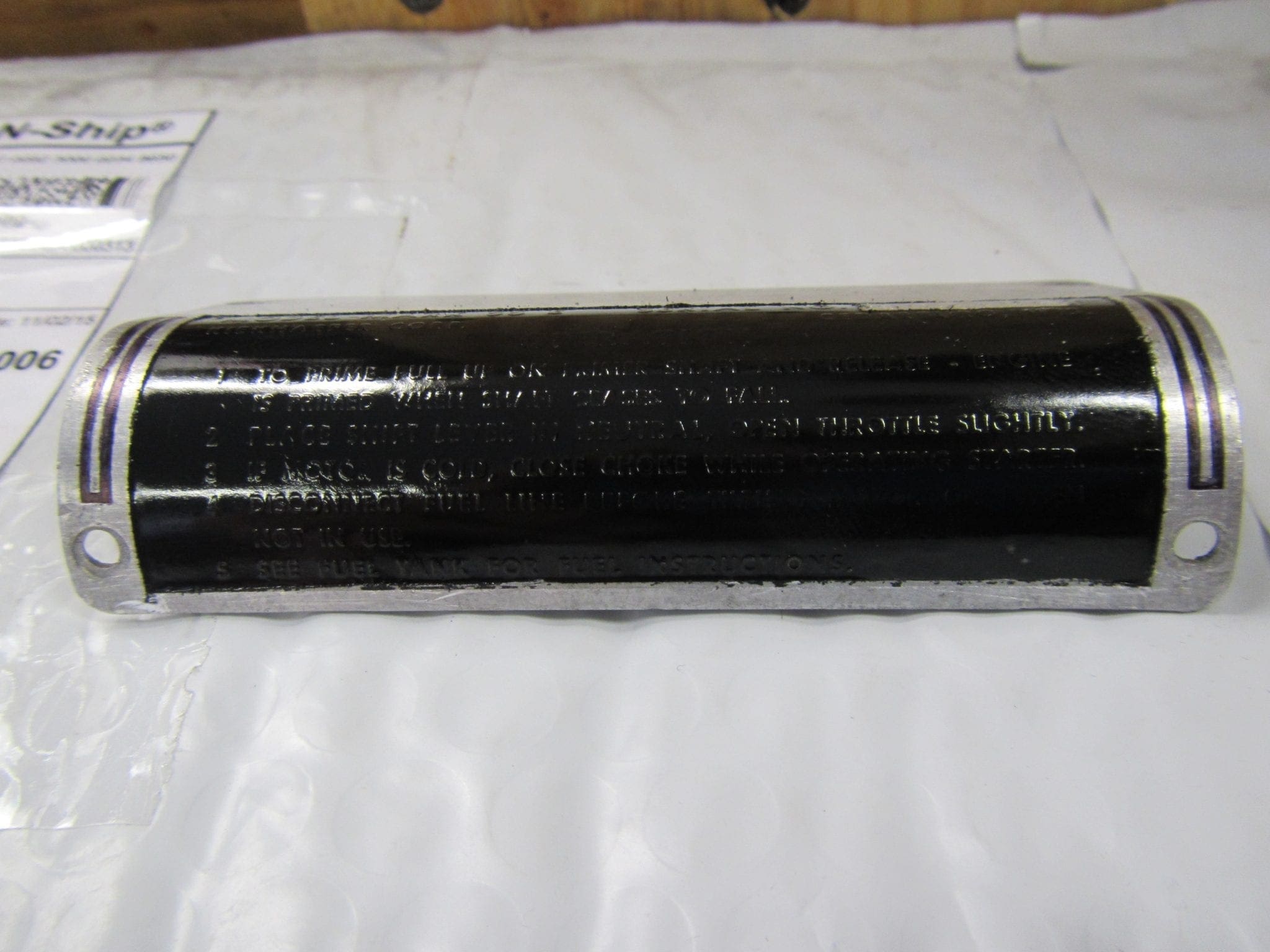

          painted

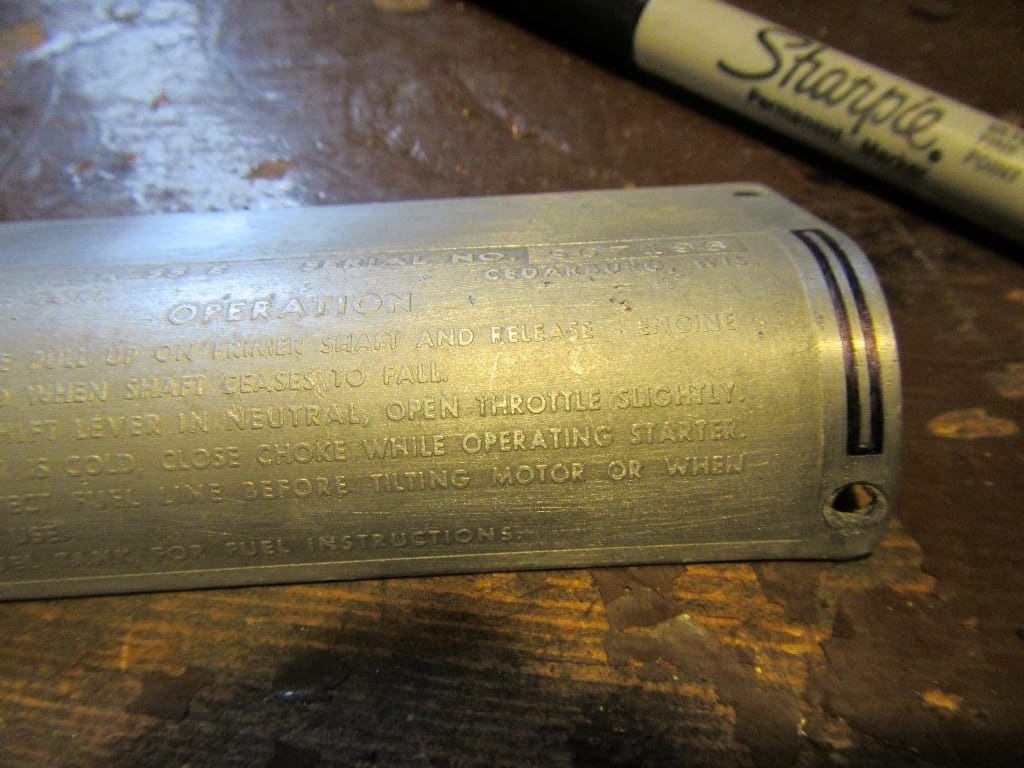

          before

          finished

          • This reply was modified 5 years, 2 months ago by Mumbles.
          #170443
          labrador-guy
          Participant

            US Member - 2 Years

            Try It again!

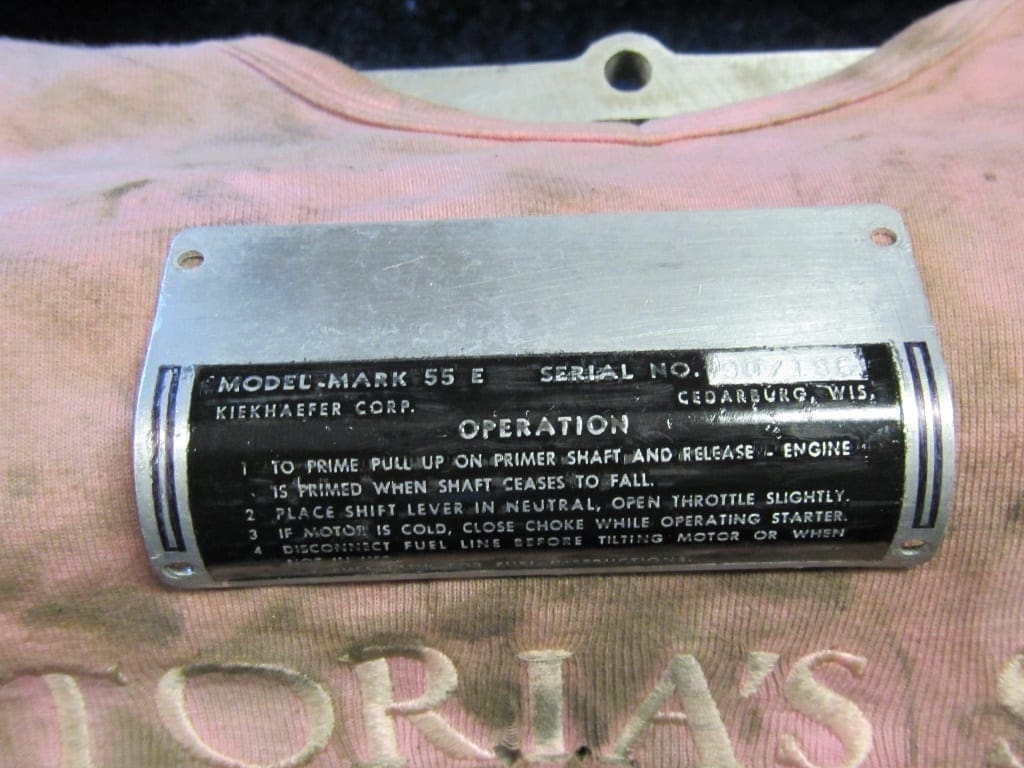

            Finish product

            • This reply was modified 5 years, 2 months ago by Mumbles.
            #170445
            RICHARD A. WHITE
            Participant

              Lifetime Member

              Actually for a flat part, paint the part whatever the base color should be. Wait for it to cure, a week should be good, then create a sanding block larger than the plate and add 600 grit wet/dry sandpaper to the block and this will sand the high spots leaving the recessed areas with paint. You may need to move up to a more fine grit to get the desired finish. Use double sided sticky tape to hold the part to a flat surface.

              http://www.richardsoutboardtools.com
              classicomctools@gmail.com

              #170446
              huntleybill
              Participant

                US Member - 2 Years

                I will give this a try. Thank you all for your input.

                #170447
                outboardnut
                Participant

                  US Member

                  I just checked my RDS-21 parts and the tag is crumpled
                  Maybe find one from a parts motor?

                  #170477
                  rmhxruss
                  Participant

                    These ID plates that I have seen of this vintage had no paint.
