1960 Evinrude 10HP model 10020 shift adapter

Home Forum Ask A Member 1960 Evinrude 10HP model 10020 shift adapter

This topic contains 17 replies, has 4 voices, and was last updated by Avatar fleetwin 3 months ago.

Viewing 15 posts - 1 through 15 (of 18 total)
  • todd281
    todd281
    US Member - 1 Year
    Replies: 55
    Topics: 21
    #175790

    I own a Evinrude model 10020 and I am trying to find out if there was a adapter, to hook a teleflex type shifting cable to it . I have the clip attached directly to the carry handle but that puts the end of the teleflex at a really weird angle. It looks like there ought to be another bracket in there to straighten out the cable in relation to the shift lever. Does any here know if that was the case? maybe a part # ? Thanks in advance

    Mumbles
    Mumbles
    Canada Member - 2 Years
    Replies: 4156
    Topics: 421
    #175792

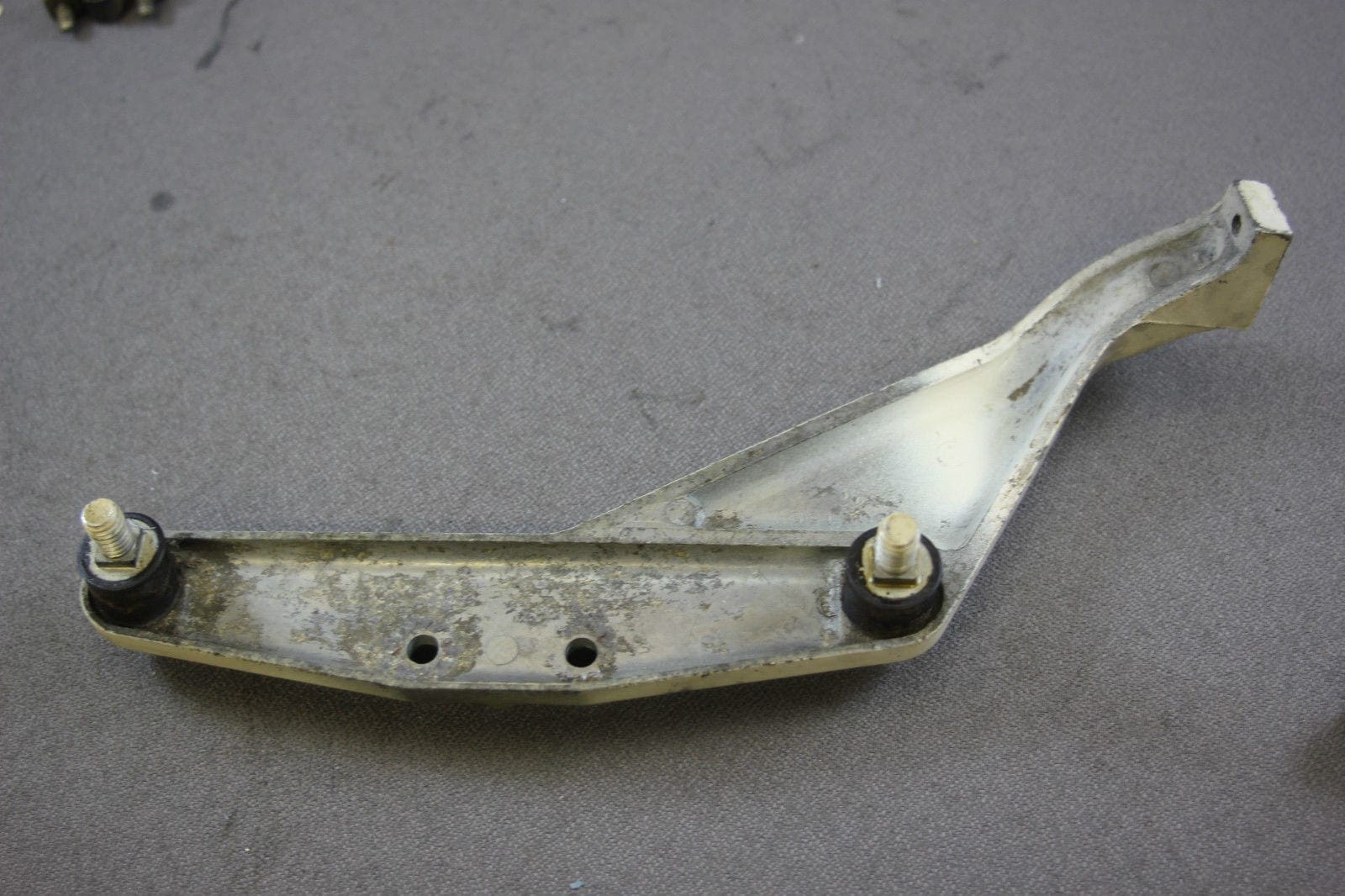

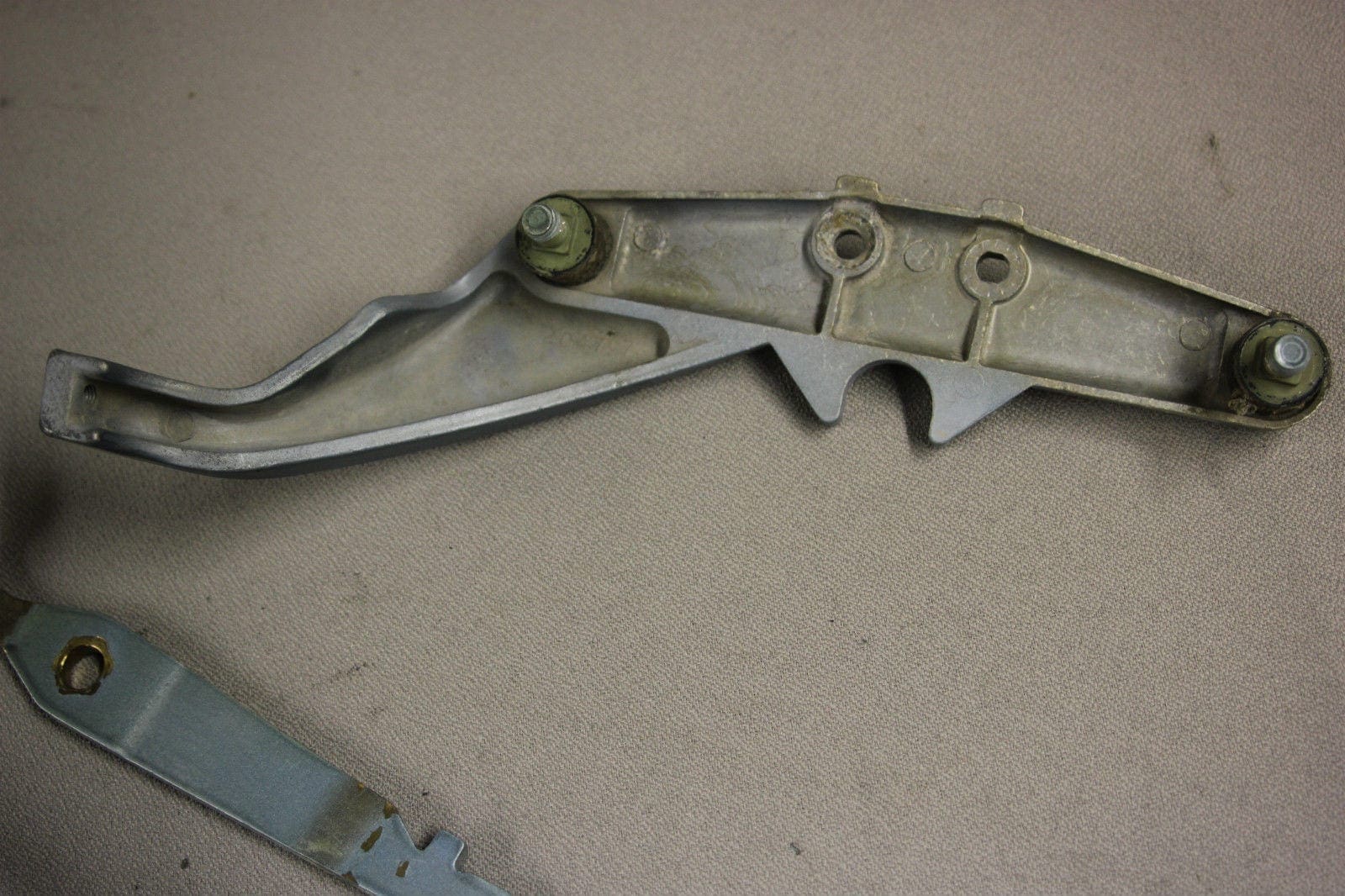

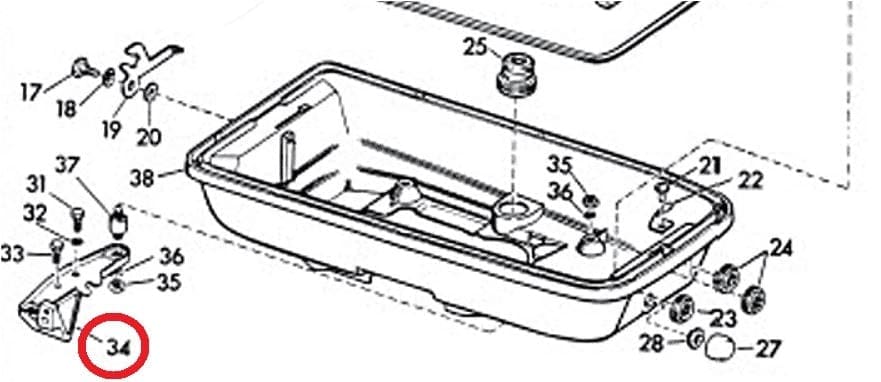

    The part you want is #34 in this diagram and it fastens under the front of the lower pan. Being delicate, they are easily broken off. Johnsons of the era used a similar bracket.

    Attachments:
    Avatar
    fleetwin
    US Member - 2 Years
    Replies: 2699
    Topics: 32
    #175799

    Isn’t that bracket there already? Perhaps it is broken off….

    frankr
    frankr
    US Member - 1 Year
    Replies: 4326
    Topics: 43
    #175801

    Yep, part number 307469. They are model-specific. marineengine.com has them at a reasonable price.

    todd281
    todd281
    US Member - 1 Year
    Replies: 55
    Topics: 21
    #175811

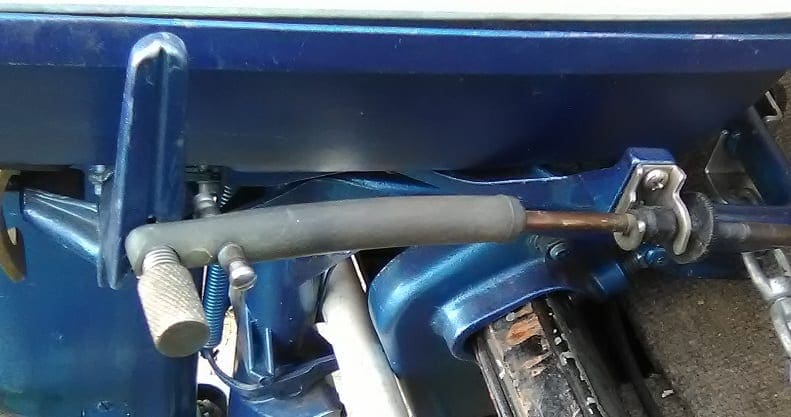

    Here is a picture of what I have, perhaps my bracket [#34] is bent. As you can see there is a bit of sideways force on the shifting lever , it almost feels like I could install the quick connect pin through the shifting lever from the motor side.

    • This reply was modified 3 months ago by Mumbles Mumbles.
    Attachments:
    frankr
    frankr
    US Member - 1 Year
    Replies: 4326
    Topics: 43
    #175815

    Looks to me like the plastic casing guide on the end of the cable is warped. Or is it just me?

    todd281
    todd281
    US Member - 1 Year
    Replies: 55
    Topics: 21
    #175833

    That casing is not warped, the bracket is putting enough side ways pressure on it to bend it . hence the question here. I thought perhaps I was missing another piece of the puzzle but mow it looks like that bracket must be misshapen .

    frankr
    frankr
    US Member - 1 Year
    Replies: 4326
    Topics: 43
    #175834

    I suppose it must be bent then. Usually they just break.

    But FYI there are two kinds of the stainless steel lock that holds the cable to the bracket. The difference is the width of the slots that the cable trunion (plastic adjusting wheel) fits into. The old narrow slots are for the old non-adjustable trunnion, and the wide ones are for the adjustable plastic one like you have. I can’t decide if you have the correct one or not. But it’s in there, so I reckon it must the right one (?).

    Mumbles
    Mumbles
    Canada Member - 2 Years
    Replies: 4156
    Topics: 421
    #175843

    The mounting bracket may be bent out of alignment. I do have one of these models put away and will check it for alignment later today and compare it to yours.

    Mumbles
    Mumbles
    Canada Member - 2 Years
    Replies: 4156
    Topics: 421
    #175886

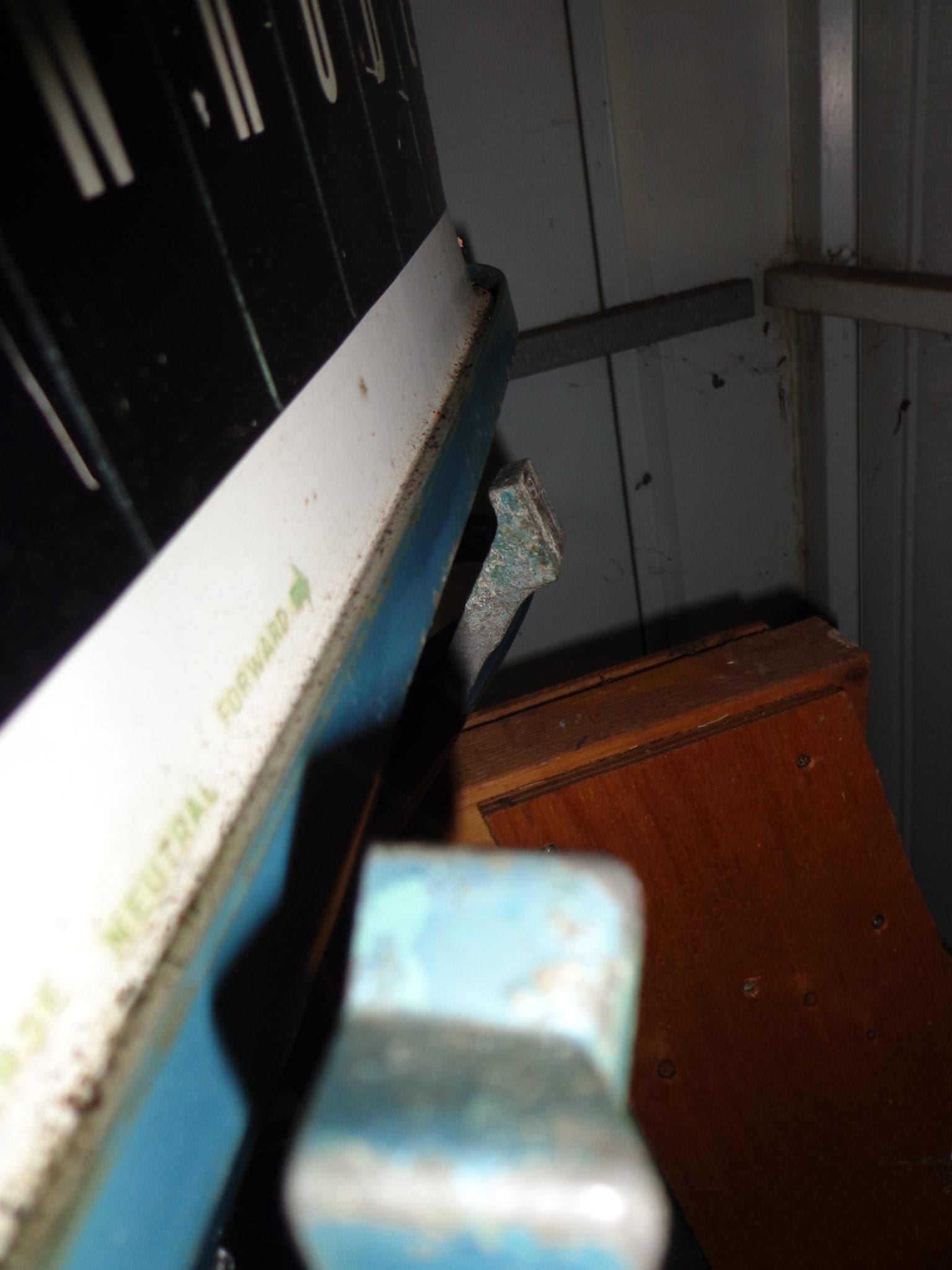

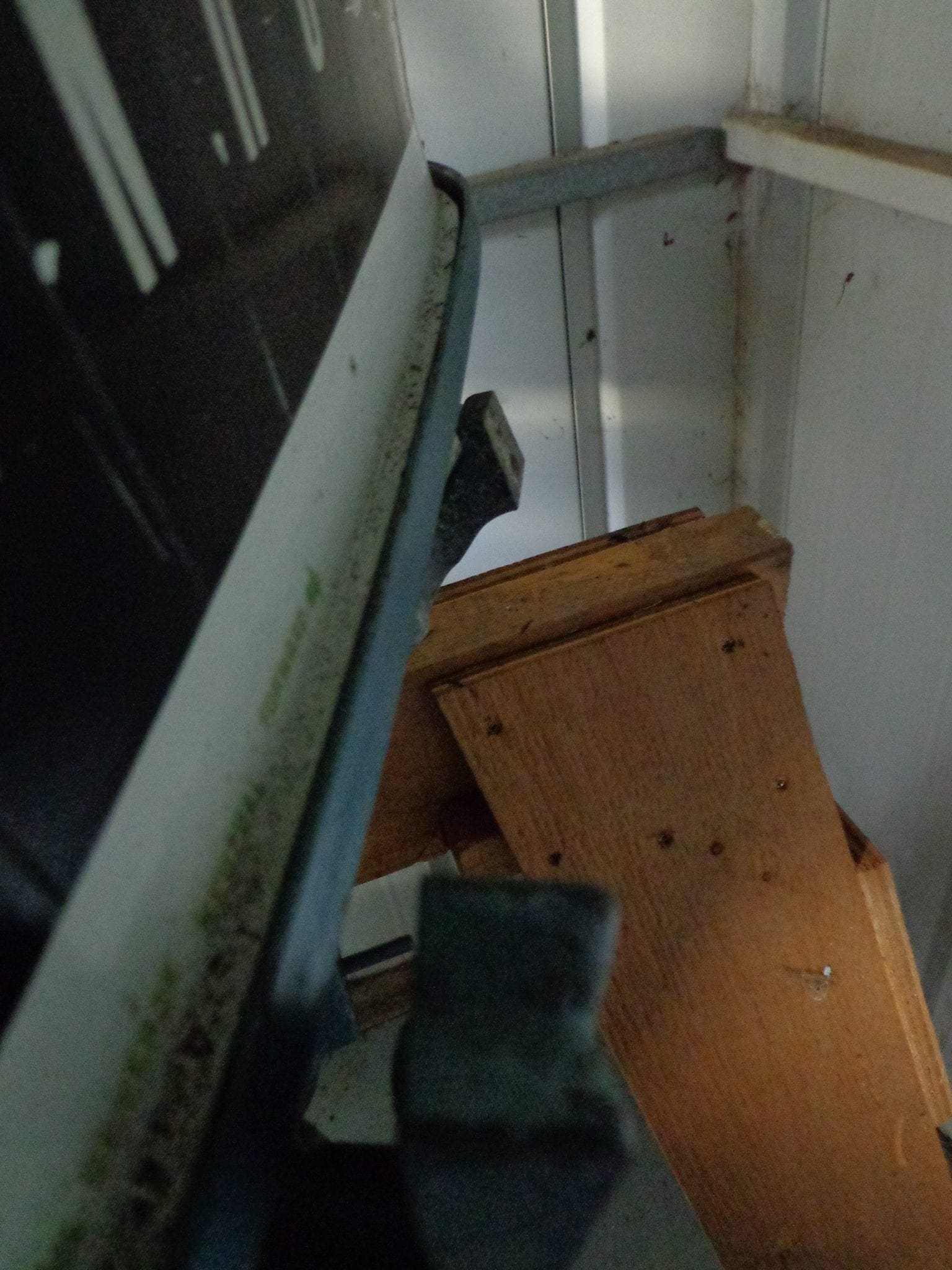

    I managed to get a photo of my motors bracket but it isn’t much help as the bracket is bent and pointing skyward. It has probably taken a fall or been transported laying down on the shifter side.

    Attachments:
    Avatar
    fleetwin
    US Member - 2 Years
    Replies: 2699
    Topics: 32
    #175891

    I think the problem is that someone has changed the shift handle, that is not the right one for the 59-60 bread box Evinrudes…The one shown on your engine is from a 61-63 10hp with the newer cowl/cover design….Changing that shift handle is pretty simple on this engine….Or, perhaps you could just have an aluminum block made up that would push the control cable outwards a bit to conform better with the later model shift handle….
    Looks like a nice motor though!

    frankr
    frankr
    US Member - 1 Year
    Replies: 4326
    Topics: 43
    #175908

    Good eye, fleetwin. Correct handle is 278025.

    • This reply was modified 3 months ago by Mumbles Mumbles.
    Attachments:
    Avatar
    fleetwin
    US Member - 2 Years
    Replies: 2699
    Topics: 32
    #175913

    Thanks Frank, means a lot coming from you…..

    todd281
    todd281
    US Member - 1 Year
    Replies: 55
    Topics: 21
    #175932

    And so another outboard mystery is solved. I will try to get my hands on the correct shifting handle . Until then , I think I will make up either a spacer or perhaps a wedge to correct the angle of the end of the cable. Thanks to all for all the help. [and for the complement on this outboard ] Its not original, I sanded, etched, primed, and painted it, then applied new decals. Of course new impeller replaced the gear lube, just regular stuff that I do to all my outboards.

    Avatar
    fleetwin
    US Member - 2 Years
    Replies: 2699
    Topics: 32
    #176009

    Looks real nice, wish I had cosmetic restoration talents….My paint jobs come out look like someone put the paint on with a roller, until it starts peeling off again!
