1960 Evinrude 75 hp mag. timing marks

Home › Forum › Ask A Member › 1960 Evinrude 75 hp mag. timing marks

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • August 16, 2021 at 9:39 am #244976
    Bob Swift
    Participant

      Have a Evinrude Starflie (1960) mag ignition which has timing mark on pulley but no apparent corresponding mark on motor that I can find . Shop manual has no clear indication other than ” safety switch ” which is shown located on opposite side of mag housing from mine . Anyone had this issue ? If so please share your solution .

      August 16, 2021 at 11:26 am #244981
      frankr
      Participant

        US MEMBER PAY BY CHECK

        Yeah, the safety switch was moved for 1961. Use these instructions for your 1960

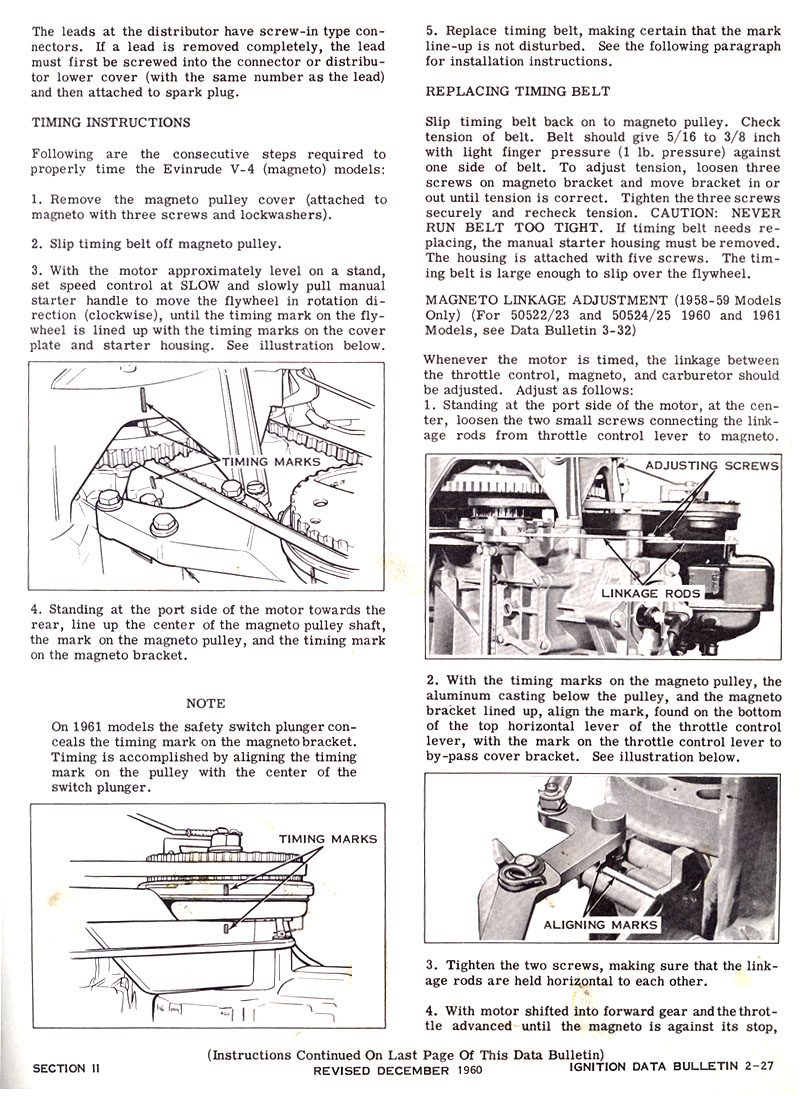

        50-hp-magneto-2

        August 16, 2021 at 1:54 pm #244987
        Bob Swift
        Participant

          Howdy back ……… thanks for the info and quick response ! I’m a measure twice cut once guy and your answer and attached bulletin proved out what I assumed to be the case . Thanks again !

        • Author
          Posts
        Viewing 3 posts - 1 through 3 (of 3 total)
        • You must be logged in to reply to this topic.
