1963 Evinrude Big Twin, help?

Home Forum Ask A Member 1963 Evinrude Big Twin, help?

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 7 posts - 1 through 7 (of 7 total)
  • Avatar
    Larry Howes

    US Member - 1 Year
    Replies: 0
    Topics: 1
    #203745

    Hello, i am new here, just signed up.

    I bought a 1963 Evinrude 40hp Big Twin and it has an electric starter
    but now starter cylinoid and wiring to hook up to the controls is missing.

    Is there anyone that can help find a wireing harness or any information
    to get in running.

    I have not had any success finding anything.

    The model # is 40353D
    Serial # is E01713

    Thanks in advance to any help.

    Larry.

    Avatar
    crosbyman

    Canada Member - 1 Year
    Replies: 1541
    Topics: 189
    #203749

    did you try the johnson red book at the url above the picture …. basic wiring layouts shown in theelectrical section … you can probably make your own harness if unable to find one

    http://www.boatinfo.no/lib/evinrude/manuals/1956-1970johnsonevinrude.html#/376

    Joining AOMCI has priviledges 🙂

    • This reply was modified 1 week, 4 days ago by Avatarcrosbyman.
    Attachments:
    frankr
    frankr

    US Member - 1 Year
    Replies: 5016
    Topics: 48
    #203754

    Welcome, Larry

    Well you might have to make a choice, look for a junction box and stuff to restore it back to original or hard-wire it. The original stuff is out there, but getting harder and harder to find. If you decide to go the hard-wire route, here is the wiring diagram

    frankr
    frankr

    US Member - 1 Year
    Replies: 5016
    Topics: 48
    #203755

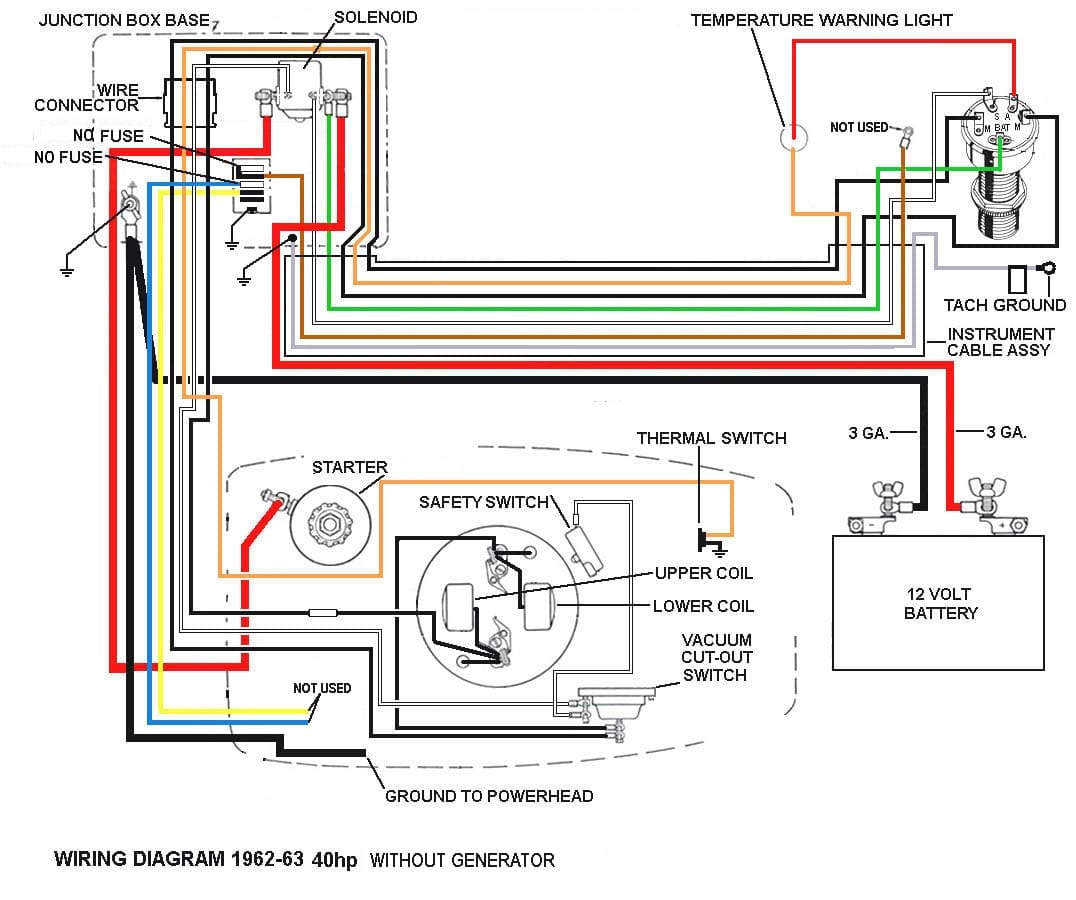

    Hm-m-m-m, diagram didn’t post. Trying again

    Wiring-1962-63-JE-40HP-Without-Generator-verified-fr

    Attachments:
    frankr
    frankr

    US Member - 1 Year
    Replies: 5016
    Topics: 48
    #203758

    Something you should know—-That is not a car solenoid. They look exactly like a car (Ford) solenoid, but are different inside.

    Avatar
    ede

    US Member - 2 Years
    Replies: 142
    Topics: 3
    #203782

    What part of the country are you located? I may have something you can use, need to discuss. Ed Elliott eddelliott@cox.net

    Avatar
    outbdnut2

    US Member - 2 Years
    Replies: 1205
    Topics: 64
    #203834

    AN exact replacement aftermarket solenoid is a Sierra Marine 18-5807 that can be bought at NAPA auto stores as their number SME 185807. Or online at a lot of places like iboats.com. Just run a search for 18-5807.
    Dave

    Click on the link below:

    iboats solenoid

    • This reply was modified 1 week, 2 days ago by Avataroutbdnut2.
    • This reply was modified 1 week, 2 days ago by Avataroutbdnut2.
