November 8, 2024 at 11:23 am #291990
Probably someone dropped the carb needle on the ground and blunted the point. You will have to remedy that; best with another needle. Using that one can damage the seat inside the carburetor. You will have a bad day.
The other way that large amounts of fuel can get ingested by a motor (and end up in the water) is with a ruptured fuel pump diaphragm. A symptom of that would be a primer bulb that noes not get hard.
the blunt point needle is the bottom HS needle and normal isn’t … ?
Joining AOMCI has priviledges 🙂
November 8, 2024 at 12:25 pm #291992It also will intermittently puke gas out of the front of carb when I’m priming it.
That means the float is not shutting off the inlet gas when the carb bowl gets full. This can be caused by the float level being set too high, float in upside-down, float hanging up on an oversized bowl gasket from a cheapie Chinese copy of a carb kit, dirt in the float valve needle and seat, float not moving freely on its hinge, etc.
A crude test of the float and valve is to blow into the fuel inlet with the carb off the motor and empty (yes I blow with my mouth) – you should be able to blow air into it. Then turn the carb upside down and blow into the fuel inlet – you should not be able to blow air into it, as gravity pulled the float and shut the valve. This checks the float valve , but if the float level is set way too high, it can still flood when priming.

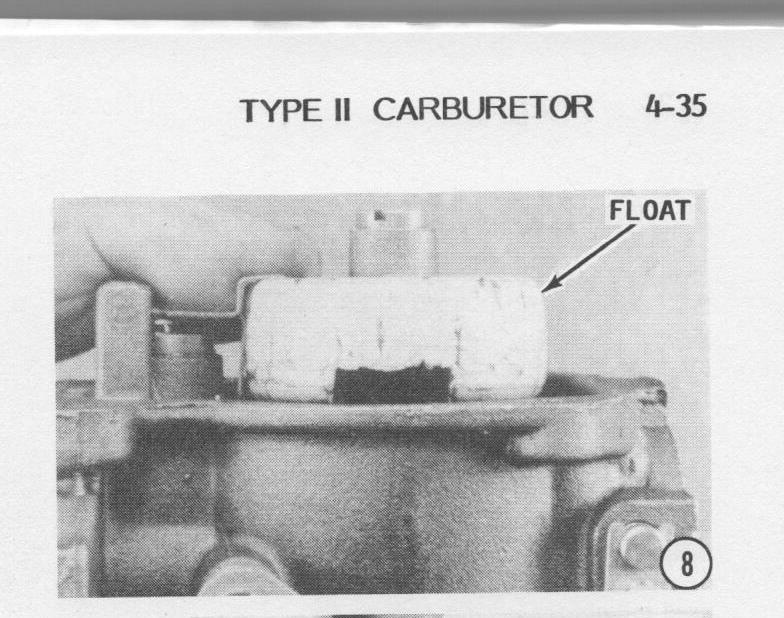

Float should be level and parallel to the carb body when held upside down with the bowl off like in the photo below. Bend the tang on the float to adjust.
Dave
November 8, 2024 at 1:12 pm #291994I forgot to add that if your float is made out of cork, it may not float so well any more, especially if the protective varnish coating is damaged or gone. Ethanol in the gas and other things wreck this coating, and the cork can soak up gas and not float well any more. If that’s the case, either replace it, or thoroughly dry it out and recoat it. I’ve used clear, hot fuel proof, model airplane “Dope”. I’ve heard of people coating them with superglue but haven’t tried it myself. New float is best.
Dave
November 8, 2024 at 8:10 pm #291999OK, so you have not actually pressure tested the unit, correct? All the new seals/orings and gaskets can not compensate for a damaged or porous casting. You also report poor water pump output at higher RPM. I’m remembering something that Frank Robb posted awhile back… Sometimes these castings crack behind the water inlet cover about the AV plate. Does oil leak out of the unit when it is just sitting in the run position while out of the water?
Like others have said, you might also just be dealing with oil exhaust drool/residue. What does the gear lube look like when you drain it out??
November 8, 2024 at 10:19 pm #292001Meier, I am having a hard time believing what I think I am seeing. Where are you running this thing? It sounds like you are saying you are running it in some sort of bucket or tank or whatever.
Bottom line is you are only kidding yourself and confusing the rest of us, if that is true. You just cannot properly test and adjust a 28hp motor in anything less than a proper test tank and a test prop. You mentioned running it at full throttle for 10 minutes and are disappointed with the fuel usage. Put that thing on a boat on the lake and get it properly dialed in before you scatter powerhead parts all over the place.
November 9, 2024 at 8:26 am #292004…and tell us YES or NO if the GC oil is getting contaminated with water … an oily bucket means nothing !
Joining AOMCI has priviledges 🙂
November 9, 2024 at 9:34 am #292005I really appreciate all the answers! Hopefully I’m addressing all questions. I’m just running it in a 13 gal garbage can with no prop. I was afraid to take it out on water but it sounds like I have to.
The first time I took the GC apart, the oil looked milky. The second time it looked clean. I don’t see any visible leaks when it is out of water.
I changed the float when I rebuilt the carb, I did the crude blow test but I didn’t adjust the tang. Sounds like that is my next step!
Thanks again all!
November 9, 2024 at 9:37 am #292008Are you sure your motor is running on two cylinders? One lung down will puke a lot of oil/gas into the drink!
dale
November 9, 2024 at 10:38 am #292011I also have a fuel pump rebuild kit so I’ll replace the diaphragm. I cleaned it out but haven’t actually rebuilt it yet.
I’ll also get that book and watch the recommended videos. I think you guys saved this thing from the scrap yard!
November 9, 2024 at 10:56 am #292012How do I know if it’s only running on one cylinder?
-
