1963 Gale 25HP wiring Diagram

Home › Forum › Ask A Member › 1963 Gale 25HP wiring Diagram

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • July 6, 2017 at 4:13 pm #7559
    adam1961
    Participant

      Canada Member

      Hello,
      Does anyone have a copy of the wiring schematic for a 1963 gale 25HP Electric Start? I am mostly interested in the section from the junction box to the dash. Everything on the motor end is intact.
      Adam

      July 6, 2017 at 9:30 pm #61133
      garry-in-michigan
      Participant

        Lifetime Member

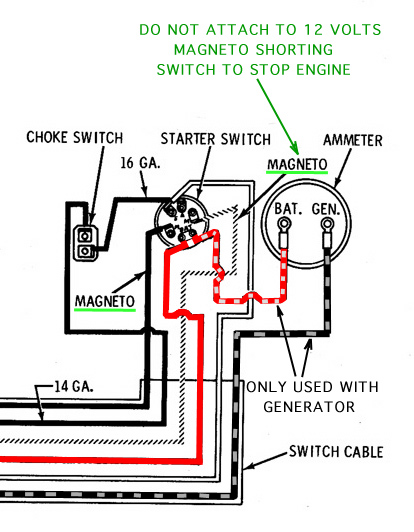

        I believe this was standard for OMC 22 to 40 horse power magneto equiped twins.

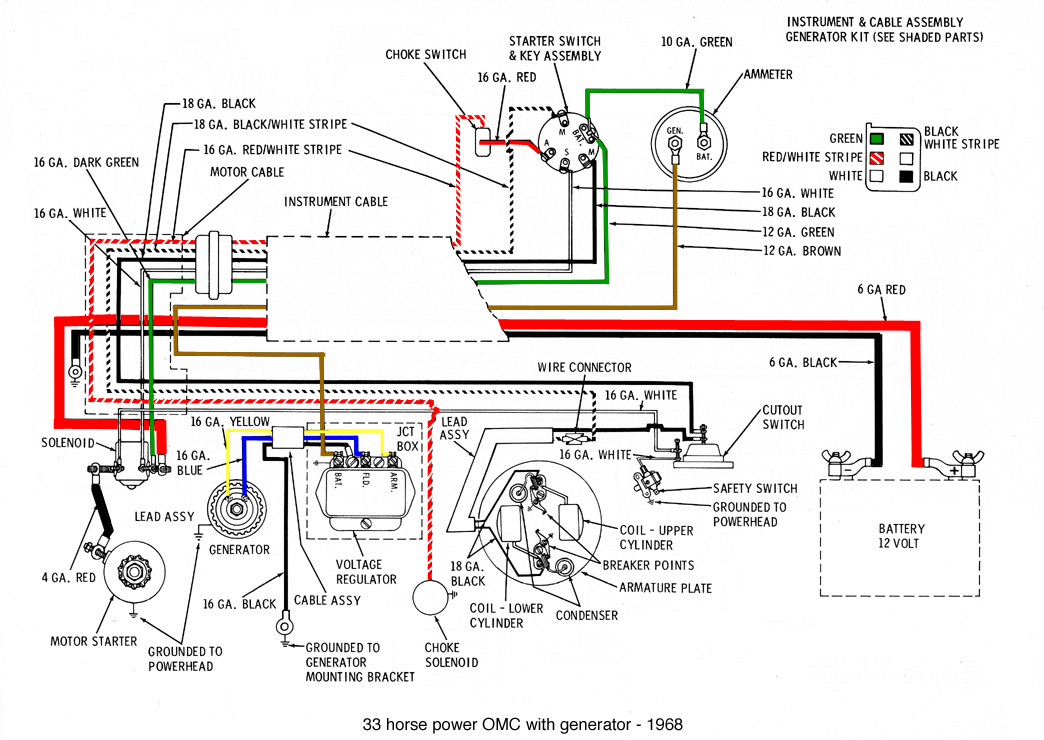

        This is for the 33 horse power Evinrude Ski-twin . . .

        July 6, 2017 at 11:20 pm #61142
        frankr
        Participant

          US MEMBER PAY BY CHECK

          See there, you went and gave ma a job to do—-colorizing this. 25hp Gale Specific

          July 6, 2017 at 11:26 pm #61143
          frankr
          Participant

            US MEMBER PAY BY CHECK

            July 7, 2017 at 10:55 am #61169
            adam1961
            Participant

              Canada Member

              Thank you all,
              This is most helpful.

              Adam
