1963 Sportwin Connecting Rod Orientation

This topic has 3 replies, 3 voices, and was last updated 6 years, 3 months ago by Mumbles.

Viewing 4 posts - 1 through 4 (of 4 total)

Author

Posts
December 24, 2017 at 6:24 pm #8893
h20lew
Participant
US Member - 1 Year (includes $3 online payment fee)
Another reassembly question on my 10 HP 1963 Evinrude Sportwin.

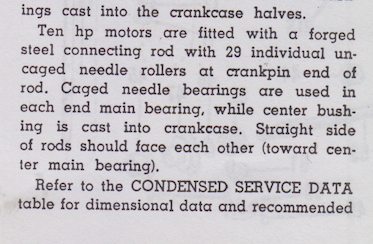

I’m using a repair manual titled "Old Outboard Motor Service Manual – Volume 1". For this motor, in the manual they say "…straight side of rods should face each other (towards center main bearing)".

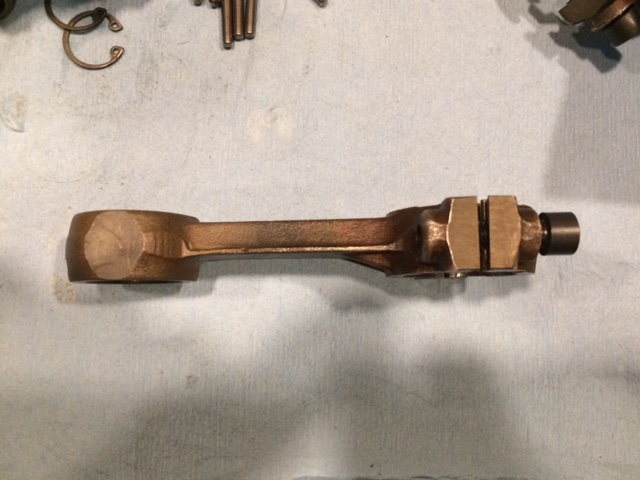

OK – that’s fine, but looking at the rods it’s not entirely obvious which side they mean. If you look at it from the narrow side (the first photo), one side of the rod is straight across the face but has a deep notch in the middle. The other side is straight and flat across most of the face – but has ridges where it connects to the crank… so it’s not entirely clear from the simple description in the manual which side they mean.

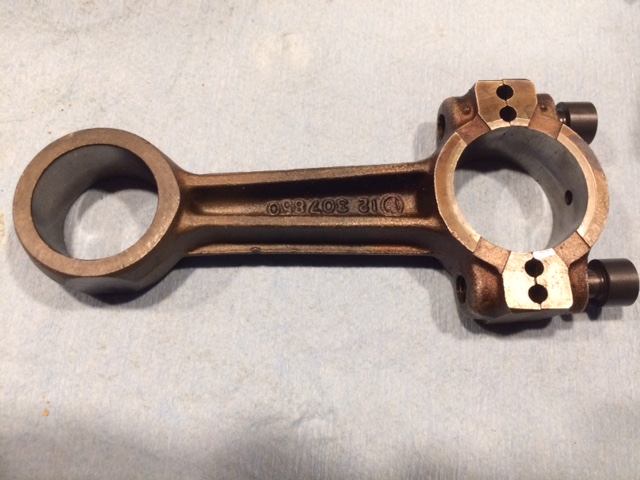

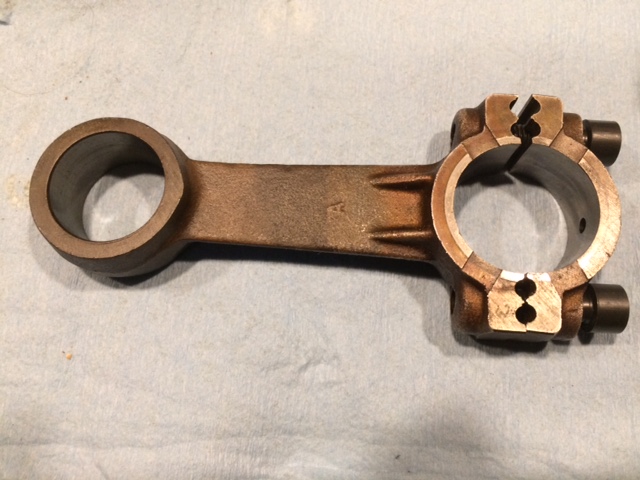

I’ve posted pictures of one of the rods… should the part number side go towards the main bearing or should the side stamped ‘A’ go towards the main bearing?

Any clarifying advice would be very much appreciated.

Attachments:
December 24, 2017 at 6:55 pm #68956
frankr
Participant
US Member - 1 Year (includes $3 online payment fee)
look at the rods and crankshaft and it will become obvious which way they go. The rods are offset to clear the counterweights on the crank..
December 24, 2017 at 7:14 pm #68958
h20lew
Participant
US Member - 1 Year (includes $3 online payment fee)
Duh! Indeed it did become obvious. Thanks.

For anyone looking at this post in the future, looking at my photos, the side with the part number points towards the center main bearing.
December 24, 2017 at 8:57 pm #68963
Mumbles
Participant

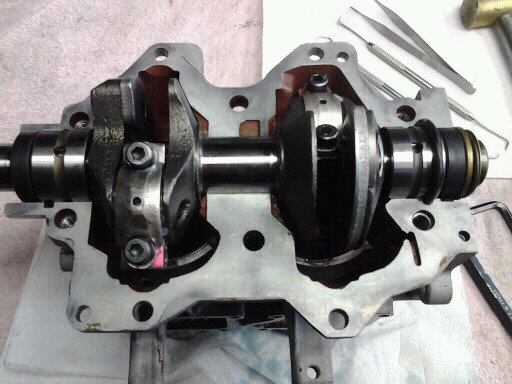

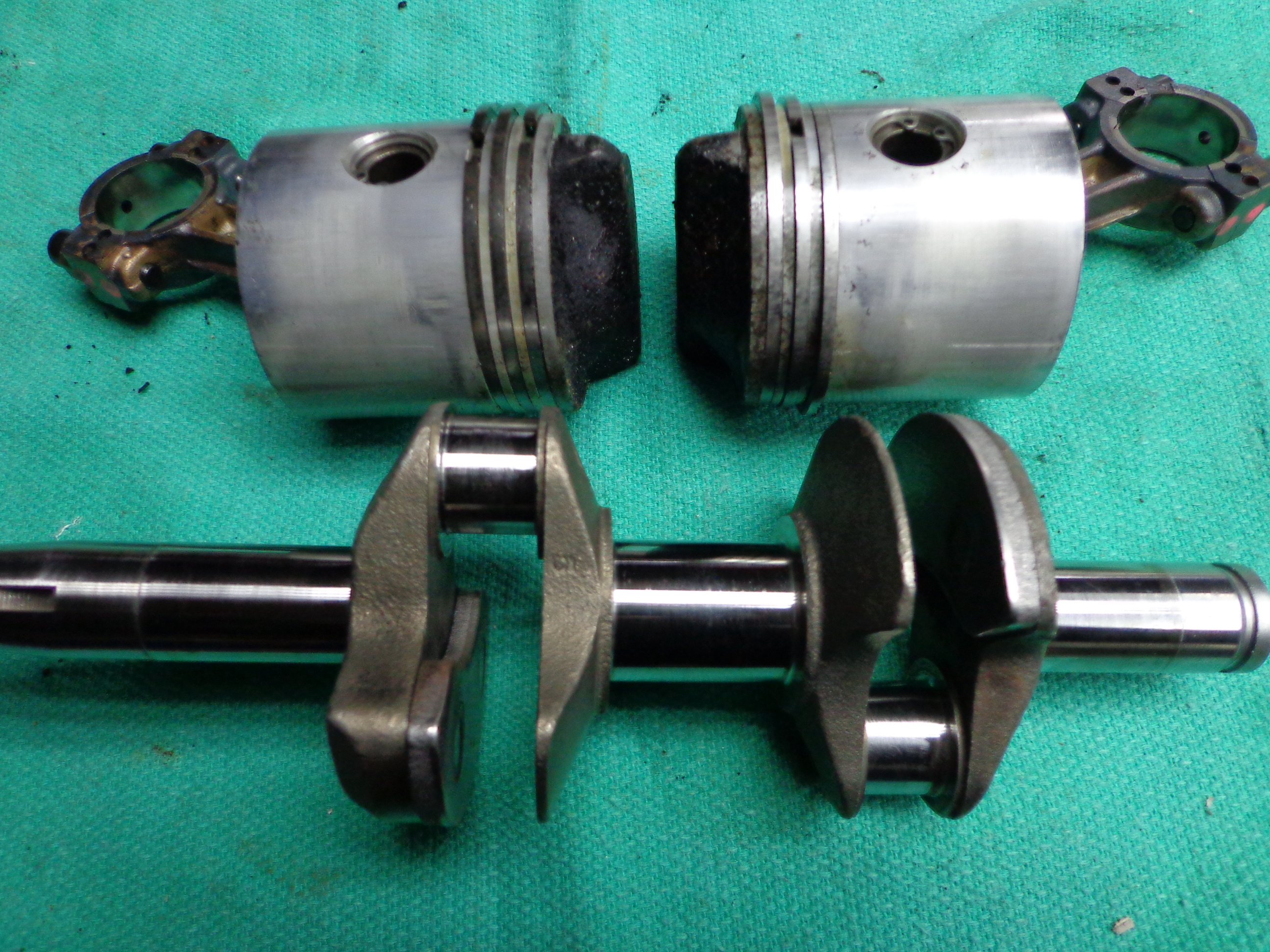

Here’s a photo showing those riveted on counter weights. OMC must of done them this way so they could machine the rod journals.

Attachments:
